Week 10 - Challenge 2- Attachment Feature Creation (Dog House)
Report :
Report :
1) Received Class A surface.
2) Created tooling axis using extract method.
3) Created offset with 3mm distance.
5) Created B surface.
6) Filled gaps that are formed after missing few surfaces from Class A using Multi-Section method.
7) Created C curface using both Draft direction and Reference surface option as per requirement.
8) Joined Class A and Class C.
9) Found Intersection of the above Join and Class B.
10) Trimmed it along with the Intersection.
11) Closed Body is formed.
12) One surface is extracted and square is sketched, with one open side.
13) It is extruded to required length.
14) The above side is closed using multi section.
15) It is thickened.
16) Edge fillets are given.
17) It is assembled to the Part Body.
18) Inner properties are made.
19) The process of Dog House is done.

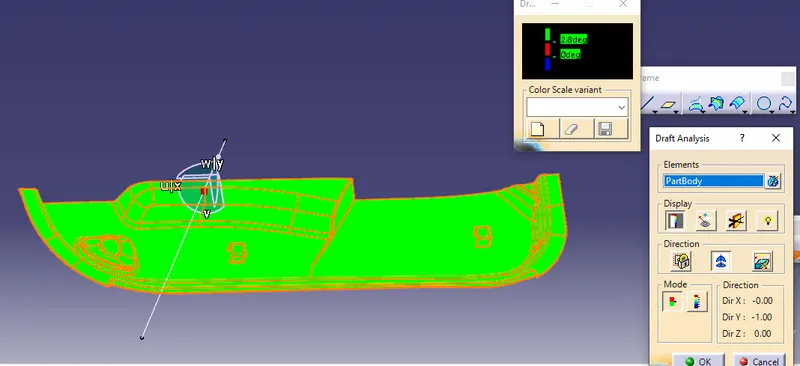

20) Draft analysis is done.
21) Same is repeated for the Second Dog House.
22) It is also assembled to the Part Body.
23) Draft Analysis is done.

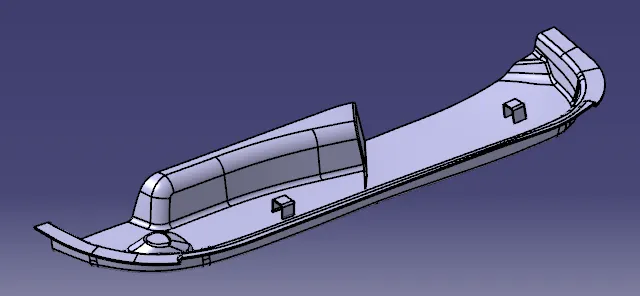

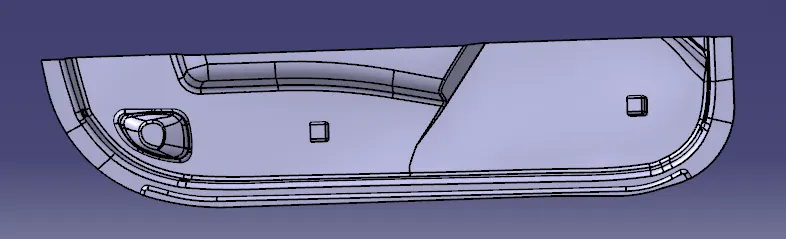

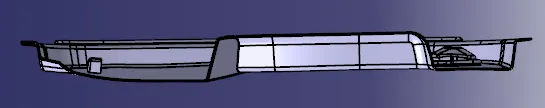

24) Final Product is obtained
24) Final Draft Analysis is done.
