Week 9 - Challenge 3 - Bumper

Report :

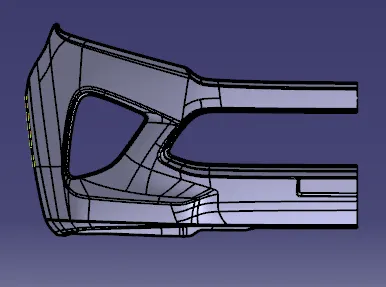

1) Received Class A surface.

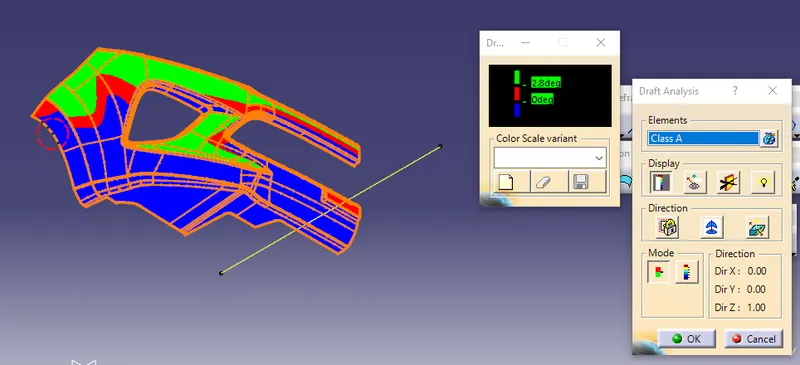

2) Created tooling axis using extract method.

3) Created offset with 3mm distance.

5) Created B surface.

6) Filled gaps that are formed after missing few surfaces from Class A.

7) Created C curface using both Draft direction and Reference surface option as per requirement.

8) Joined Class A and Class C.

9) Found Intersection of the above Join and Class B.

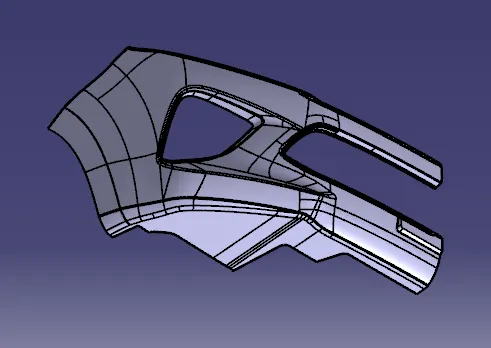

10) Trimmed it along with the Intersection.

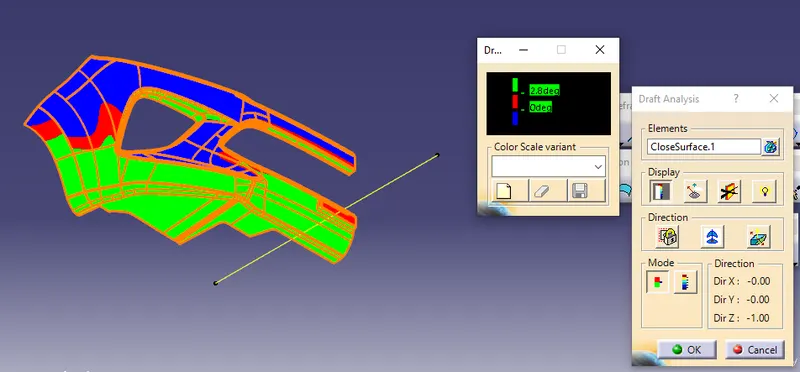

11) Closed Body is formed.
