Objective : To understand the imporatance of time step in numerical solution for 1D linear Convection Equation.
Terms to be understand :
Convection : The flow that combines diffusion and the advection is called convection.
Advection : Bulk transfer of mass,momentum,heat of the molecules due to flow of field.
Diffusion : Diffusion mainly due to momentum of the molecules , from high to low concentration
region of property.
Courant Number (CFL Criteria):
CFL = c⋅ΔtΔxc⋅ΔtΔx.
Used to understand the stability of model.
ΔtΔt = time step.
ΔxΔx = grid size.
CFL < 1 , condition for the model to be stable for explicit time marching problems.
As here grid size is static , and velocity(c) is constant (1m/s) , so CFL resitricted to time step.
As CFL αα time step , CFL increases as time step increases errors get approach to be bounded.
General Equation using discretization and taylor series :
This scheme is First order upwind scheme
∂ϕ∂t=-c⋅∂ϕ∂x+c⋅Δx2⋅(1-λ)⋅∂2ϕ∂x2+O([Δx2])∂ϕ∂t=−c⋅∂ϕ∂x+c⋅Δx2⋅(1−λ)⋅∂2ϕ∂x2+O([Δx2])
As leading term of truncation error here is even power derivative , so dissipation occurs...
Can observe that in results below , as over time loss in momentum (velocity decreases)...
As by defination , dissipation means loss of quanitity over time...
here λλ is courant number.
NOTE :
CFL Criteria is used for explicit method , no matters how much is courant number while doing implicit method.
Discretization can be solved by using Three methods ...,
Stability criterias :
Explanation of code :
Code snippet :
close all ; clear all ;clc
n = 80;
dt = [1e-4,1e-3,1e-2,1e-1];
t = 0.4;
nt = t./dt;
t1 = ones(1,4);
x = linspace(0,1,80);
dx = x(2) - x(1);
u = ones(1,n);
A = logical(x>=0.1 & x<=0.3);
index = find(A==1);
n_start = index(1);
n_end = index(end);
u(n_start:n_end) = 2;
plot(x,u)
hold on
for p = 1:length(dt)
[u1,a] = linear_convection_func2(dt(p),nt(p),length(x),u,dx);
plot(x,u1)
if dt(p) == 1e-3
text(x(36),u1(36),strcat('dt=',num2str(dt(p))));
else
text(x(50),u1(50),strcat('dt=',num2str(dt(p))));
end
axis([0 1 0 2])
t1(p) = a;
end
legend('initial','1e-4','1e-3','1e-2','1e-1')
figure(2)
X = categorical({'1e-4','1e-3','1e-2','1e-1'});
X = reordercats(X,{'1e-4','1e-3','1e-2','1e-1'});
bar(X,t1(1,:))
title('simulation time for ',num2str(80))
xlabel('\delta t')
ylabel('simulation time')
Function snippet :
function [z,a] = linear_convection_func2(dt,nt,k,u,dx)
v = u;
L = 1;
c = 1;
tic
%time loop
for i = 1:nt
% space loop
for j = 2:k
z(j) = v(1,j) - ((c*dt)/dx)*(v(1,j) - v(1,j-1));
end
z(1) = 1;
v = z;
end
a = toc;
end

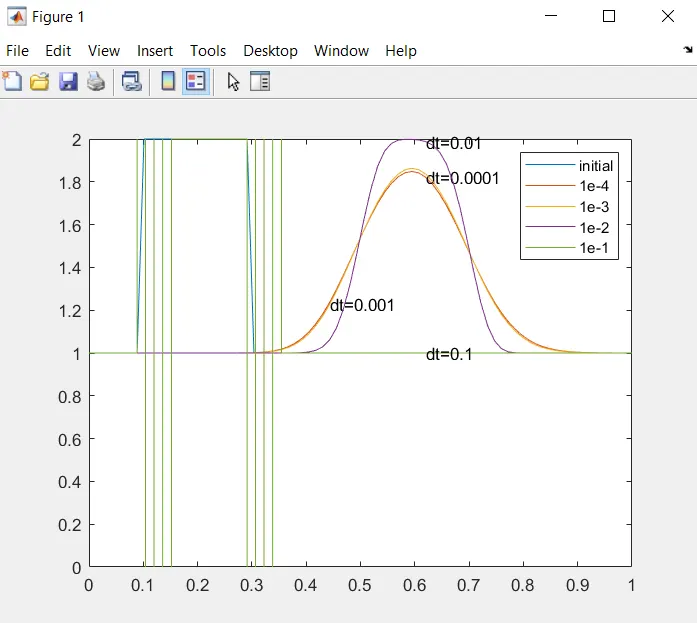

Results :
Generally , time-step consideration depends on the discretization model we considered.
Here by increasing the time step , stability and rate of convergence increases.
But for 'dt = 0.1' , solution blasted , as it undergoes under instability .(CFL > 1).
For explicit time marching problems , (CFL < 1).

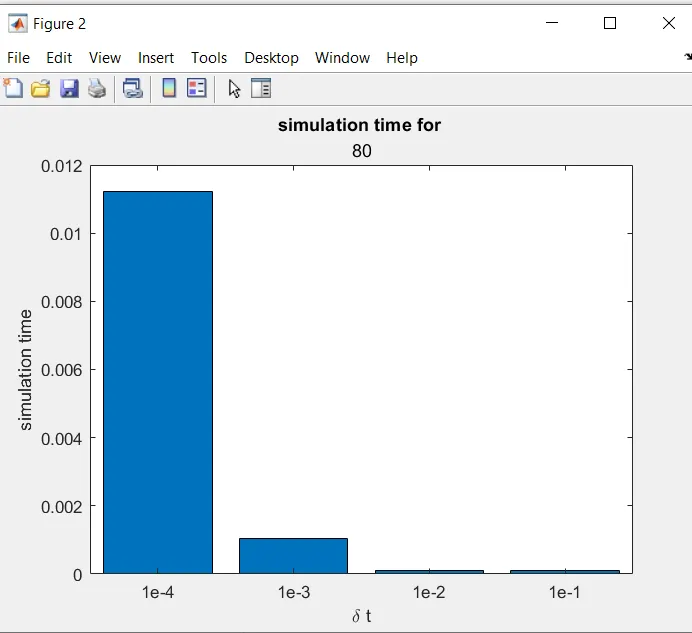

By this graph , as time step increases simulation time decreases , as the number of iterations decreases.
