Drafting of various geometries using Chamfer, Fillet tool in AutoCad
AIM:
To Create the geometries of the given drawings using Chamfer, Fillet tool in AutoCad.

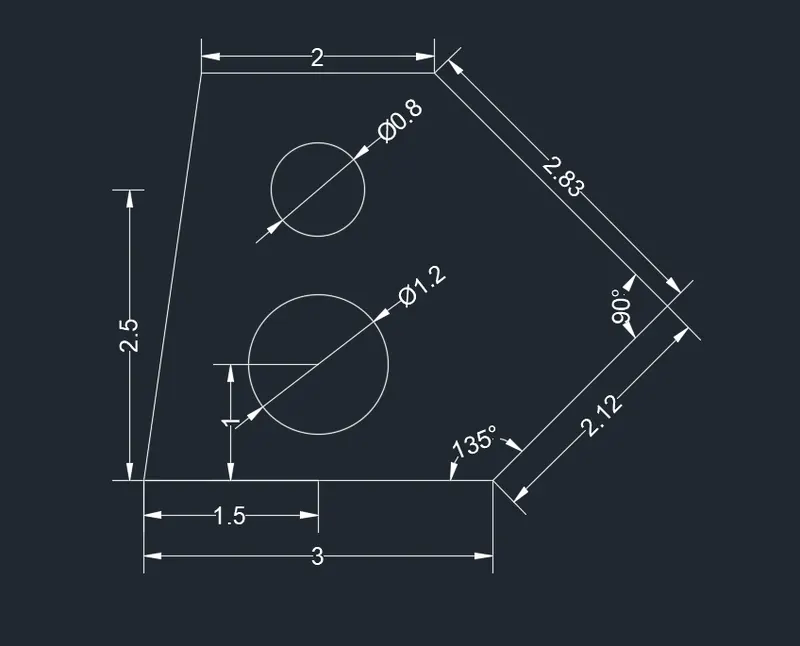

DRAWING 1:
LINE
Specify first point:
Specify next point or [Undo]: 3
Specify next point or [Undo]: @2.12<45
Command: L
LINE
Specify first point:
Specify next point or [Undo]: 2.83
Specify next point or [Undo]: 2
Specify first point:
Specify next point or [Undo]: 1.5
Specify next point or [Undo]: 1
Specify next point or [Close/Undo]:
Command: C
Command: _circle
Specify center point for circle or [3P/2P/Ttr (tan tan radius)]:
Specify radius of circle or [Diameter] <0.4000>: 1.20
Command: C
CIRCLE
Specify center point for circle or [3P/2P/Ttr (tan tan radius)]:
Specify radius of circle or [Diameter] <0.4000>: 0.6
Command: L
LINE
Specify first point:
Specify next point or [Undo]: 2.5
Command: C
CIRCLE
Specify center point for circle or [3P/2P/Ttr (tan tan radius)]:
Specify radius of circle or [Diameter] <0.6000>: 0.4
Command: _qsave

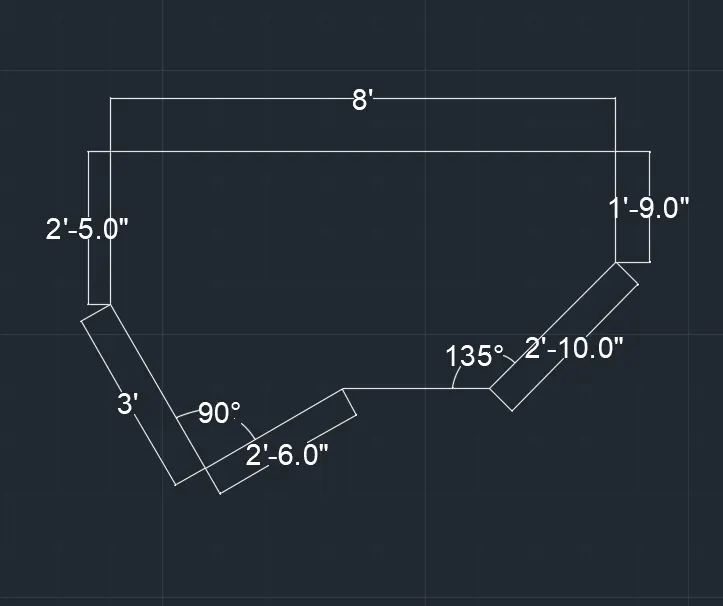

DRAWING 2:
Command: L
LINE
Specify first point:
Specify next point or [Undo]: <Ortho on> 8'
Specify next point or [Undo]: 1'9"
Specify next point or [Close/Undo]: *Cancel*
Command: l
LINE
Specify first point:
Specify next point or [Undo]: 2'10"
Specify next point or [Undo]:
Command:
LINE
Specify first point:
Specify next point or [Undo]: 2'5"
Command: L
LINE
Specify first point:
Specify next point or [Undo]: 3'
Specify next point or [Undo]: 2'6"
Specify next point or [Close/Undo]:
Command: JOIN
Select source object or multiple objects to join at once: 1 found
Select objects to join: 1 found, 2 total
Select objects to join:
2 objects converted to 1 polyline
Command: L
LINE
Specify first point:
Specify next point or [Undo]:
Specify next point or [Undo]:
Command: Specify opposite corner or [Fence/WPolygon/CPolygon]:
Command: RO
ROTATE
Current positive angle in UCS: ANGDIR=counterclockwise ANGBASE=0
1 found
Specify base point:
Specify rotation angle or [Copy/Reference] <0>:
Command: L
LINE
Specify first point:
Specify next point or [Undo]:
Specify next point or [Undo]:
Command: TR
TRIM
Current settings: Projection=UCS, Edge=None
Select cutting edges ...
Select objects or <select all>: 1 found
Select objects: 1 found, 2 total
Select objects:
Select object to trim or shift-select to extend or
[Fence/Crossing/Project/Edge/eRase/Undo]: *Cancel*
Command:
Command: _qsave

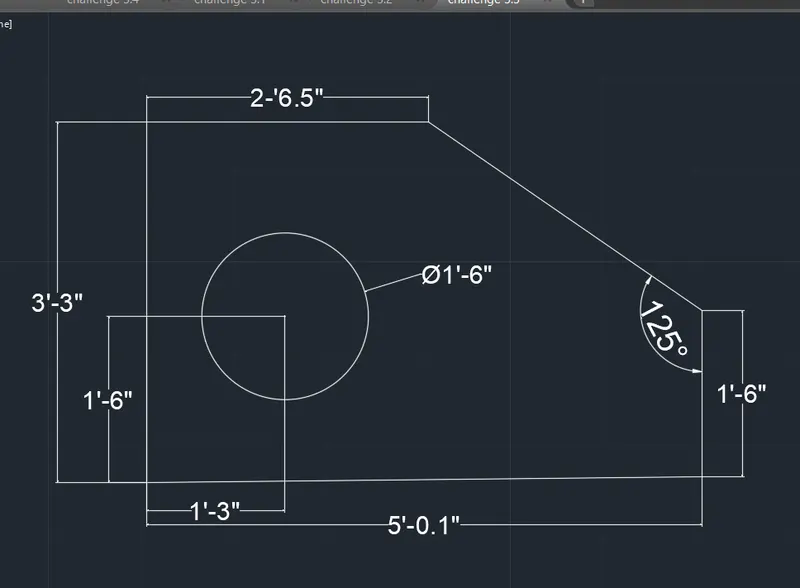

DRAWING 3:
LINE
Specify first point:
Specify next point or [Undo]: 5'0.1"
Specify next point or [Undo]:
>>Enter new value for ORTHOMODE <0>:
Resuming LINE command.
Specify next point or [Undo]: <Ortho on> 1'6"
Specify next point or [Close/Undo]: <Ortho off> @*Cancel*
Command:
LINE
Specify first point:
Specify next point or [Undo]: 3'3"
Specify next point or [Undo]: <Ortho on> 2'6.5"
Specify next point or [Close/Undo]:
>>Enter new value for ORTHOMODE <1>:
Resuming LINE command.
LINE
Specify first point:
Specify next point or [Undo]: 1'6"
Specify next point or [Undo]: 1'3"
Specify next point or [Close/Undo]:
Command: C
CIRCLE
Specify center point for circle or [3P/2P/Ttr (tan tan radius)]:
Specify radius of circle or [Diameter]: 9"
Command: _qsave

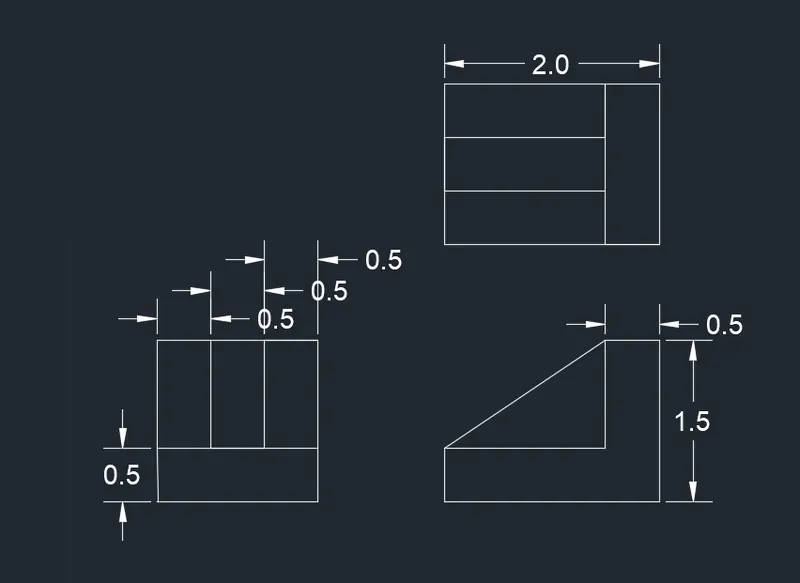

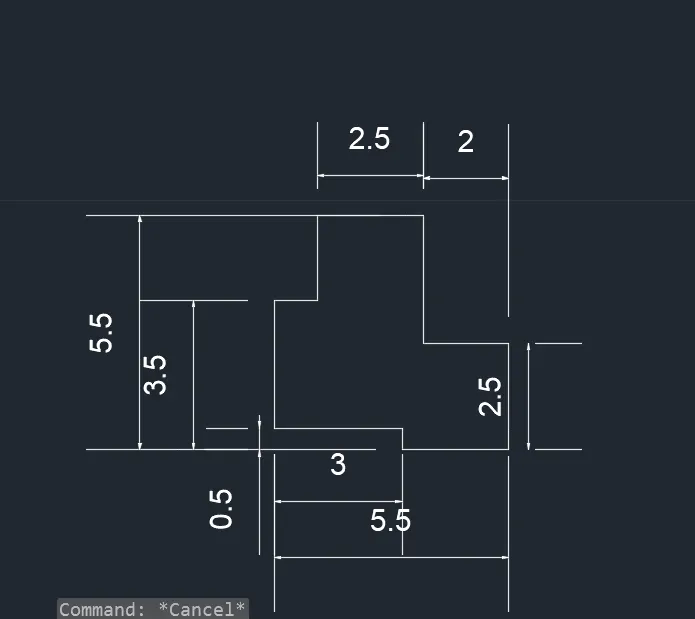

DRAWING 4:
LINE
Specify first point:
Specify next point or [Undo]: 3
Specify next point or [Undo]: 0.5
Specify next point or [Close/Undo]: 2.5
Specify next point or [Close/Undo]: 2.5
Specify next point or [Close/Undo]: 2
Specify next point or [Close/Undo]: 3
Specify next point or [Close/Undo]: 2.5
Specify next point or [Close/Undo]: 2
Specify next point or [Close/Undo]:
Command: _qsave

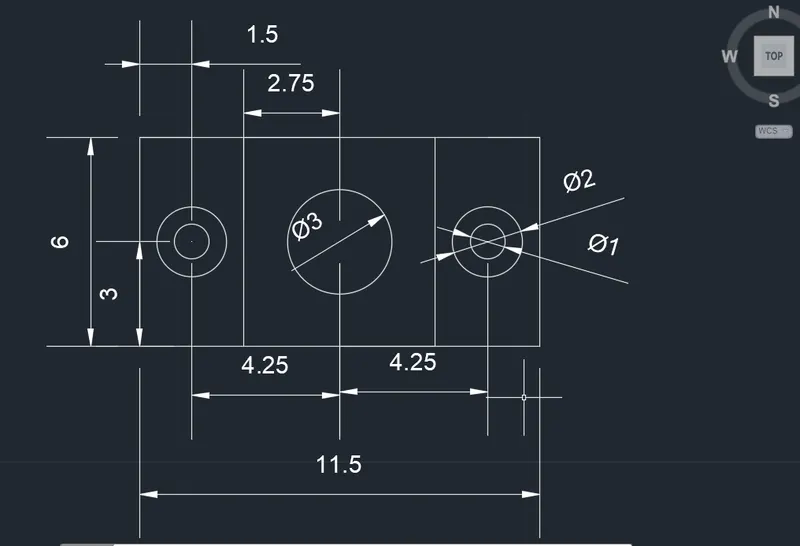

DRAWING 5:
Command: L
LINE
Specify first point:
Specify next point or [Undo]: 11.5
Specify next point or [Undo]: 6
Specify next point or [Close/Undo]: 11.5
Specify next point or [Close/Undo]:
Command:
LINE
Specify first point:
Specify next point or [Undo]: 3
Command: C
CIRCLE
Specify center point for circle or [3P/2P/Ttr (tan tan radius)]:
Specify radius of circle or [Diameter]: 1.5
Command: L
LINE
Specify first point:
Specify next point or [Undo]: 2.75
Command:
LINE
Specify first point:
Specify next point or [Undo]: 2.75
Specify next point or [Undo]: 1.5
Command:
LINE
Specify first point:
Specify next point or [Undo]: 1.5
Specify next point or [Close/Undo]:
Command: C
CIRCLE
Specify center point for circle or [3P/2P/Ttr (tan tan radius)]:
Specify radius of circle or [Diameter] <1.5000>: .5
Command:
CIRCLE
Specify center point for circle or [3P/2P/Ttr (tan tan radius)]:
Specify radius of circle or [Diameter] <0.5000>: 1
Command:
CIRCLE
Specify center point for circle or [3P/2P/Ttr (tan tan radius)]:
Specify radius of circle or [Diameter] <1.0000>: .5
Command:
CIRCLE
Specify center point for circle or [3P/2P/Ttr (tan tan radius)]:
Specify radius of circle or [Diameter] <0.5000>: 1
Command:
Command: Specify opposite corner or [Fence/WPolygon/CPolygon]:
Command: _qsave
DRAWING 6:
Command: L
LINE
Specify first point:
Specify next point or [Undo]: 1.5
Specify next point or [Undo]: 0.5
Specify next point or [Close/Undo]: 1.5
Specify next point or [Close/Undo]: 0.5
Specify next point or [Close/Undo]:
Command:
LINE
Specify first point:
Specify next point or [Undo]: 1
Specify next point or [Undo]: 1.5
Specify next point or [Close/Undo]: 1
Specify next point or [Close/Undo]:
LINE
Specify first point:
Specify next point or [Undo]: 0.5
Specify next point or [Close/Undo]:
Command:
LINE
Specify first point:
Specify next point or [Undo]: 0.5
Specify next point or [Close/Undo]:
Command:
LINE
Specify first point:
Specify next point or [Undo]: .5
Specify next point or [Undo]: 1.5
Specify next point or [Close/Undo]: 1
Specify next point or [Close/Undo]: .5
Specify next point or [Close/Undo]: 1.5
Specify next point or [Close/Undo]: 2
Specify next point or [Close/Undo]:
LINE
Specify first point:
Specify next point or [Undo]: 2
Specify next point or [Undo]: 1.5
Specify next point or [Close/Undo]: 2
Specify next point or [Close/Undo]: 1.5
Specify next point or [Close/Undo]:
Command:
LINE
Specify first point:
Specify next point or [Undo]: .5
Specify next point or [Close/Undo]:
Command: _qsave

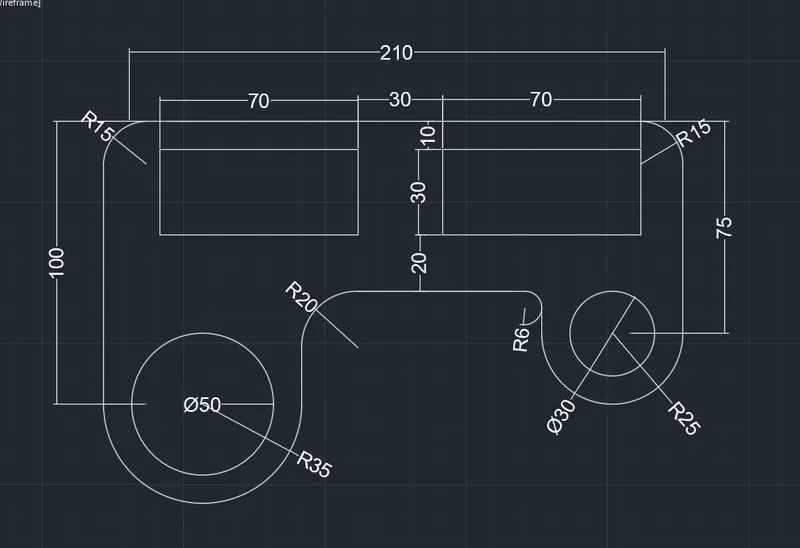

DRAWING 7:
Command: L
LINE
Specify first point:
Specify next point or [Close/Undo]:
Command: _rectang
Specify first corner point or [Chamfer/Elevation/Fillet/Thickness/Width]: 6
Specify other corner point or [Area/Dimensions/Rotation]: *Cancel*
Command: _fillet
Current settings: Mode = TRIM, Radius = 20.0000
Select first object or [Undo/Polyline/Radius/Trim/Multiple]: 6
Select first object or [Undo/Polyline/Radius/Trim/Multiple]:
Command: Specify opposite corner or [Fence/WPolygon/CPolygon]:
Command:
Command: _fillet
Current settings: Mode = TRIM, Radius = 20.0000
Select first object or [Undo/Polyline/Radius/Trim/Multiple]: R
Specify fillet radius <20.0000>: 6
Command: TR
TRIM
Current settings: Projection=UCS, Edge=None
Select cutting edges ...
Select objects or <select all>: 1 found
Select objects: 1 found, 2 total
Select objects:
Select object to trim or shift-select to extend or
[Fence/Crossing/Project/Edge/eRase/Undo]:
Command: _arc
Specify start point of arc or [Center]:
Specify second point of arc or [Center/End]: _e
Specify end point of arc:
Specify center point of arc (hold Ctrl to switch direction) or [Angle/Direction/Radius]: _r
Specify radius of arc (hold Ctrl to switch direction): 35
Command: _u ARC
ARC
Specify start point of arc or [Center]:
Specify second point of arc or [Center/End]: _e
Specify end point of arc:
Specify center point of arc (hold Ctrl to switch direction) or [Angle/Direction/Radius]: _r
Specify radius of arc (hold Ctrl to switch direction):
Command: _arc
Specify start point of arc or [Center]:
Specify second point of arc or [Center/End]: _e
Specify end point of arc:
Specify center point of arc (hold Ctrl to switch direction) or [Angle/Direction/Radius]: _r
Command: _dimradius
Select arc or circle:
Dimension text = 35
Specify dimension line location or [Mtext/Text/Angle]: *Cancel*
Command:
DIMRADIUS
Select arc or circle:
Dimension text = 25
Specify dimension line location or [Mtext/Text/Angle]:
Command: _dimradius
Select arc or circle:
Dimension text = 15
Specify dimension line location or [Mtext/Text/Angle]: *Cancel*
Command: *Cancel*
Command:
DIMRADIUS
Select arc or circle:
Dimension text = 6
Specify dimension line location or [Mtext/Text/Angle]:
Command:
DIMRADIUS
Select arc or circle:
Object selected is not a circle or arc.
Command: _qsave

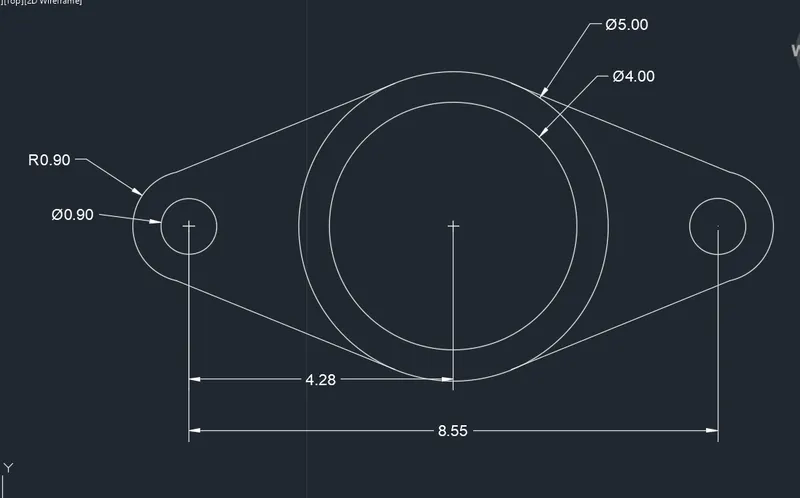

DRAWING 8:
Command: C
CIRCLE
Specify center point for circle or [3P/2P/Ttr (tan tan radius)]:
Specify radius of circle or [Diameter] <5.0000>: 2
Command:
CIRCLE
Specify center point for circle or [3P/2P/Ttr (tan tan radius)]:
Specify radius of circle or [Diameter] <2.0000>: 2.5
Command: L
LINE
Specify first point:
Specify next point or [Undo]: 4.275
Specify next point or [Undo]:
Command: C
CIRCLE
Specify center point for circle or [3P/2P/Ttr (tan tan radius)]:
Specify radius of circle or [Diameter] <2.5000>: 0.45
Command:
CIRCLE
Specify center point for circle or [3P/2P/Ttr (tan tan radius)]:
Specify radius of circle or [Diameter] <0.4500>: 90
Command: Regenerating model.
Command: C
CIRCLE
Specify center point for circle or [3P/2P/Ttr (tan tan radius)]:
Specify radius of circle or [Diameter] <90.0000>: 0.90
Command: L
LINE
Specify first point:
Specify next point or [Undo]:
Specify next point or [Undo]:
Command: _u INTELLIZOOM INTELLIZOOM
Command: _u LINE
Command: L
LINE
Specify first point:
Specify next point or [Undo]:
Command: MI
MIRROR 1 found
Specify first point of mirror line:
Specify second point of mirror line:
Erase source objects? [Yes/No] <No>:
Command: Specify opposite corner or [Fence/WPolygon/CPolygon]:
Command:
MIRROR
4 found
Specify first point of mirror line:
Specify second point of mirror line:
Erase source objects? [Yes/No] <No>:
Command: Qsave

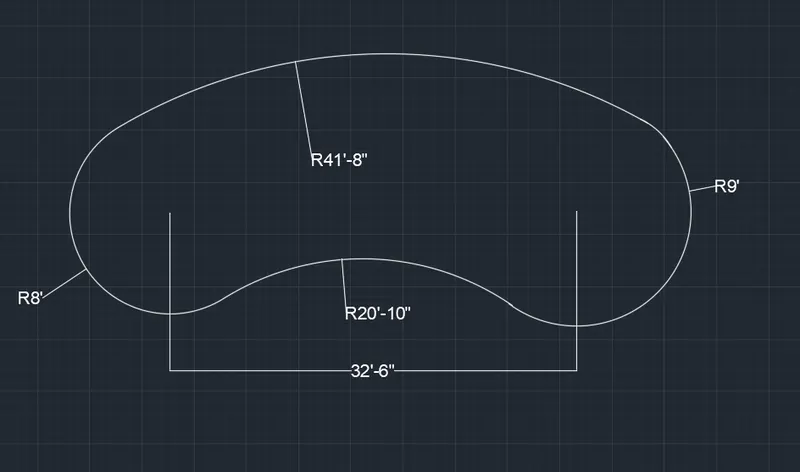

DRAWING 9:
CIRCLE
Specify center point for circle or [3P/2P/Ttr (tan tan radius)]:
Specify radius of circle or [Diameter]: 8'
Command: L
LINE
Specify first point:
Specify next point or [Undo]: 32'6"
Specify next point or [Undo]:
Command: C
CIRCLE
Specify center point for circle or [3P/2P/Ttr (tan tan radius)]:
Specify radius of circle or [Diameter] <8'-0.0000">: 9'
Command: _circle
Specify center point for circle or [3P/2P/Ttr (tan tan radius)]: _ttr
Specify point on object for first tangent of circle:
Specify point on object for second tangent of circle:
Specify radius of circle <9'-0.0000">: 20'10"
Command: TR
TRIM
Current settings: Projection=UCS, Edge=None
Select cutting edges ...
Select objects or <select all>: 1 found
Select objects: 1 found, 2 total
Command: L
LINE
Specify first point:
Specify next point or [Undo]:
Specify next point or [Undo]:
Command:
TRIM
Current settings: Projection=UCS, Edge=None
Select cutting edges ...
Select objects: 1 found, 2 total
Select objects:
Command:
TRIM
Current settings: Projection=UCS, Edge=None
Select cutting edges ...
Command: C
CIRCLE
Specify center point for circle or [3P/2P/Ttr (tan tan radius)]:
Specify radius of circle or [Diameter] <20'-10.0000">: 33'8"
Command:
CIRCLE
Specify center point for circle or [3P/2P/Ttr (tan tan radius)]:
Specify radius of circle or [Diameter] <33'-8.0000">: 32'8"
Command:
CIRCLE
Specify center point for circle or [3P/2P/Ttr (tan tan radius)]:
Specify radius of circle or [Diameter] <32'-8.0000">: 41'8"
TRIM
Current settings: Projection=UCS, Edge=None
Select cutting edges ...
Select objects or <select all>: 1 found
Select objects: 1 found, 2 total
Command: TR
TRIM
[Fence/Crossing/Project/Edge/eRase/Undo]:
TRIM
Select object to trim or shift-select to extend or
TRIM
Select cutting edges ...
Select objects or <select all>: 1 found
Select objects: 1 found, 2 total
Select objects:
Command: TR
TRIM
Current settings: Projection=UCS, Edge=None
Select cutting edges ...
Select objects or <select all>: 1 found
Select objects: 1 found, 2 total
Select objects:
Command: _qsave

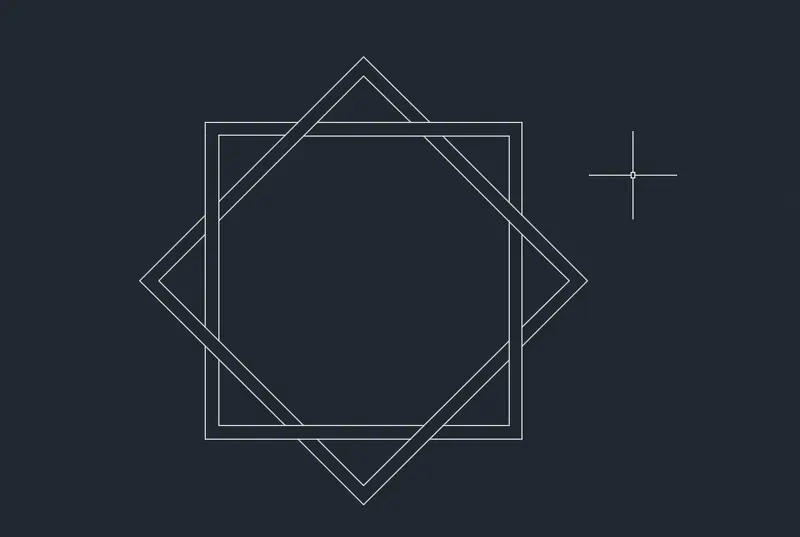

DRAWING 10:
LINE
Specify first point:
Specify next point or [Undo]:
Specify next point or [Undo]:
Specify next point or [Close/Undo]:
Command:
LINE
Specify first point:
Specify next point or [Undo]:
Specify next point or [Undo]:
Command:
LINE
Specify first point:
Specify next point or [Undo]:
Specify next point or [Undo]:
Command:
LINE
Specify first point:
Specify next point or [Undo]: *Cancel*
Command: TR
TRIM
Current settings: Projection=UCS, Edge=None
Select cutting edges ...
Select objects or <select all>: 1 found
Select objects:
Select object to trim or shift-select to extend or
[Fence/Crossing/Project/Edge/eRase/Undo]:
Command:
TRIM
Current settings: Projection=UCS, Edge=None
Select cutting edges ...
Select objects or <select all>: 1 found
Select objects: 1 found, 2 total
Select objects: 1 found, 3 total
Select object to trim or shift-select to extend or
Object does not intersect an edge.
Command:
TRIM
Current settings: Projection=UCS, Edge=None
Select cutting edges ...
Select objects or <select all>: 1 found
Select objects: Specify opposite corner: 1 found, 2 total
Select objects:
Command: L
LINE
Specify first point:
Specify next point or [Undo]:
Specify next point or [Undo]:
Specify next point or [Close/Undo]:
Command: L
LINE
Specify first point:
Specify next point or [Undo]:
Specify next point or [Undo]:
Command: TR
TRIM
Current settings: Projection=UCS, Edge=None
Select cutting edges ...
Select objects or <select all>: 1 found
Command:
TRIM
Current settings: Projection=UCS, Edge=None
Select cutting edges ...
Select objects or <select all>: 1 found
Select objects: 1 found, 2 total
Select objects:
Command: L
LINE
Specify first point:
Specify next point or [Undo]:
Specify next point or [Undo]:
Command:
Command:
Command: TR
TRIM
Select cutting edges ...
Select objects or <select all>: 1 found
Select objects: 1 found, 2 total
Command:
TRIM
Current settings: Projection=UCS, Edge=None
Select cutting edges ...
Select objects or <select all>: 1 found
Select objects: 1 found, 2 total
Select objects:
Select object to trim or shift-select to extend or
[Fence/Crossing/Project/Edge/eRase/Undo]:
Command:
LINE
Specify first point:
Specify next point or [Undo]:
Specify next point or [Undo]:
Command: Specify opposite corner or [Fence/WPolygon/CPolygon]: TR
TRIM
Select cutting edges ...
Select objects or <select all>: 1 found
Select objects: 1 found, 2 total
Command:
LINE
Specify first point:
Specify next point or [Undo]:
Command: _qsave

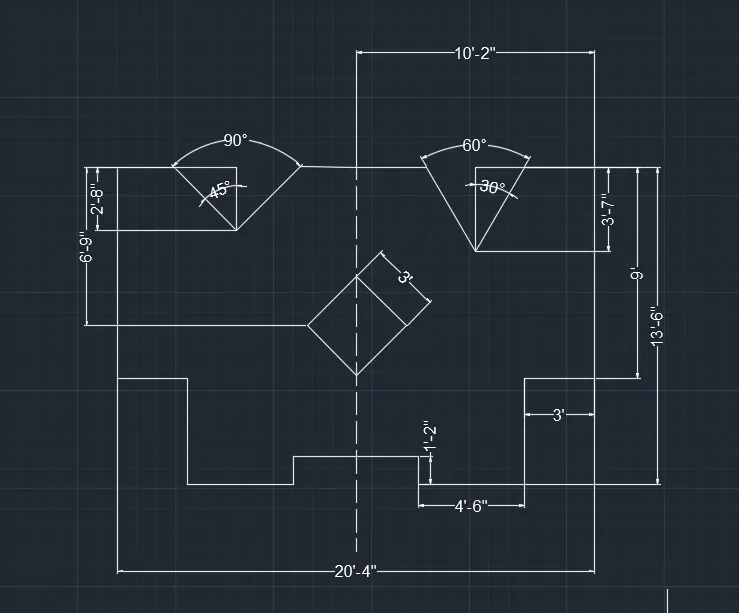

DRAWING 11:
Command: L
LINE
Specify first point:
Specify next point or [Undo]: 3'
Specify next point or [Undo]: 4'6"
Specify next point or [Close/Undo]: 4'6"
Specify next point or [Close/Undo]: 1'2"
Specify next point or [Close/Undo]: 5'4"
Specify next point or [Close/Undo]: 1'2'
Specify next point or [Close/Undo]: 5'4"
Specify next point or [Close/Undo]: 1'2"
Specify next point or [Close/Undo]: 4'6"
Specify next point or [Close/Undo]: 4'6"
Specify next point or [Close/Undo]: 3'
Specify next point or [Close/Undo]: 9'
Specify next point or [Close/Undo]: 20'4"
Command:
LINE
Specify first point:
Specify next point or [Undo]:
Specify next point or [Undo]: 3'7"
Specify next point or [Close/Undo]:
Command: LINE
Specify first point:
Command:
LINE
Specify first point:
Specify next point or [Undo]: 2'8"
Command: TR
TRIM
Current settings: Projection=UCS, Edge=None
Select cutting edges ...
Select object to trim or shift-select to extend or
[Fence/Crossing/Project/Edge/eRase/Undo]:
Command: L
LINE
Specify first point:
Specify next point or [Close/Undo]: 3'
Specify next point or [Close/Undo]: 3'
Specify next point or [Close/Undo]: 3'
Specify next point or [Close/Undo]:
Command: JOIN
4 found
4 objects converted to 1 polyline
Command: RO
ROTATE
Current positive angle in UCS: ANGDIR=counterclockwise ANGBASE=0
Select objects: 1 found
Select objects:
Specify base point:
Specify rotation angle or [Copy/Reference] <0>:
Command: _qsave
RESULT:
The geometries of the given drawings using Chamfer, Fillet tool is created in AutoCad.
