  3. Creation of geometries by Coordinate system methods using AutoCad

Creation of geometries by Coordinate system methods using AutoCad

1. Create the geometries from P1 to P2 using all the coordinates system methods. You need to use the Line tool to create the geometries. Where required you need to use the circle tool. AIM: To Create the geometries of the given drawings using all the coordinates system methods. COORDINATE SYSTEMS: There are three methods…

    • Divya Bharathi

      updated on 17 Aug 2021

    1. Create the geometries from P1 to P2 using all the coordinates system methods. You need to use the Line tool to create the geometries. Where required you need to use the circle tool.

    AIM:

    To Create the geometries of the given drawings using all the coordinates system methods.

    COORDINATE SYSTEMS:

    There are three methods of coordinate systems, they are

    1. Absolute coordinate systems
    2. Relative rectangular coordinate systems
    3. Relative polar coordinate systems

    1. Absolute coordinate systems:

    Absolute coordinates are based on the UCS origin (0,0), which is the intersection of the X and Y axes. Use absolute coordinates when you know the precise X and Y values of the point.

    2. Relative rectangular coordinate systems:

    Relative coordinates are locations defined by their distance from a reference point. To specify relative coordinates, precede the coordinate values with an @ sign. For example, entering @3,4 specifies a point 3 units along the X axis and 4 units along the Y axis from the last point specified.

    3. Relative polar coordinate systems:

    To specify relative coordinates, precede the coordinate values with an @ sign. For example, entering @1<45 specifies a point at a distance of 1 unit from the last point specified at an angle of 45 degrees from the X axis.

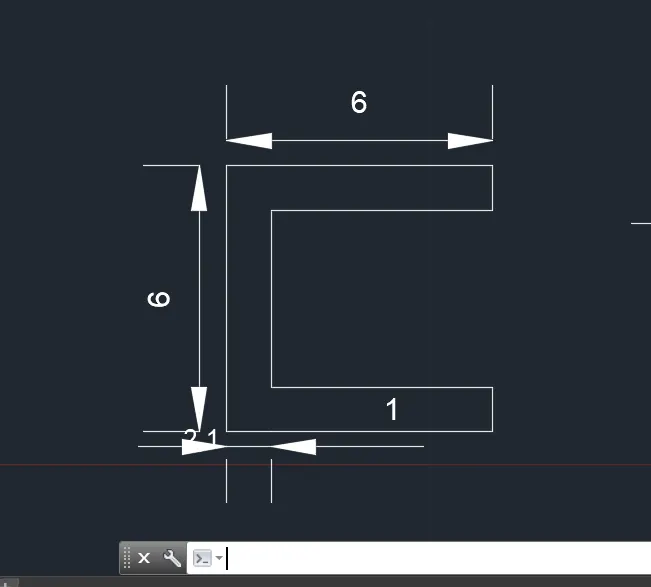

    DRAWING 1:

    1. Absolute coordinate systems:

    Command: LIMITS

    Reset Model space limits:

    Specify lower left corner or [ON/OFF] <0,0>: 0,0

    Specify upper right corner <50,50>: 50,50

    Command: L

    LINE

    Specify first point: 2,1

    Specify next point or [Undo]: 8,1

    Specify next point or [Undo]: 8,2

    Specify next point or [Close/Undo]: 3,2

    Specify next point or [Close/Undo]: 3,6

    Specify next point or [Close/Undo]: 8,6

    Specify next point or [Close/Undo]: 8,7

    Specify next point or [Close/Undo]: 2,7

    Specify next point or [Close/Undo]: 2,1

    Specify next point or [Close/Undo]:

    2. Relative rectangular coordinate system:

    LINE

    Specify first point: 2,1

    Specify next point or [Undo]: @6,0

    Specify next point or [Undo]: @0,1

    Specify next point or [Close/Undo]: @-5,0

    Specify next point or [Close/Undo]: @0,4

    Specify next point or [Close/Undo]: @5,0

    Specify next point or [Close/Undo]: @0,1

    Specify next point or [Close/Undo]: @-5,0

    Specify next point or [Close/Undo]: U

    Specify next point or [Close/Undo]: @0,-6

    Specify next point or [Close/Undo]: U

    Specify next point or [Close/Undo]: @-6,0

    Specify next point or [Close/Undo]: @-,-6

    Point or option keyword required.

    Specify next point or [Close/Undo]: @0,-6

    Specify next point or [Close/Undo]:

    3. Relative polar coordinate method:

    LINE

    Specify first point: 2,1

    Specify next point or [Undo]: @6<0

    Specify next point or [Undo]: @1<90

    Specify next point or [Close/Undo]: @5<180

    Specify next point or [Close/Undo]: @4<90

    Specify next point or [Close/Undo]: @5<0

    Specify next point or [Close/Undo]: @1<90

    Specify next point or [Close/Undo]: @6<180

    Specify next point or [Close/Undo]: @6<270

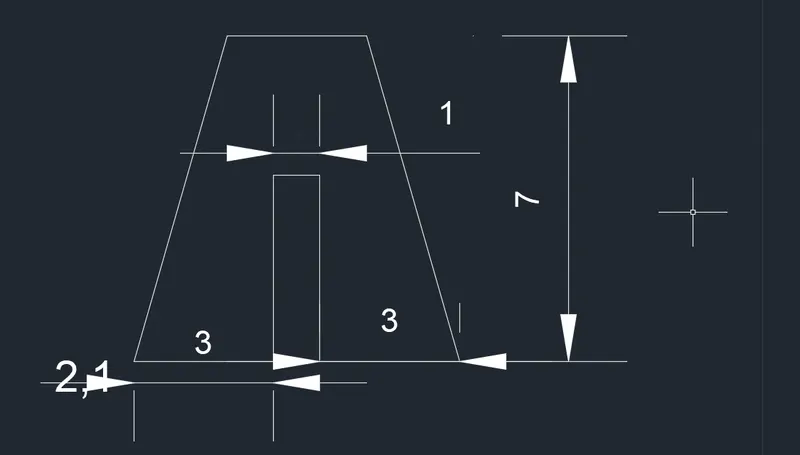

    DRAWING 2:

    1. Absolute coordinate systems:

    Command: LIMITS

    Reset Model space limits:

    Specify lower left corner or [ON/OFF] <0,0>: 0,0

    Specify upper right corner <50,50>: 50,50

    Command: L

    LINE

    Specify first point: 2,1

    Specify next point or [Undo]: 5,1

    Specify next point or [Undo]: 5,5

    Specify next point or [Close/Undo]: 6,5

    Specify next point or [Close/Undo]: 6,1

    Specify next point or [Close/Undo]: 9,1

    Specify next point or [Close/Undo]: 7,8

    Specify next point or [Close/Undo]: 4,8

    Specify next point or [Close/Undo]: 2,1

    2. Relative rectangular coordinate system:

    LINE

    Specify first point: 2,1

    Specify next point or [Undo]: @3,0

    Specify next point or [Undo]: @0,4

    Specify next point or [Close/Undo]: @1,0

    Specify next point or [Close/Undo]: @0,-4

    Specify next point or [Close/Undo]: @3,0

    Specify next point or [Close/Undo]: @-2,7

    Specify next point or [Close/Undo]: @-3,0

    Specify next point or [Close/Undo]: @-2,-7

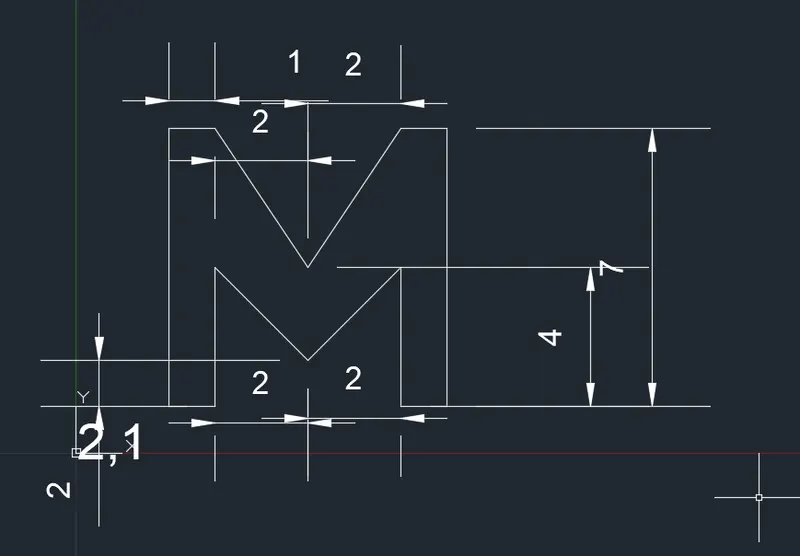

    DRAWING 3:

    1. Absolute coordinate systems:

    Command: LIMITS

    Reset Model space limits:

    Specify lower left corner or [ON/OFF] <0,0>: 0,0

    Specify upper right corner <50,50>: 50,50

    Command: L

    LINE

    Specify first point: 2,1

    Specify next point or [Undo]: 3,1

    Specify next point or [Undo]: 3,4

    Specify next point or [Close/Undo]: 5,2

    Specify next point or [Close/Undo]: 7,4

    Specify next point or [Close/Undo]: 7,1

    Specify next point or [Close/Undo]: 8,1

    Specify next point or [Close/Undo]: 8,7

    Specify next point or [Close/Undo]: 7,7

    Specify next point or [Close/Undo]: 5,4

    Specify next point or [Close/Undo]: 3,7

    Specify next point or [Close/Undo]: 2,7

    2. Relative rectangular coordinate system:

    LINE

    Specify first point: 2,1

    Specify next point or [Undo]: @1,0

    Specify next point or [Undo]: @0,4

    Specify next point or [Close/Undo]: @-2,-2

    Specify next point or [Close/Undo]: @2,2

    Specify next point or [Close/Undo]: @0,-4

    Specify next point or [Close/Undo]: @1,0

    Specify next point or [Close/Undo]: @0,7

    Specify next point or [Close/Undo]: @-1,0

    Specify next point or [Close/Undo]: @-2,-3

    Specify next point or [Close/Undo]: @-2,-3

    Specify next point or [Close/Undo]: @-1,0

    Specify next point or [Close/Undo]: @0,-7

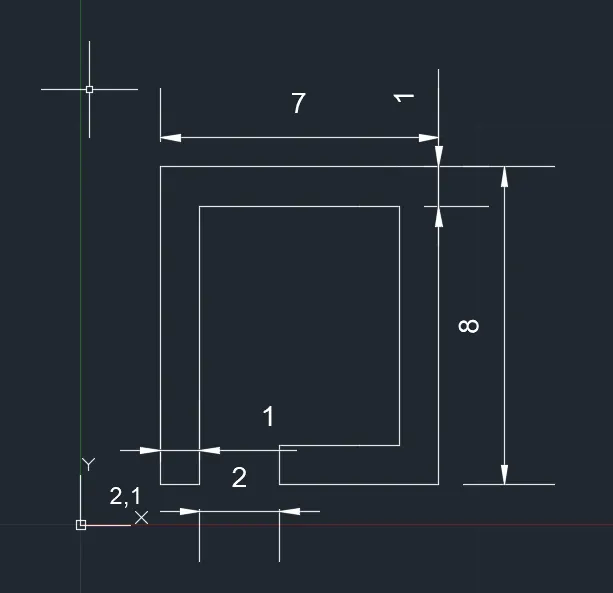

    DRAWING 4:

    1. Absolute coordinate systems:

    Command: LIMITS

    Reset Model space limits:

    Specify lower left corner or [ON/OFF] <0,0>: 0,0

    Specify upper right corner <50,50>: 50,50

    Command: L

    LINE

    Specify first point: 2,1

    Specify next point or [Undo]: 3,1

    Specify next point or [Undo]: 3,8

    Specify next point or [Close/Undo]: 8,8

    Specify next point or [Close/Undo]: 8,2

    Specify next point or [Close/Undo]: 5,2

    Specify next point or [Close/Undo]: 5,1

    Specify next point or [Close/Undo]: 9,1

    Specify next point or [Close/Undo]: 9,9

    Specify next point or [Close/Undo]:2,9

    Specify next point or [Close/Undo]: 2,1

    2. Relative rectangular coordinate system:

    LINE

    Specify first point: 2,1

    Specify next point or [Undo]: @1,0

    Specify next point or [Undo]: @0,7

    Specify next point or [Close/Undo]: @6,0

    Specify next point or [Close/Undo]: @6,-6

    Specify next point or [Close/Undo]: @-3,0

    Specify next point or [Close/Undo]: @0,-1

    Specify next point or [Close/Undo]: @4,0

    Specify next point or [Close/Undo]: @0,8

    Specify next point or [Close/Undo]: @-7,0

    Specify next point or [Close/Undo]: @0,-8

    3. Relative polar coordinate method:

    LINE

    Specify first point: 2,1

    Specify next point or [Undo]: @1<0

    Specify next point or [Undo]: @7<90

    Specify next point or [Close/Undo]: @5<0

    Specify next point or [Close/Undo]: @6<270

    Specify next point or [Close/Undo]: @3<180

    Specify next point or [Close/Undo]: @1<270

    Specify next point or [Close/Undo]: @4<0

    Specify next point or [Close/Undo]: @8<90

    Specify next point or [Close/Undo]: @7<180

    Specify next point or [Close/Undo]: @8<270

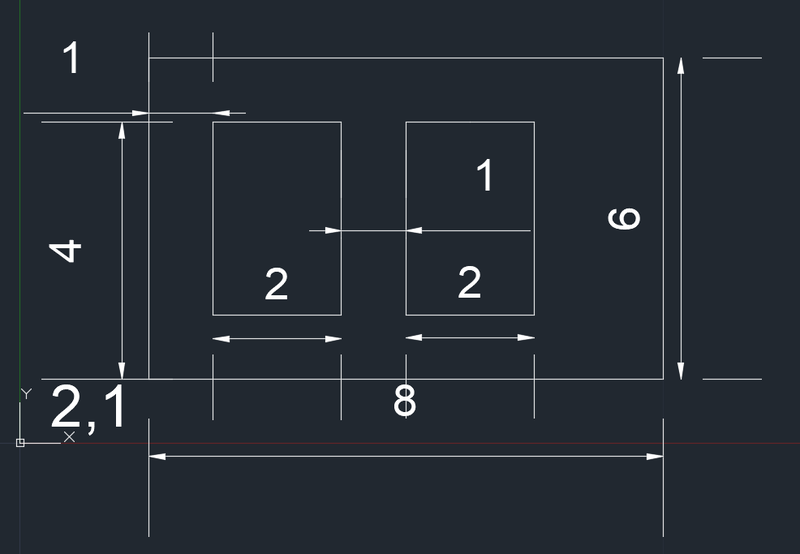

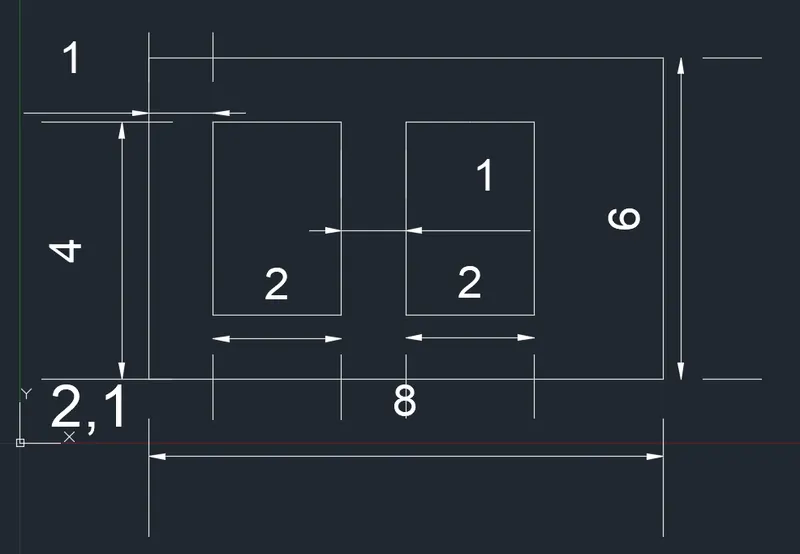

    DRAWING 5:

    1. Absolute coordinate systems:

    Command: LIMITS

    Reset Model space limits:

    Specify lower left corner or [ON/OFF] <0,0>: 0,0

    Specify upper right corner <50,50>: 50,50

    Command: L

    LINE

    Specify first point: 2,1

    Specify next point or [Undo]: 10,1

    Specify next point or [Undo]: 10,7

    Specify next point or [Close/Undo]: 2,7

    Specify next point or [Close/Undo]: 2,1

    Specify next point or [Close/Undo]: 3,2

    Specify next point or [Close/Undo]: 5,2

    Specify next point or [Close/Undo]: 5,5

    Specify next point or [Close/Undo]: 3,5

    Specify next point or [Close/Undo]:3,2

    Specify next point or [Close/Undo]: 6,2

    Specify next point or [Close/Undo]: 8,2

    Specify next point or [Close/Undo]: 8, 5

    Specify next point or [Close/Undo]: 6,5

    Specify next point or [Close/Undo]: 6,2

    2. Relative rectangular coordinate system:

    LINE

    Specify first point: 2,1

    Specify next point or [Undo]: @8,0

    Specify next point or [Undo]: @0,6

    Specify next point or [Close/Undo]: @-8,0

    Specify next point or [Close/Undo]: @0,-6

    Specify next point or [Close/Undo]: @3,2

    Specify next point or [Close/Undo]: @2,0

    Specify next point or [Close/Undo]: @0,3

    Specify next point or [Close/Undo]: @-2,0

    Specify next point or [Close/Undo]: @0,-3

    Specify next point or [Close/Undo]: @0,2

    Specify next point or [Close/Undo]: @2,0

    Specify next point or [Close/Undo]: @0,3

    Specify next point or [Close/Undo]: @-2,0

    Specify next point or [Close/Undo]: @0,-3

    3. Relative polar coordinate method:

    LINE

    Specify first point: 2,1

    Specify next point or [Undo]: @8<0

    Specify next point or [Undo]: @6<90

    Specify next point or [Close/Undo]: @8<180

    Specify next point or [Close/Undo]: @6<270

    Specify next point or [Close/Undo]:3,2

    Specify next point or [Close/Undo]: @2<0

    Specify next point or [Close/Undo]: @3<90

    Specify next point or [Close/Undo]: @2<180

    Specify next point or [Close/Undo]: @9<270

    Specify next point or [Close/Undo]: 6,2

    Specify next point or [Close/Undo]: @2<0

    Specify next point or [Close/Undo]: @3<90

    Specify next point or [Close/Undo]: @2<180

    Specify next point or [Close/Undo]: @9<270

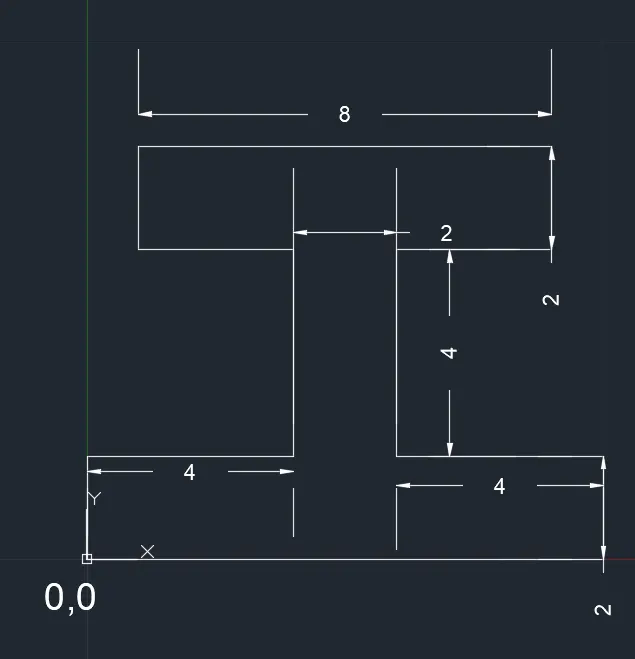

    DIAGRAM 6:

    1. Absolute coordinate systems:

    Command: LIMITS

    Reset Model space limits:

    Specify lower left corner or [ON/OFF] <0,0>: 0,0

    Specify upper right corner <50,50>: 50,50

    Command: L

    LINE

    Specify first point: 0,0

    Specify next point or [Undo]: 10,0

    Specify next point or [Undo]: 10,2

    Specify next point or [Close/Undo]: 6,2

    Specify next point or [Close/Undo]: 6,6

    Specify next point or [Close/Undo]: 9,6

    Specify next point or [Close/Undo]: 9,8

    Specify next point or [Close/Undo]: 1,8

    Specify next point or [Close/Undo]: 1,6

    Specify next point or [Close/Undo]:4,6

    Specify next point or [Close/Undo]: 4,2

    Specify next point or [Close/Undo]:0,2

    Specify next point or [Close/Undo]: 0,0

    2. Relative rectangular coordinate system:

    LINE

    Specify first point: 0,0

    Specify next point or [Undo]: @10,0

    Specify next point or [Undo]: @2,2

    Specify next point or [Close/Undo]: @-4,0

    Specify next point or [Close/Undo]: @0,4

    Specify next point or [Close/Undo]: @3,0

    Specify next point or [Close/Undo]: @0,2

    Specify next point or [Close/Undo]: @-8,0

    Specify next point or [Close/Undo]: @0,-2

    Specify next point or [Close/Undo]: @-4,0

    Specify next point or [Close/Undo]: @0,-2

    3. Relative polar coordinate method:

    LINE

    Specify first point: 0,0

    Specify next point or [Undo]: @10<0

    Specify next point or [Undo]: @2<90

    Specify next point or [Close/Undo]: @4<180

    Specify next point or [Close/Undo]: @4<90

    Specify next point or [Close/Undo]: @3<0

    Specify next point or [Close/Undo]: @2<90

    Specify next point or [Close/Undo]: @8<180

    Specify next point or [Close/Undo]: @2<270

    Specify next point or [Close/Undo]: @3<0

    Specify next point or [Close/Undo]: @4<270

    Specify next point or [Close/Undo]: @4<180

    Specify next point or [Close/Undo]: @2<270

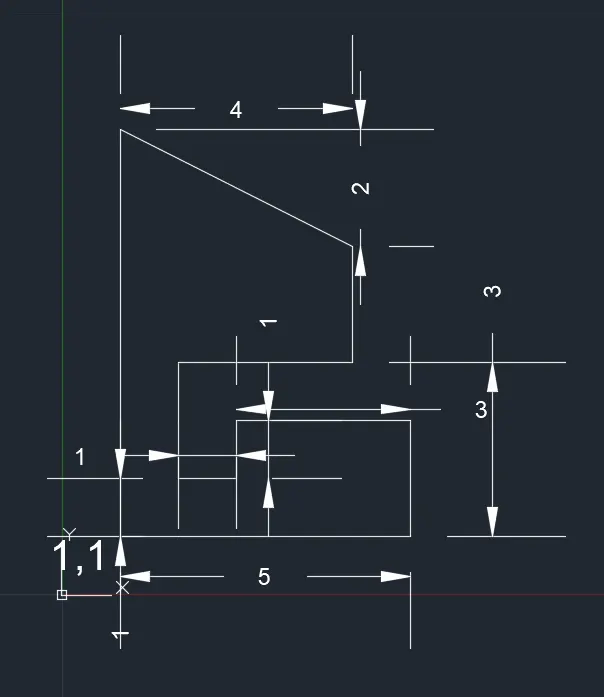

    DIAGRAM 7:

    1. Absolute coordinate systems:

    Command: LIMITS

    Reset Model space limits:

    Specify lower left corner or [ON/OFF] <0,0>: 0,0

    Specify upper right corner <50,50>: 50,50

    Command: L

    LINE

    Specify first point: 1,1

    Specify next point or [Undo]: 6,1

    Specify next point or [Undo]: 6,3

    Specify next point or [Close/Undo]: 3,3

    Specify next point or [Close/Undo]: 3,2

    Specify next point or [Close/Undo]: 2,2

    Specify next point or [Close/Undo]: 2,4

    Specify next point or [Close/Undo]: 5,4

    Specify next point or [Close/Undo]: 5,6

    Specify next point or [Close/Undo]:1,8

    Specify next point or [Close/Undo]: 1,1

    2. Relative rectangular coordinate system:

    LINE

    Specify first point: 1,1

    Specify next point or [Undo]: @5,0

    Specify next point or [Undo]: @0,2

    Specify next point or [Close/Undo]: @-3,0

    Specify next point or [Close/Undo]: @0,-1



    Specify next point or [Close/Undo]: @-1,0

    Specify next point or [Close/Undo]: @2,0

    Specify next point or [Close/Undo]: @3,0

    Specify next point or [Close/Undo]: @0,2

    Specify next point or [Close/Undo]: @-4,2

    Specify next point or [Close/Undo]: @0,-7

    3. Relative polar coordinate method:

    LINE

    Specify first point: 1,1

    Specify next point or [Undo]: @5<0

    Specify next point or [Undo]: @2<90

    Specify next point or [Close/Undo]: @3<180

    Specify next point or [Close/Undo]: @1<270

    Specify next point or [Close/Undo]: @1<180

    Specify next point or [Close/Undo]: @2<90

    Specify next point or [Close/Undo]: @3<0

    Specify next point or [Close/Undo]: @2<90

    Specify next point or [Close/Undo]: @

    Specify next point or [Close/Undo]: @7<270

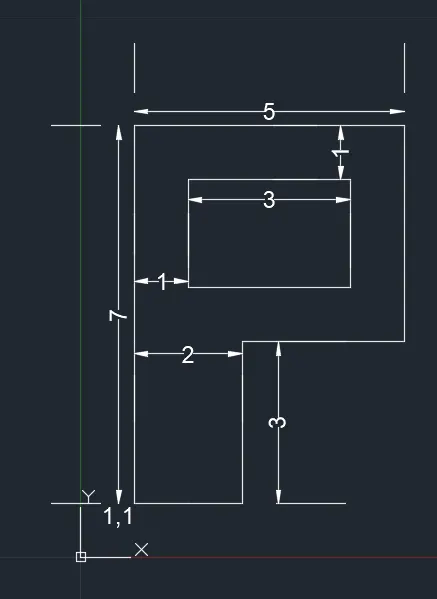

    DRAWING 8:

    1. Absolute coordinate systems:

    Command: LIMITS

    Reset Model space limits:

    Specify lower left corner or [ON/OFF] <0,0>: 0,0

    Specify upper right corner <50,50>: 50,50

    Command: L

    LINE

    Specify first point: 1,1

    Specify next point or [Undo]: 1,1

    Specify next point or [Undo]: 3,1

    Specify next point or [Close/Undo]: 3,4

    Specify next point or [Close/Undo]: 6,4

    Specify next point or [Close/Undo]: 6,8

    Specify next point or [Close/Undo]: 1,8

    Specify next point or [Close/Undo]: 1,1

    Specify next point or [Close/Undo]: 2,5

    Specify next point or [Close/Undo]:5,5

    Specify next point or [Close/Undo]: 5,7

    Specify next point or [Close/Undo]:2,7

    Specify next point or [Close/Undo]: 2,5

    2. Relative rectangular coordinate system:

    LINE

    Specify first point: 1,1

    Specify next point or [Undo]: @2,0

    Specify next point or [Undo]: @0,3

    Specify next point or [Close/Undo]: @3,0

    Specify next point or [Close/Undo]: @0,4

    Specify next point or [Close/Undo]: @-5,0

    Specify next point or [Close/Undo]: @0,-7

    Specify next point or [Close/Undo]: 2,5

    Specify next point or [Close/Undo]: @3,0

    Specify next point or [Close/Undo]: @0,2

    Specify next point or [Close/Undo]: @-3,0

    Specify next point or [Close/Undo]: @0,-2

    3. Relative polar coordinate method:

    LINE

    Specify first point: 1,1

    Specify next point or [Undo]: @2<0

    Specify next point or [Undo]: @3<90

    Specify next point or [Close/Undo]: @3<0

    Specify next point or [Close/Undo]: @4<90

    Specify next point or [Close/Undo]: @5<180

    Specify next point or [Close/Undo]: @7<270

    Specify next point or [Close/Undo]: 2,5

    Specify next point or [Close/Undo]: @3<0

    Specify next point or [Close/Undo]: @2<90

    Specify next point or [Close/Undo]: @3<180

    Specify next point or [Close/Undo]: @2<270

    RESULT:

    The geometries of the given drawings are created using all the three coordinates system methods.

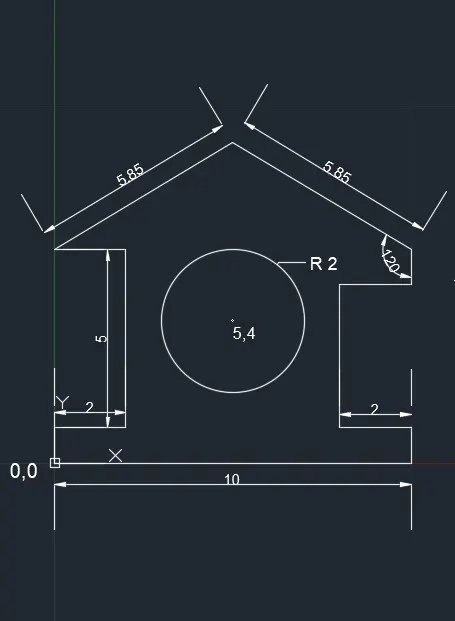

    2. Draw the profile and the trusses using any coordinate system methods. The dimensions are there for references.

    AIM:

    To Draw the profile and the trusses using any coordinate system methods.

    DRAWING 1:

    Command: LIMITS

    Reset Model space limits:

    Specify lower left corner or [ON/OFF] <0,0>: 0,0

    Specify upper right corner <50,50>: 50,50

    Command: L

    LINE

    Specify first point: 0,0

    Specify next point or [Undo]: @10,0

    Specify next point or [Undo]: @0,1

    Specify next point or [Close/Undo]: @-2,0

    Specify next point or [Close/Undo]: @0,4

    Specify next point or [Close/Undo]: @2,0

    Specify next point or [Close/Undo]: @0,1

    Specify next point or [Close/Undo]: 5,9

    Specify next point or [Close/Undo]: 0,6

    Specify next point or [Close/Undo]: @2,0

    Specify next point or [Close/Undo]: @0,-5

    Specify next point or [Close/Undo]: @-2,0

    Specify next point or [Close/Undo]:0,0

    CIRCLE

    Specify center point for circle or [3P/2P/Ttr (tan tan radius)]: 5,4

    Specify radius of circle or [Diameter] <0.0163>: 2

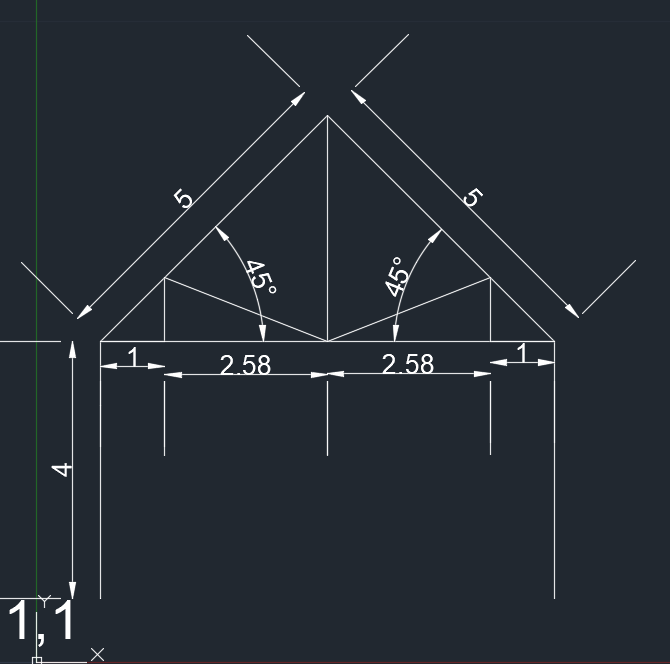

     DRAWING 2:

    Command: LIMITS

    Reset Model space limits:

    Specify lower left corner or [ON/OFF] <0,0>: 0,0

    Specify upper right corner <50,50>: 50,50

    Command: L

    LINE

    Specify first point: 1,1

    Specify next point or [Undo]: @0,4

    Specify next point or [Undo]: @5<315

    Specify next point or [Close/Undo]: @-1,0

    Specify next point or [Close/Undo]: @0,1

    Specify next point or [Close/Undo]: 1,5

    Specify next point or [Close/Undo]: @1,0

    Specify next point or [Close/Undo]: @0,1

    Specify next point or [Close/Undo]: 2,5

    Specify next point or [Close/Undo]: @2.536,5

    Specify next point or [Close/Undo]: @7,6

    Specify next point or [Close/Undo]: 2.536,5

    Specify next point or [Close/Undo]:@5.136<90

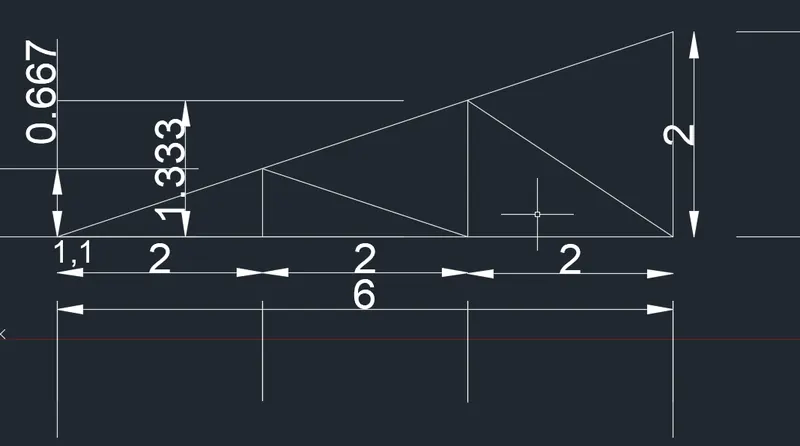

    DRAWING 3:

    LINE

    Specify first point: 1,1

    Specify next point or [Undo]: @6,0

    Specify next point or [Undo]: @2<90

    Specify next point or [Close/Undo]: 1,1

    Specify next point or [Close/Undo]:

    Command:

    LINE

    Specify first point: 3,1



    Specify next point or [Undo]: @0.667<90

    Specify next point or [Undo]: 5,1

    Specify next point or [Close/Undo]: @1.333<90

    Specify next point or [Close/Undo]: 7,1

    Specify next point or [Close/Undo]:

    Command: Regenerating model.

    RESULT:

    The profile and the trusses are drawn using convenient coordinate system methods.

    Leave a comment

    Thanks for choosing to leave a comment. Please keep in mind that all the comments are moderated as per our comment policy, and your email will not be published for privacy reasons. Please leave a personal & meaningful conversation.

    Please  login to add a comment

    Other comments...

    No comments yet!
    Be the first to add a comment

    Read more Projects by Divya Bharathi (27)

    Usage of Navigation tool , Timeliner and Clash Detection test using Naviswork

    Objective:

    1) Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to Navisworks Cache file following the export settings discussed in class AIM- To Export the Revit architecture and structure model to Navisworks Coche le following the export settings INTRODUCTION…

    calendar

    10 May 2022 05:17 PM IST

      Read more

      Creating Conceptual mass in REVIT and Creation of Sinusoidal curve and a Parametric stadium using Dynamo

      Objective:

      1) Using Dynamo create a set of sinusoidal points and create a curve and create a surface out of the curve. AIM:- To create a set of sinusoidal points, create a curve and to create a surface out of the curve INTRODUCTION: Dynamo is a visual programming tool that works with Revit Dynamo extends the power of Revit by providing…

      calendar

      09 May 2022 05:19 PM IST

        Read more

        Preparing Schedule & Cost Estimation for a building using REVIT

        Objective:

        1) Use the shortcut keys in Revit discussed in class to complete the following tasks and list them below           a. Using 3D model create a section box           b. To create similar doors and windows in a floor plan layout         …

        calendar

        22 Mar 2022 03:48 PM IST

          Read more

          Structural analysis of a buidling using Robot Structural Analysis

          Objective:

          1) What are HVAC systems? Why are they essential in the modeling of buildings HVAC Systems HVAC systems are responsible for the regulation of heat, airflow, ventilation, and air conditioning of an entire building you won't see the machines when you enter the building but you will most certainly fool the effects of a comfortable…

          calendar

          17 Mar 2022 09:31 AM IST

          • BIM
          • HVAC
          • Structural Analysis
          Read more

          Schedule a counselling session

          Please enter your name
          Please enter a valid email
          Please enter a valid number

          Related Courses

          coursecard

          Design loads considered on bridges

          Recently launched

          10 Hours of Content

          coursecard

          Design of Steel Superstructure in Bridges

          Recently launched

          16 Hours of Content

          coursecard

          Design for Manufacturability (DFM)

          Recently launched

          11 Hours of Content

          coursecard

          CATIA for Medical Product Design

          Recently launched

          5 Hours of Content

          coursecardcoursetype

          Accelerated Career Program in Embedded Systems (On-Campus) Courseware Partner: IT-ITes SSC nasscom

          Recently launched

          0 Hours of Content

          Schedule a counselling session

          Please enter your name
          Please enter a valid email
          Please enter a valid number

          logo

          Skill-Lync offers industry relevant advanced engineering courses for engineering students by partnering with industry experts.

          https://d27yxarlh48w6q.cloudfront.net/web/v1/images/facebook.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/insta.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/twitter.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/youtube.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/linkedin.svg

          Our Company

          News & EventsBlogCareersGrievance RedressalSkill-Lync ReviewsTermsPrivacy PolicyBecome an Affiliate
          map
          EpowerX Learning Technologies Pvt Ltd.
          4th Floor, BLOCK-B, Velachery - Tambaram Main Rd, Ram Nagar South, Madipakkam, Chennai, Tamil Nadu 600042.
          mail
          info@skill-lync.com
          mail
          ITgrievance@skill-lync.com

          Top Individual Courses

          Computational Combustion Using Python and CanteraIntroduction to Physical Modeling using SimscapeIntroduction to Structural Analysis using ANSYS WorkbenchIntroduction to Structural Analysis using ANSYS Workbench

          Top PG Programs

          Post Graduate Program in Hybrid Electric Vehicle Design and AnalysisPost Graduate Program in Computational Fluid DynamicsPost Graduate Program in CADPost Graduate Program in Electric Vehicle Design & Development

          Skill-Lync Plus

          Executive Program in Electric Vehicle Embedded SoftwareExecutive Program in Electric Vehicle DesignExecutive Program in Cybersecurity

          Trending Blogs

          Heat Transfer Principles in Energy-Efficient Refrigerators and Air Conditioners Advanced Modeling and Result Visualization in Simscape Exploring Simulink and Library Browser in Simscape Advanced Simulink Tools and Libraries in SimscapeExploring Simulink Basics in Simscape

          © 2025 Skill-Lync Inc. All Rights Reserved.

                      Do You Want To Showcase Your Technical Skills?
                      Sign-Up for our projects.
