Creation of Column Schedule and Drawing Template using AutoCad

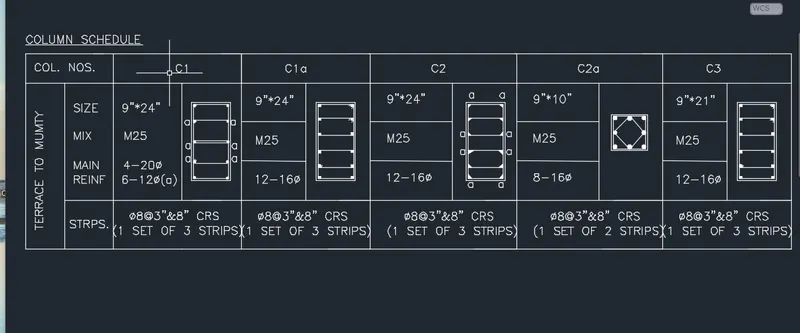

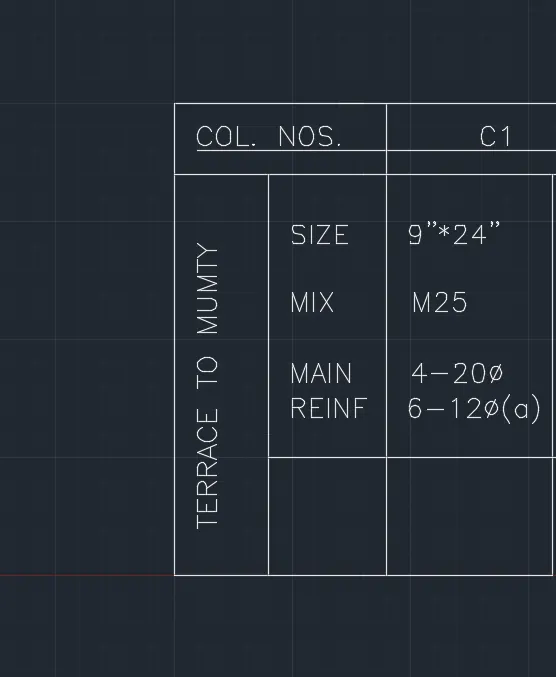

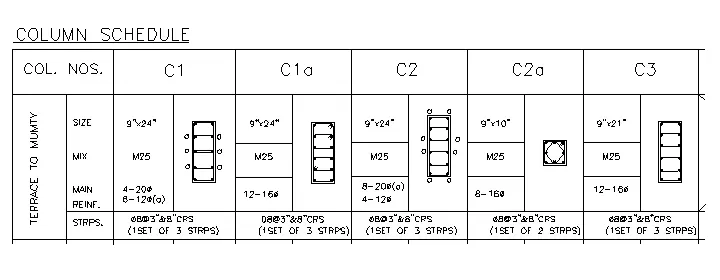

1. Create a column schedule as shown in the figure.

Note: Create a column schedule with the help of lines. Also, insert text with the help of Dtext command or Single Line text.

Hint: Use font name: romans.shx; Height: 8”, Justify: Left

AIM:

To create a column schedule, and to draw the column showing reinforcement of the columns in detail

INTRODUCTION:

• The column schedule is a schedule which the details of column will be collected in the construction for design purpose. The column scheduling is very important thing in column detailing,

Commands used:

• Limits command
• Single Text command
• Line command
• Dimlinear command
• Trim command
• Mtext command
• Circle command
• object snap command
• DONUT command
• Divide command
• Offset command
• Units command
• Dimstyle command
• Extend command
• Mirror command

PROCEDURE:

STEP:-1

• Next we need to enter the details of columns with Single text and Mtext command.
• Then again we draw the column with given details as shown in below figure.
• First we draw the line with the length of 9" horizontally. • Next we draw the 24" line vertically, then again draw the line with the length of 9".
• Finally we join the first line and last line.
• Then after we do offset of 0.6", and do the offset to inside of rectangle we drawn previously.
• Next draw a circle beside of the previous figure, we take the circle diameter as 20mm And take another circle as diameter 12mm.
• Now use the divide command and give the 4 segments inside the rectangle.
• Now place the circle in the every segment.
• After putting the circles on one side, we use the mirror command.
• Mirror the one side fixed circles to other side. And put the 3 stirrups in the column where they are required to put in certain position.
• And Bend the corner of stirrups to the 45 degrees.

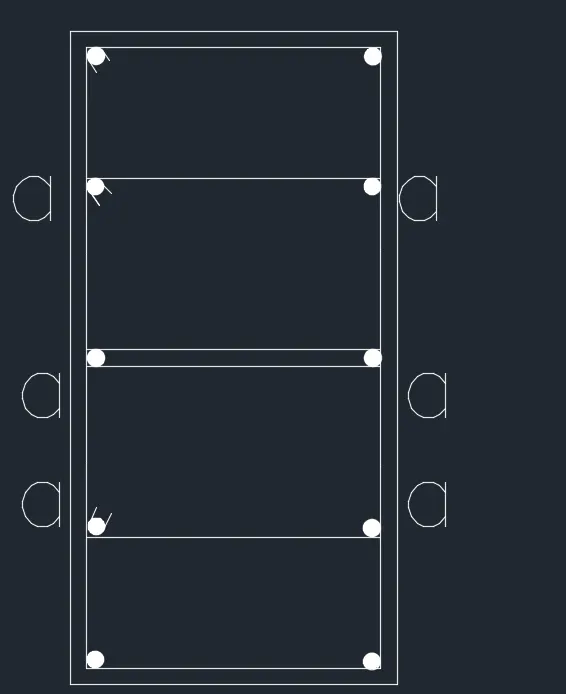

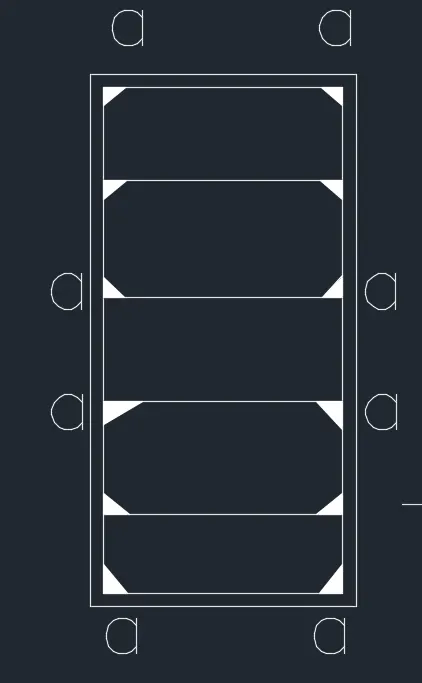

• And we denote the 12mm bars as "a", as shown in below figure.
• Here we need to enter the details of columns with Single text and Mtext command. Then again we draw the column with given details as shown in below figure.
• First we draw the line with the length of 9" horizontally.
• Next we draw the 24" line vertically, then again draw the line with the length of 9".
• Finally we join the first line and last line. • Then after we do offset of 0.6", and do the offset to inside of rectangle we drawn previously

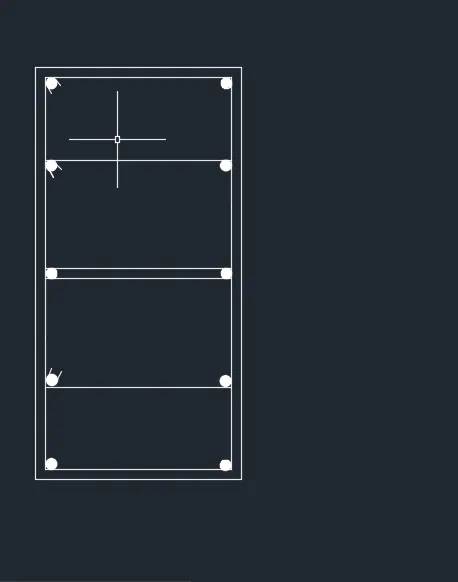

• Next draw a circle beside of the previous figure, we take the circle diameter as 16mm
• Now use the divide command and give the 5 segments inside the rectangle.
• Now place the circle in the every segment. • After putting the circles on one side, we use the mirror command.
• Mirror the one side fixed circles to other side.
• And put the 3 stirrups in the column where they are required to put in certain position. And Bend the corner of stirrups to the 45 degrees, as shown in below figure
•
•

Step:-3

Column-2

• Here we need to enter the details of columns with Single text and Mtext command. . Then again we draw the column with given details as shown in below figure.
• First we draw the line with the length of 9" horizontally.
• Next we draw the 24" line vertically, then again draw the line with the length of 9". Finally we join the first line and last line.
• Then after we do offset of 0.6", and do the offset to inside of rectangle we drawn previously.
• Next draw a circle beside of the previous figure, we take the circle diameter as 20mm for 8 bars.
• And take another circle as diameter 12mm for 4 bars.  Now use the divide command and give the 5 segments inside the rectangle. Now place the circle in the every segment.
• After putting the circles on one side, we use the mirror command.
• Mirror the one side fixed circles to other side.
• And put the 3 stirrups in the column where they are required to put in certain position.
• And Bend the corner of stirrups to the 45 degrees, as shown in below figure.
• And we denote the 20mm bars as "a", as shown in below figure.

 Step:4

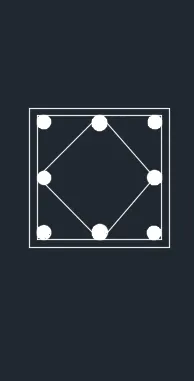

Column-2a

• Here we need to enter the details of columns with Single text and Mtext command.
• Then again we draw the column with given details as shown in below figure.
• First we draw the line with the length of 9" horizontally.
• Next we draw the 10" line vertically, then again draw the line with the length of 9".
• Finally we join the first line and last line.
• Then after we do offset of 0.6", and do the offset to inside of rectangle we drawn previously.
• Next draw a circle beside of the previous figure, we take the circle diameter as 16mm
• Now use the divide command and give the 2 segments inside the rectangle.
• Now place the circle in the every segment.
• After putting the circles on one side, we use the mirror command.
• Mirror the one side fixed circles to other side.
• And we have to put the 16mm bars in middle also.
• And Bend the corner of stirrups to the 45 degrees, as shown in below figure.
•

 Step: 5

Column-3

• Now we need to enter the details of columns with Single text and Mtext command.
• Then again we draw the column with given details as shown in below figure.
• First we draw the line with the length of 9" horizontally.
• Next we draw the 24" line vertically, then again draw the line with the length of 9". . Finally we join the first line and last line.
• Then after we do offset of 0.6", and do the offset to inside of rectangle we drawn previously.
• Next draw a circle beside of the previous figure, we take the circle diameter as 16mm
• Now use the divide command and give the 5 segments inside the rectangle.
• Now place the circle in the every segment.
• After putting the circles on one side, we use the mirror command.
• Mirror the one side fixed circles to other side.
• And put the 3 stirrups in the column where they are required to put in certain position.
• And Bend the corner of stirrups to the 45 degrees, as shown in below figure.

RESULTS:

Column schedule is created successfully in autocad.

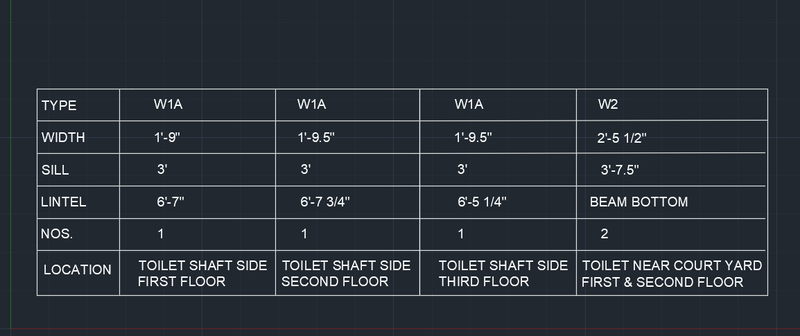

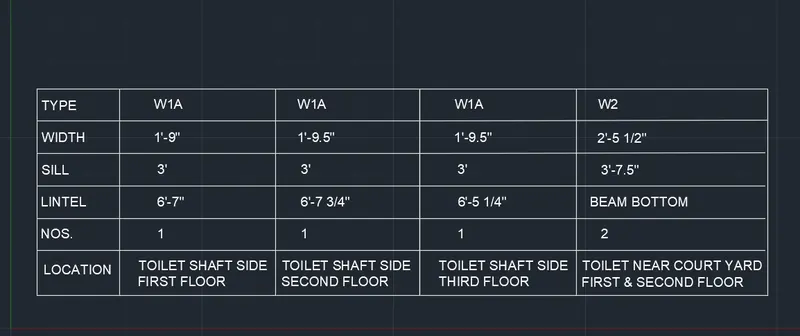

2. Create a window schedule as shown in the figures:

Window Schedule:

AIM:

 To create the window schedule as per the given figure using AutoCAD.

PROCEDURE:

Type "UNITS" in the command prompt and press enter.

In the unit tab, select the type as "Architectural and insertion scale as "inches":

Click ok.

Select line command from the ribbon tab.

Specify the starting point as (0.0) and press enter.

Keep the cursor in positive X direction and enter the length as 400.

Keep the cursor in positive Y direction and enter the length as 2.

Keep the cursor in negative X direction and enter the length as 400.

Keep the cursor in negative Y direction and enter the length as 2.



Type "offset" in the command prompt and press enter.

Specify the offset distance as 80 and press enter.

Select the 2unit length to offset and click by keeping the cursor in positive X direction.

Repeat the offset for four time by selecting the previous offsetted objects.

Select "text" tool from ribbon tab.

From the drop down list select "single line" text.

Now the keep the pointer in the left box and click as per the alignment required.

Type "TYPE" and press enter.

Click on the next box to insert text.

Type "WIA" and press enter.

Click on the next box to insert text.

Type "WIA" and press enter.

Click on the next box to insert text.

Type "WIA" and press enter.

Click on the next box to insert text.

Type "W2" and press enter.



Select all the objects along with the texts.

Type "COPY" in the command prompt and press enter.

Select the top right corner as base point.

Copy down the selected objects to the bottom right corner and press enter.

Select the text "TYPE" and double click on it.

Edit the text as "WIDTH".

Click on the text "W1A" and edit it as 1'-0".

Now Click on the next text "W1A" and edit it as 1'-0.5". Now Click on the next text "WIA" and edit it as 1'-0.5"

Now Click on the next text "W2" and edit it as 2'-5 1/2".

Select the previously created object along with the texts.

Type "COPY" in the command prompt and press enter.

Select the top right corner as base point.

Copy down the selected objects to the bottom right corner and press enter.

Select the text "WIDTH" and double click on it.

Edit the text as "BILL".

Click on the text 1-0" and edit it as 3:

Now Click on the next text 10.5" and edit it as 3:

Now Click on the next text 10.5" and edit it as 3.

Now Click on the next text 2'-5 1/2" and edit as 3-7.5".



Select the previously created object along with the texts.

Type "COPY" in the command prompt and press enter.

Select the top right corner as base point.

Copy down the selected objects to the bottom right corner and press enter.

Select the text "SILL" and double click on it.

Edit the text as "LINTEL".

Click on the text 3' and edit it as 67".

Now click on the text 3' and edit it as 6' 7 1/2".

Now click on the text 3' and edit it as 6' 5 1/2".

Now click on the text 3' 7.5" and edit it as BEAM BOTTOM.

Select the previously created object along with the texts,

Type "COPY" in the command prompt and press enter.

Select the top right corner as base point.

Copy down the selected objects to the bottom right corner and press enter.

Select the text "LINTEL" and double click on it.

Edit the text as "NOS".

Click on the text 6'7" and edit it as 1.

Now click on the text 6' 7 1/2" and edit it as 1.

Now click on the text 6' 5 1/2" and edit it as 1.

Now click on the text BEAM BOTTOM and edit it as 2.

WIA



Select the previously created object along with the texts.

Type "COPY" in the command prompt and press enter.

Select the top right corner as base point.

Copy down the selected objects to the bottom right corner and press enter.

Select the text "NOS" and double click on it.

Edit the text as "LOCATION".

Click on the text 1 and edit it as TOILET SHAFT NEAR FIRST FLOOR.

Now click on the text 1 and edit it as TOILET SHAFT SIDE GROUND FLOOR.

Now click on the text 1 and edit it as TOILET SHAFT SIDE THIRD FLOOR.

Now click on the text 2 and edit it as TOILET NEAR COURTYARD FIRST SECOND FLOOR.

RESULT:

The window schedule is created as per the given method using autocad.

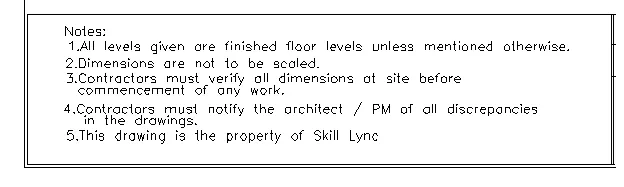

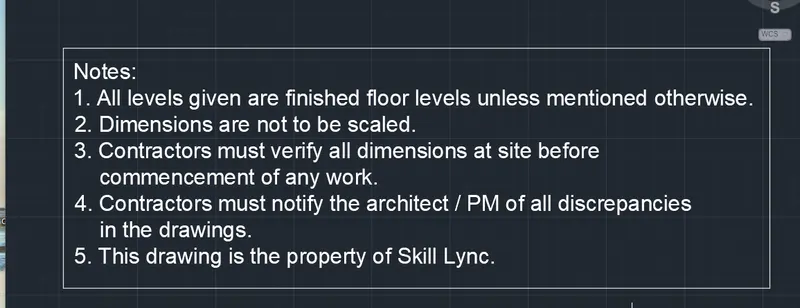

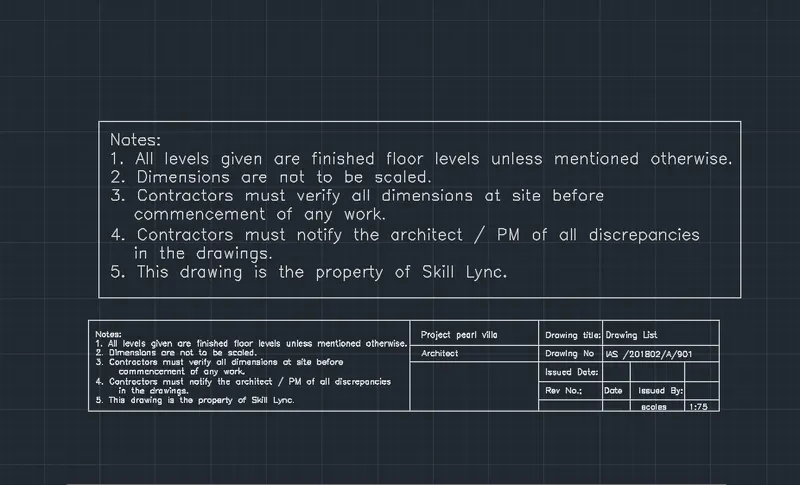

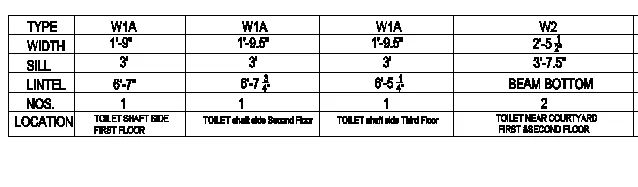

3. Create the drawing template as shown in the figure:< Use the Notes as in the figure>

AIM:

To create the drawing template for entering the details of the project.

INTRODUCTION:

Drawing template files are drawings that store styles, settings, layers, and layouts in a drawing including title blocks . When you create a new drawing based on a drawing template, the new drawing gets a copy of the styles in the template, but it is a one time copy.

COMMANDS USED:

• Limits command
• Single Text command
• Line command
• Dimlinear command
• Trim command
• Object snap command
• Offset command
• Units command
• Dimstyle command
• Extend command

PROCEDURE:

Step 1:

• First off all we have to open the autocad and set the limits and units.

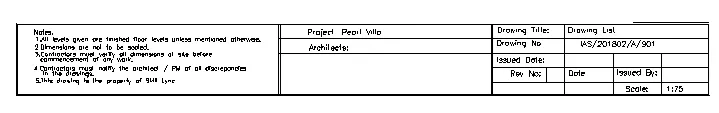

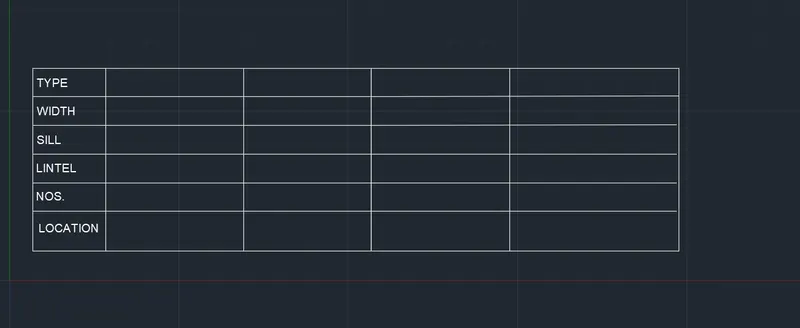

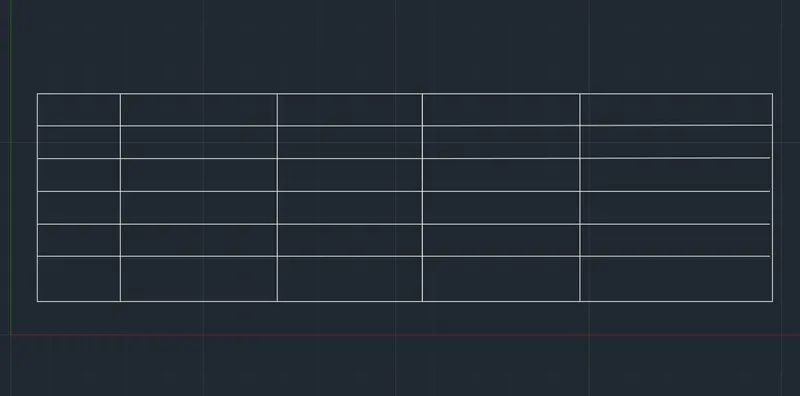

• Next we have to draw the table using the line command as shown in below table.
• We draw this table for the entering the details of the entire project before submitting to the client . After entering the details of the we submit the drawings to the client.

Step:2

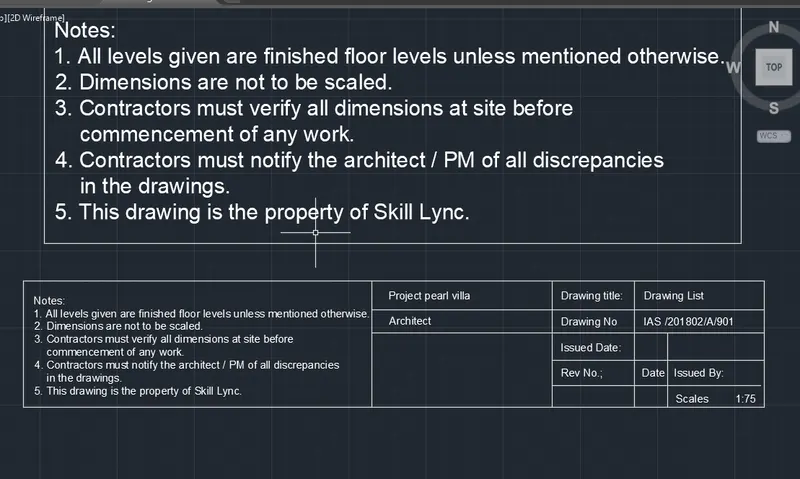

• After drawing the table we have to select the Mtecxt command to enter the notes and project details. . And the text height will be kept to 8", and it is the standard text height for entering the details of the project in the table.

RESULT:

• The Drawing template was created successfully in the autocad in detail. And we drawn the drawing template and written their details in the tablular form as shown in figure.

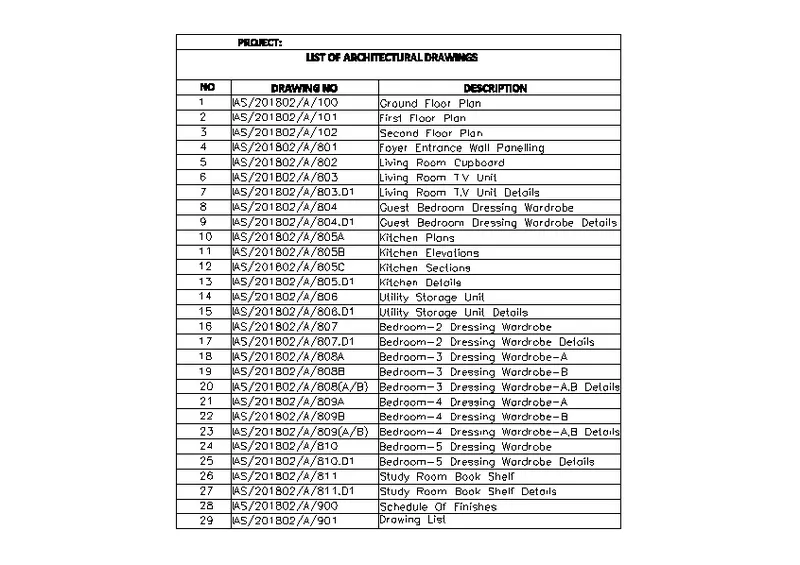

4. Create the list of drawing schedule as shown in the figure:

AIM:

To create the list of drawing schedule and to be listed in detail.

INTRODUCTION:

• A schedule of drawings is an itemised list of drawings required for a building project.
• It can be included as part of an invitation to tender, or may be prepared as part of a design management plan. A schedule of drawings may include all the drawings required for a project, or on larger, more complex projects, it may be specifically prepared for a certain discipline, specialist or for a particular aspect of the works

Commands used:

• Limits command
• Table command
• Single text command
• Extend command
• Dimlinear command

PROCEDURE:

STEP:-1

• First off all we have to open the autocad and set the limits and units.

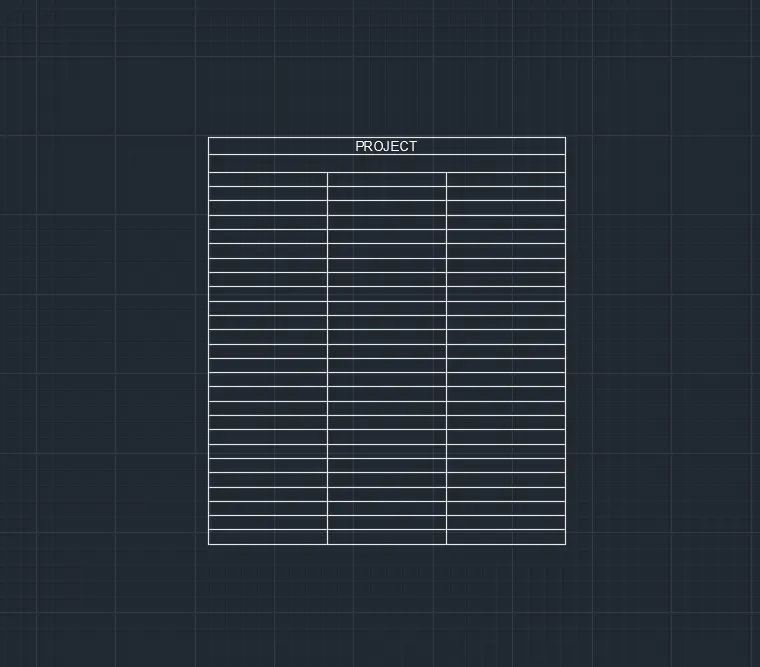

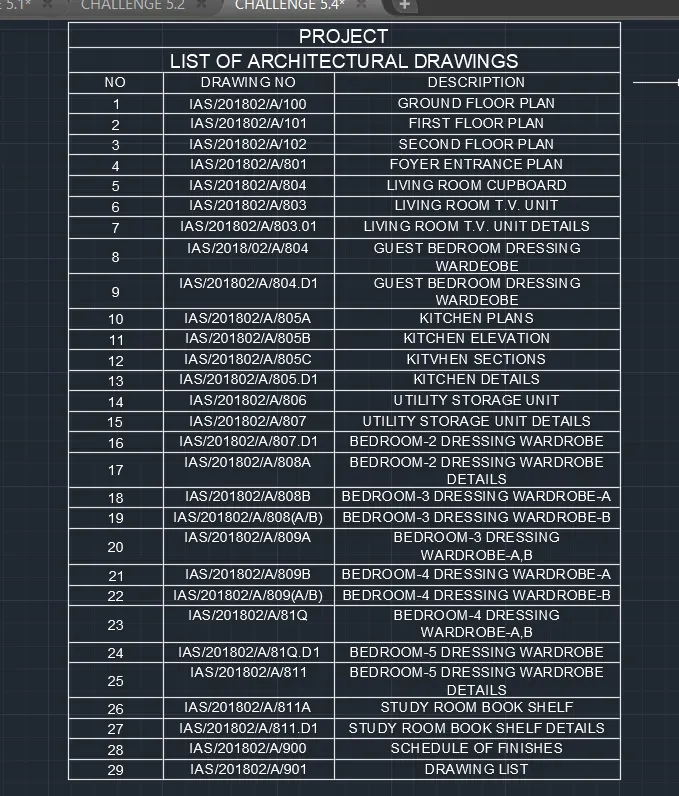

• Next we have to enter the Table command for creating the list of drawing schedules

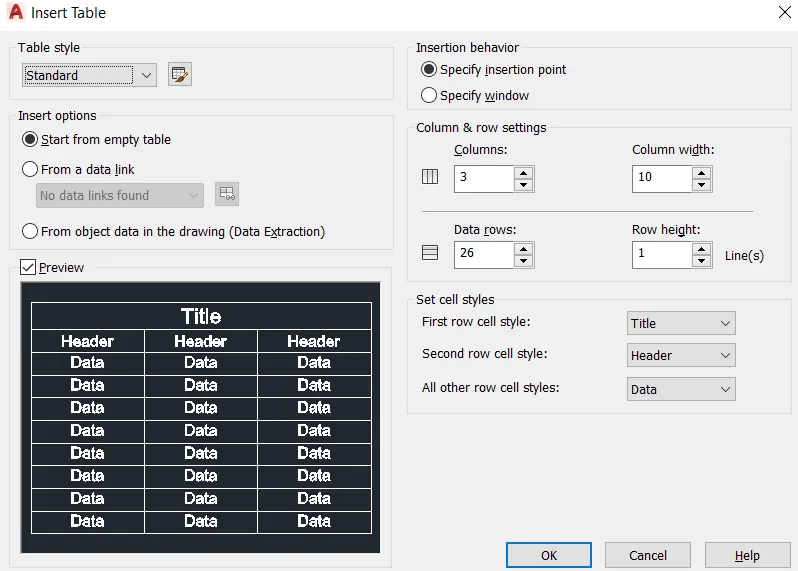

• After entering the table command the table setting screen will be displayed as shown in figure.

Step:2

• Next we use the single text command for texting in the table.
• After entering the details of list of drawing schedule, click on the outside of the table.
• Then the list of drawing schedule is listed in detail, as shown in below table.

RESULT:

The list of drawing schedule was created successfully in the autocad in detail as shown in the figure.

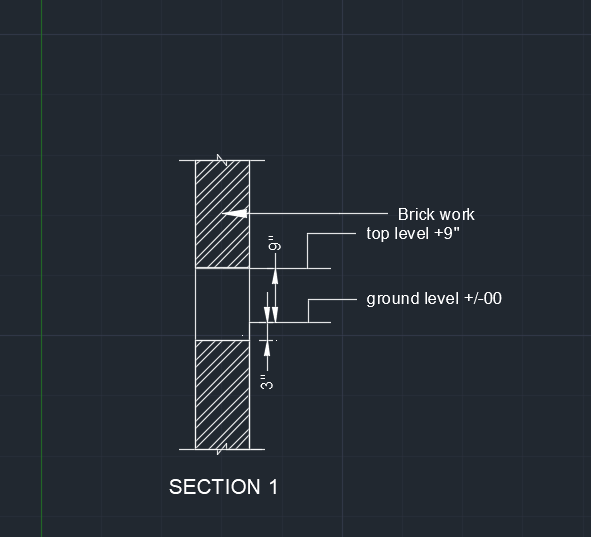

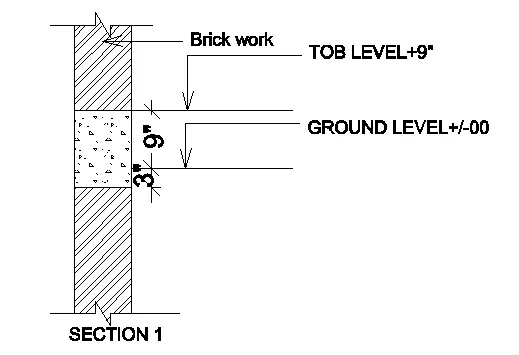

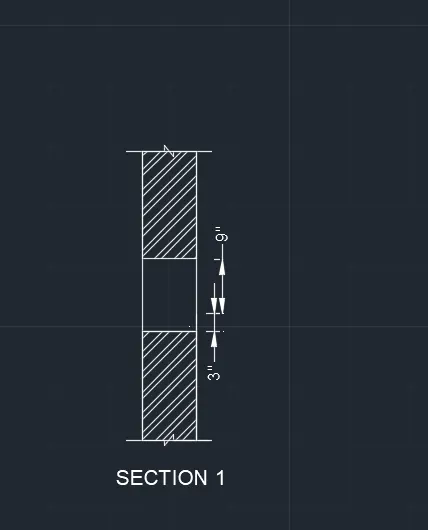

5. Create the Beam detail as shown in the figure and provide text wherever given.

AIM:

Create the Beam detail as shown in the figure and provide text for Top level and Ground level wherever given

PROCEDURE:

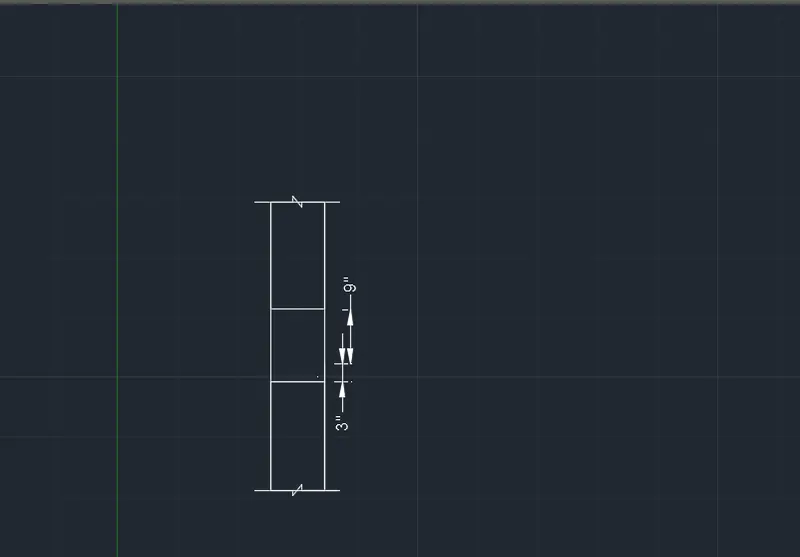

Select line from the ribbon tab.

Specify the starting point as (0,0) in the command prompt and press enter.

Specify the next point as (@0.3') in the command prompt and press enter.

Specify the next point as (@0,3") in the command prompt and press enter.

Specify the next point as (@0,9") in the command prompt and press enter.

Specify the next point as (@0,2.4') in the command prompt and press enter.

Specify the next point as (@9,0) in the command prompt and press enter.

Specify the next point as (@0.-2.4') in the command prompt and press enter.

Specify the next point as (@0,-9") in the command prompt and press enter.

Specify the next point as (@0,-3") in the command prompt and press enter.

Specify the next point as (@0,-3') in the command prompt and press enter.

Specify the next point as (@-9",0) in the command prompt and press enter.

Type "line" in the command prompt and press enter.



Specify the starting point as (0,3) in the command prompt and press enter.

Specify the next point as (@90) in the command prompt and press enter. Press "esc".

Type "line" in the command prompt and press enter.

Specify the starting point as (0,4") in the command prompt and press enter.

Specify the next point as (@9,0) in the command prompt and press enter.

Press "esc".



Type "hatch" in the command prompt and press enter.

Hatch creation tool box opens.

From the pattern menu, select the suitable hatch as given in the figure to represent brick work. Move the pointer to the closed area to be hatched and click to hatch the layer.

Adjust the scale to view the hatch.

Similarly to type the given text in the workspace use text tool.

Select the Annotation tool from ribbon tab.

From the drop down list, select the "leader".

Click on the cursor to start the leader and adjust the height using cursor.

Enter the text as "Ground level +/-00".

 Select the text tool from ribbon tab.

From the drop down list, select the "single line".

Click on the cursor to start entering the text.

Enter the text as " Section 1".

BRICKWORK

RESULT:

The Beam detail as shown in the figure and provided text like Top level and Ground level is created successfully using autocad.
