Design of backdoor

Design considerations-1) Rear Visibility criteria- There should be enough space for the back window for the driver to see through.

2) There should be enough luggage space.

3) gap beetween inner and outer panel should be minimal.

Components in backdoor-

1) Inner panel where designning is done to provide strength to backdoor.

2) outer panel upper

3) outer panel lower

4) hinge

5) gas stay mounts

6) viper motor mounts

7) latch/ striker mounts

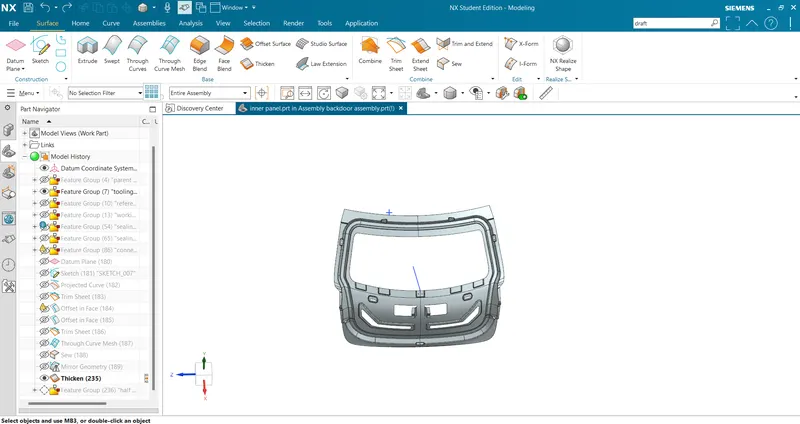

INNER PANEL-

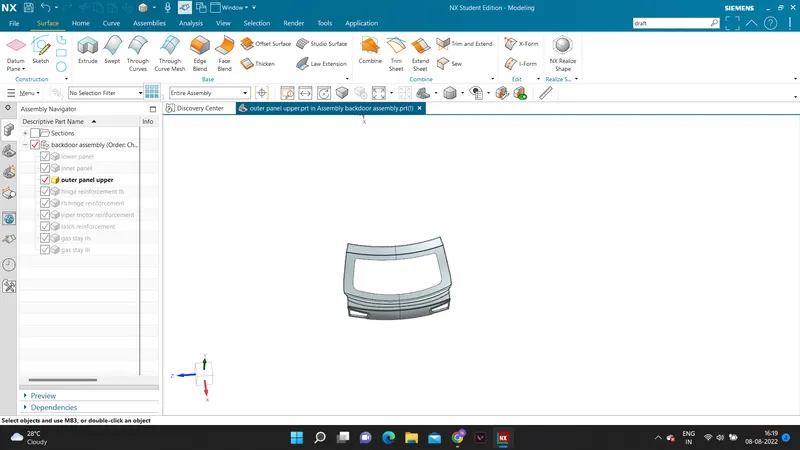

outer panel upper

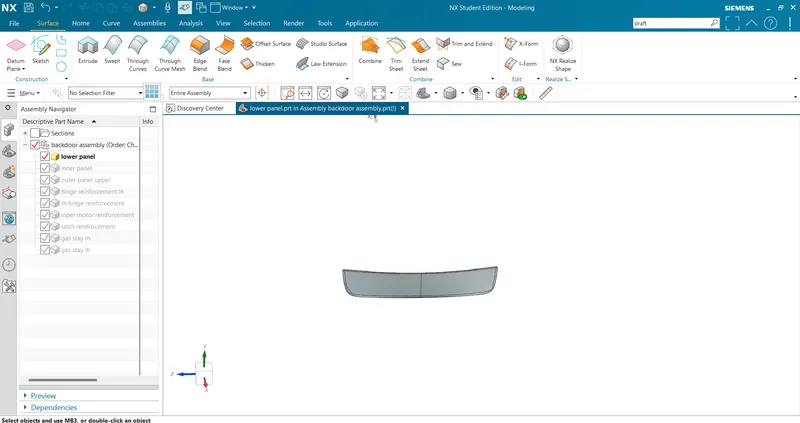

outer panel lower

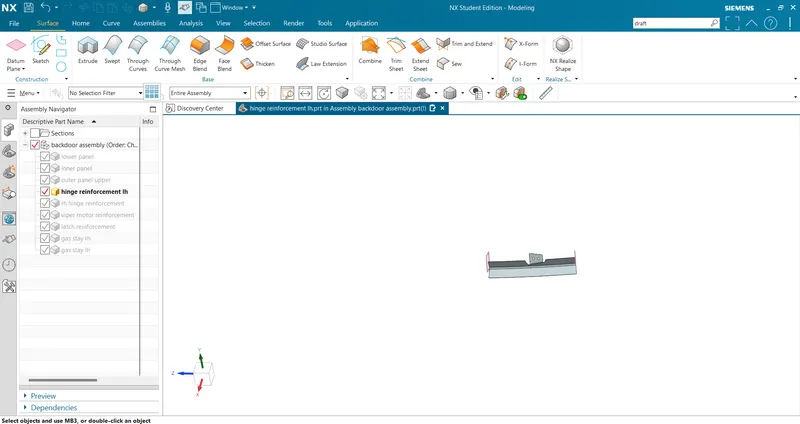

hinge mounts

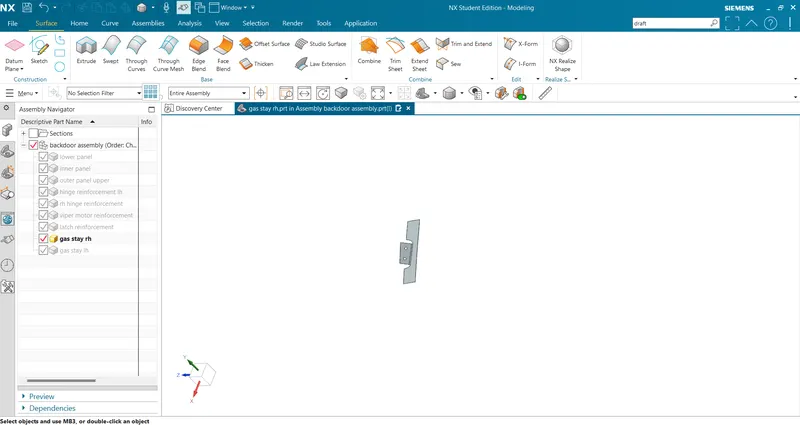

gas stay

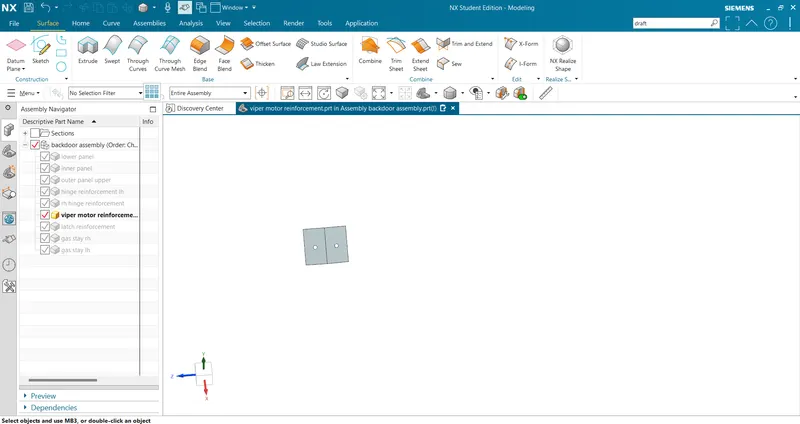

viper motor mount

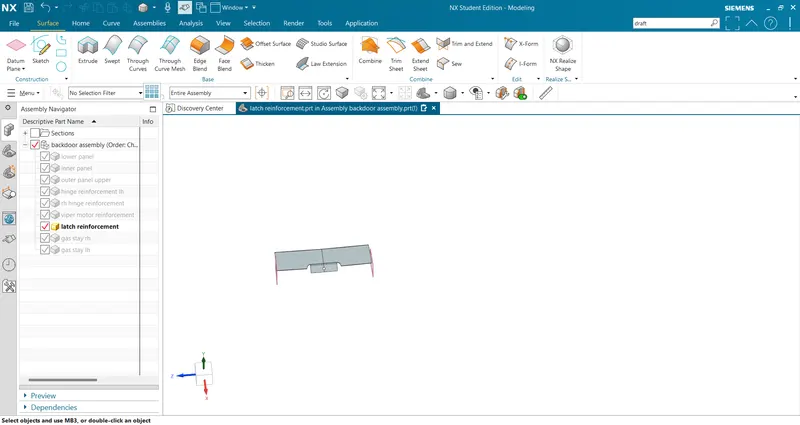

latch/ striker

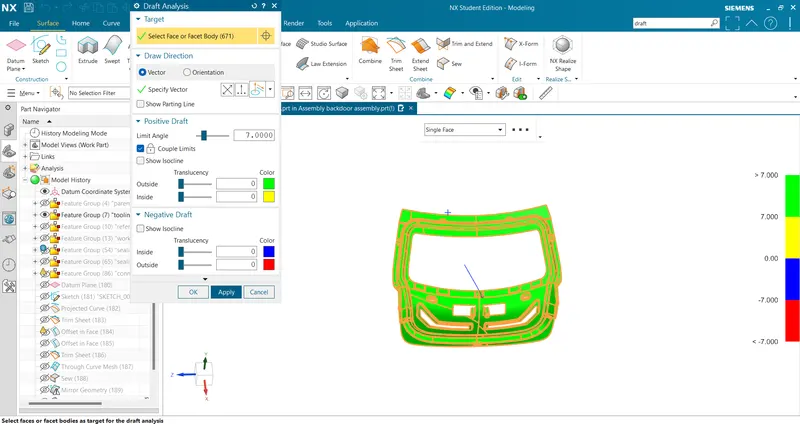

DRAFT ANALYSIS
