Week -2

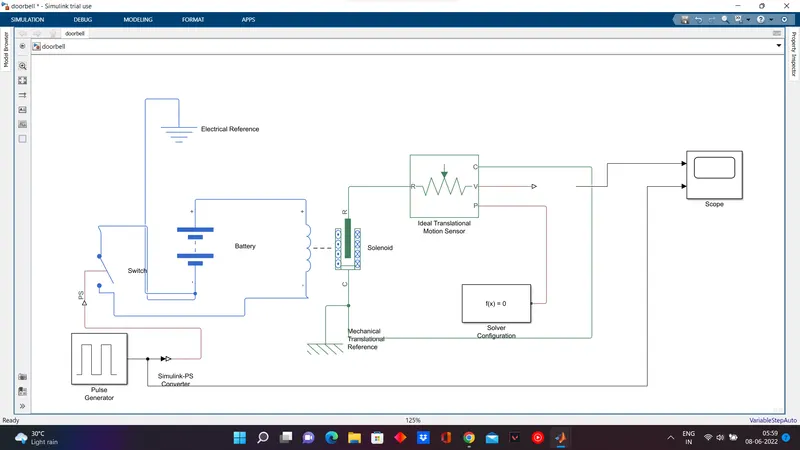

DOORBELL-

Connecting the electrcal part of solenoid to the electrical parts and mechanical part to ideal translational motion sensor which senses the position of plunger.

using pulse generator to show that in every 2 seconds the bell will ring.

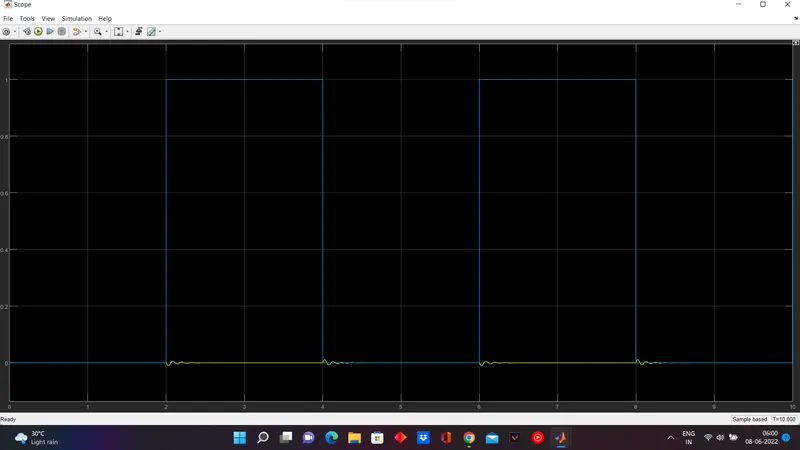

RESULT-

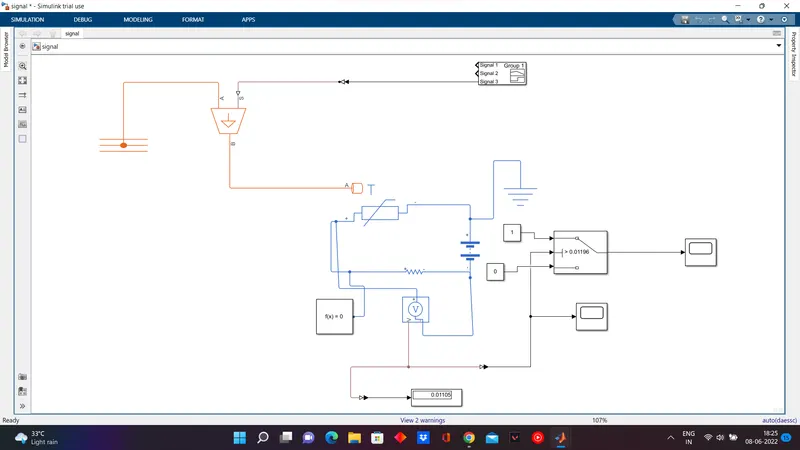

2)Thermistor-

using signal builder to set the temperature for a certain amount of time to run in simulation

using voltage sensor to get the value of the threshold for the switch to be on or off at specified temperature limit.

using scope to display the results.

changing the unit of simulink to ps convertor to degC. to get value in degrees celcius.

result will show 1 when the temperature is above 25 and voltage goes above threshold limit. and 0 when below limit.

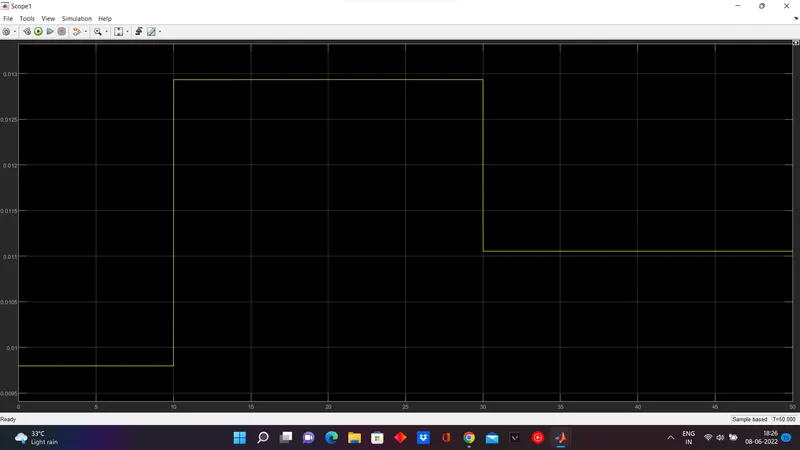

voltage sensor result.

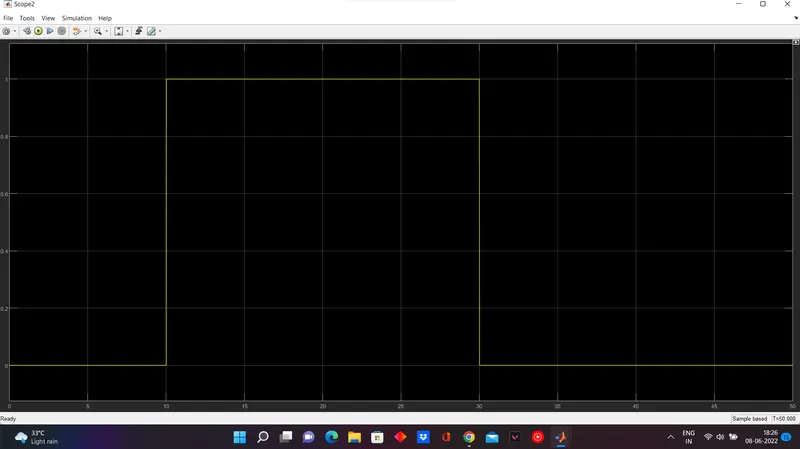

switching result
