Challenge

Week - 4

WASHING MACHINE -

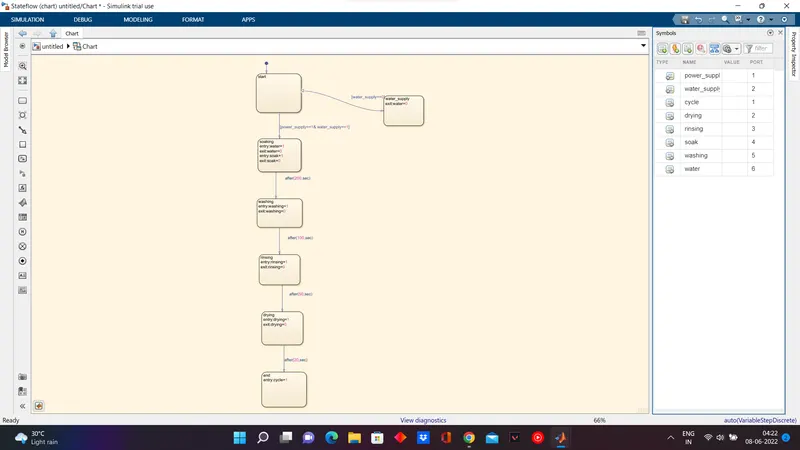

starting with making blocks for start, soak, wash,rinse,dry,cycle and giving them entry and exit values.

providing output values as needed according to the time of each process.

providing parameters for input and ouput ports.

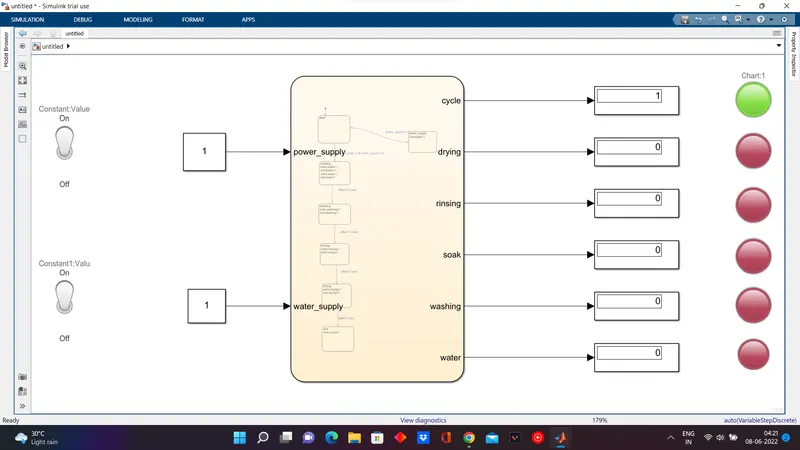

power supply available-

when the power supply is on, the cycle is on as indicated with the green lamp in the image.

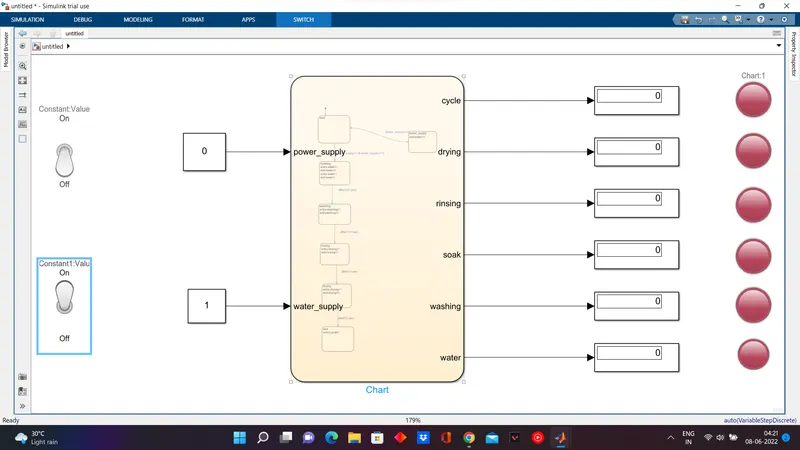

water supply not available-

when water supply not available , process is not going on as indicated by red lamp above.

2)Gears.-

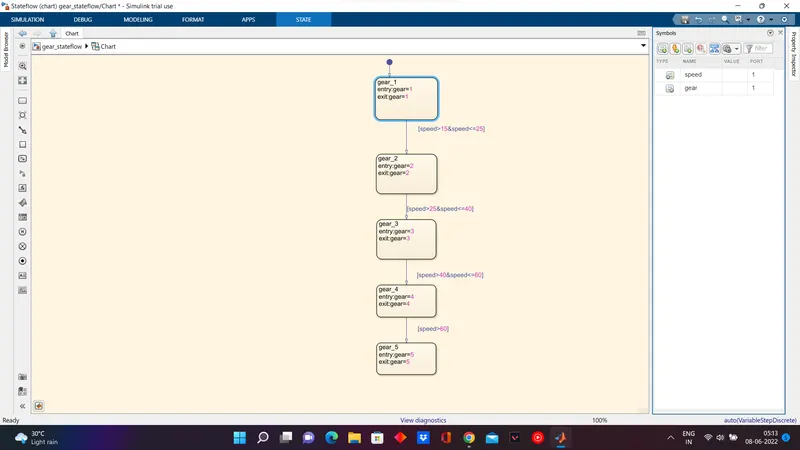

giving the speed range to each gear

setting the parameters for input and output ports.

To get the results of each gear while the simulation is running, setting stop time to inf.

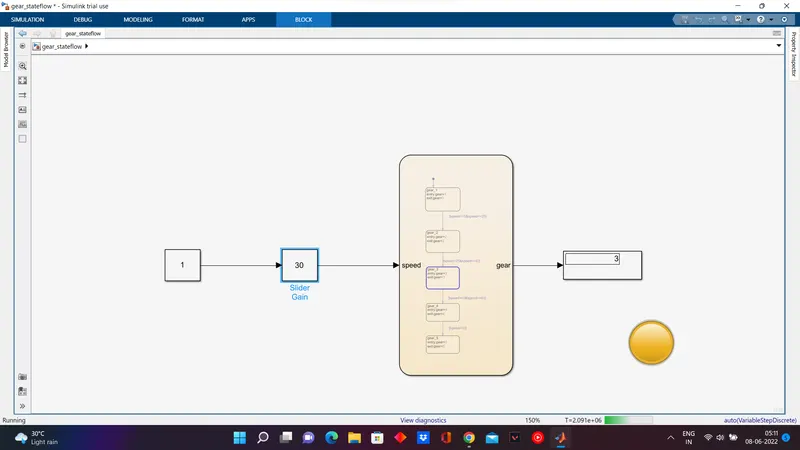

Using slider gain block to change the gear while the simulation is running.

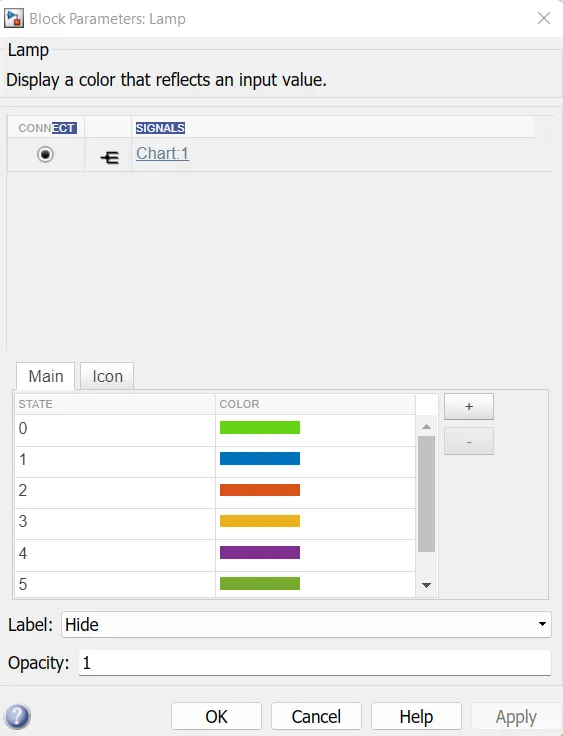

GEAR COLOR NOTATIONS-

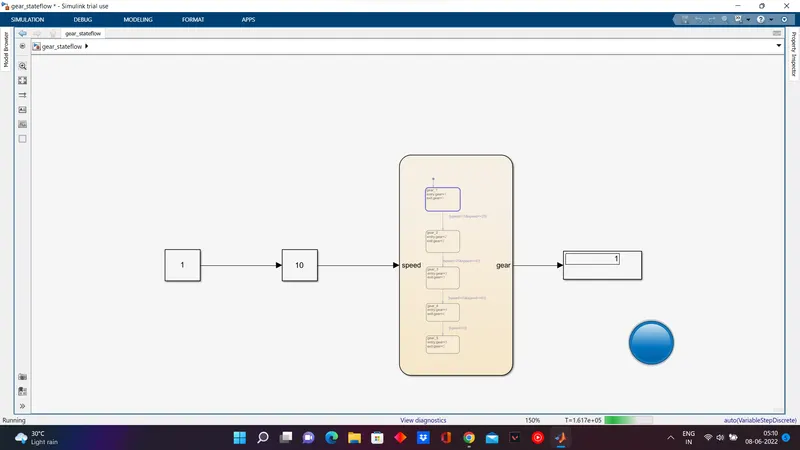

GEAR 1-

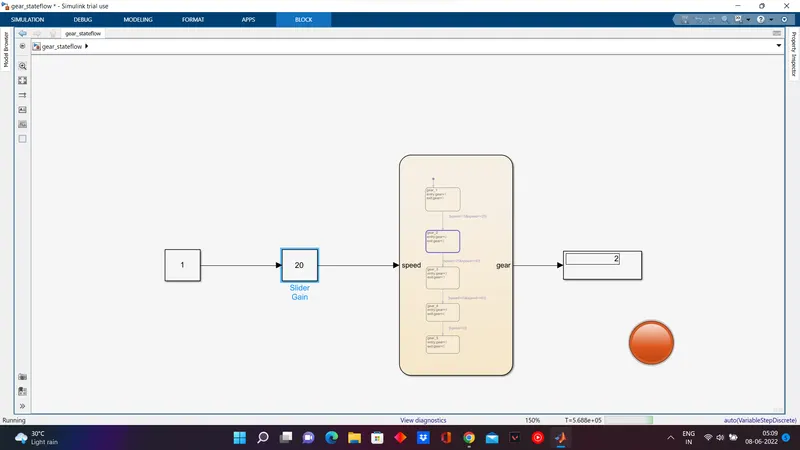

GEAR 2-

GEAR 3-

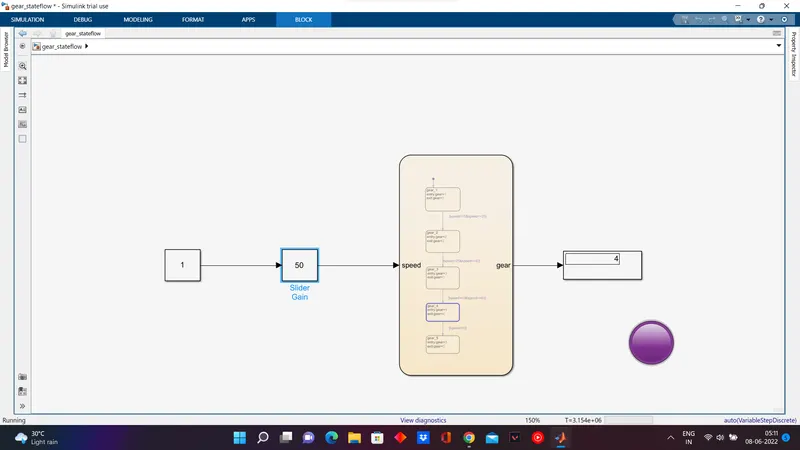

GEAR 4-

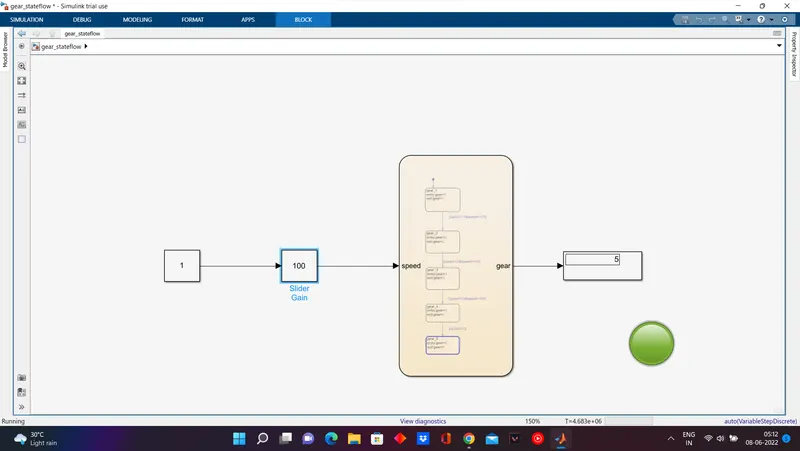

GEAR 5-
