Creating Walls, Partition walls and Floors for a residential layout using REVIT

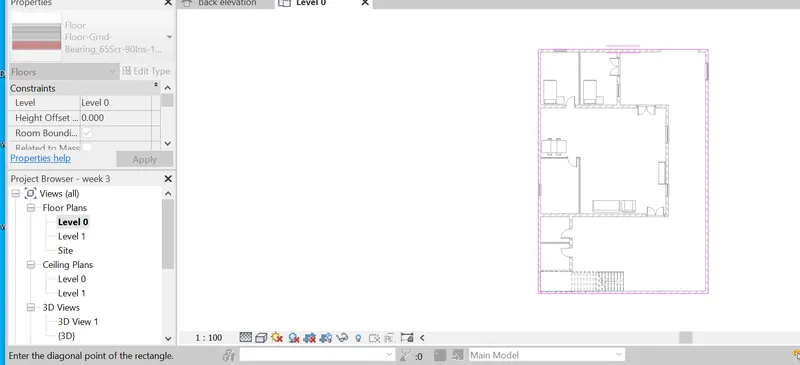

1) Use the project file created from Week 2. Use it for this assignment. Based on your layout from week 2, using floor tool under architecture tab and select the floor with appropriate material and thickness using the property browser create a layout in the Ground floor Level. Align the floor plan with grids created from week 2

Aim & Introduction: To create a floor for layout based on week-2 with appropriate size and material.

Procedure:

open week 2 revit file

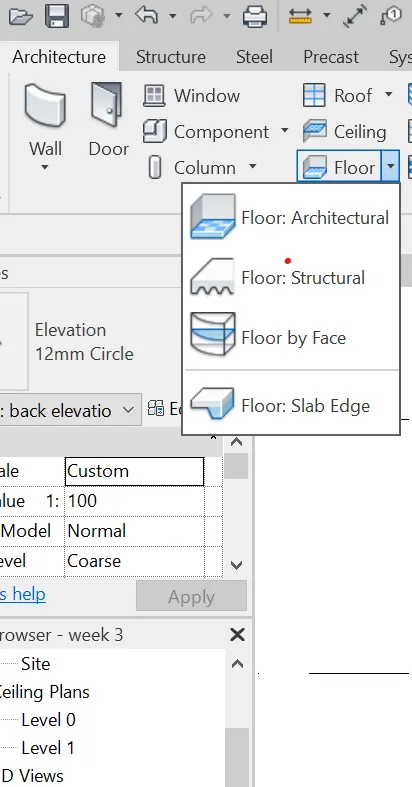

select floor option

select on floor architectrual

create a floor area

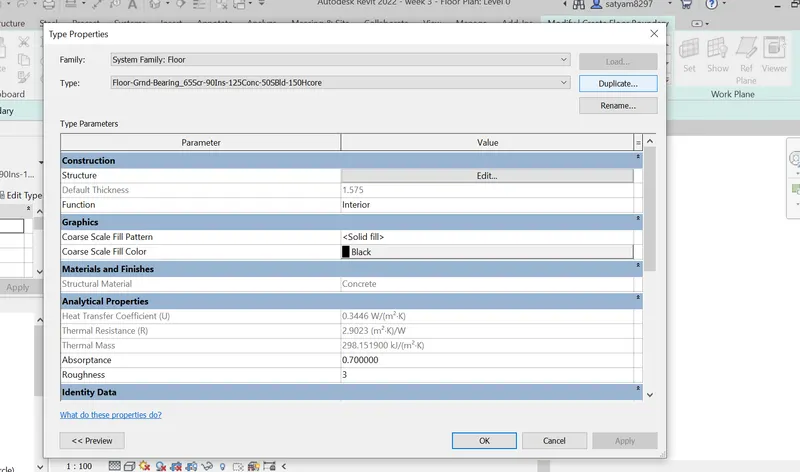

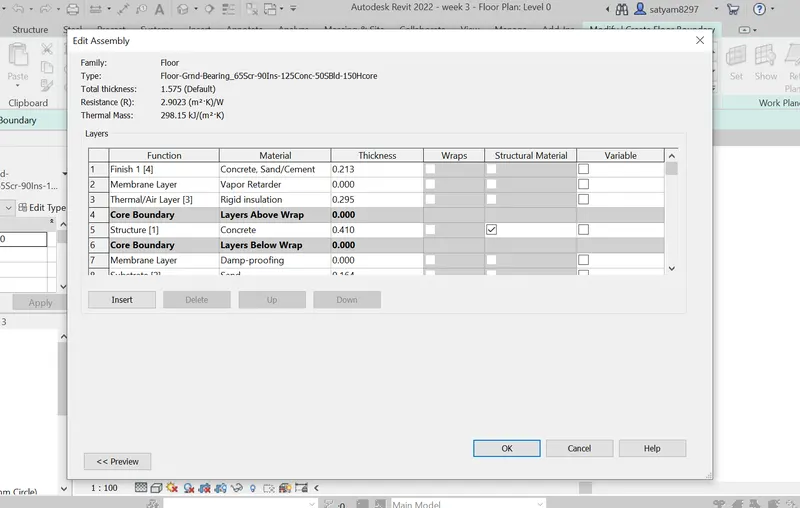

Goto properties > select edit type click on duplicate > name the duplicate file > and edit the structure as per necessary materials and thickness.

click on OK to apply the changed propeties

Result:

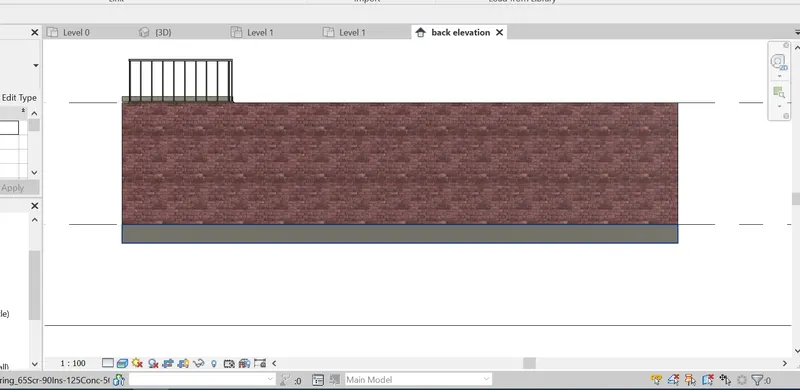

2) Add walls based on the floor layout. Pick lines or use the draw tool to modify the boundary of walls. Use the property browser to select appropriate material and thickness for walls. After creating the walls verify using the property browser to see if the top and bottom of the walls are constrained.

a. Based on your observation, what is beneficial for connecting walls with associated levels rather than being Unconnected
b. Which option is convenient for modeling walls, By Height or By Depth?

Aim & Introduction: To create a wall based on the floor and modify the boundary of wall. check the appropriate property of the wall should considered.

and observe that a)what is beneficial for connecting walls with associated levels rather than being Unconnected
b)Which option is convenient for modeling walls, By Height or By Depth?

Procedure:

• Creating the partician wall for inner walls.

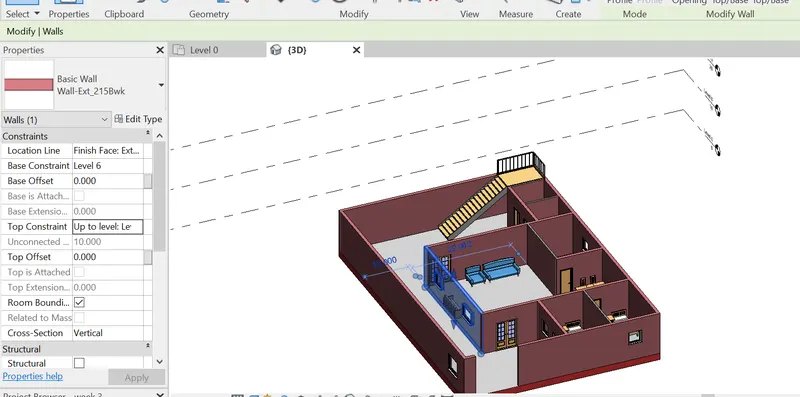

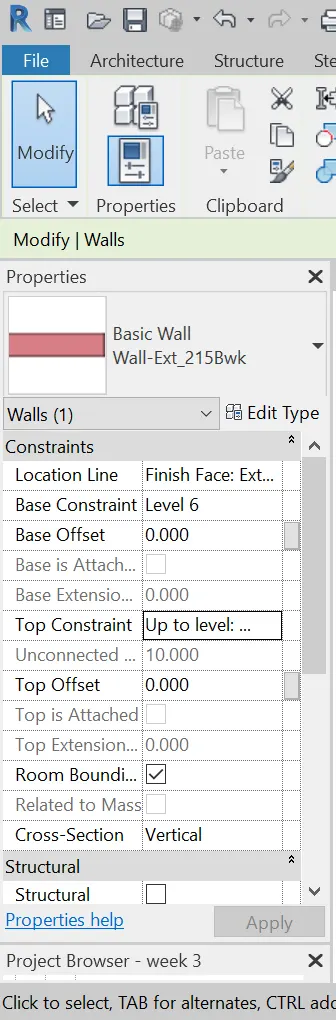

• go to project browser and check th base constain and top constaint
• If th top constaint should be connected to a required height or provided level height
• These can be adjusted by property browser

Observation:

a) Based on your observation, connecting walls with associated levels is benifical rather than being Unconnected

b)For modelling walls height option is more convenient than depth.

Result:

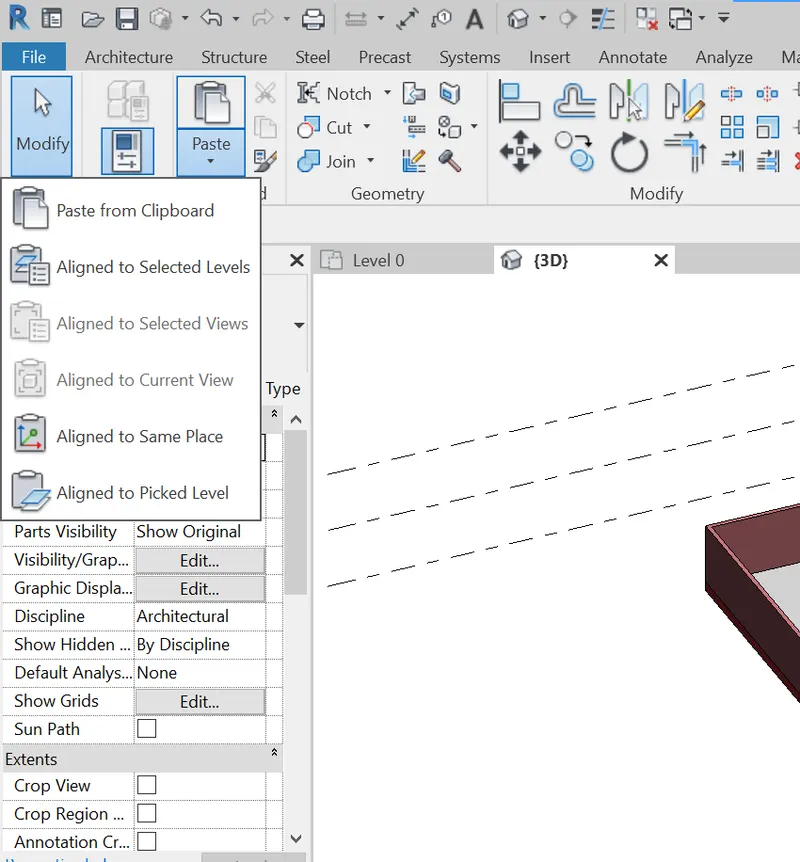

3) Copy the model elements ( wall, floor ) modelled to Ground Floor Level and paste it aligned to First Floor Level . Use modify tab to utilize copy and paste options to align
elements to a different level

Aim & Introduction: To create a copy of ground floor element to first floor by using copy copy and past option.

Procedure:

• open the previous model file
• select the required element
• click the copy tool
• click on past tool

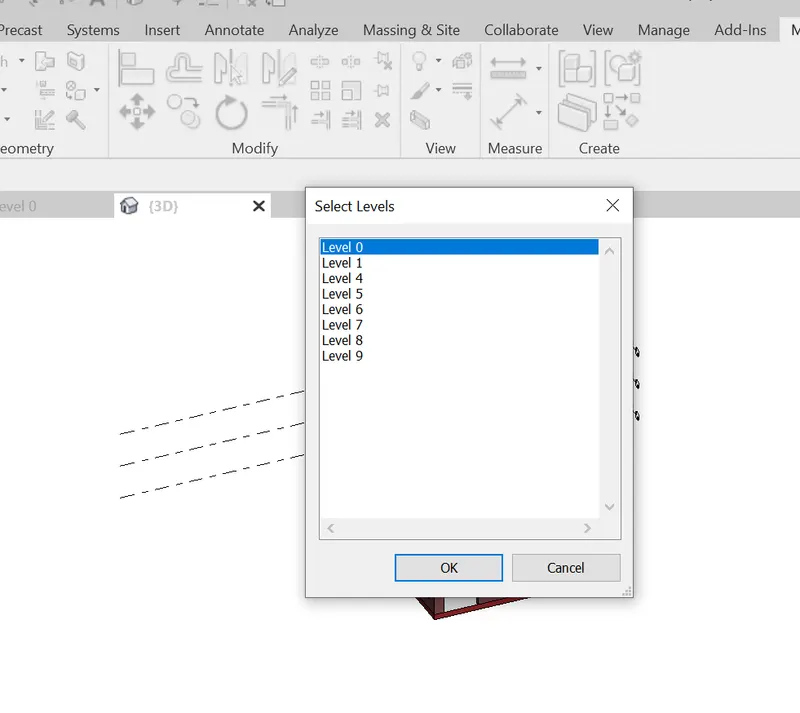

• select to past as selected level

• selected the level to past the element and click ok

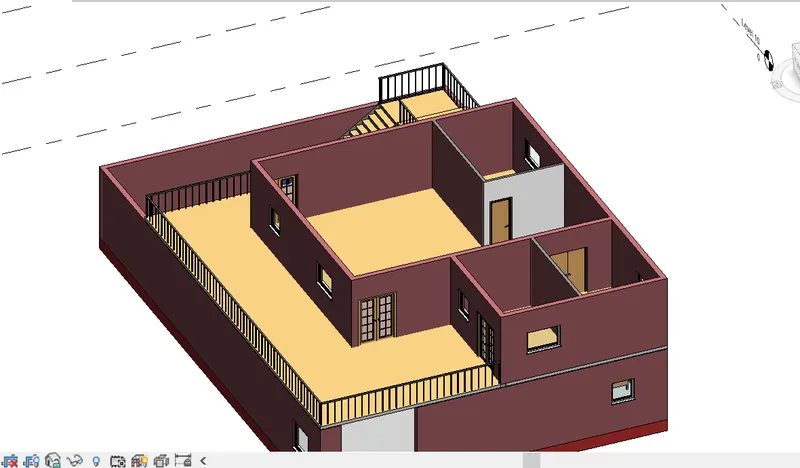

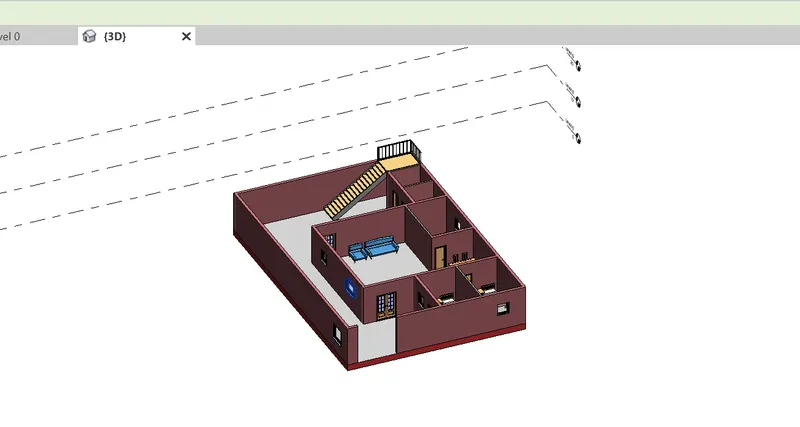

Result:

• The elements are which havebeen copied are pasted to Level 1

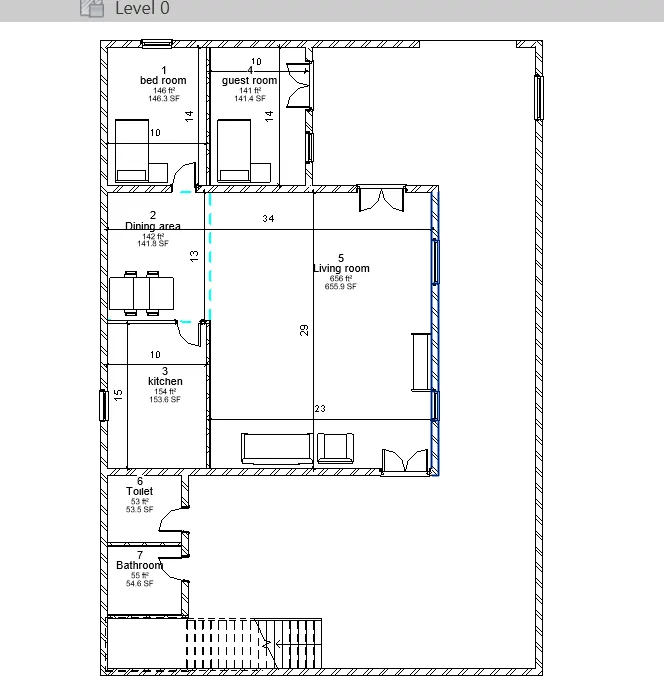

4) Use interior partition walls to create separate rooms within your residential unit. The model must include the following rooms

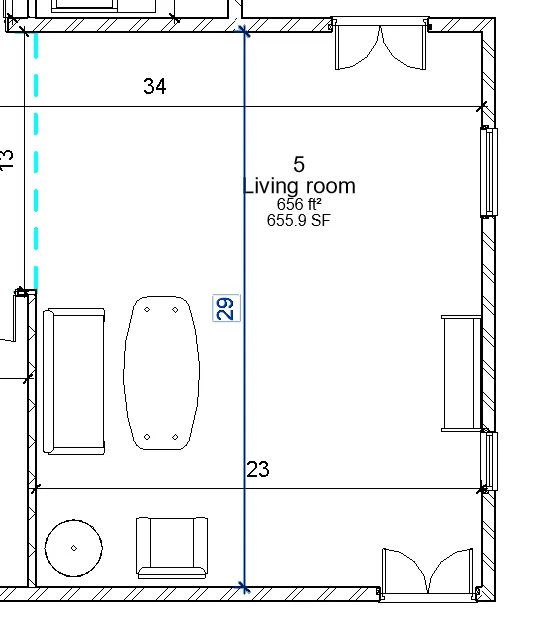

a. Living Room/ Drawing Room ( 15’ X 18’)
b. Dining Room (9’ X 11’)

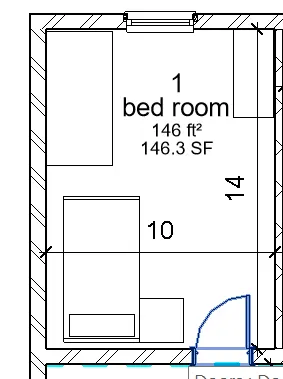

c. Bed Room ( 9’ X 12’ and 15’ X 11’)

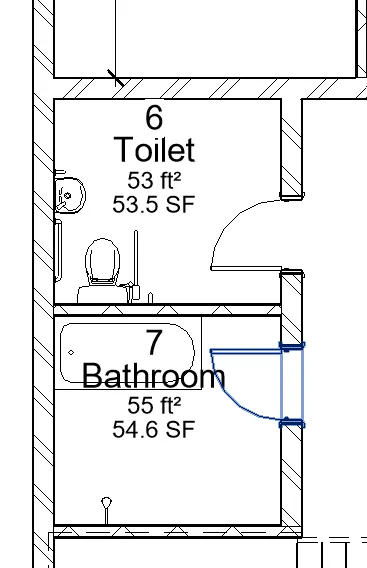

d. Rest Room ( 10’ X 12’ )

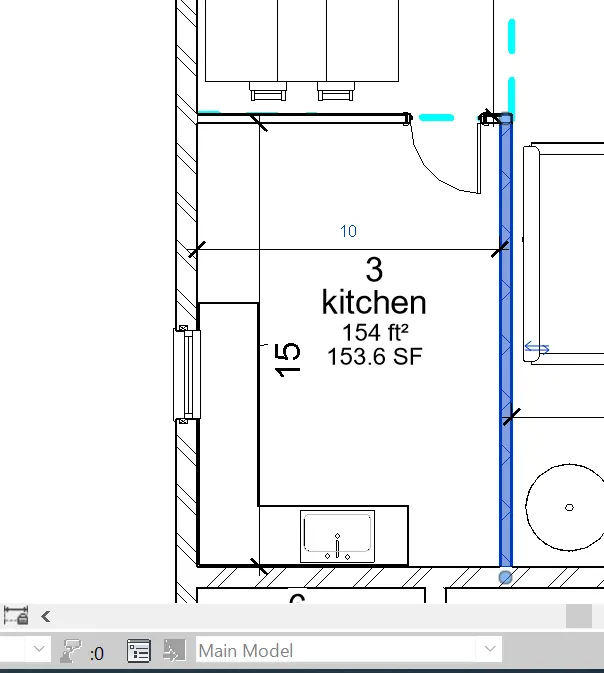

e. Kitchen (8’ X 10’)

The above are for examples. You can use them or use your measured entities to create your model based on your layout. You may include entry walkway, Patios or Guest
rooms based on your creativity and purpose of modeling. Convert units if you are using metric system

Aim: To create partition wallsto create a different types of room

Procedure:

• Open file
• select porject units to feets
• Select the wall required
• select the walls to change the properties of partition wall
• Got o create room option
• select area > provide name of the area
•

Result :

•

5) Based on week 2 assignment, the components to be included in a residential unit were inserted to the Revit file. Place these components in appropriate locations to add details to your residential model

a. Place Doors and windows in the wall at appropriate locations
b. The Living Room must include furniture set, couch table and TV desk and shelf cabinets
c. The Dining Room must include a table and chairs serving the purpose of eating
d. Bed Room must include a bed set, shelf, lighting and individual study desk and chair
e. Rest room should include bath tub and plumbing fixtures discussed in class
f. Kitchen should include countertops, gas stove cabinet and shelves to store food items
g. The wash/storage room can include washing machines and shelves to store clothes

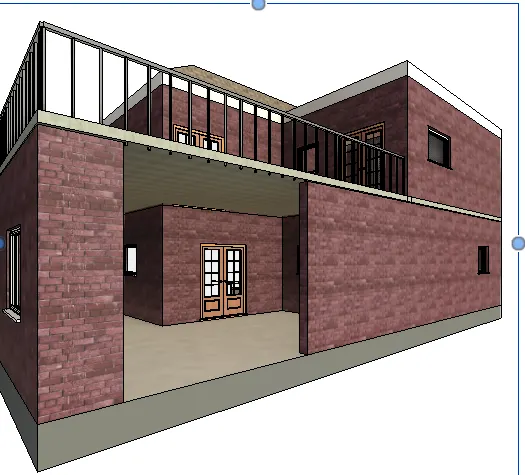

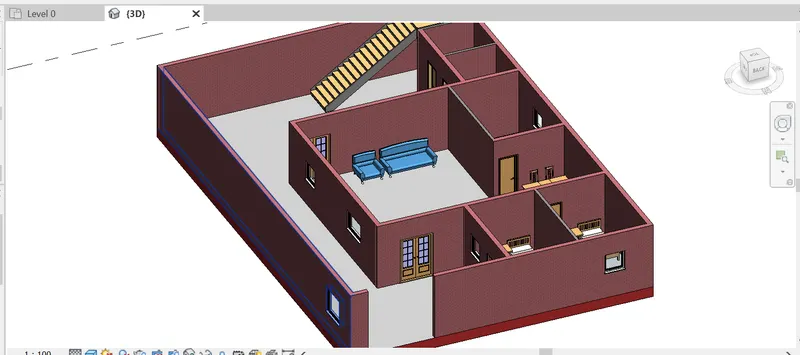

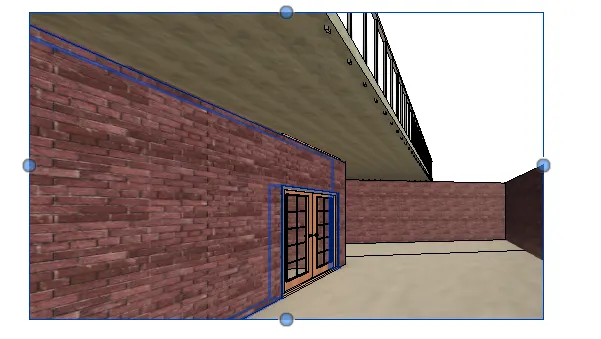

All the components are available in Revit Library. Use them to place at appropriate locations to add details to your model. Use 3D navigation to check the model and its authenticity on a real time basis to verify the model

Aim: To Place the components in appropriate locations to add details to your residential model as per given conditions.

a. Place Doors and windows in the wall at appropriate locations
b. The Living Room must include furniture set, couch table and TV desk and shelf cabinets
c. The Dining Room must include a table and chairs serving the purpose of eating
d. Bed Room must include a bed set, shelf, lighting and individual study desk and chair
e. Rest room should include bath tub and plumbing fixtures discussed in class
f. Kitchen should include countertops, gas stove cabinet and shelves to store food items
g. The wash/storage room can include washing machines and shelves to store clothes

Procedure:

Open revit file of week 2

In week 2 challange the components are loaded through LOad family option

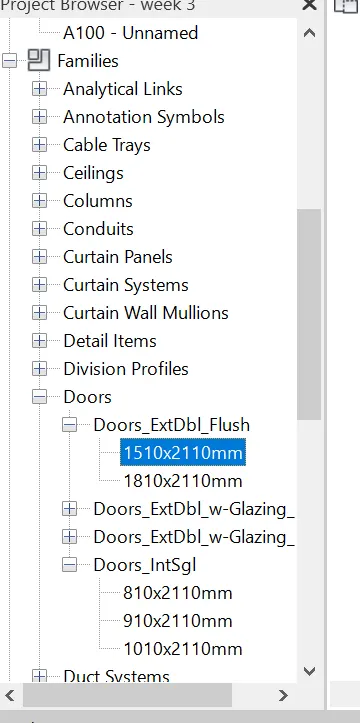

a) Goto FAMILY OPTION from PROJECT BROWSER

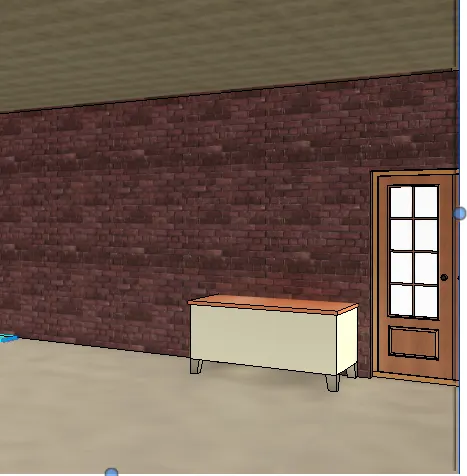

Select doors > Specify the location of wall and direction of opening

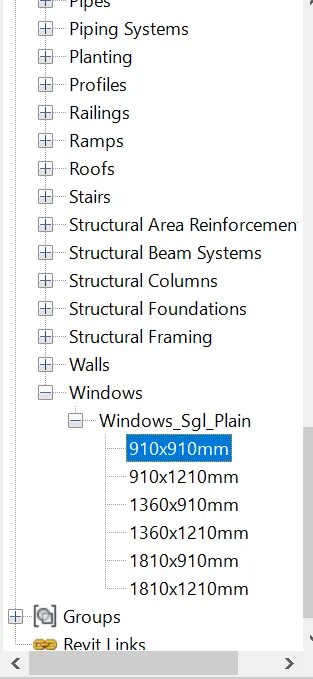

Repeate the same prodedure for windows

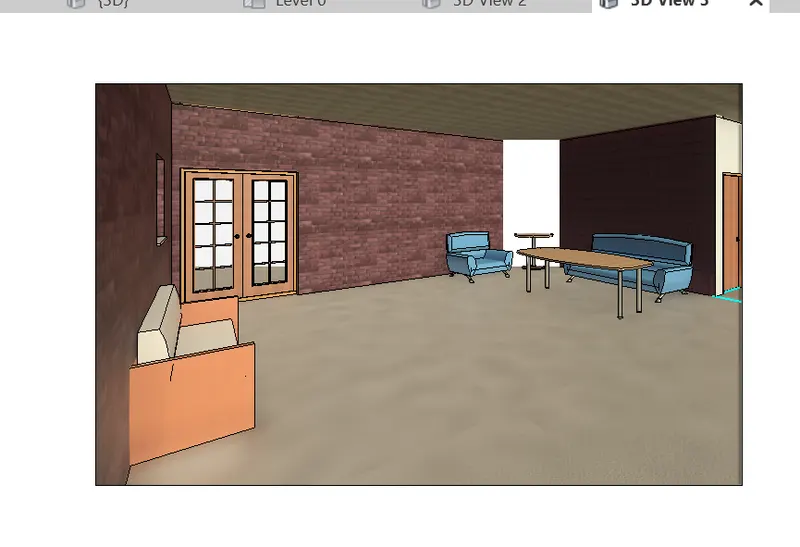

b. The Living Room must include furniture set, couch table and TV desk and shelf cabinets

Goto family> furnitures

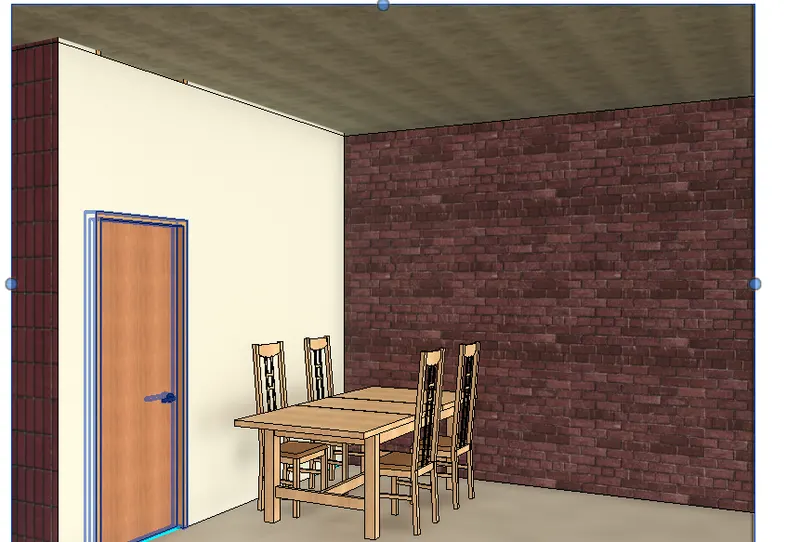

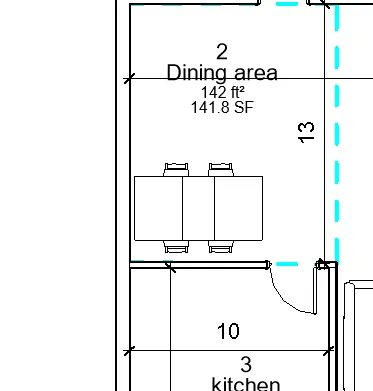

c. The Dining Room must include a table and chairs serving the purpose of eating

d.Bed Room must include a bed set, shelf, lighting and individual study desk and chair

e. Rest room should include bath tub and plumbing fixtures discussed in class

f. Kitchen should include countertops, gas stove cabinet and shelves to store food items

RESULT:
