Creation of geometries by Coordinate system methods using AutoCad

SSatyam Pandey14 Aug 2021

AIM: To Create the geometries from P1 to P2 using all the coordinates system methods. by using the Line tool and circle tool to create the geometries in Imperial Template and the Decimal Units to draft the features with refrence dimensions.

Procedures :

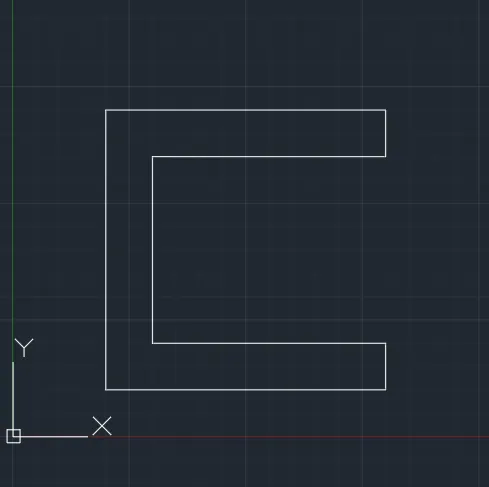

AIM: To Create the geometries from P1 using cartesian coordinate system with refrence dimensions.

PROCEDURE:

  • OPEN NEW FILE
  • SELECT UNITS
  • TYPE LINE IN COMMAND BOX
  • SPECIFY THE STARTING POINT AS 2,1 AND ENTER
  • SPECIFY THE NEXT POINT 8,1 AND ENTER
  • SPECIFY THE NEXT POINT 8,2 AND ENTER
  • SPECIFY THE NEXT POINT 3,2 AND ENTER
  • SPECIFY THE NEXT POINT 3,6 AND ENTER
  • SPECIFY THE NEXT POINT 8,6 AND ENTER
  • SPECIFY THE NEXT POINT 8,7 AND ENTER
  • SPECIFY THE NEXT POINT 2,7 AND ENTER
  • SPECIFY THE NEXT POINT 2,1 AND ENTER (OR) TYPE CLOSE

RESULT:

AIM: To Create the geometries from P1 using absolute coordinate system with refrence dimensions.

PROCEDURE:

  • OPEN NEW FILE
  • SELECT UNITS AND LIMITS
  • TYPE LINE IN COMMAND BOX
  • SPECIFY THE STARTING POINT AS 2,1 AND ENTER
  • SPECIFY THE NEXT POINT 8,1 AND ENTER
  • SPECIFY THE NEXT POINT 8,2 AND ENTER
  • SPECIFY THE NEXT POINT 3,2 AND ENTER
  • SPECIFY THE NEXT POINT 3,6 AND ENTER
  • SPECIFY THE NEXT POINT 8,6 AND ENTER
  • SPECIFY THE NEXT POINT 8,7 AND ENTER
  • SPECIFY THE NEXT POINT 2,7 AND ENTER
  • SPECIFY THE NEXT POINT 2,1 AND ENTER (OR) TYPE CLOSE

RESULT:

AIM: To Create the geometries from P1 using rectangular coordinate system with refrence dimensions.

PROCEDURE:

  • OPEN NEW FILE
  • SELECT UNITS
  • TYPE LINE IN COMMAND BOX
  • SPECIFY THE STARTING POINT AS 2,1 AND ENTER
  • SPECIFY THE NEXT POINT 6,0 AND ENTER
  • SPECIFY THE NEXT POINT 0,1 AND ENTER
  • SPECIFY THE NEXT POINT -5,0 AND ENTER
  • SPECIFY THE NEXT POINT 0,4 AND ENTER
  • SPECIFY THE NEXT POINT 5,0 AND ENTER
  • SPECIFY THE NEXT POINT 0,1 AND ENTER
  • SPECIFY THE NEXT POINT -6,0 AND ENTER
  • SPECIFY THE NEXT POINT 0,-6 AND ENTER (OR) TYPE CLOSE

RESULT:

AIM: To Create the geometries from P1 using Polar coordinate system with refrence dimensions.

PROCEDURE:

  • OPEN NEW FILE
  • SELECT UNITS
  • TYPE LINE IN COMMAND BOX
  • SPECIFY THE STARTING POINT AS 2,1 AND ENTER
  • SPECIFY THE NEXT POINT @6<0 AND ENTER
  • SPECIFY THE NEXT POINT @1<90 AND ENTER
  • SPECIFY THE NEXT POINT @5<180 AND ENTER
  • SPECIFY THE NEXT POINT @4<90 AND ENTER
  • SPECIFY THE NEXT POINT @5<0 AND ENTER
  • SPECIFY THE NEXT POINT @1<90 AND ENTER
  • SPECIFY THE NEXT POINT @6<180 AND ENTER
  • SPECIFY THE NEXT POINT @6<270 AND ENTER (OR) TYPE CLOSE

RESULT:

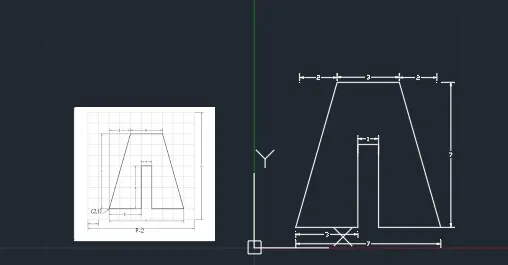

AIM: To Create the geometries from P2 using cartesian coordinate system with refrence dimensions.

PROCEDURE:

  • OPEN NEW FILE
  • SELECT UNITS
  • TYPE LINE IN COMMAND BOX
  • SPECIFY THE STARTING POINT AS 2,1 AND ENTER
  • SPECIFY THE NEXT POINT 2,1 AND ENTER
  • SPECIFY THE NEXT POINT 4,1 AND ENTER
  • SPECIFY THE NEXT POINT 4,5 AND ENTER
  • SPECIFY THE NEXT POINT 5,5 AND ENTER
  • SPECIFY THE NEXT POINT 5,1 AND ENTER
  • SPECIFY THE NEXT POINT 8,1 AND ENTER
  • SPECIFY THE NEXT POINT 6,8 AND ENTER
  • SPECIFY THE NEXT POINT 3,8 AND ENTER
  • SPECIFY THE NEXT POINT 2,1 AND ENTER (OR) TYPE CLOSE

RESULT:

AIM: To Create the geometries from P2 using absolute coordinate system with refrence dimensions.

PROCEDURE:

  • OPEN NEW FILE
  • SELECT UNITS AND LIMITS WITH ORIGIN(0,0)
  • TYPE LINE IN COMMAND BOX
  • SPECIFY THE STARTING POINT AS 2,1 AND ENTER.
  • SPECIFY THE NEXT POINT 4,1 AND ENTER
  • SPECIFY THE NEXT POINT 4,5 AND ENTER
  • SPECIFY THE NEXT POINT 5,5 AND ENTER
  • SPECIFY THE NEXT POINT 5,1 AND ENTER
  • SPECIFY THE NEXT POINT 8,1 AND ENTER
  • SPECIFY THE NEXT POINT 6,8 AND ENTER
  • SPECIFY THE NEXT POINT 3,8 AND ENTER
  • SPECIFY THE NEXT POINT 2,1 AND ENTER (OR) TYPE CLOSE

RESULT:

AIM: To Create the geometries from P2 using relative rectangular coordinate system with refrence dimensions.

PROCEDURE:

  • OPEN NEW FILE
  • SELECT UNITS
  • TYPE LINE IN COMMAND BOX
  • SPECIFY THE STARTING POINT AS 2,1 AND ENTER
  • SPECIFY THE NEXT POINT 3,0 AND ENTER
  • SPECIFY THE NEXT POINT 0,4 AND ENTER
  • SPECIFY THE NEXT POINT 1,0 AND ENTER
  • SPECIFY THE NEXT POINT 0,-4 AND ENTER
  • SPECIFY THE NEXT POINT 3,0 AND ENTER
  • SPECIFY THE NEXT POINT -2,7 AND ENTER
  • SPECIFY THE NEXT POINT -3,0 AND ENTER
  • SPECIFY THE NEXT POINT -1,7 AND ENTER
  • SPECIFY THE NEXT POINT 2,1 AND ENTER (OR) TYPE CLOSE.

RESULT:

AIM: To Create the geometries from P2 using polar coordinate system with refrence dimensions.

PROCEDURE:

  • OPEN NEW FILE
  • SELECT UNITS
  • TYPE LINE IN COMMAND BOX
  • SPECIFY THE STARTING POINT AS 2,1 AND ENTER
  • SPECIFY THE NEXT POINT @3<0 AND ENTER
  • SPECIFY THE NEXT POINT @4<90 AND ENTER
  • SPECIFY THE NEXT POINT @1<0 AND ENTER
  • SPECIFY THE NEXT POINT @4<270 AND ENTER
  • SPECIFY THE NEXT POINT @3<0 AND ENTER
  • SPECIFY THE NEXT POINT 6,8 AND ENTER
  • SPECIFY THE NEXT POINT @3<180 AND ENTER
  • SPECIFY THE NEXT POINT 2,1 AND ENTER (OR) TYPE CLOSE

RESULT:

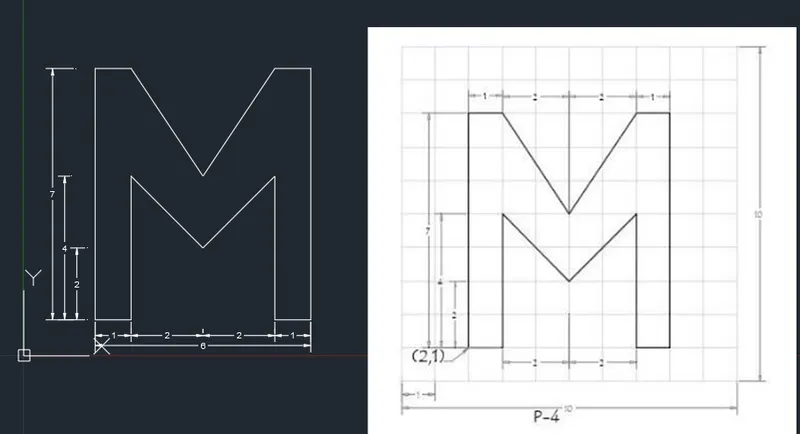

AIM: To Create the geometries from P4 using relative rectangular coordinate system with refrence dimensions.

PROCEDURE:

  • OPEN NEW FILE
  • SELECT UNITS
  • TYPE LINE IN COMMAND BOX
  • SPECIFY THE STARTING POINT AS 2,1 AND ENTER
  • SPECIFY THE NEXT POINT 1,0 AND ENTER
  • SPECIFY THE NEXT POINT 0,4 AND ENTER
  • SPECIFY THE NEXT POINT 2,-2 AND ENTER
  • SPECIFY THE NEXT POINT 2,2 AND ENTER
  • SPECIFY THE NEXT POINT 0,-4 AND ENTER
  • SPECIFY THE NEXT POINT 1,0 AND ENTER
  • SPECIFY THE NEXT POINT 0,7 AND ENTER
  • SPECIFY THE NEXT POINT -1,0 AND ENTER
  • SPECIFY THE NEXT POINT -2,-3 AND ENTER
  • SPECIFY THE NEXT POINT 2,3 AND ENTER
  • SPECIFY THE NEXT POINT -1,0 AND ENTER
  • SPECIFY THE NEXT POINT 0,-7 AND ENTER (OR) TYPE CLOSE.

RESULT:

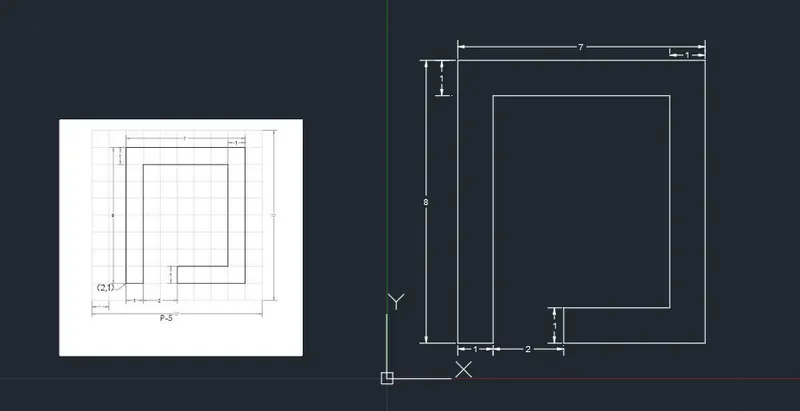

AIM: To Create the geometries from P5 using relative rectangular coordinate system with refrence dimensions.

PROCEDURE:

  • OPEN NEW FILE
  • SELECT UNITS
  • TYPE LINE IN COMMAND BOX
  • SPECIFY THE STARTING POINT AS 2,1 AND ENTER
  • SPECIFY THE NEXT POINT 1,0 AND ENTER
  • SPECIFY THE NEXT POINT 0,7 AND ENTER
  • SPECIFY THE NEXT POINT 5,0 AND ENTER
  • SPECIFY THE NEXT POINT 0,-6 AND ENTER
  • SPECIFY THE NEXT POINT -3,0 AND ENTER
  • SPECIFY THE NEXT POINT 0,-1 AND ENTER
  • SPECIFY THE NEXT POINT 0,4 AND ENTER
  • SPECIFY THE NEXT POINT 0,8 AND ENTER
  • SPECIFY THE NEXT POINT -7,0 AND ENTER
  • SPECIFY THE NEXT POINT 0,-8 AND ENTER (OR) TYPE CLOSE.

RESULT:

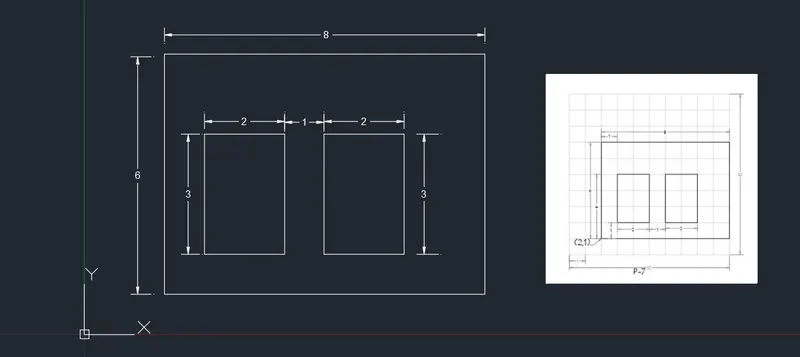

AIM: To Create the geometries from P7 using relative rectangular coordinate system with refrence dimensions.

PROCEDURE:

  • OPEN NEW FILE
  • SELECT UNITS
  • TYPE LINE IN COMMAND BOX
  • SPECIFY THE STARTING POINT AS 2,1 AND ENTER
  • SPECIFY THE NEXT POINT 8,0 AND ENTER
  • SPECIFY THE NEXT POINT 0,6 AND ENTER
  • SPECIFY THE NEXT POINT -8,0 AND ENTER
  • SPECIFY THE NEXT POINT 0,-6 AND ENTER (OR) TYPE CLOSE.
  • TYPE LINE IN COMMAND BOX
  • SPECIFY THE STARTING POINT AS 3,2 AND ENTER
  • SPECIFY THE NEXT POINT 2,0 AND ENTER
  • SPECIFY THE NEXT POINT 0,3 AND ENTER
  • SPECIFY THE NEXT POINT -2,0 AND ENTER
  • SPECIFY THE NEXT POINT 0,-3 AND ENTER (OR) TYPE CLOSE.
  • TYPE LINE IN COMMAND BOX
  • SPECIFY THE STARTING POINT AS 6,2 AND ENTER
  • SPECIFY THE NEXT POINT 2,0 AND ENTER
  • SPECIFY THE NEXT POINT 0,3 AND ENTER
  • SPECIFY THE NEXT POINT -2,0 AND ENTER
  • SPECIFY THE NEXT POINT 0,-3 AND ENTER (OR) TYPE CLOSE.

RESULT:

AIM: To Create the geometries from P8 using relative rectangular coordinate system with refrence dimensions.

PROCEDURE:

  • OPEN NEW FILE
  • SELECT UNITS
  • TYPE LINE IN COMMAND BOX
  • SPECIFY THE STARTING POINT AS 0,0 AND ENTER
  • SPECIFY THE NEXT POINT 10,0 AND ENTER
  • SPECIFY THE NEXT POINT 0,2 AND ENTER
  • SPECIFY THE NEXT POINT -4,0 AND ENTER
  • SPECIFY THE NEXT POINT 0,4 AND ENTER
  • SPECIFY THE NEXT POINT 3,0 AND ENTER
  • SPECIFY THE NEXT POINT 2,0 AND ENTER
  • SPECIFY THE NEXT POINT -8,0 AND ENTER
  • SPECIFY THE NEXT POINT 0,-2 AND ENTER
  • SPECIFY THE NEXT POINT 0,3 AND ENTER
  • SPECIFY THE NEXT POINT 0,-4 AND ENTER
  • SPECIFY THE NEXT POINT -4,0 AND ENTER
  • SPECIFY THE NEXT POINT 0,-2 AND ENTER (OR) TYPE CLOSE.

RESULT:

AIM: To Create the geometries from P9 using relative rectangular coordinate system with refrence dimensions.

PROCEDURE:

  • OPEN NEW FILE
  • SELECT UNITS
  • TYPE LINE IN COMMAND BOX
  • SPECIFY THE STARTING POINT AS 1,1 AND ENTER
  • SPECIFY THE NEXT POINT 5,0AND ENTER
  • SPECIFY THE NEXT POINT 0,2 AND ENTER
  • SPECIFY THE NEXT POINT -3,0 AND ENTER
  • SPECIFY THE NEXT POINT 0,-1 AND ENTER
  • SPECIFY THE NEXT POINT -1,0 AND ENTER
  • SPECIFY THE NEXT POINT 0,2 AND ENTER
  • SPECIFY THE NEXT POINT 3,0 AND ENTER
  • SPECIFY THE NEXT POINT 0,2 AND ENTER
  • SPECIFY THE NEXT POINT -4,2 AND ENTER
  • SPECIFY THE NEXT POINT 0,-7 AND ENTER(OR) TYPE CLOSE.

RESULT:

AIM: To Create the geometries from P7 using relative rectangular coordinate system with refrence dimensions.

PROCEDURE:

  • OPEN NEW FILE
  • SELECT UNITS
  • TYPE LINE IN COMMAND BOX
  • SPECIFY THE STARTING POINT AS 1,1 AND ENTER
  • SPECIFY THE NEXT POINT 2,0 AND ENTER
  • SPECIFY THE NEXT POINT 0,3 AND ENTER
  • SPECIFY THE NEXT POINT 3,0 AND ENTER
  • SPECIFY THE NEXT POINT 0,4 AND ENTER
  • SPECIFY THE NEXT POINT -5,0 AND ENTER
  • SPECIFY THE NEXT POINT 0,-7 AND ENTER
  • SPECIFY THE NEXT POINT 0,4 AND ENTER
  • SPECIFY THE NEXT POINT 0,4 AND ENTER
  • SPECIFY THE NEXT POINT 0,4 AND ENTER(OR) TYPE CLOSE.
  • TYPE LINE IN COMMAND BOX
  • SPECIFY THE STARTING POINT AS 2,5 AND ENTER
  • SPECIFY THE NEXT POINT 3,0 AND ENTER
  • SPECIFY THE NEXT POINT 0,2 AND ENTER
  • SPECIFY THE NEXT POINT -3,0 AND ENTER
  • SPECIFY THE NEXT POINT 0,-2 AND ENTER (OR) TYPE CLOSE.

RESULT:

Q)Civil Related Problems
Draw the profile and the trusses using any coordinate system methods.The dimensions are there for references.

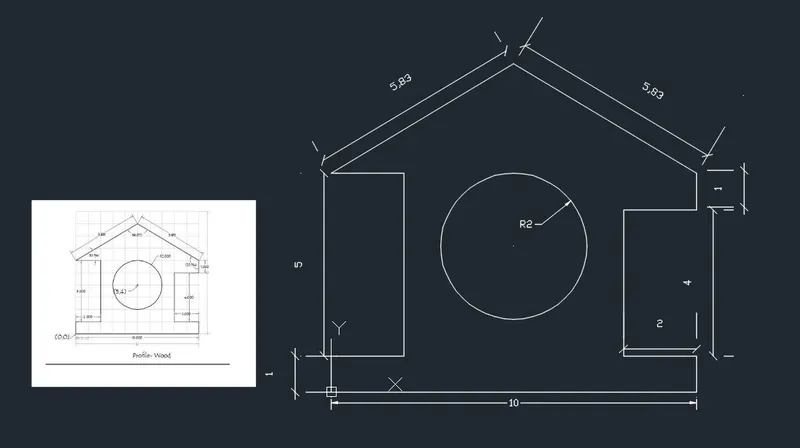

AIM: To Create the geometries from profile wood figure using absolute coordinate system with refrence dimensions.

PROCEDURE:

  • OPEN NEW FILE
  • SELECT UNITS AND LIMITS WITH ORIGIN(0,0)
  • TYPE LINE IN COMMAND BOX
  • SPECIFY THE STARTING POINT AS 0,0 AND ENTER.
  • SPECIFY THE NEXT POINT 10,0 AND ENTER
  • SPECIFY THE NEXT POINT 10,1 AND ENTER
  • SPECIFY THE NEXT POINT 8,1 AND ENTER
  • SPECIFY THE NEXT POINT 8,5 AND ENTER
  • SPECIFY THE NEXT POINT 10,5 AND ENTER
  • SPECIFY THE NEXT POINT 10,6 AND ENTER
  • SPECIFY THE NEXT POINT 6,0 AND ENTER
  • SPECIFY THE NEXT POINT 6,2 AND ENTER
  • SPECIFY THE NEXT POINT 2,1 AND ENTER
  • SPECIFY THE NEXT POINT 0,1 AND ENTER
  • SPECIFY THE NEXT POINT 0,0 AND ENTER (OR) TYPE CLOSE

RESULT:

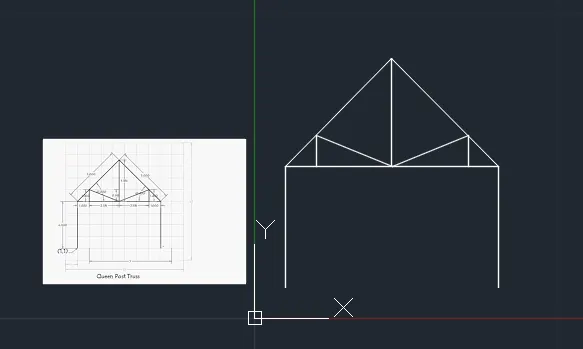

AIM: To Create the geometries fromqueen post trust figure using absolute coordinate system with refrence dimensions.

PROCEDURE:

  • OPEN NEW FILE
  • SELECT UNITS AND LIMITS WITH ORIGIN(0,0)
  • TYPE LINE IN COMMAND BOX
  • SPECIFY THE STARTING POINT AS 1,1 AND ENTER.
  • SPECIFY THE NEXT POINT 1,5 AND ENTER
  • SPECIFY THE NEXT POINT 4.5,8.5 AND ENTER
  • SPECIFY THE NEXT POINT 8,5 AND ENTER
  • SPECIFY THE NEXT POINT 8,1 AND ENTER
  • TYPE LINE IN COMMAND BOX
  • SPECIFY THE STARTING POINT AS 5,2 AND ENTER.
  • SPECIFY THE NEXT POINT 6,2 AND ENTER
  • SPECIFY THE NEXT POINT 4.5,5 AND ENTER
  • SPECIFY THE NEXT POINT 7,6 AND ENTER
  • SPECIFY THE NEXT POINT 7,5 AND ENTER

RESULT:

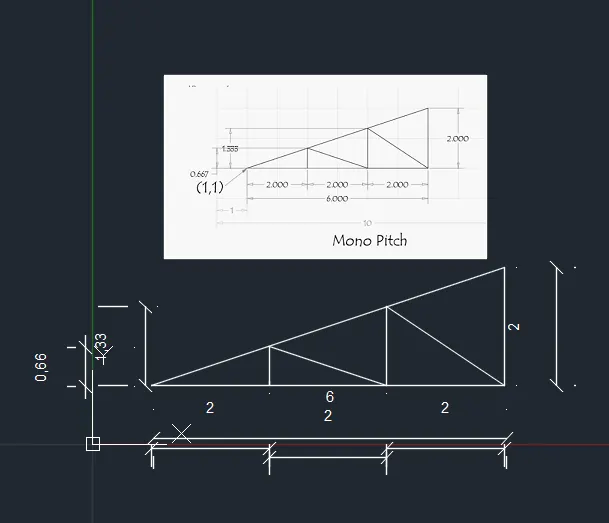

AIM: To Create the geometries from mono pitch figure using absolute coordinate system with refrence dimensions.

PROCEDURE:

  • OPEN NEW FILE
  • SELECT UNITS AND LIMITS WITH ORIGIN(0,0)
  • TYPE LINE IN COMMAND BOX
  • SPECIFY THE STARTING POINT AS 1,1 AND ENTER.
  • SPECIFY THE NEXT POINT 7,1 AND ENTER
  • SPECIFY THE NEXT POINT 7,3 AND ENTER (OR) TYPE CLOSE
  • TYPE LINE IN COMMAND BOX
  • SPECIFY THE STARTING POINT AS 3,1 AND ENTER.
  • SPECIFY THE NEXT POINT 3,1.66 AND ENTER
  • SPECIFY THE NEXT POINT 5,1 AND ENTER
  • SPECIFY THE NEXT POINT 5,2.33 AND ENTER
  • SPECIFY THE NEXT POINT 7,1 AND ENTER

RESULT:

Your portfolio, next

Ship work like this
in your own course.

Talk to a career counsellor

Free 20-minute call. We'll map the right course to where you want to work.

By submitting you agree to our Terms and Privacy Policy.

Talk to a career counsellor

Free 20-minute call. We'll map the right course to where you want to work.

By submitting you agree to our Terms and Privacy Policy.
