Creating a Floor plan, Footing detail and Isometric view using AutoCad

AIM AND INTRODUCTION : CREATING A CROSS SECTION WALL USING AUTO CAD AS PER REFRENCE DRAWING.

PROCEDURE:

RESULT:

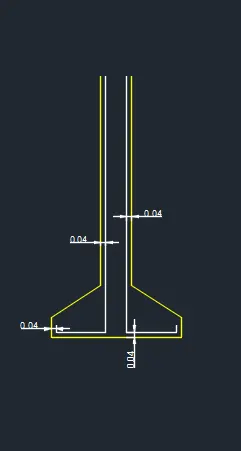

AIM AND INTRODUCTION : CREATING A CROSS SECTION WALL USING AUTO CAD AS PER REFRENCE DRAWING.

PROCEDURE:

OPEN NEW FILE
SELECT UNITS
TYPE RECTANGLE IN COMMAND BOX
SPECIFY FIRST POINT 0,0
GIVE DIMENSIONS FOR RECTANGLE 4 AND 1

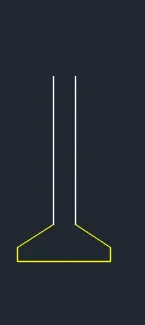

TYPE CHAMFER COMMAND SELECT DISTANCE ENTER FIRST LINE 0.25 DISTANCE AND SECOND LINE DISTANCE 0.38 ENTER
DRAW A LINE OF 1.6 THROUGH Y-AXSIS ON BOTH SIDES FROM DIRECTION OF X AXSIS OF CHAMFER LINE

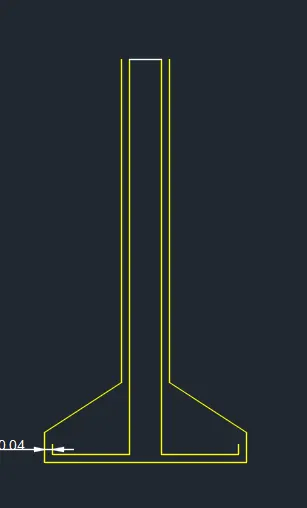

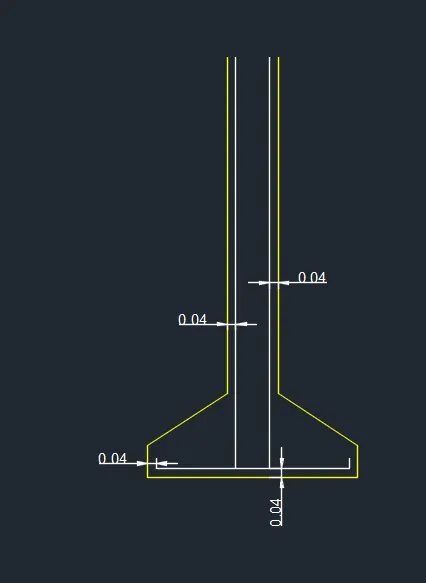

CREATE OFFSET FROM LINES OF 0.04
AND TRIM THE LINE USING TRIM COMMAND
DRAW A LINE USING LINE COMMAND
COPY THE LINE USING LINE COMMAND

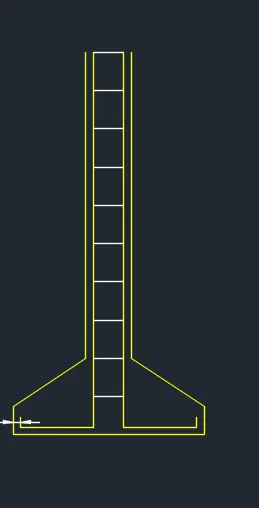

COPY> SELECT THE LINE AND SPECIFY THE POINT >ARRAY> ENTER THE NUMBER AS 10>SPECIFY 0.20 AS A SECOND POINTS

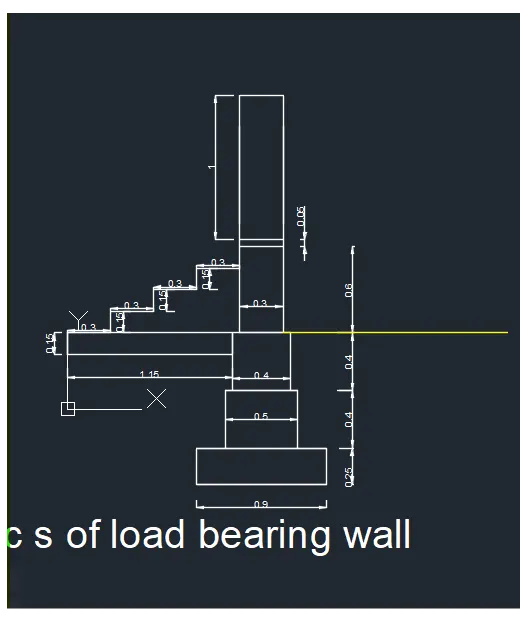

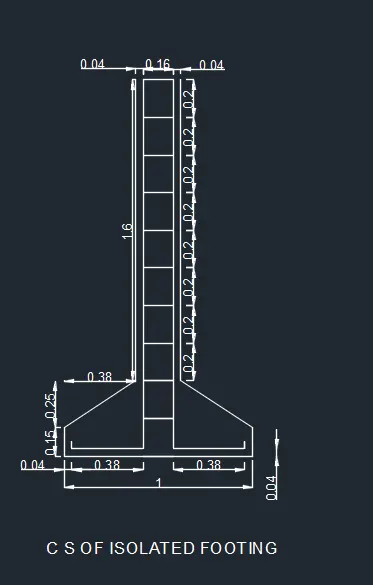

PROVIDE DIMENSIONS FOR DRAWING

RESULT:

AIM AND INTRODUCTION : CREATING A LINE DIAGRAM OF TWO BED ROOM BUILDING USING AUTO CAD AS PER REFRENCE DRAWING.

PROCEDURE:

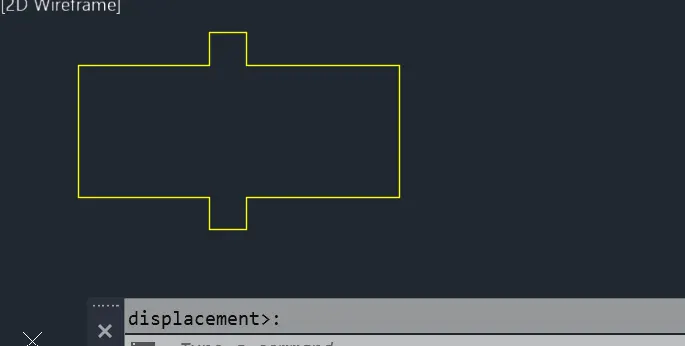

DRAW A LINE WITH POLY LINE COOMAND WITH A DISTANCE OF 3.6
AND CONTINUE WITH -0.9 THROUGH VERTICAL DIRECTION
1 THROUGH X AXSIS
AND 0.9 THROUGH Y AXSIS
4.2 THROUGH X AXSIS AND 3.6 THROUGH VERTICAL AXSIS
-4.2,0 FORM THE LAST POINT AND 0,0.9 THROUGH Y AXSIS
1,0 THROUGH X AXSIS AND 0,-9 THROUGH Y AXSIS
-3.6 THROUGH X AXSIS AND 0,-3.6 THROUGH Y AXSIS OR TYPE CLOSE
OFFSET THE HORIZONTAL LINE ABOUT 0.3 AS SHOWN BLEOW FIGURE

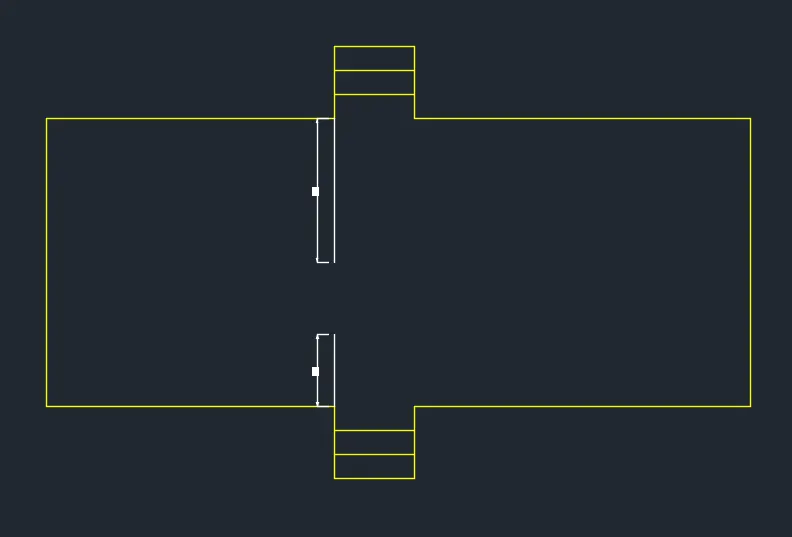

DRAW THE 2 LINES WITH THE LENGTH OF 0.9 AND 1.8 WITH RESPECTIVE AS SHOWN IN FIGURE BELOW

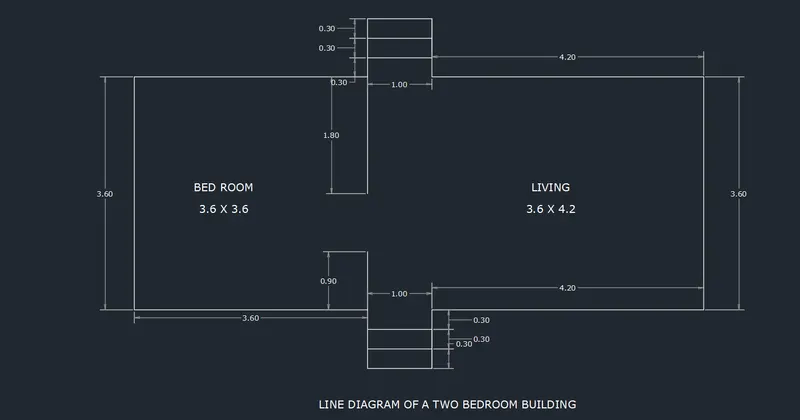

PROVIDE DIMENSION FOR DRAWN PLAN

RESULT:

AIM AND INTRODUCTION : CREATING A ISOMETRIC VIEW OF STEPS BY USING AUTO CAD AS PER REFRENCE DRAWING.

SELECT POLYLINE OPTION IN TOOL BOX
DRAW THE LINE OF 1 WITH THE ISOMETRIC LEFT OPTION
CONTINUING WITH 0.15 AT DOWNWARD DIRECTION Y AXSIS
DRAW 1 LEFT TO X AXSIS AND CLOSE THE LINE
AND DRAW TWO LINES ON 0.3 ON THE TOP OF BOTH SIDES OF RECTANGLE.

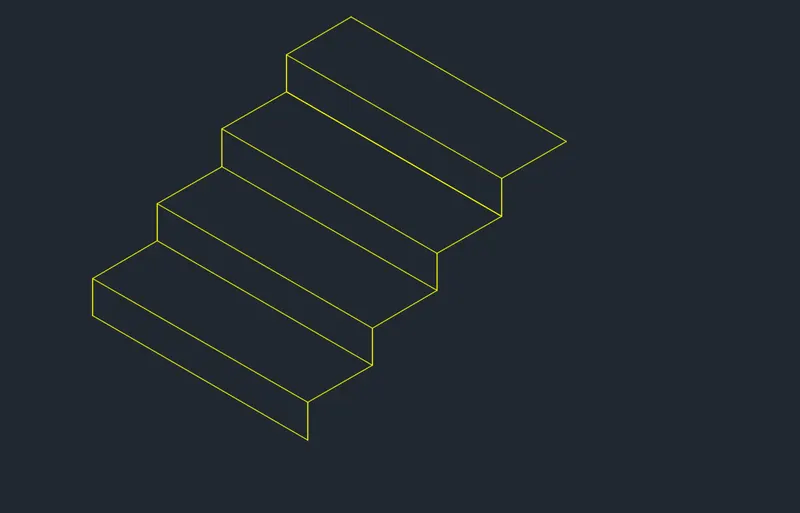

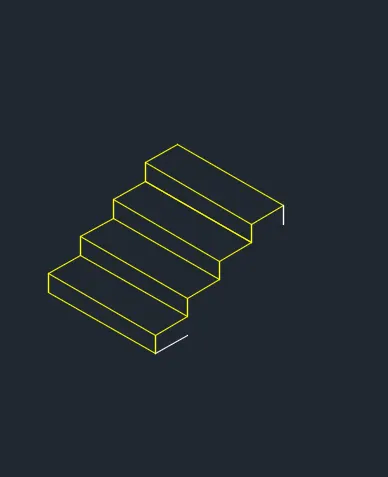

SELECT THE DRAWING COPY > SELECT THE LINES >ARRAY > ENTER TNE NUMBERS :3 > SPECIFY THE LAST POINT
DRAW THA LINE AT BOTTOM OF LINE 0.30 AND 0.15 THICKNESS OF TREAD

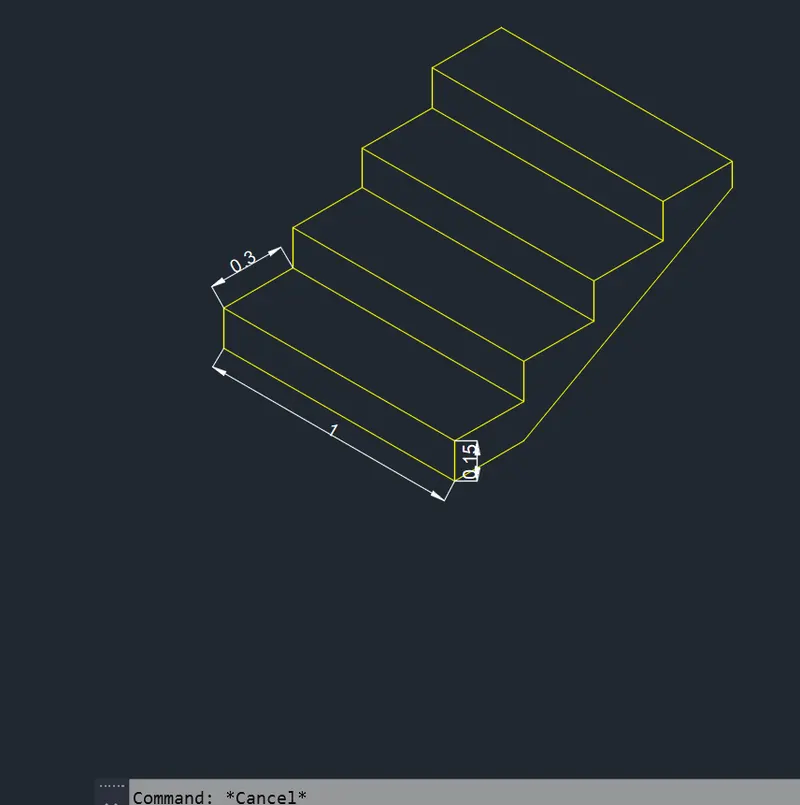

JOIN THE BOTOM LINES AND PROVIDE DIMENSIONS OF DRAWING

RESULT:

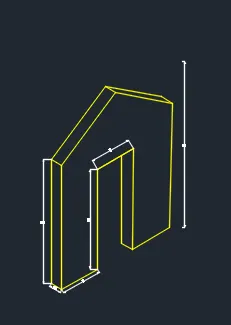

AIM AND INTRODUCTION : CREATING A iSOMETRIC VIEW OF GABLE WALL BY USING AUTO CAD AS PER REFRENCE DRAWING.

PROCEDURE:

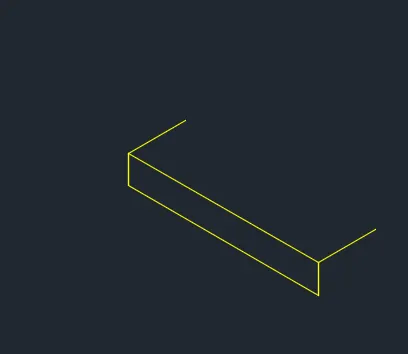

DRAW LINE OF 3 UNITS USING ISOTOP SETTING AND 0.3 UNITS OF THICKNESSWITH ISO PLANE SETTING
DRAW A VERTICAL LINE OF 4 UNITS AT BOTH WITH THE REFRANCE TO LAST LINE USING ISOPLANE LEFT

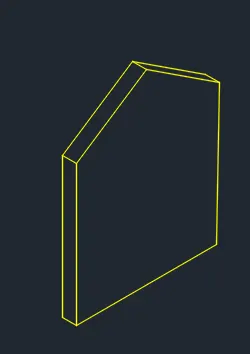

TYPE CHAMFER > DISTANCE > SELECT LENGTH OF FIRST LINE :1 >SELECT LENGTH OF SECOND LINE :1.5> ENTER
SELECT THE LINES TO CHAMFER

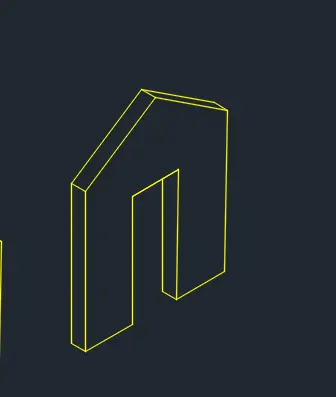

DRAW A VERTICAL LINE of 2.4 UNITS FROM 1 UNTS ON BOTH DIRECTION REFRANCE TO BASE LINE
DRAW THE THICKNESS OF GABLE WALL OF 0.3 FIGURE GIVEN
PRIVODE DIMENSIONS

RESULT:
