Creating Conceptual mass in REVIT and Creation of Sinusoidal curve and a Parametric stadium using Dynamo

1) Using Dynamo create a set of sinusoidal points and create a curve and create a surface out of the curve.

ANS-

AIM- TO CREATE SET OF SINUSOIDAL POINTS AND CREATE CURVE & SURFACE.

PROSEDURE-

• first open revit .

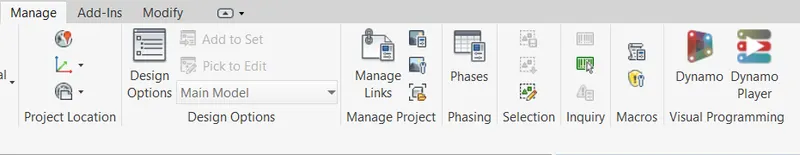

• in revit under the manage tab we have a option of dynamo click on it.

• in dynamo click on create new option.

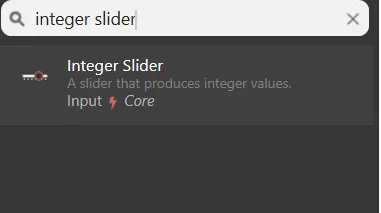

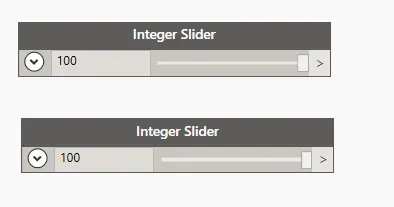

• now in search bar option search integer slider option to add it.

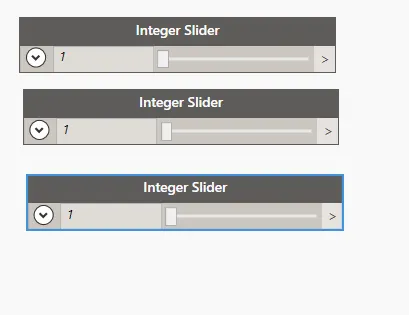

• add 3 slides of ineger and set the value of it.

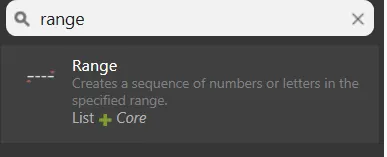

• after that add range box.

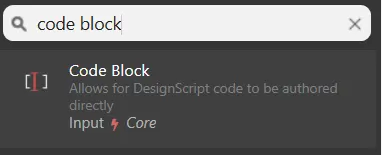

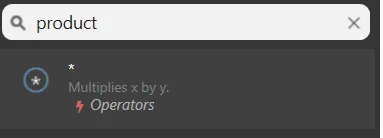

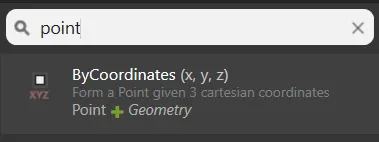

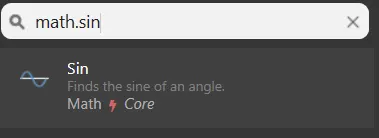

• using search bar option add point,code block, math.sin, product.

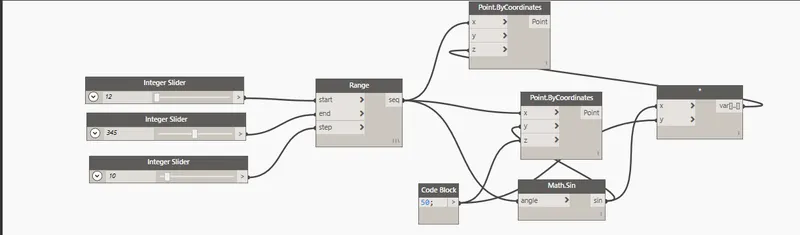

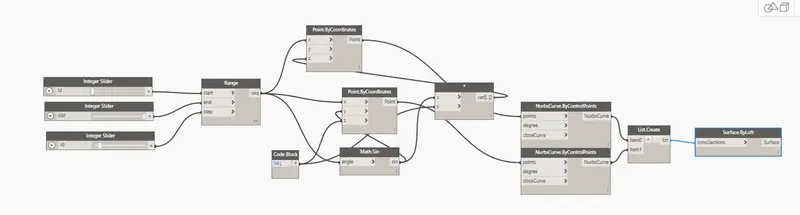

• after the adding all blocks connect them as shown below.

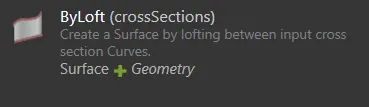

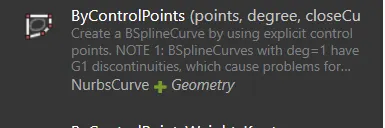

• after that two more option to add is control points , surface

• after inserting connect them as below.

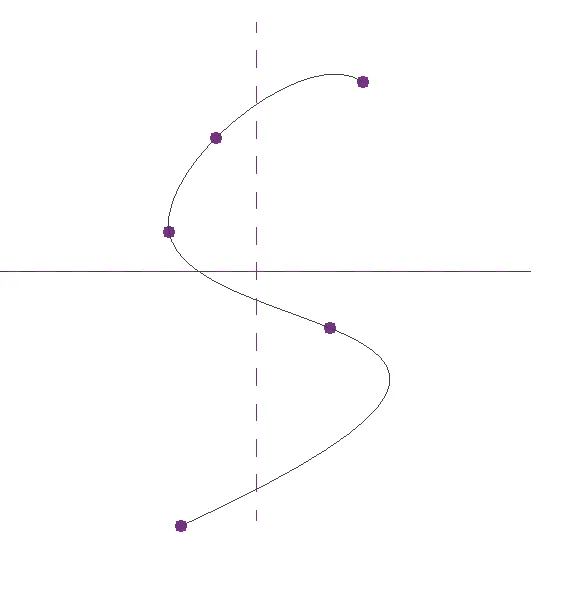

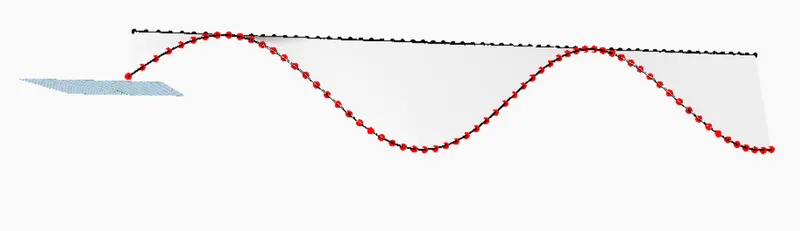

• after connecting result will be look like these.

2) Create a conceptual layout of floor plan in dynamo . Using the tools available in dynamo link the lines to appropriate model elements in Revit by choosing the wall types and wall parameters. Make use of the sliders to slide through the height of the wall and length of the wall.

ANS-

AIM- USING DYNAMO CREATE A WALL LAYOUT.

PROSEDURE-

• first open revit and dynamo.

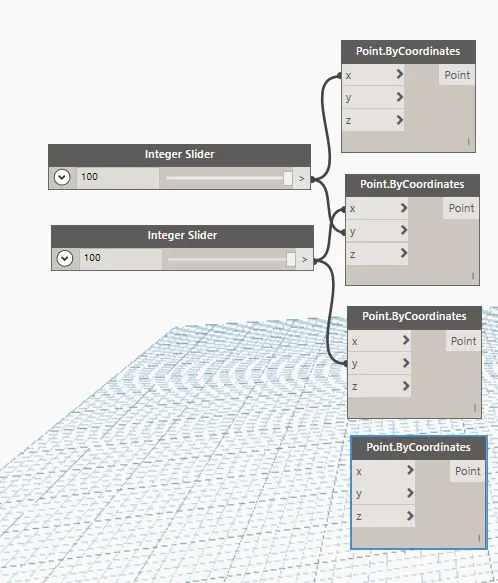

• now same as first question first we have to add parameters like integer slides , points etc.

• after adding connect them.

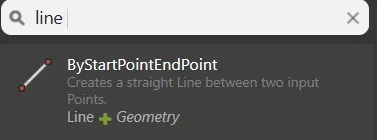

• now in search bar type line option and add it into dynamo.

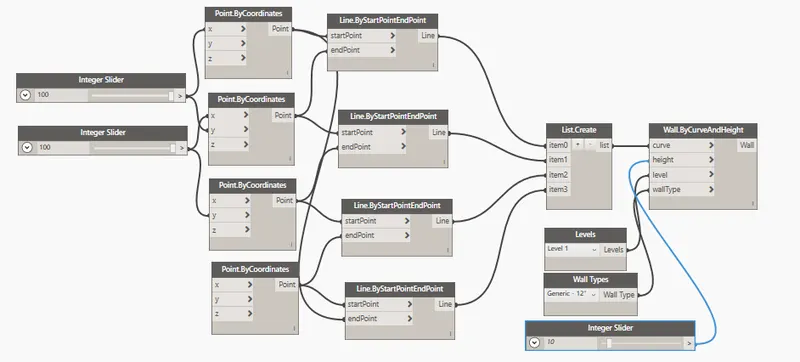

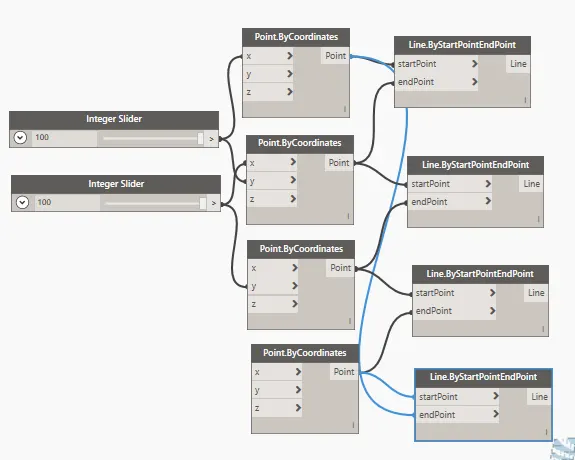

• connect them as shown below.

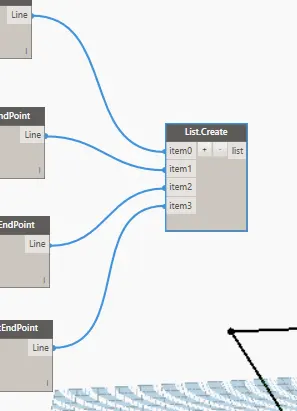

• now add list optionand connect them.

• after that we have to add width , level , and wall type into it.

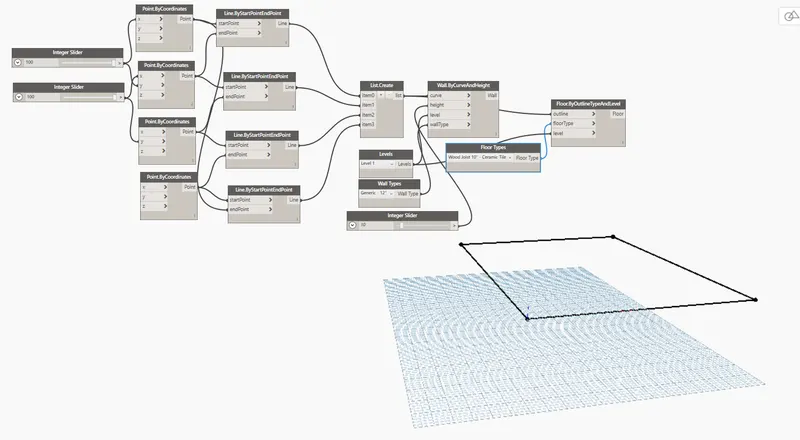

• after the connecting result will look like this.

• using integer slide we can adjust height of the wall.

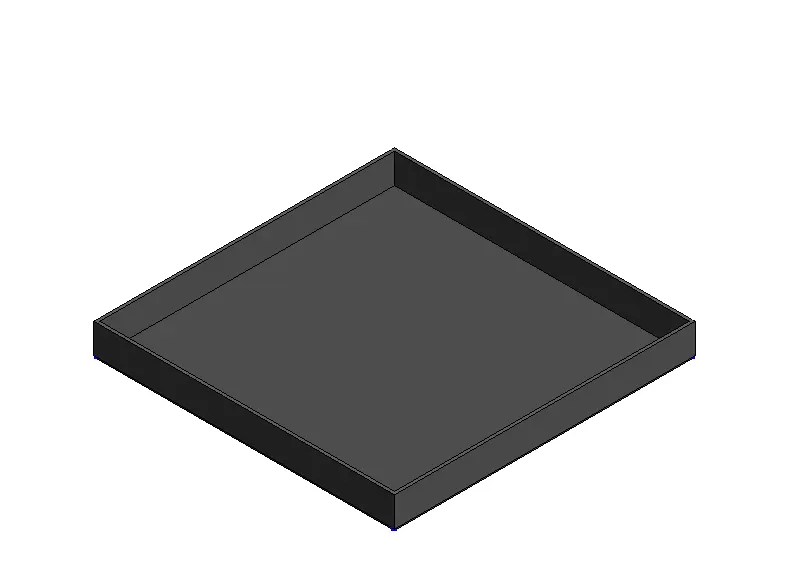

• for cross check go to revit and we can see wall is created as per dynamo coding.

3) Create an array of model elements in Revit. Use dynamo to vary the properties of model elements by using the slider or code block.

ANS-

AIM- TO CREATE A ARRAY ELEMENT AND USING SLIDER IN DYNAMO ROTATE IT.

PROSEDURE -

• first open revit and create 4 architecture column as shown below.

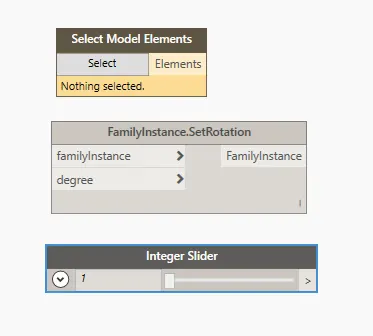

• now open dynamo and add this blocks into it.

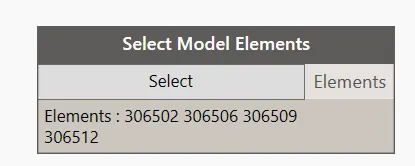

• now click on select option and select all column from revit.

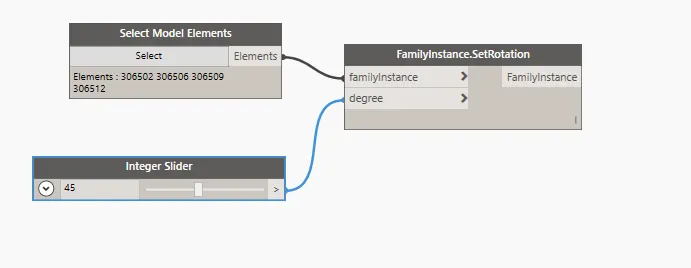

• now connect all like these.

• now using integer slide option we can change angle like these.

4) Create a conceptual mass in Revit and develop a parametric column by dividing the surfaces and apply the concepts similar to used in parametric walkway modelling. Use triangular bent or square shaped panels to add finish to the parametric column.

ANS-

AIM- USING CONCEPTUAL MASS CREATE PARAMETRIC WALKWAY.

PROSEDURE-

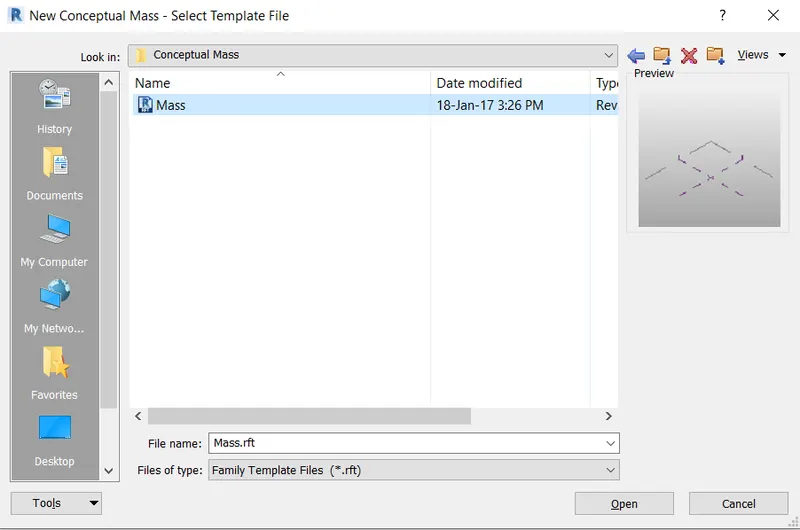

• in revit click on file menu , click on new , click on family.
• now select a conceptual mass option .

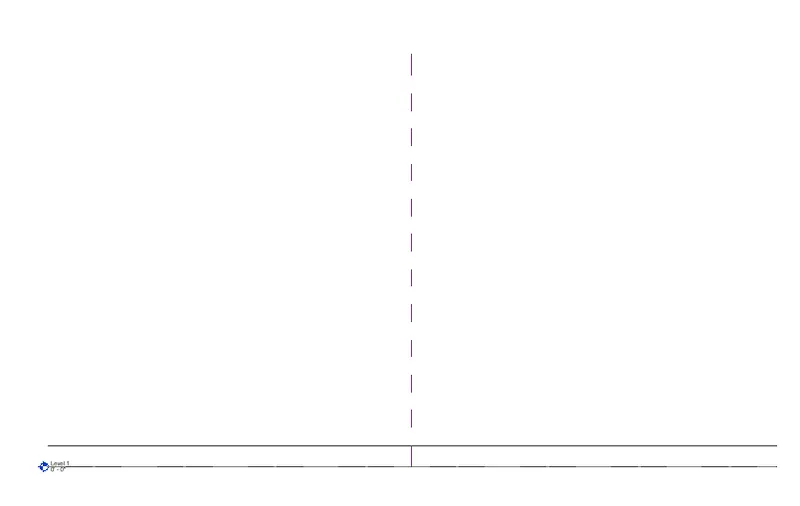

• now using level option create onther level at 10'

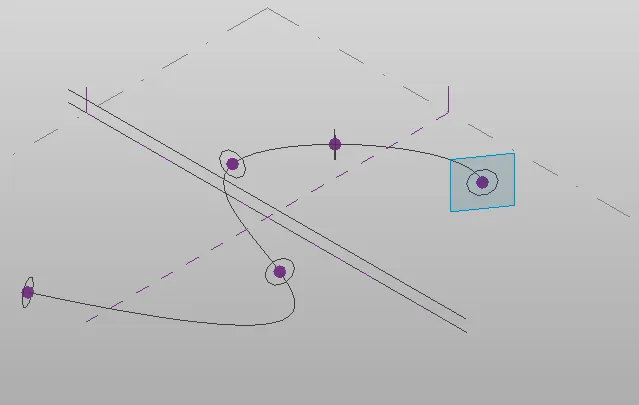

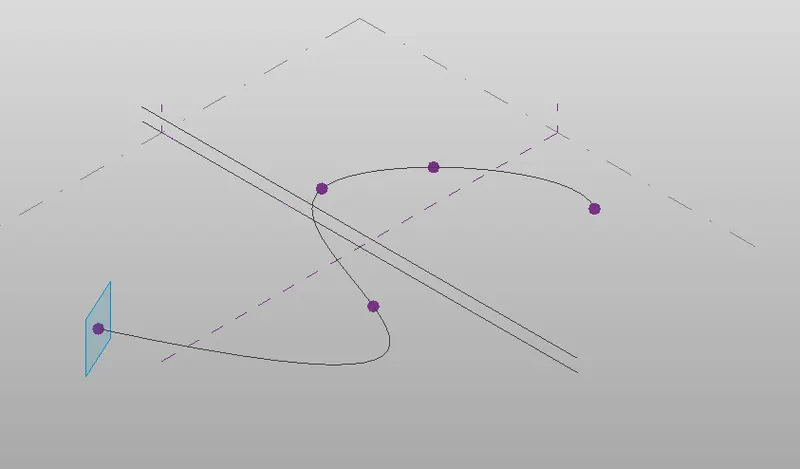

• now using curve line create a curve like this.

• now set a plane at first point.

• now select circle option and place circle at all points.

• now press Ctrl and select curve and circle.

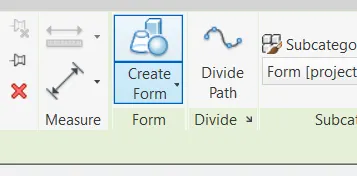

• now we have a option of create form click on it.

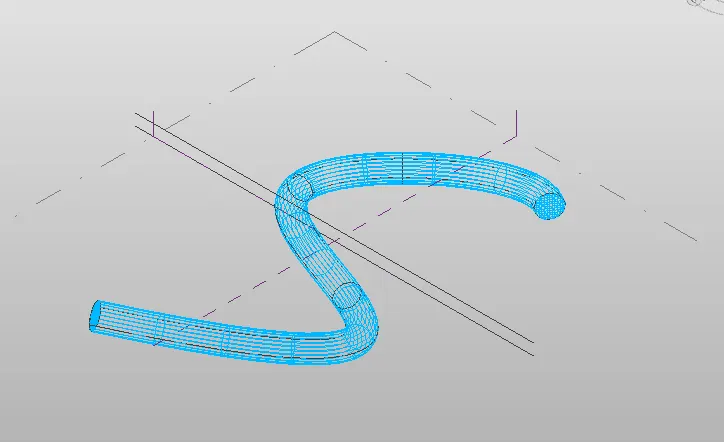

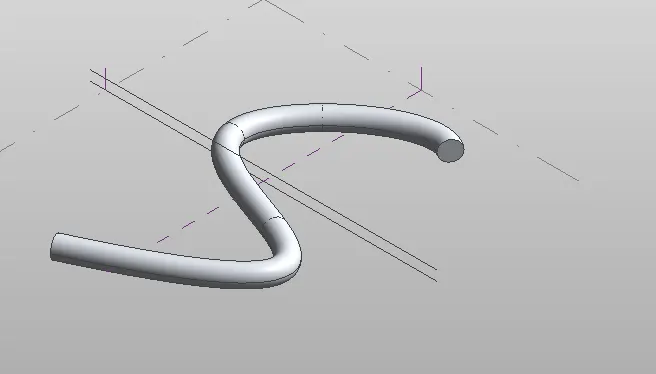

• after selecting result will look like this.

• now select whole curve and select devide surface option.

5) Use Dynamo to work on developing a Parametric Stadium. List your parameters and use the visual programming approach to complete the modelling, You can use the concepts discussed in parametric high rise tower in class for reference.

ANS-

AIM- TO CREATE A PARAMETRIC STADIUM USING DYNAMO.

PROSEDURE-

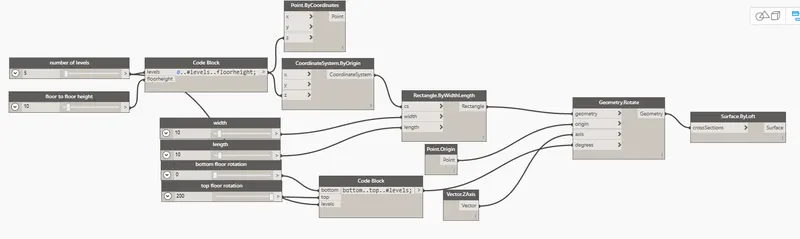

• follow the same process as per all question and add all code blocks shown below.

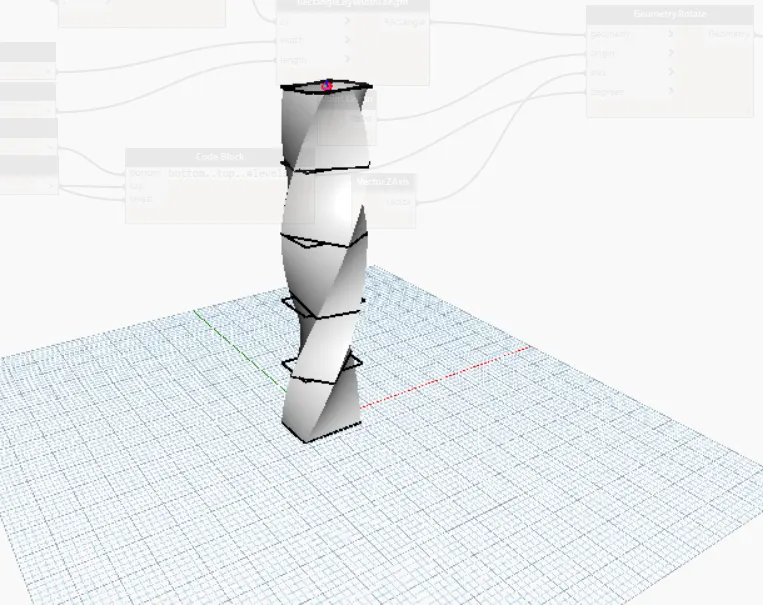

• after this all steps results will be look like this.
• using slider option we can adjust height , width , rotation , etc.
