Creating Conceptual mass in REVIT and Creation of Sinusoidal curve and a Parametric stadium using Dynamo

NNeha Solanki12 Mar 2023

Creating Conceptual mass in REVIT and Creation of Sinusoidal curve and a Parametric stadium using Dynamo

AIM 1: Using Dynamo create a set of sinusoidal points and create a curve and create a surface out of the curve.

INTRODUCTION : Dynamo is an open source visual programming language for Revit, written by designers and construction professionals. Its a programminglanguage that allows you to type lines of code; while also creating an algorithm that consist of nodes. Using dynamo work can be carried out with enhanced BIM capabiilities in Revit.Dynamo and Revit an together be utilized to model and analyze complex geometries, automate repetative processes,minimize human error and export data to exer and other file types.Dynamo can make the design process more efficient with an intuitive interface and many pre made scripting libraries availabe as well.

The user interface for dynamo is organized into five main areas, largest being the workspace where programms are processed and this user interface sections include

Main Menu
Toolbar
Library
Work Space
Execution Bar

The workspace is the place where designers develop visual programs but it is also the place where any elaborate geometry is previewed.Conceptual mass of a building contains different types of parameters like level, floor area, floor perimeter and architect can generate early quanties takeoff from the mass. In Bim modelling services the conceptual mass of a building can be exported to to any other format for performing early energy analysis.

Procedure:

Initially, open the architecture template of Revit software and go to manage tab.
In manage tab select the dynamo.

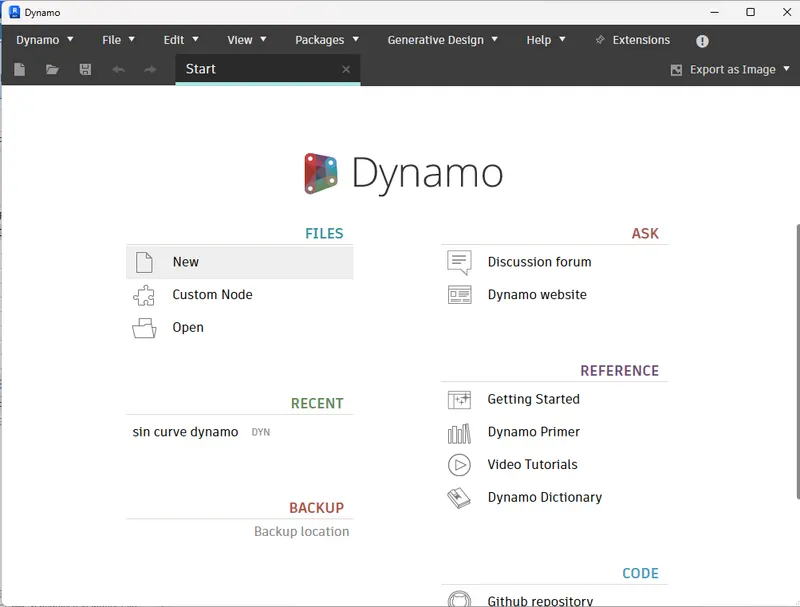

Then dynamo window opens and then go to new option.

Now, start the process by inserting three integer slider.

This can be done by typing code block in the library search panel.
Block named START ( Value - 15),
Second named as END (Value - 600).
Third named as STEP(Value - 10).

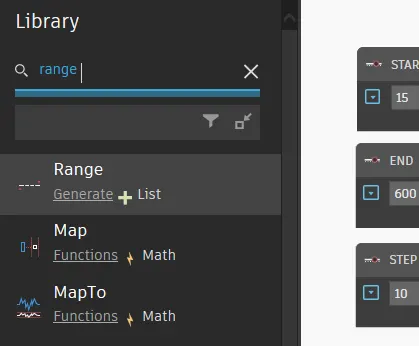

Now, type range in the search panel of the library and insert it.

Now, connect these three code block as input to the range block.

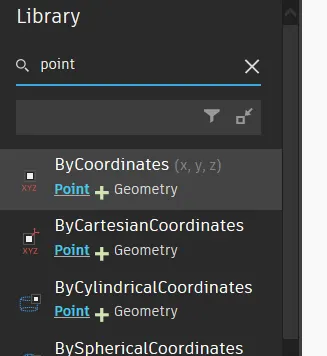

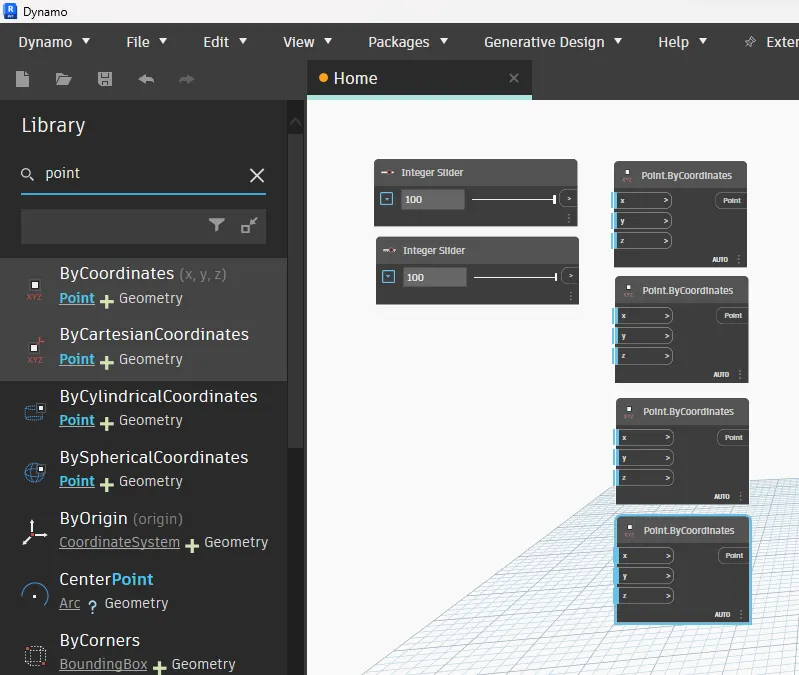

Now, search points by coordinates in the search panel.

Then, connect the range block to the x coordinate of the point by coordinate block.

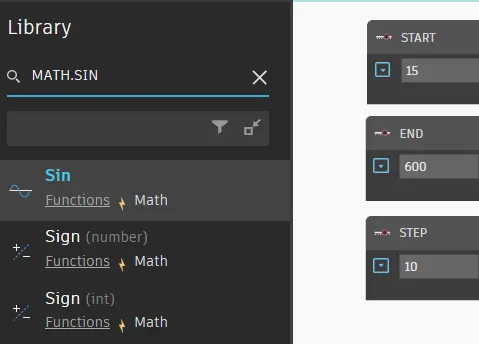

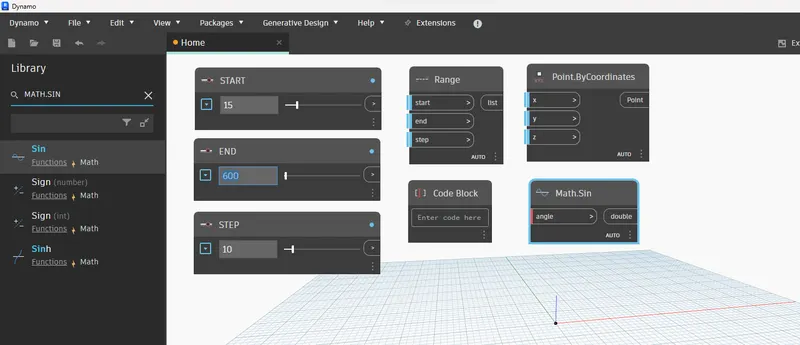

Now, we have to produce sin wave out of these points for which we have to insert sin function which is given by math.sin option in the library

Sin values are very small so, we need to amplify it. For this, insert another integer slider and name it as amplifier.

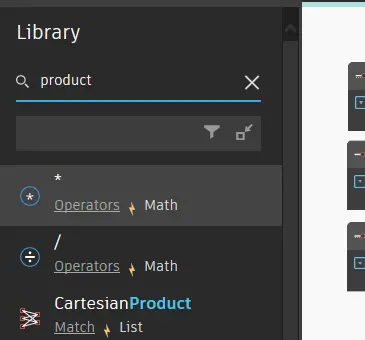

For this, search product function in the library.

Input for x value is sin block and for y value is amplifier.
Next, we have to provide phase for the sin curve.
So, again insert an integer slider and name it as Phase
Now, the phase block is theen added to the amplified sin block(*).
For this, insert add operator block from library.
Now, this is then connected to the y coordinate of the points by coordinates block.

Hence, the set of sinusoidal points are obtained.
Now, we have to convert them to a curve.
The curve can be created from nurbscurve.

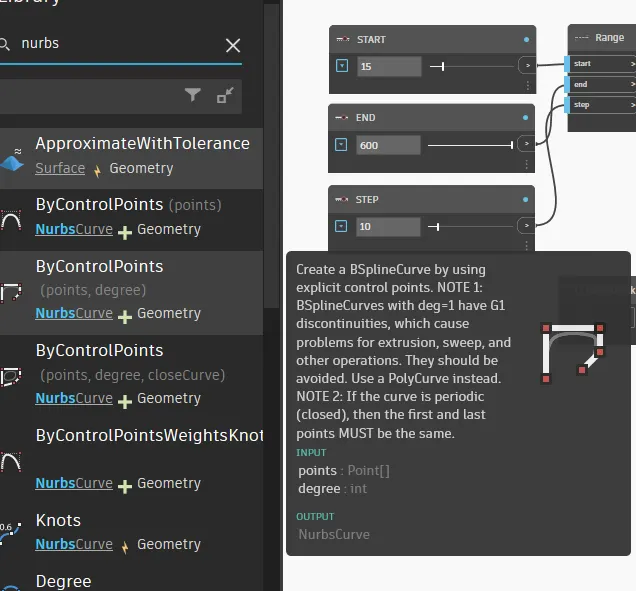

Search Nurbscurve in library and choose nurbs cuvrve by control points

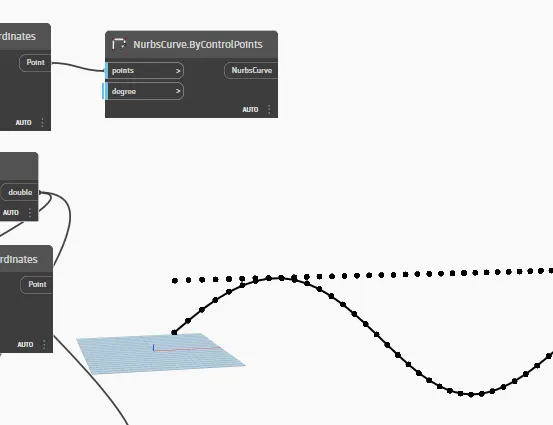

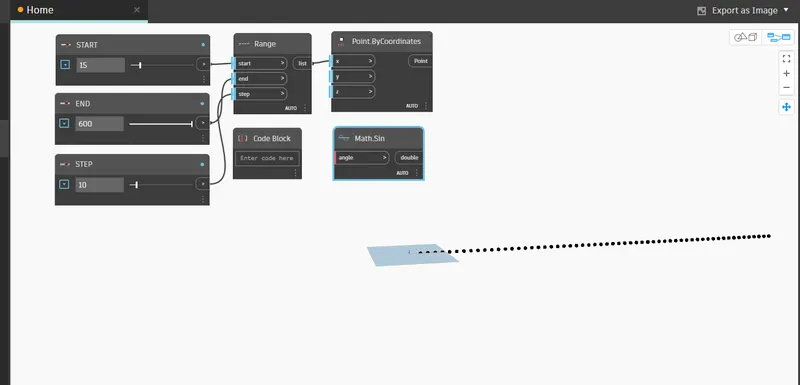

Now, connect the Points by coordinate block as input for the nurbs curve. A line will be developed connecting the points.

Hence,line sinusoidal curve is also developed.
The next step is to develop surface.
For this, first create a list of these items for easy manipulation.
This can be done by selecting the required input blocks and then go to edit option in the top portion and then choose create node from selection.
The entire thing will be grouped together.
Now, copy this entire blocks two times to create the surface.
Adjust phase to view the two curves that is copied.
Next step is to create the surface.
For this, first create a list.

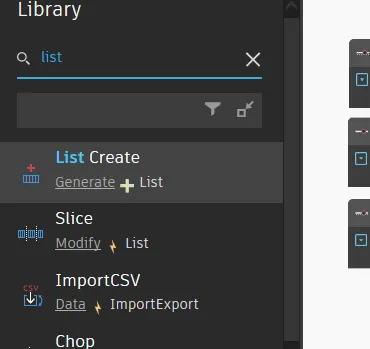

This can be done by searching list.create in the search panel of library.
Then connect all the output of the sine curves as input for the list.

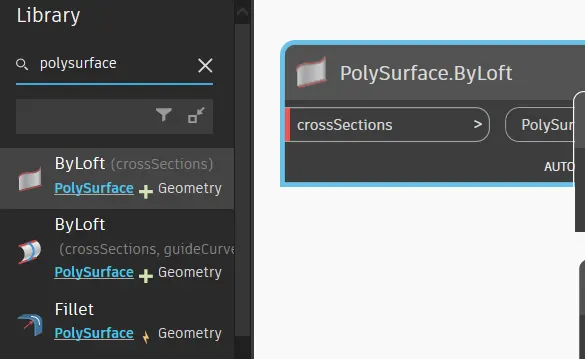

This will serve as the input for surface by loft block.
Now, we have to create the surface.

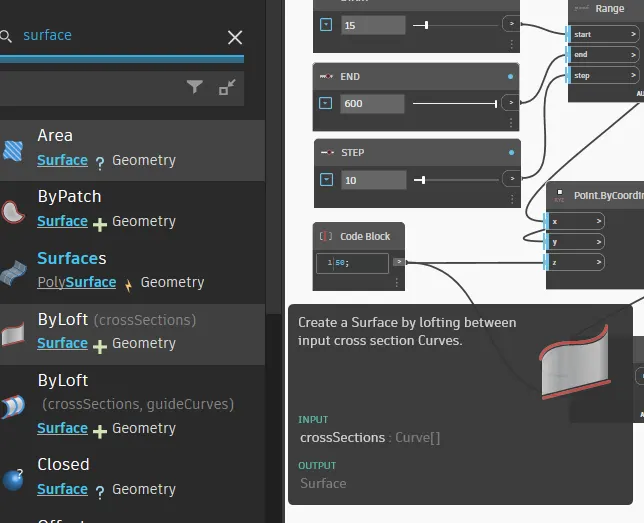

For this, search surface by loft

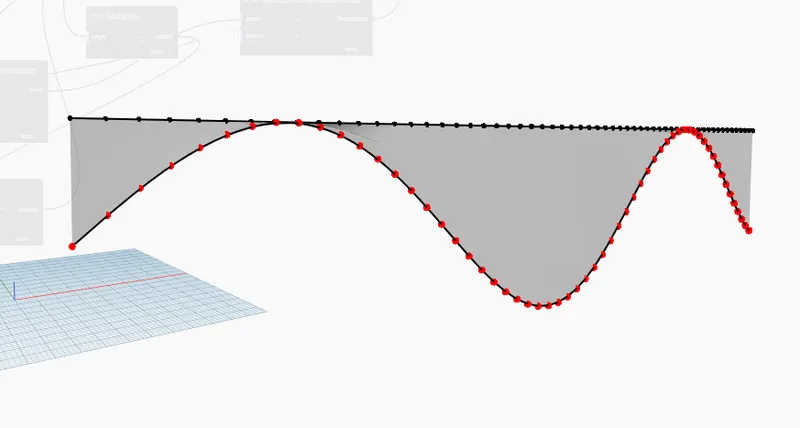

Hence, the surface is developed out of the curve.

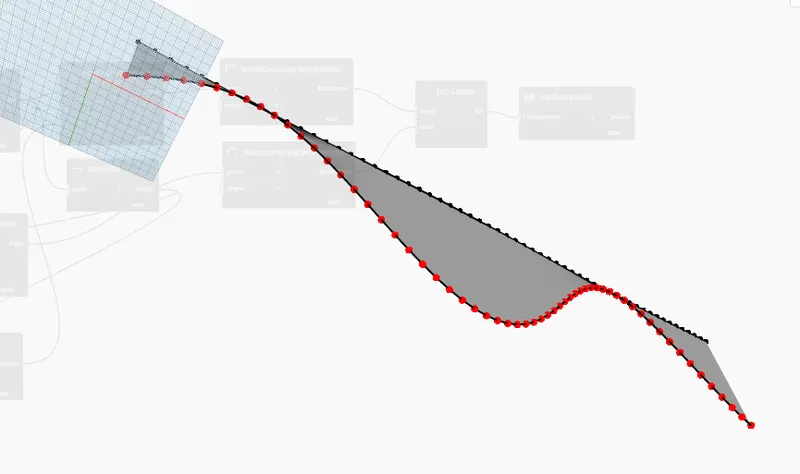

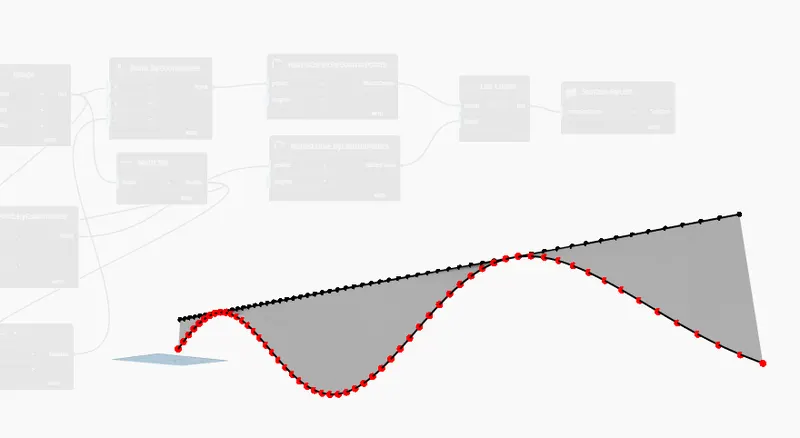

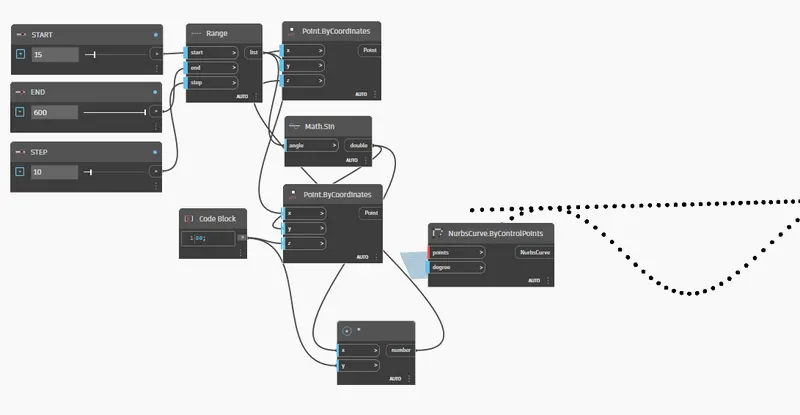

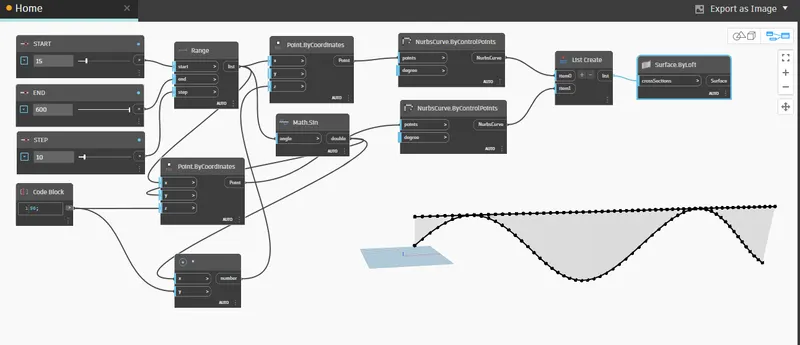

Result: A set of sinusoidal points have been created as follows:

AIM 2 : To Create a conceptual layout of floor plan in dynamo . Using the tools available in dynamo link the lines to appropriate model elements in Revit by choosing the wall types and wall parameters. Make use of the sliders to slide through the height of the wall and length of the wall.

Procedure:

Open a new architectural template.
Go to manage tab and open the dynamo --> New
Inorder to create the wall first we have to create four control points.

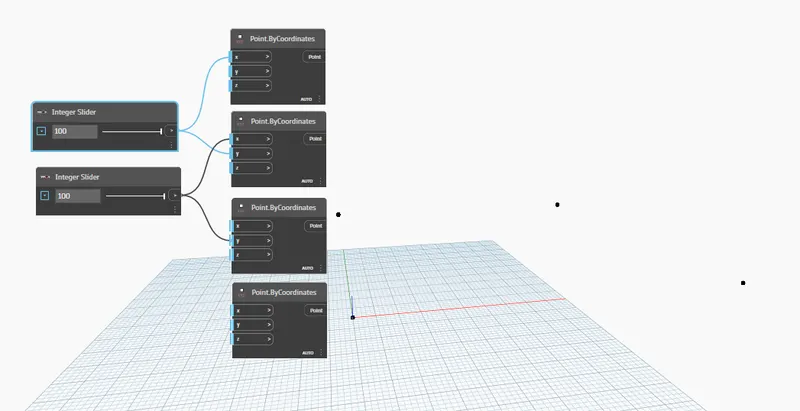

For this, search points by coordinates in the search panel of the library.

Now, we have to connect these points by a line.

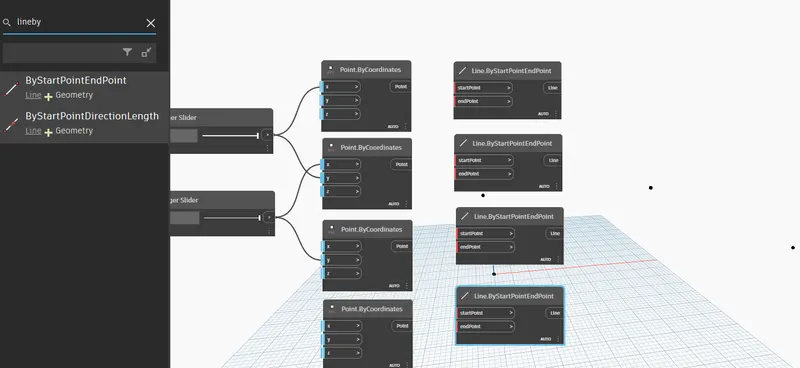

So for this, search line by start and end point and insert 4 blocks.

The input for these blocks are the points created previously.

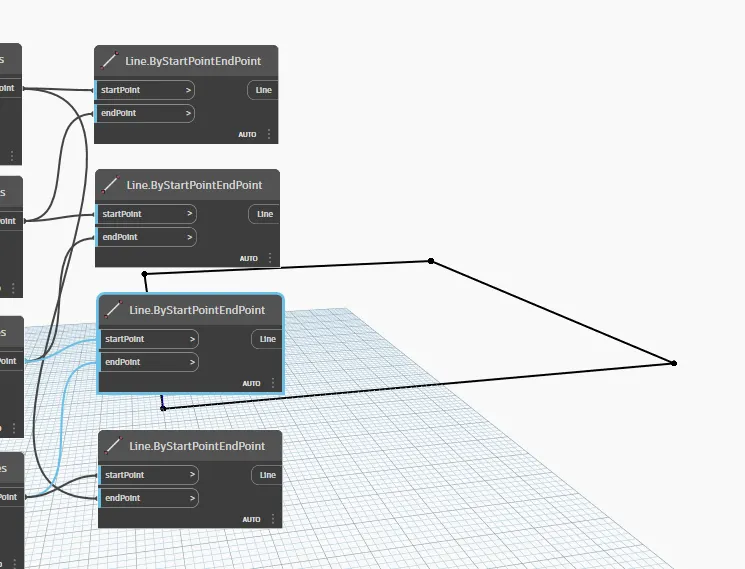

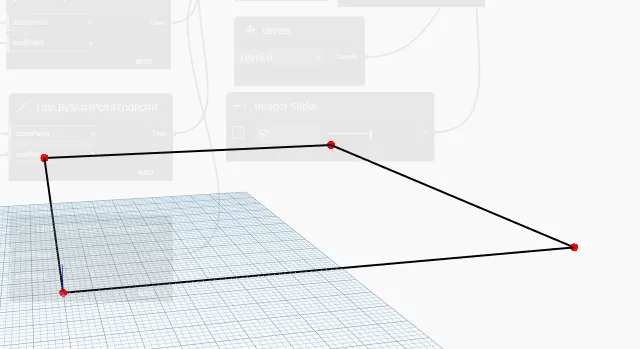

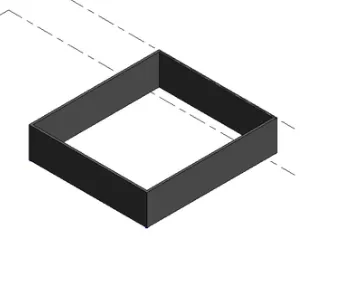

Hence, the layout of the floor plan is obtained.
Now, search wall in the panel and choose wall by curve and height.

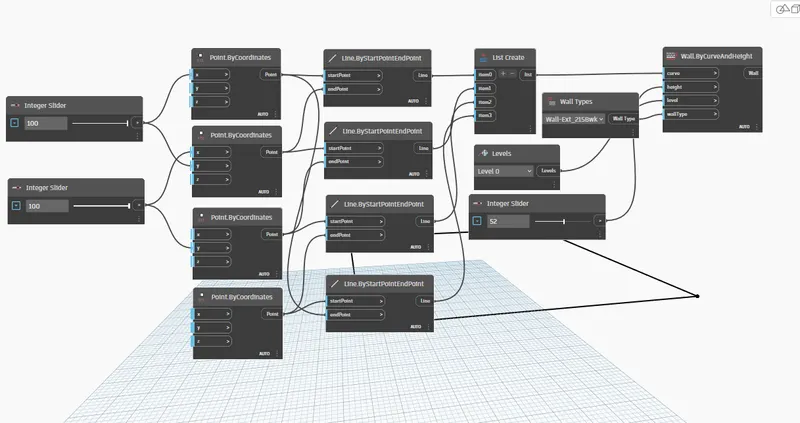

So, for this input required are curve, height, level and wall type. Inputs are given as follows:
For curve, combine all the four lines in a list by choosing list.create.
For height, another number slider is chosen and name it as height.

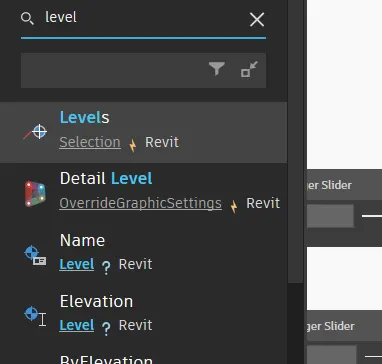

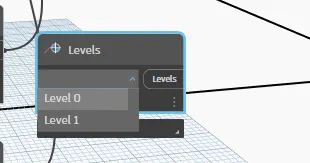

For level, search level in the search panel it will contain the levels availbale in your revit folder.

Then choose the level in which you want to place your structure.

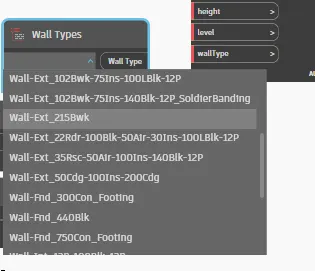

For wall type, search wall type in the panel and it will display the wall types linked in the revit file.

The height of the wall can be adjusted using the slider.

Now, we have to place the floor.
For this, type floor in the library and select floor by outlinecurve, floor type and level.

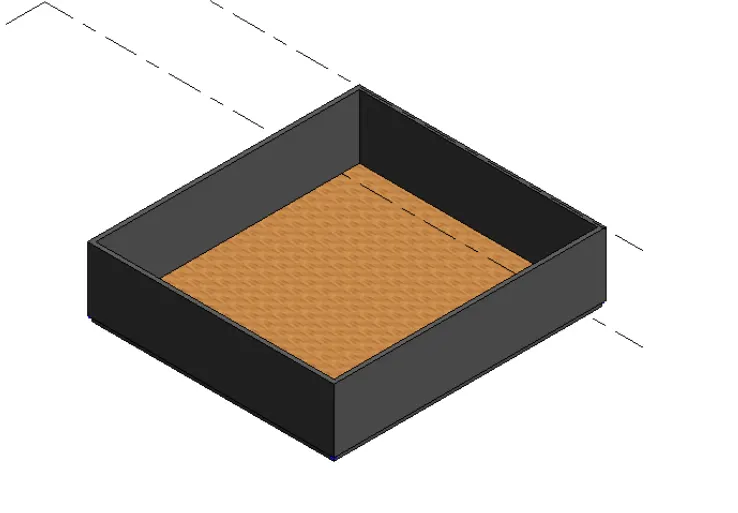

Result : Hence the conceptual floor plan layout has been developed and is as follows:

AIM 3 : To Create an array of model elements in Revit. Use dynamo to vary the properties of model elements by using the slider or code block

Procedure:

Open a new architectural template in revit file.

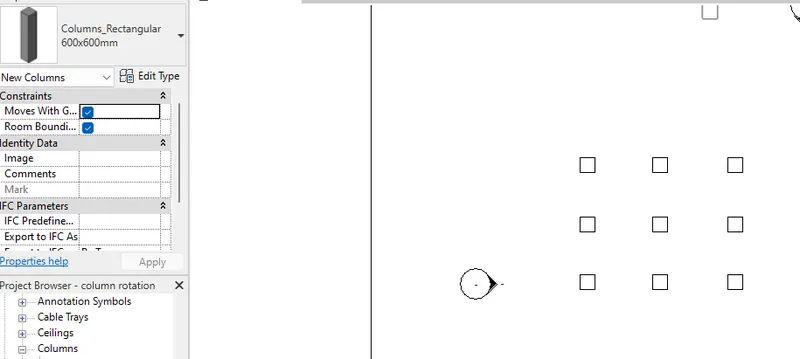

In that go to architecture tab --> Columns --> Architectural column --> Place the column (600mmx600mm).

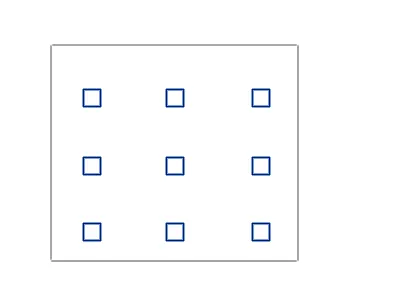

Now, similarly 9 columns are created.

The properties of the model elements are varied using dynamo.
Now, open dynamo.

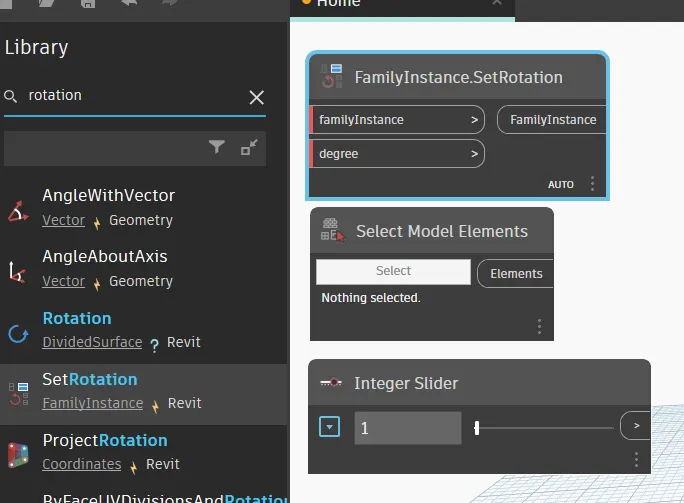

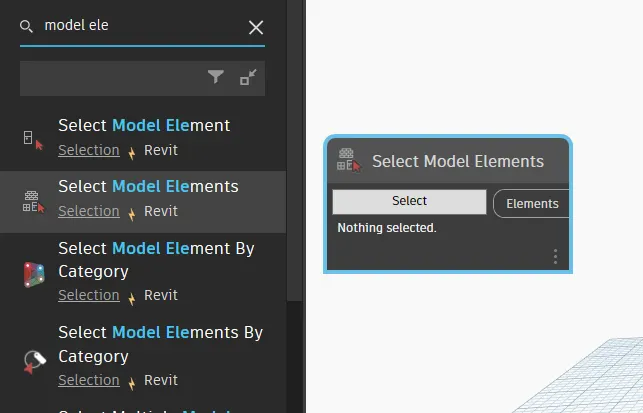

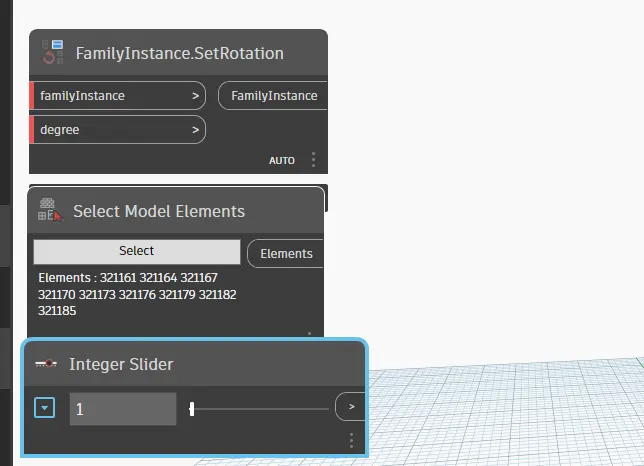

In the search panel of the library search select model elements, integer slider and set rotation.

The integer slider is renamed as rotation angle.

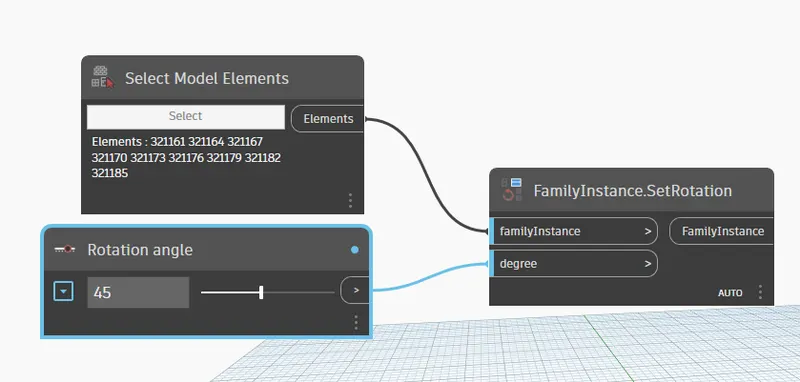

Now, select model elements block will be the input for family instance and integer slider ( rotation angle) will be input for degree.

The rotation angle can be varied to desired value.

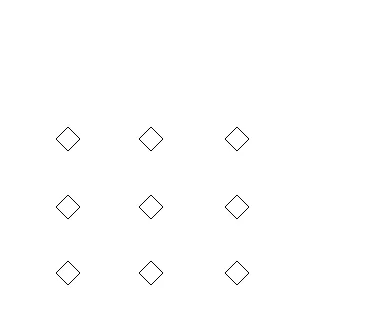

Result : The array of model elements have been created and their properties are being varied through the blocks created in dynamo

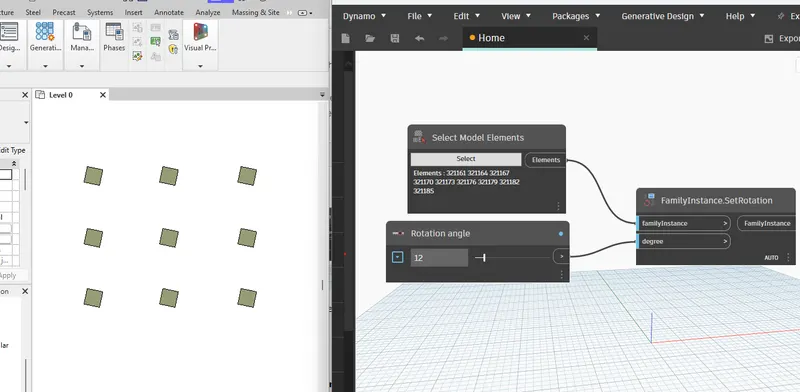

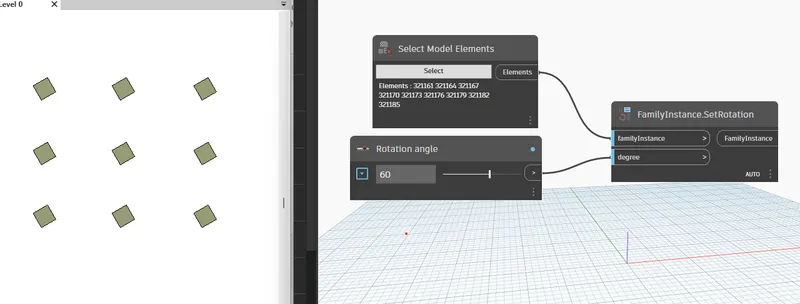

ROTATION FOR ANGLE 12

ROTATION FOR ANGLE 60

AIM 4 : To Create a conceptual mass in Revit and develop a parametric column by dividing the surfaces and apply the concepts similar to used in parametric walkway modelling. Use triangular bent or square shaped panels to add finish to the parametric column

Procedure:

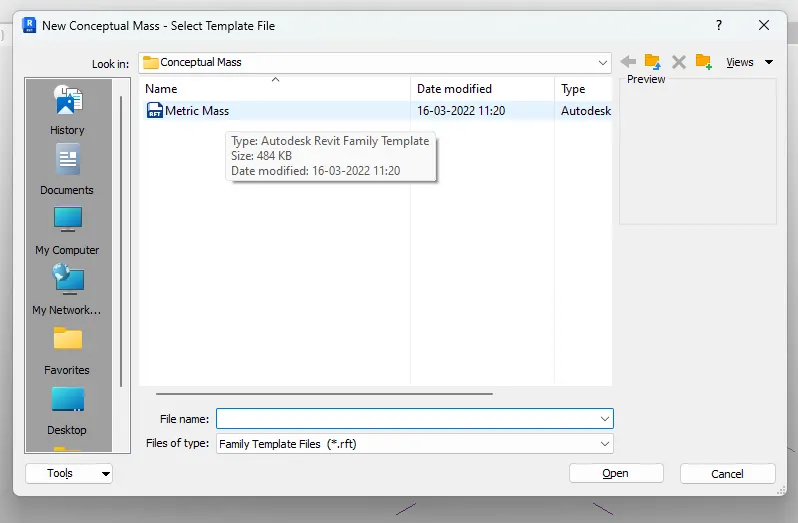

Open revit software and under the families open a new --> conceptual mass --> mass.

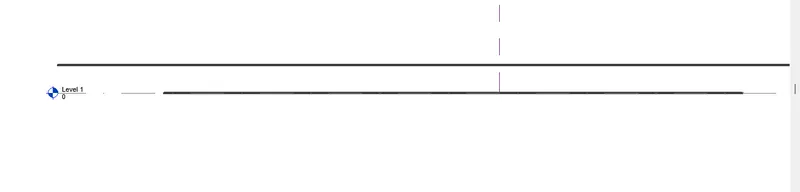

Now, go to elevation view and create a level at 12' and name it as Height of roof.

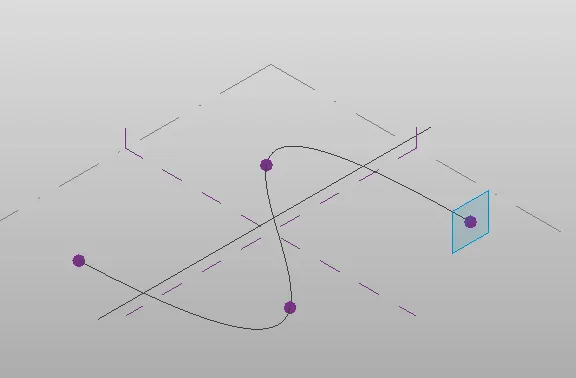

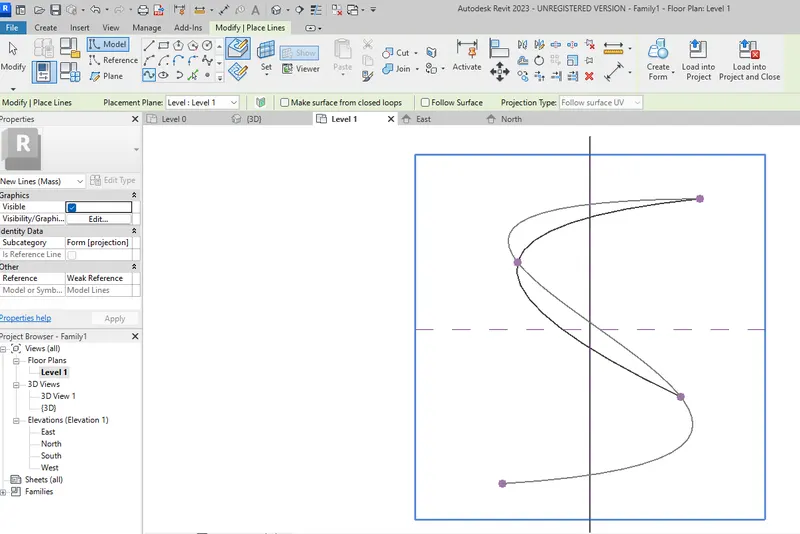

Now, using spline tool draw the desired outline for the walkway
Now, we have to create a profile to sweep through the curve.

For this, we have to set the workplane at the points and develop a polygon at the workplane keeping the point as centre.

Now, a polygon is developed with point as center.

Now, we have to create the surface which done through sweep.

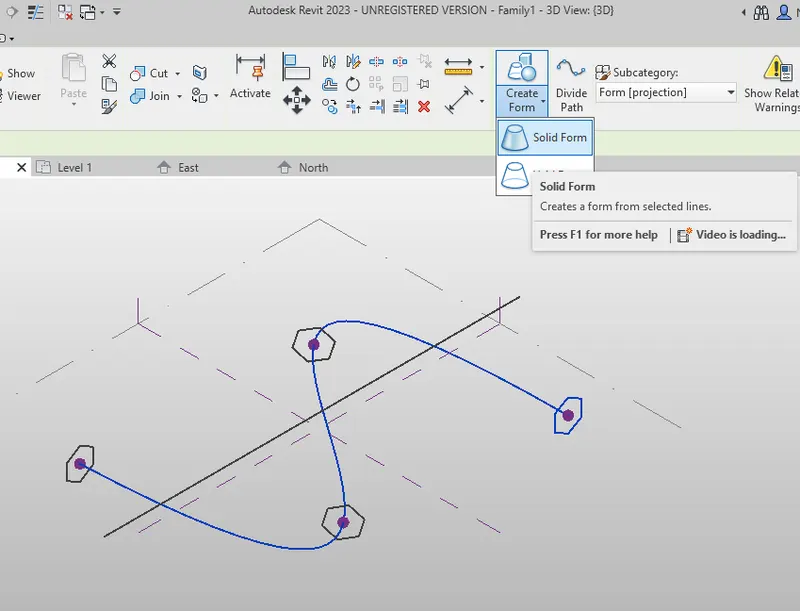

For this, select all the polygons and the curve line and choose create form option.

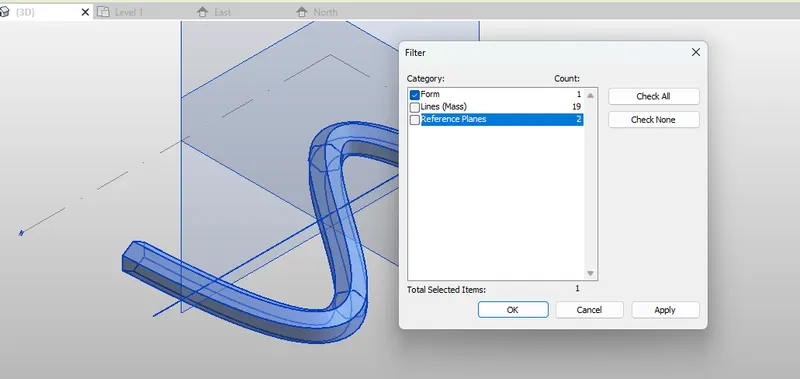

Now, select the entire form and then filter and retain only the form.

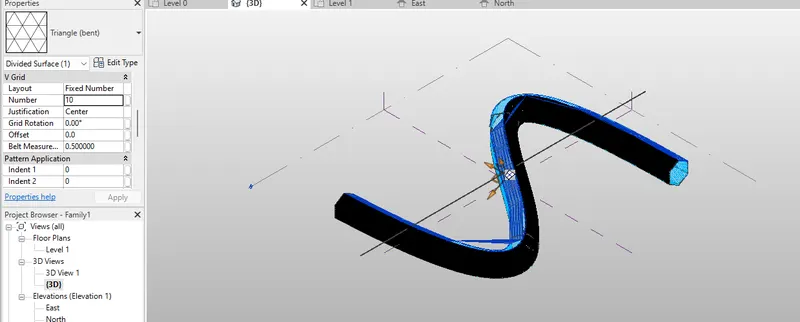

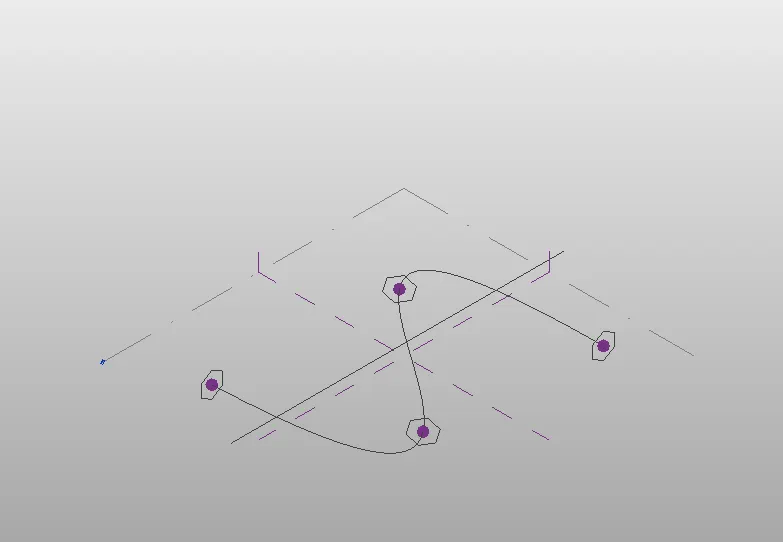

Now, select the form --> divide surface --> Then provide the pattern (triangle bent).

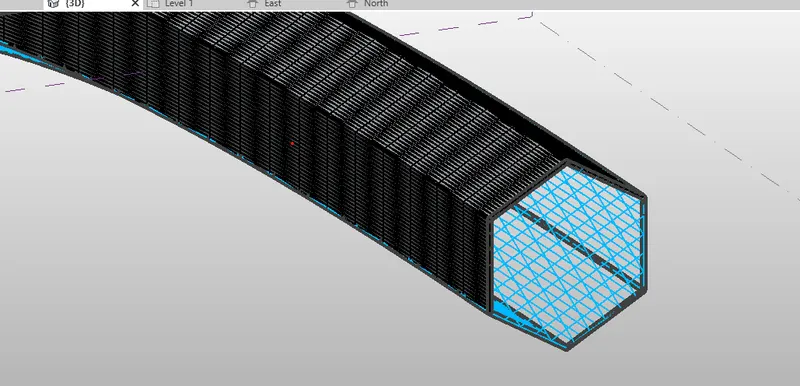

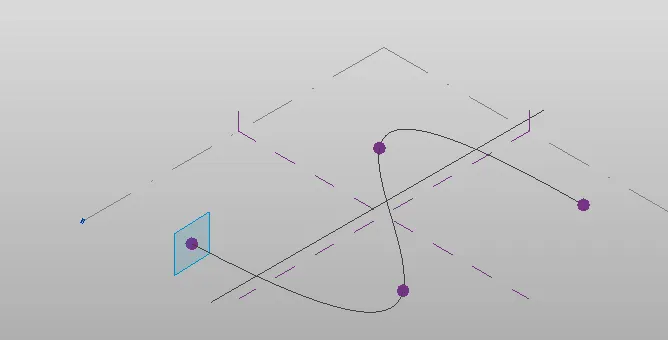

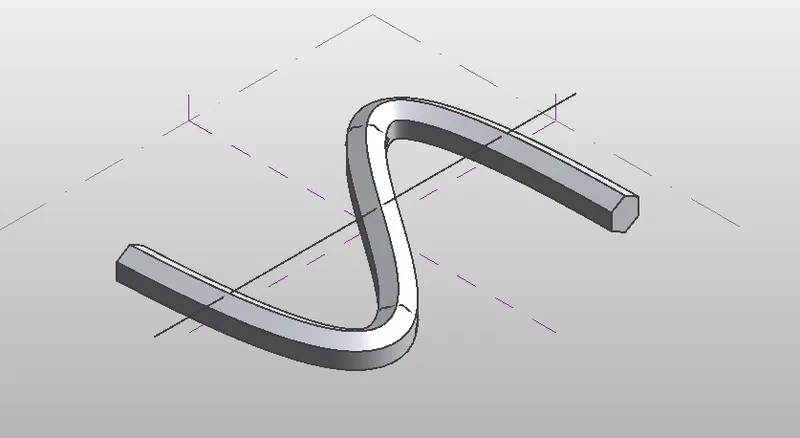

Result : The conceptual mass have been created in Revit and is given Above and Below

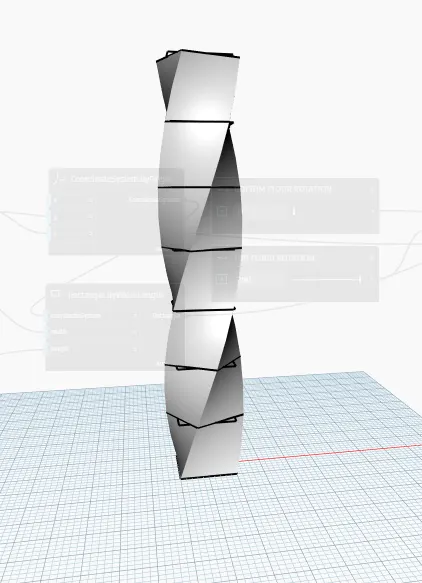

AIM 5 : Use Dynamo to work on developing a Parametric Stadium. List your parameters and use the visual programming approach to complete the modelling, You can use the concepts discussed in parametric high rise tower in class for reference.

Procedure:

Initially open a new architectural template in Revit and then open dynamo.
Basic parameters to design a high rise structure is created as input in dynamo.

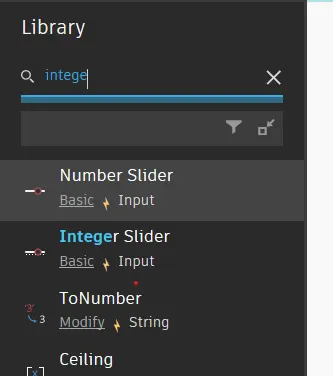

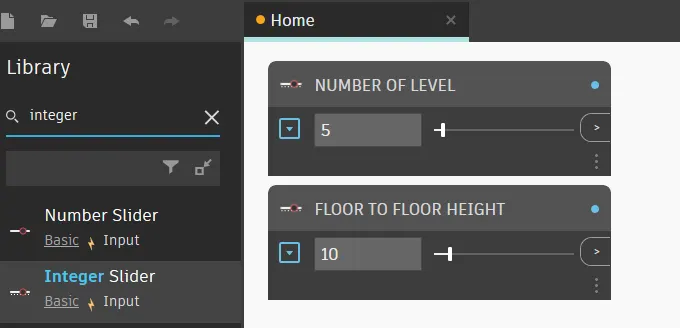

Two integer sliders is taken from the library for Number of levels & Floor to floor height

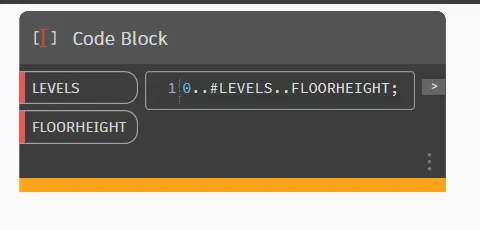

Now use CODE block and manually type [ 0..#LEVELS..FLOORHEIGHT ]
Now, connect the integer sliders named as levels and floor to floor hegiht as input to the code block.

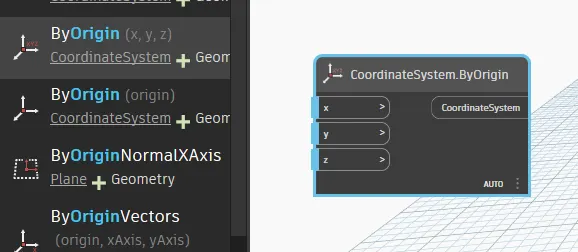

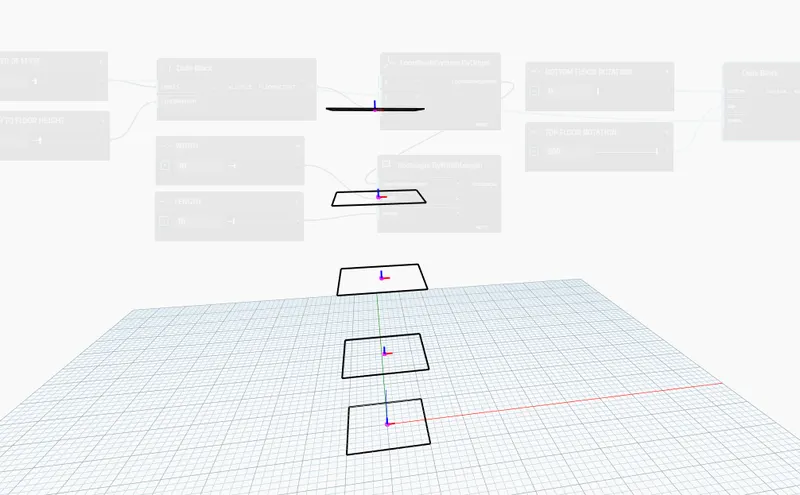

Now, search coordinates by origin in the library and insert it
Then connect the code block as input for z coordinate in the coordinate by origin block.

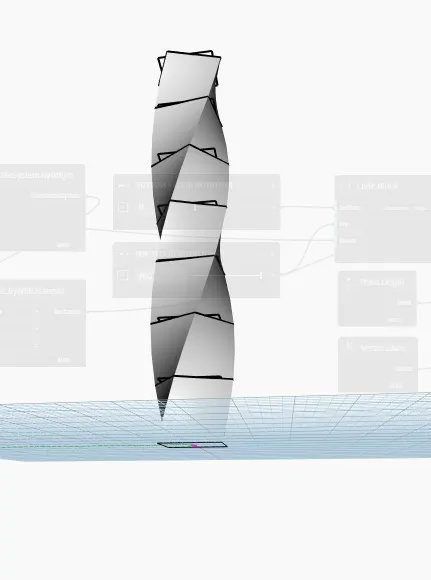

Now search Origin and then choose by coordinate as shown below

Now insert the Integerslider for Top floor rotation , bottom floor rotation, width and lenght.

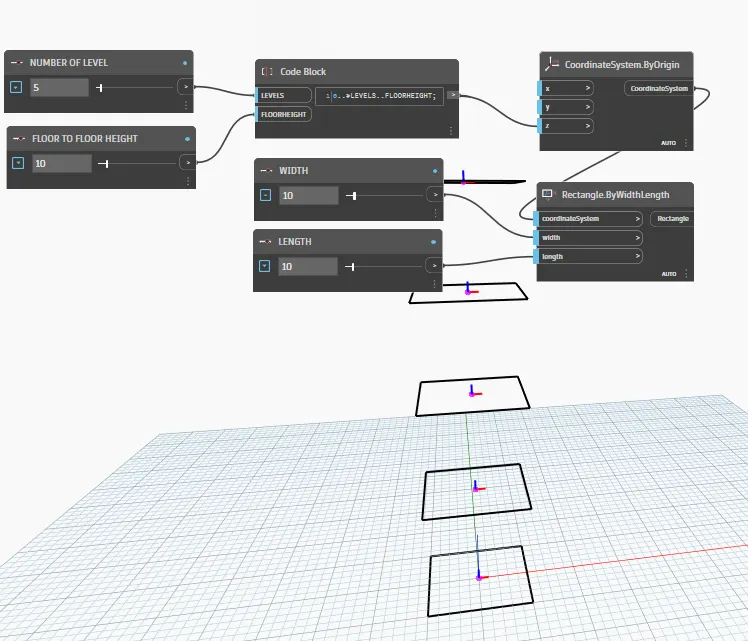

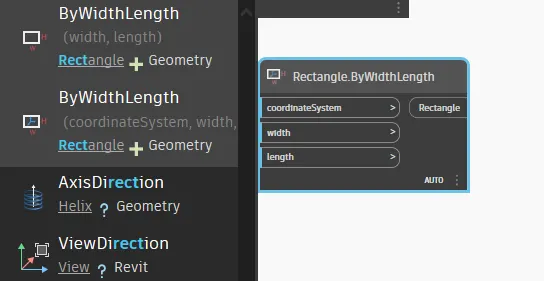

Now, insert rectangle by coordinate system, width and length from the library.

For this, inputs requied are coordinate system, length and width.
So insert integer slider for length and width.
Then connect the inputs for the rectangle block.

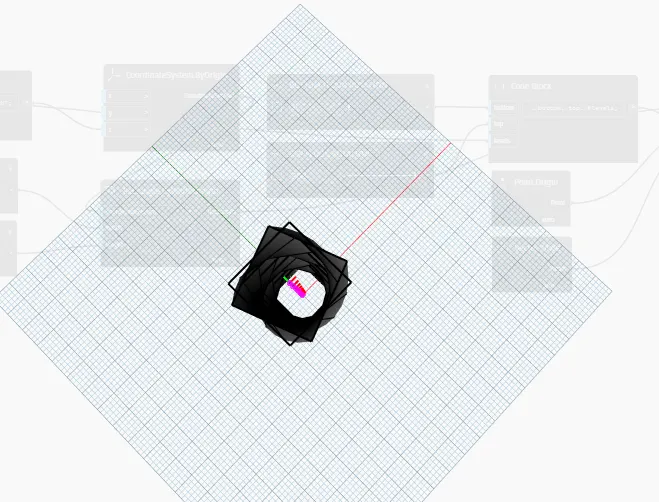

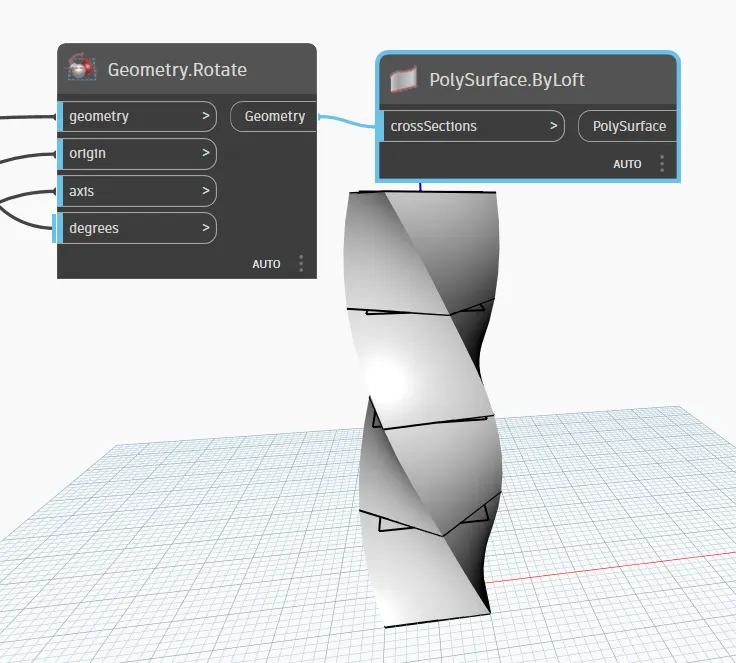

Now we have to rotate the geometry.

So, for this insert the code block from the library.

For Rotation
Geometry : Rectangle block
Origin: insert an origin block from the library.
Axis: insert vector Z axis from the library.

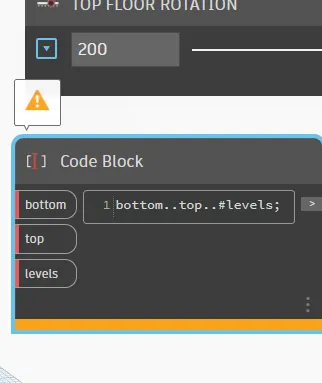

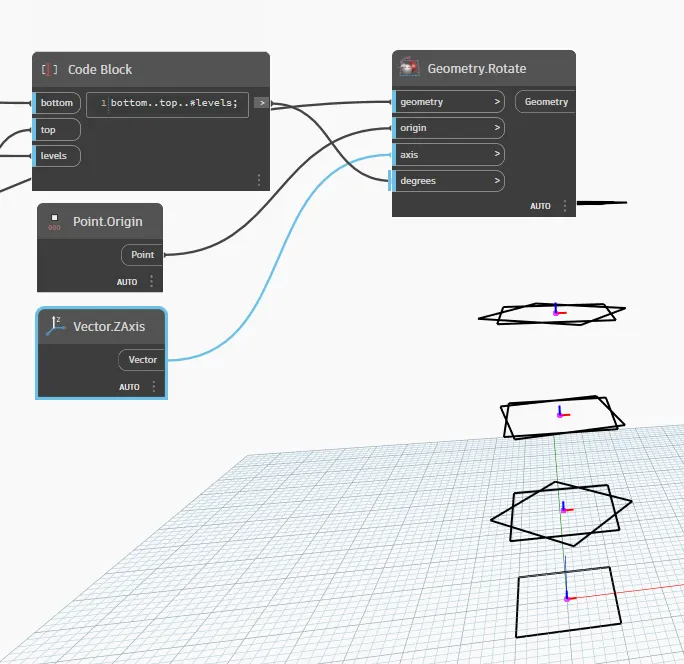

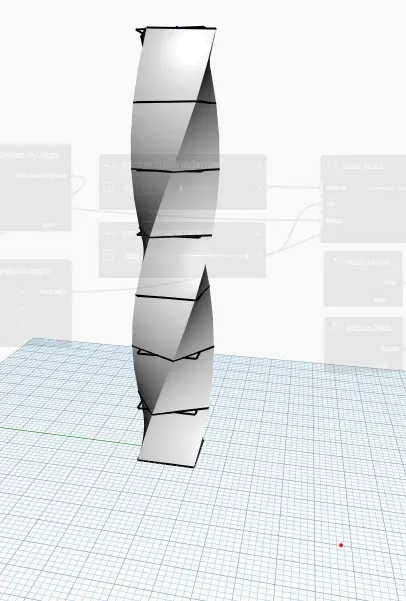

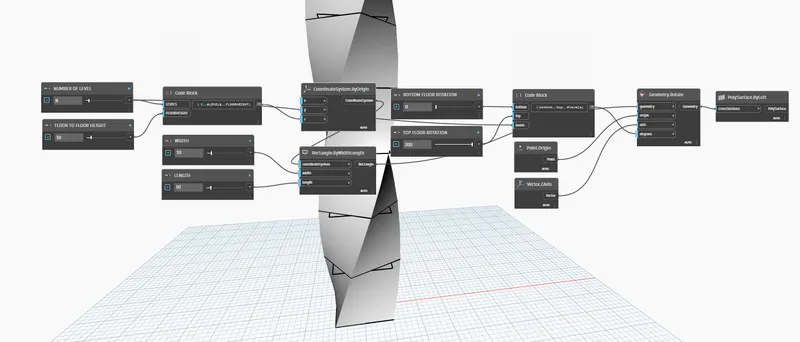

Degrees: For this insert a code block and type Bottom..Top..#level. The inputs for this code block is already available i.e, Bottom floor rotation, top floor rotation and levels.
