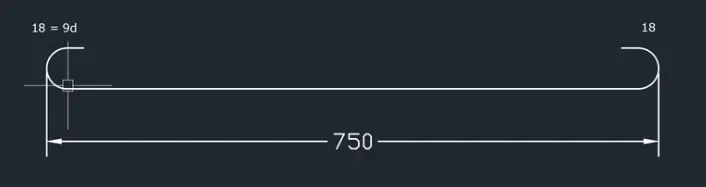

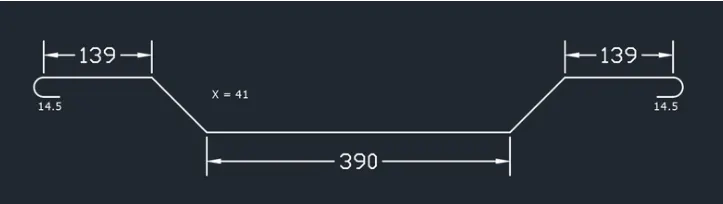

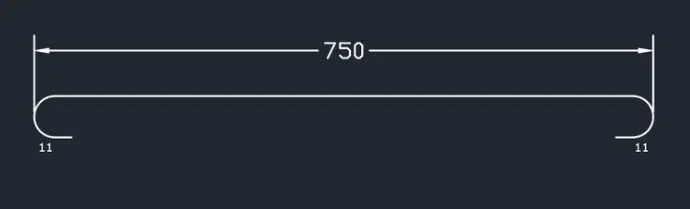

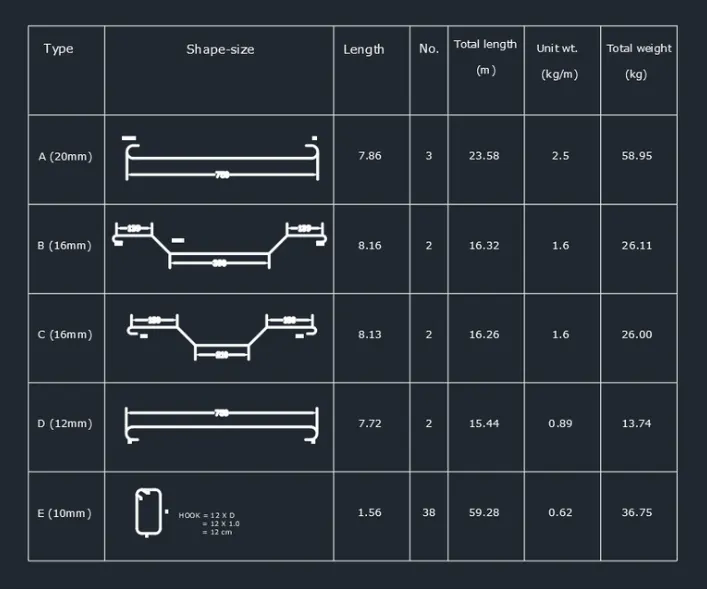

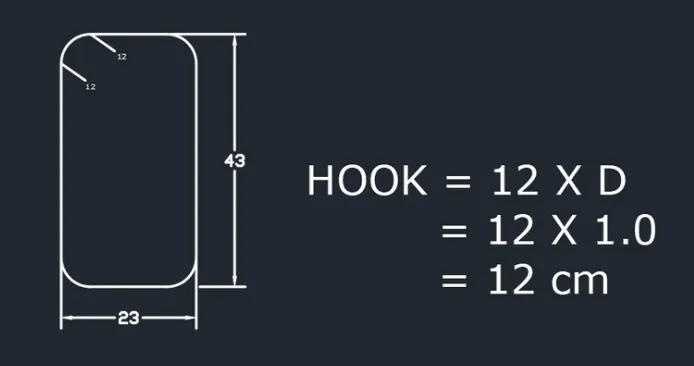

Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

NNeha Solanki24 Jan 2023

AIM : CREATING THE STANDARD TITLE BLOCK TEMPLATES OFTEN USED WHILE SUBMITTING THE ARCHITECTURAL DRAWINGS.

PROCEDURE

Title Block One:

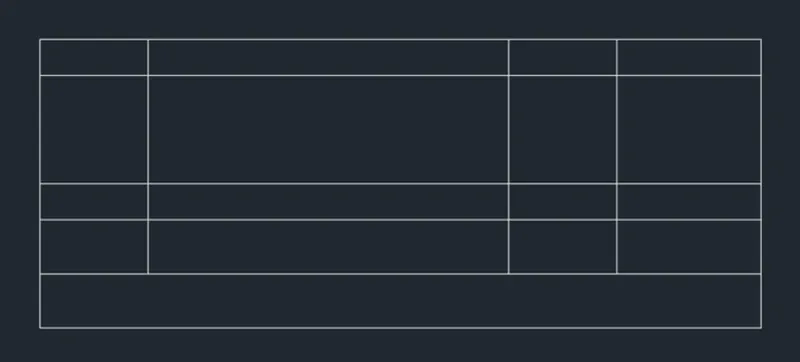

Create the Table by using the rectangle command and draft all four sides of the table.
Using line, offset, and extend commands, draw the blocks the table to complete the table layout.
Add the Required Text by using Text command.
Set the standard text style according to the table specifications.
Set up the required text height and font.
Use multiline text and start adding the required notations.

Title Block Two:
Draft the layout of smaller block
Add the Relevant Text to Complete the Smaller Block
Add up the Required Texts as shown in the figure

Now using the line command and offset command draw the other part of the table, as per the dimension given.
Use Trim command and unwanted lines. now the title block is ready to insert the Text.

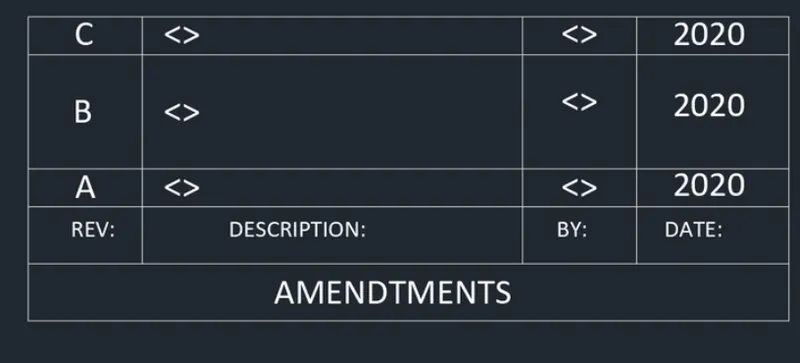

Add the small table to the larger one so as to arrange the whole title box

Arrange the Text size as per requirenment of the Box/Title
Arrange the text in the middle of the Boxes or as shown in the figure
Using Move command , move the small table made earlier to the left top side of the bigger table.

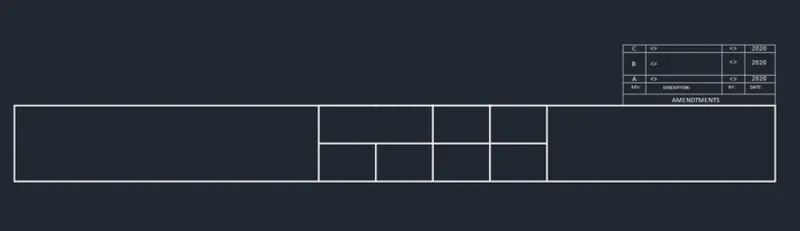

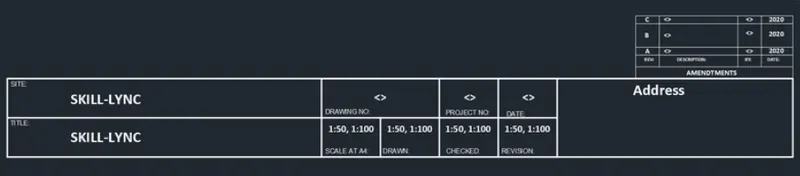

Final Table will be as follows

2. Create the doors type for warehouse as shown in the Figure. You need to create each door type as per standard size or given dimensions. Create the blocks of this door type after creating them

Procedure :

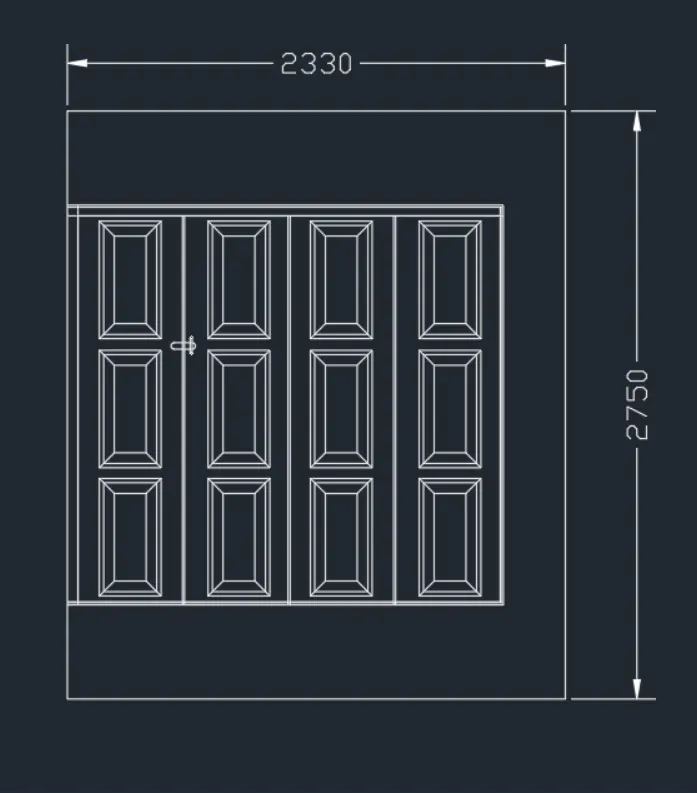

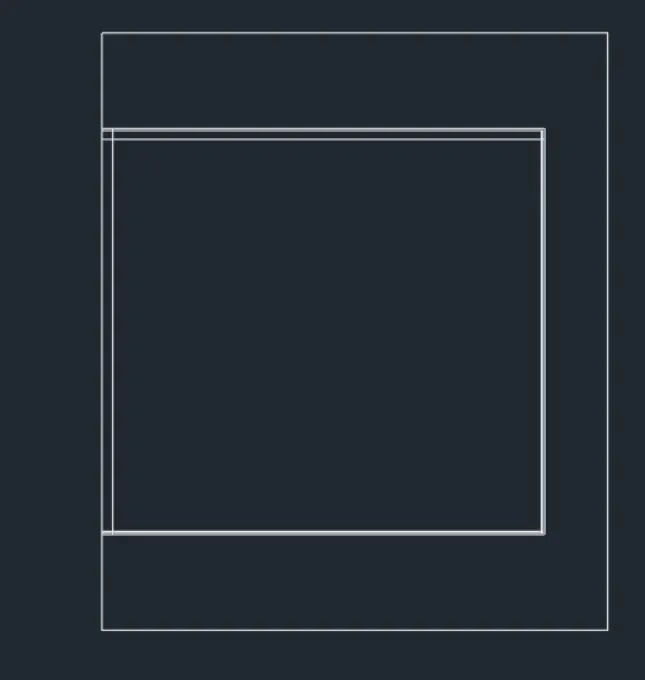

Draw the outline of the Door by using Rectangle command of dimension 2330 x2750
Now offset the lines Vertically and Horizontally as per the requirenments, as shown below

Make four equal columns within the Door outline
Make the offset trim as per the design, also make a handle by using line command
Use dimension command to show Dimension o fthe Doors

Using offset command , only after trimmimg extra lines
Offset the vertical and horizontal lines so as to make the rectangular design
Or region the outter rectangular of the design then offset them inside
Join the corners of the rectangular designs of the Doors

Make a finishing of the Doors
Mark the dimensions

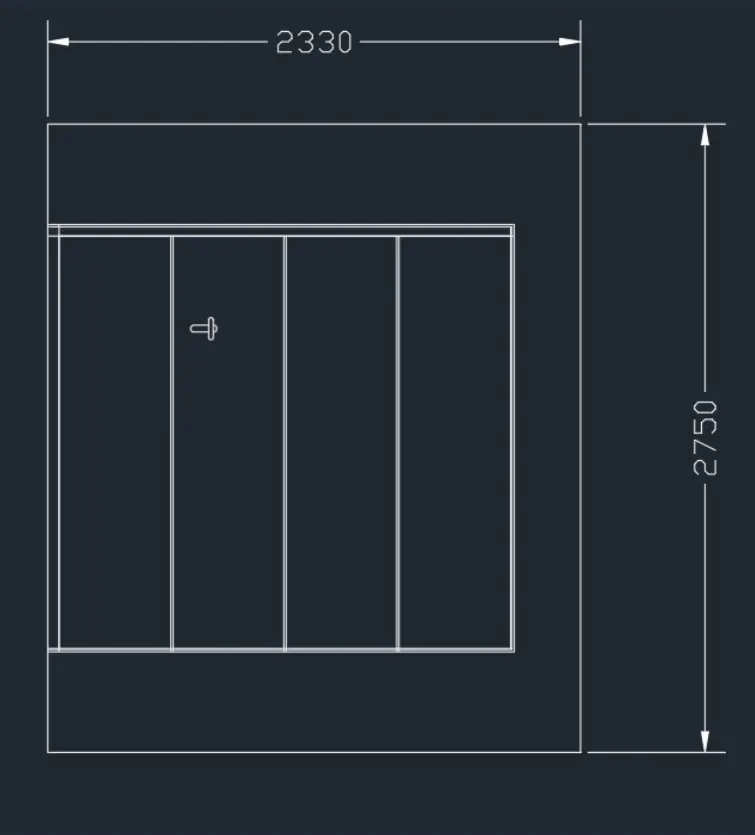

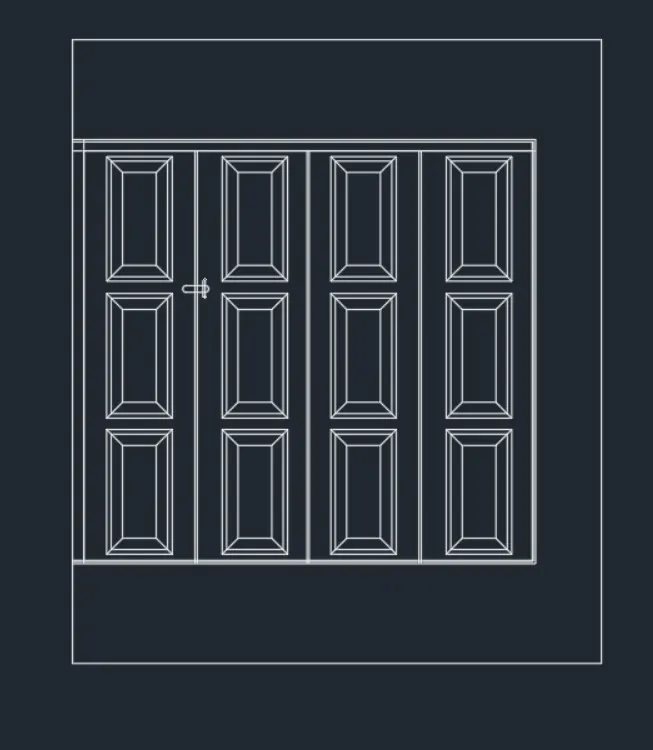

Finall RESULT of DOOR 1 :

Copy the objects from the first door design and arrange them accordingly.

RESULT Door 2

3. Create each symbol as a block with the name given in the legend. After creating the blocks arrange them in the legend as shown in the Figure.

PROCEDURE :

Using Line command make the symbols of smaller size so as they can be arranged within the Table blocks
Uisng Hatch command ( solid) to hatch the key white part
Use Text command That too in Bold and arrange the alphabets "i" "TV" and "w" within the triangles

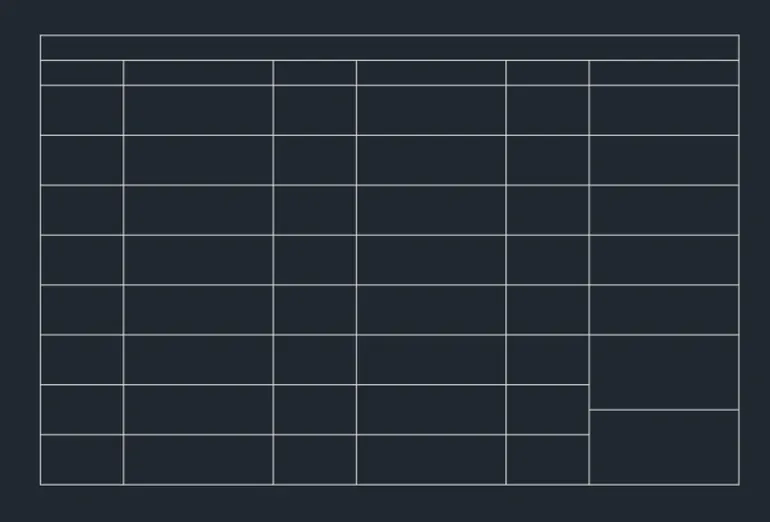

Draw a Table form the Table command using Title, headder and content.
For the bottom seperation of the Table use Offset command
Trim the unwanted lines to make the arranged Table Layout

Copy all the symbols made in the previous steps one by one the Table columns
Use Text command BOLD for the Title and the Header as shown below

Either arrange the Text by copy command of explode the blocks for the clearer Text
Arrange the Text within the Block at the center

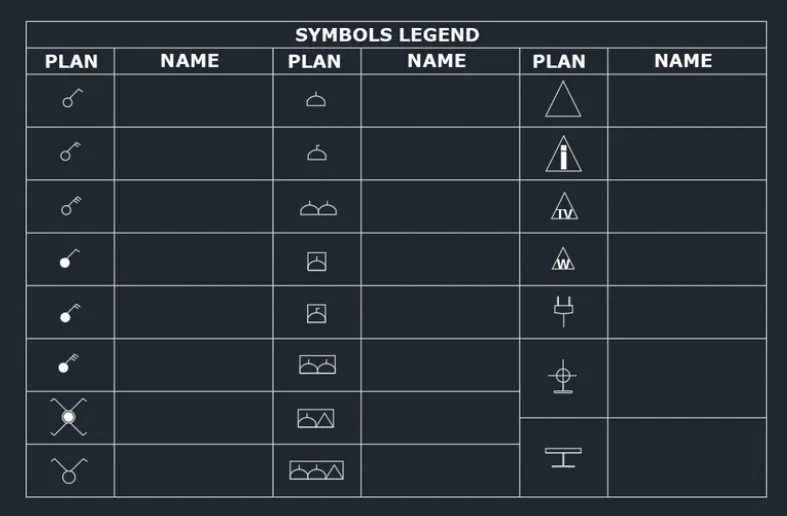

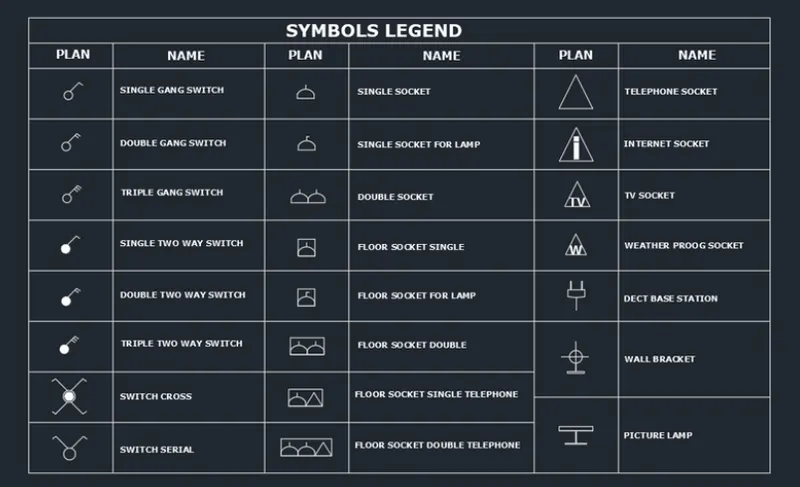

Final RESULT:

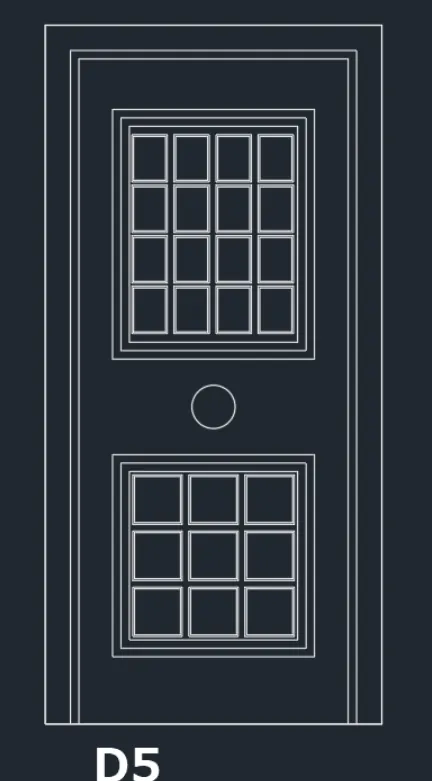

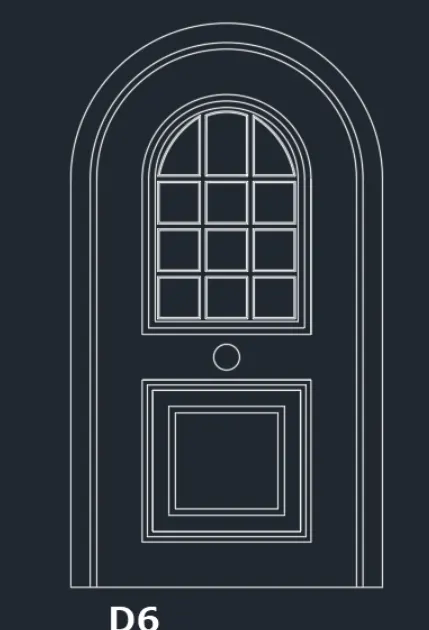

CREATING DIFFERENT DOOR TYPES FOR THE RESIDENTIAL BUILDINGS.

Go to Units Change the Dimension to the Architectural and set Dimension limits

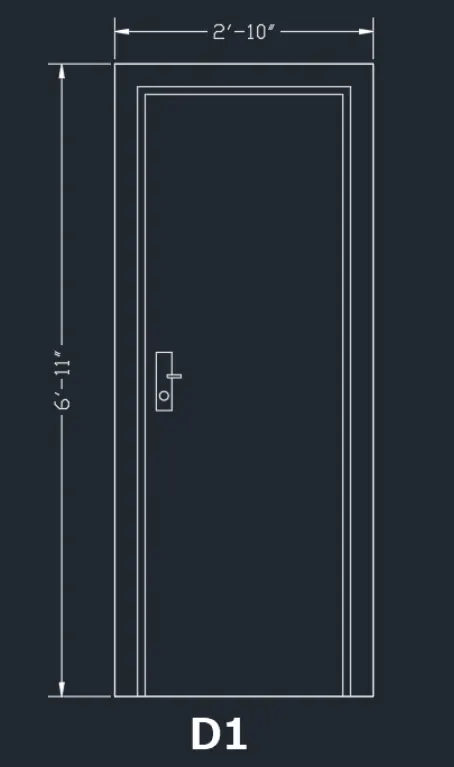

Door one with the given frame design.
Rectangle Command of dimension 2'10" x 6'11"
Use Offset command inner side Twice
Make the Door Handle

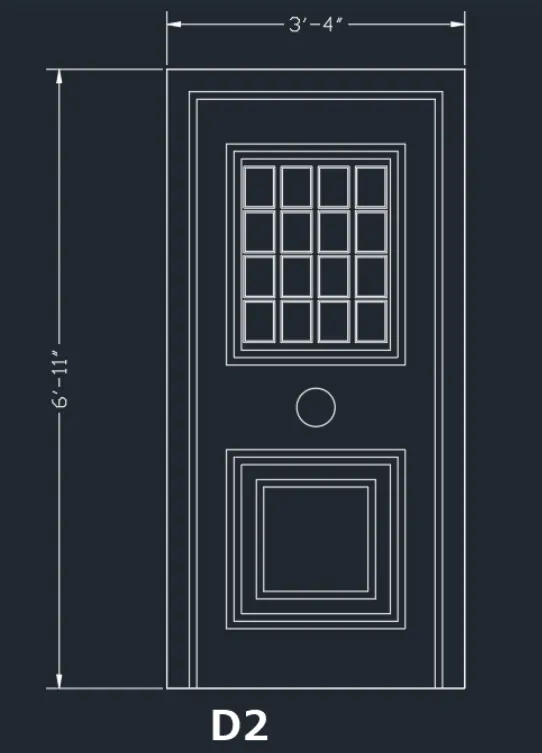

D2 with the given frame design.

Use same steps as in the previous doors for the outter frame
Now make the design of Doors with the help of Rectangle command and with Array command( rectangular)
Now for the Bottom space
Make a rectangle the make Offset as per requirenment 4 times

D3 with the same drafting pattern.

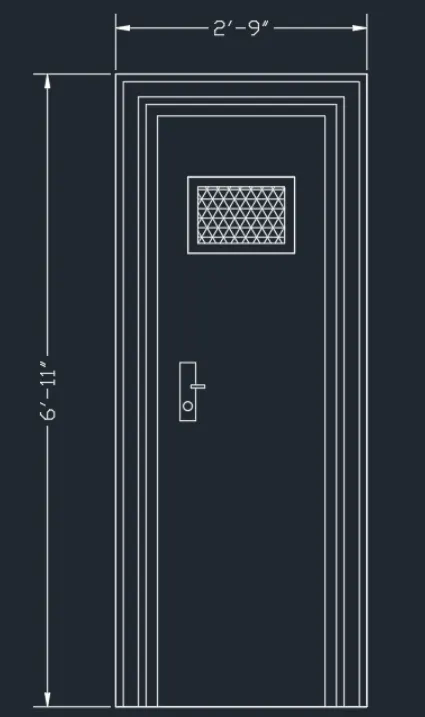

Make the outter frame of door from Rectangle command of size 2'9" x 6' 11"
Now offset the outter side of the rectangle to the inner side with appropriate distance
Now make a rectangle on the upper side as per design
Now HATCH the center rectangle with the Mesh design

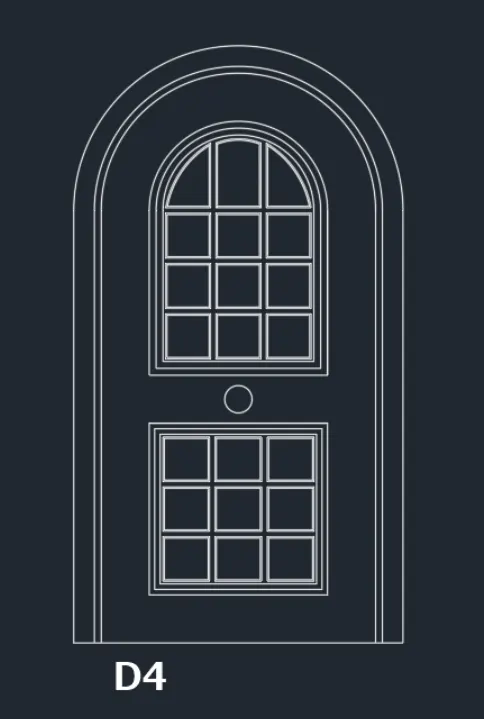

D4 design.

Copy the above Door 2 and make required edits
Now using circle command on the top side of the door, and trim or remove unnecessary lines
Now offset the semicircle to the inner side as per the requirenment and make the trim as per design
