Creating Conceptual mass in REVIT and Creation of Sinusoidal curve and a Parametric stadium using Dynamo

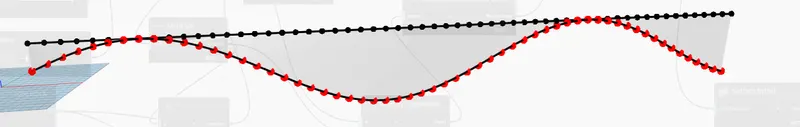

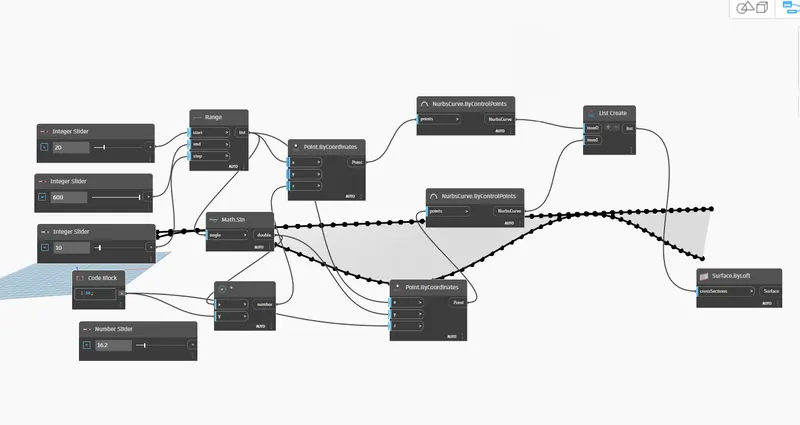

1) Using Dynamo create a set of sinusoidal points and create a curve and create a surface out of the curve.
Nodes used:
- Integer slider or number slider
- Code block
- Product
- Math sin
- Add
- Range
- Point by coordinates
- nurbes curve
- surface by loft
Result:
2) Create a conceptual layout of floor plan in dynamo . Using the tools available in dynamo link the lines to appropriate model elements in Revit by choosing the wall types and wall parameters. Make use of the sliders to slide through the height of the wall and length of the wall.
Nodes used:
- Integer or number slider
- Levels
- Points coordinates
- Start End point
- Create list
Result:

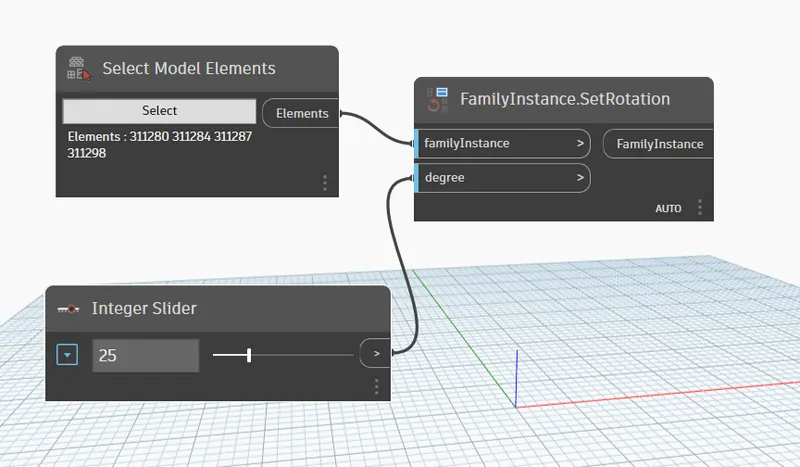

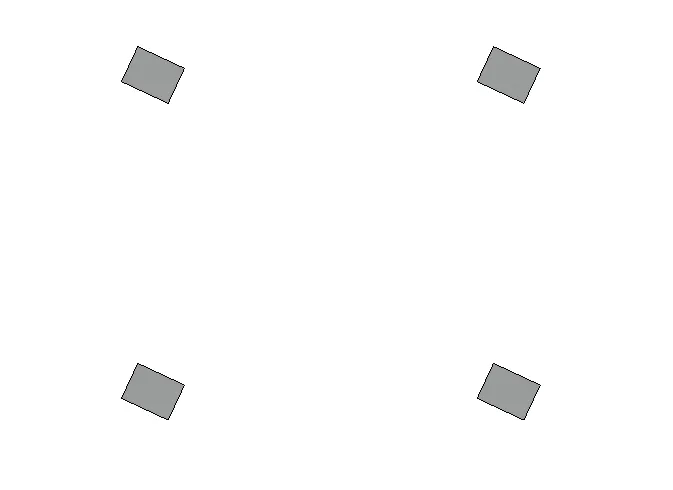

3) Create an array of model elements in Revit. Use dynamo to vary the properties of model elements by using the slider or code block.
Nodes used:
- Integer Slider
- Select Model Elements
- Family instance set rotation
Result:

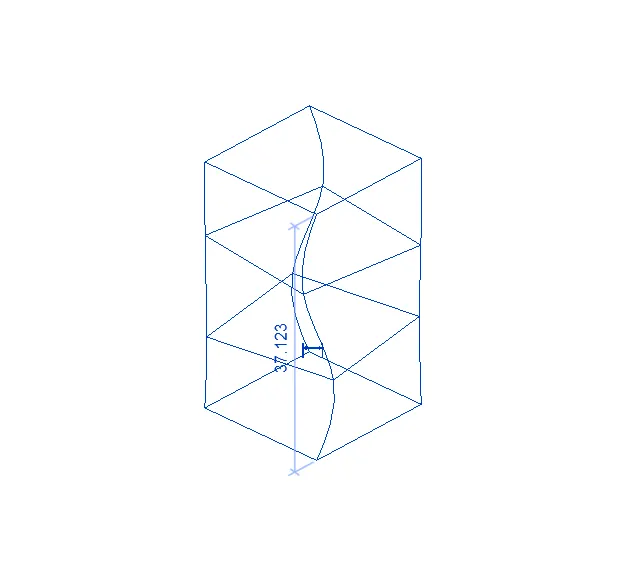

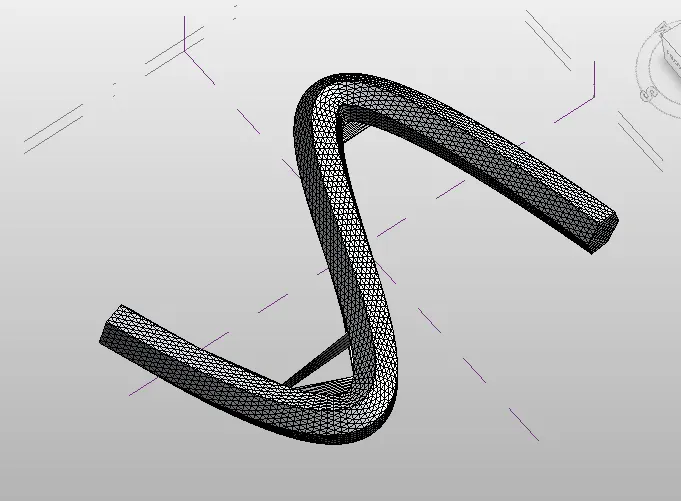

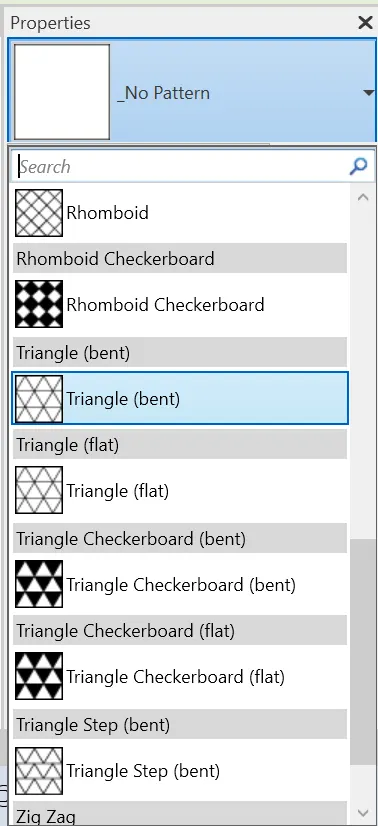

4) Create a conceptual mass in Revit and develop a parametric column by dividing the surfaces and apply the concepts similar to used in parametric walkway modelling. Use triangular bent or square shaped panels to add finish to the parametric.
- Revit 2023>File>New>Conceptional Mass
- open Metric Template.

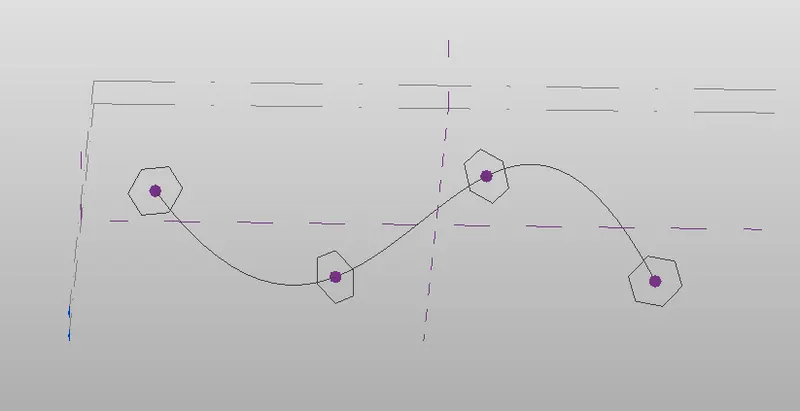

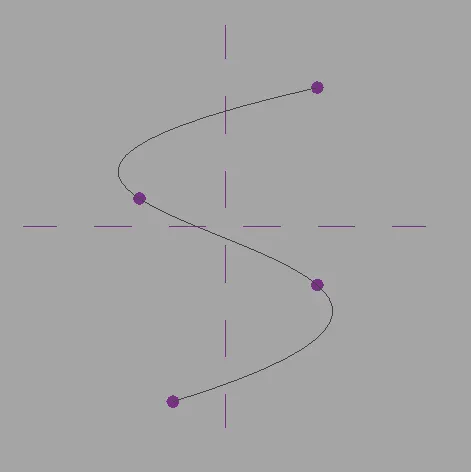

- Create spline by using model line tool
Add polygon at the nodes in the spline.

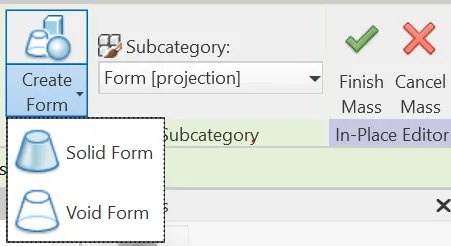

Convert the spline into the solid form option.
Result:

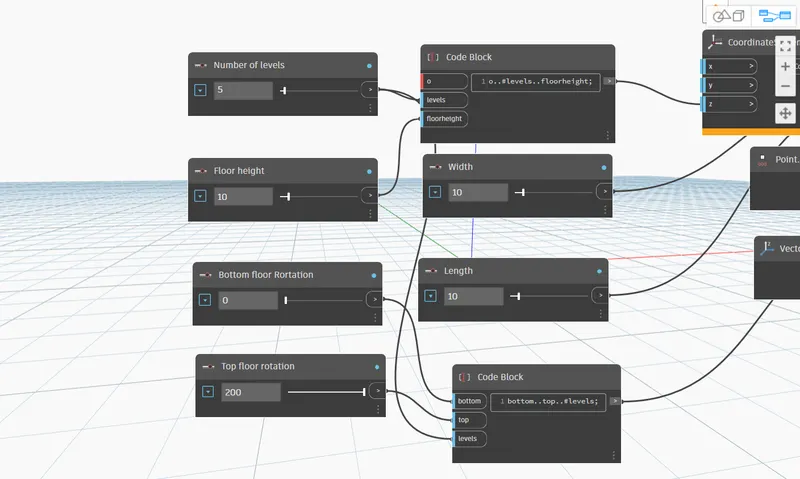

5) Use Dynamo to work on developing a Parametric Stadium. List your parameters and use the visual programming approach to complete the modelling, You can use the concepts discussed in parametric high rise tower in class for reference
- Integer slider or number slider
- Code block
- Point by coordinates
- Origin by coordinates
Result:
