Creating Conceptual mass in REVIT and Creation of Sinusoidal curve and a Parametric stadium using Dynamo

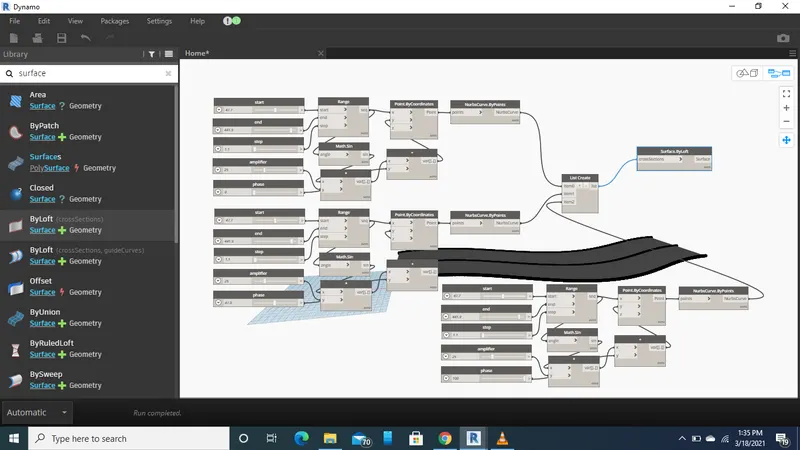

1) Using Dynamo create a set of sinusoidal points and create a curve and create a surface out of the curve.

AIM:

To create a set of sinusoidal points and creat a curve and creat a surface out of the curve.

Procedure:

* Open the dynamo tap in revit window , And create the new dynamo window.

* Insert the range parameter in dynamo.

* Adjust the start,end and step points using the slider or code block parameter.

* Insert the math sin parameter and amplifier multifire parameter.

* Insert the curve by points parameter

* copy the set of hole parameter and past .

* list the all sinosoidal curves .

* Insert the surface by loft

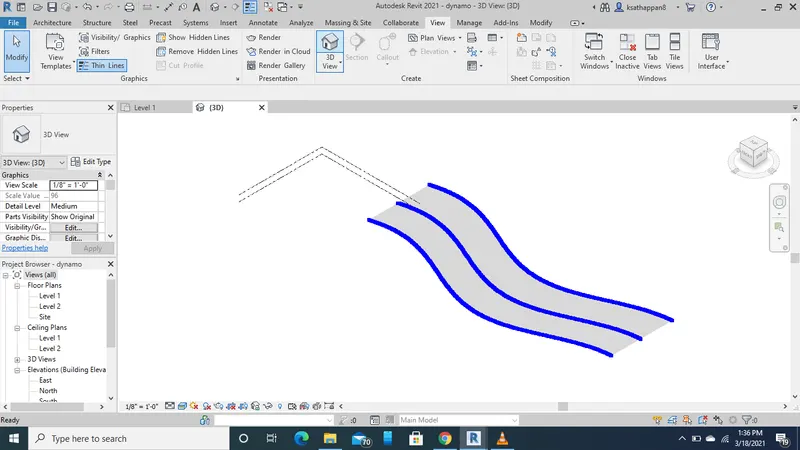

Result:

Supmit the surface on sinosoidal curves using dynamo.

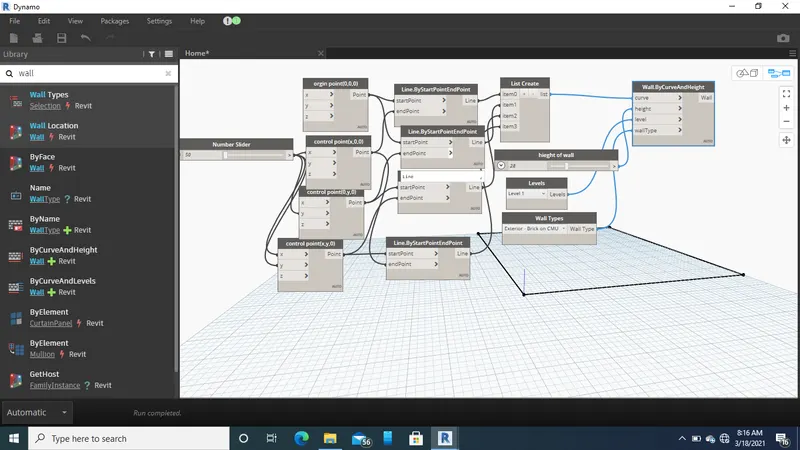

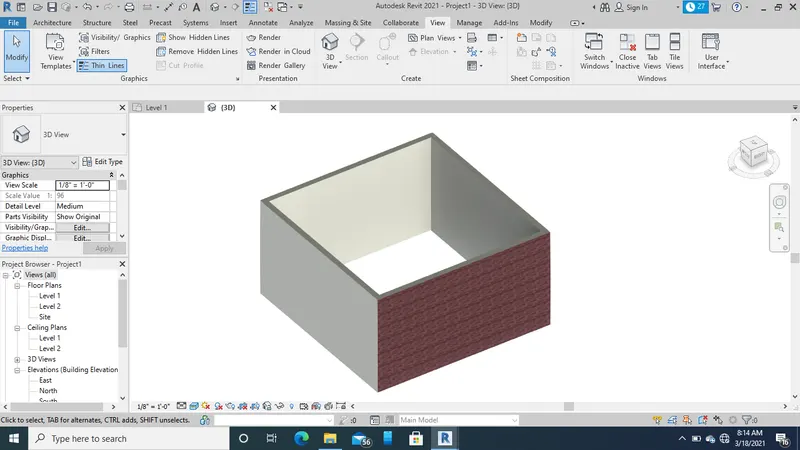

2) Create a conceptual layout of floor plan in dynamo . Using the tools available in dynamo link the lines to appropriate model elements in Revit by choosing the wall types and wall parameters. Make use of the sliders to slide through the height of the wall and length of the wall.

Aim:

To create a conceptual layout of floor plan in dynamo.using wall parameter ,wall type parameter adjust height of all using slider parameter .

Procedure:

* Insert the points by co-ordinate parameter ,slider,wall type parameter.

* adjust wall height using slider parameter.

Result:

supmit the floor plan to using dynamo.supmit the set of parameters.

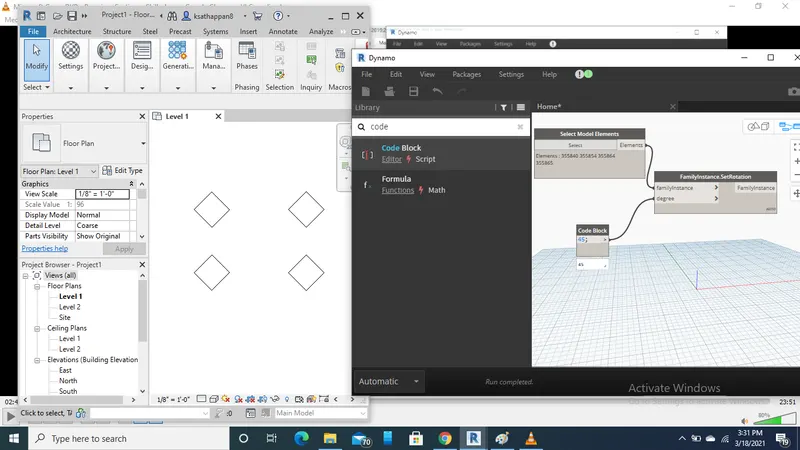

3) Create an array of model elements in Revit. Use dynamo to vary the properties of model elements by using the slider or code block

AIM:

To creat an array of model elements in revit.use dynamo to vary the properties of model elements by using the slider or code block.

Procedure:

* select the model elements from revit window .

* vary the properties of model elements .

* For exsample for rotate the model elements using dynamo and their parameter.

Result:

supmit the creat an array of model elements in revit.use dynamo to vary the properties of model elements by using the slider or code block.

4) Create a conceptual mass in Revit and develop a parametric column by dividing the surfaces and apply the concepts similar to used in parametric walkway modelling. Use triangular bent or square shaped panels to add finish to the parametric column

5) Use Dynamo to work on developing a Parametric Stadium. List your parameters and use the visual programming approach to complete the modelling, You can use the concepts discussed in parametric high rise tower in class for reference.

AIM:

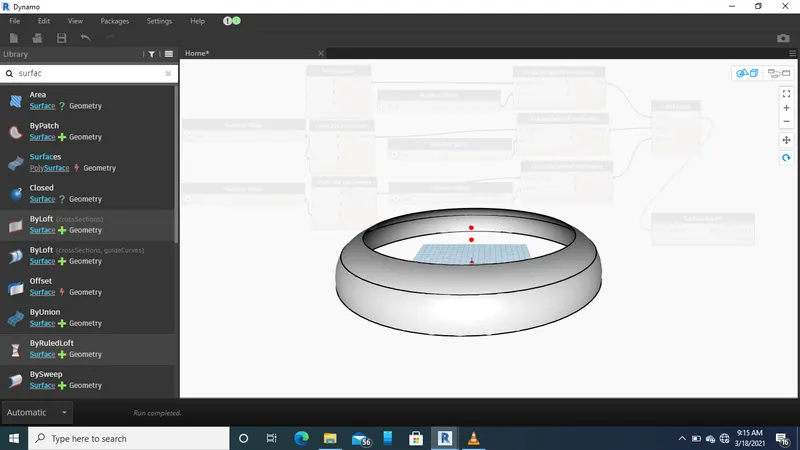

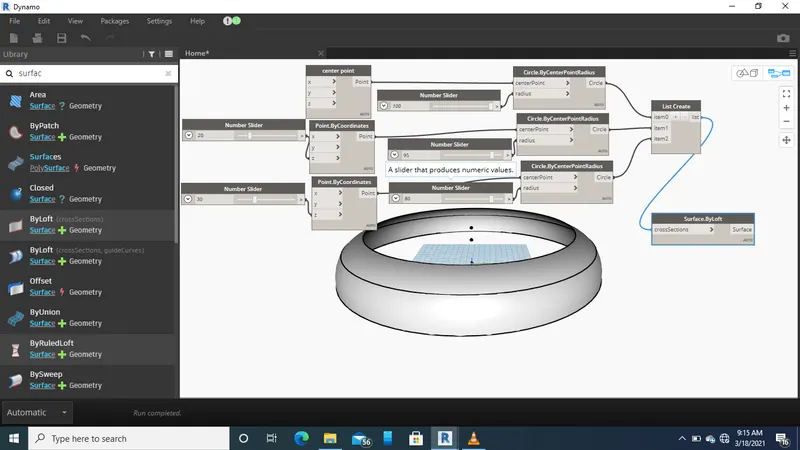

To Use Dynamo to work on developing a Parametric Stadium. List your parameters and use the visual programming approach to complete the modelling.

Procedure:

* Insert the parameters in dynamo develop the parametric stadium.

* Built up the round stadium to create the center point of stadium so insert the point by co ordinate parameter

* Type the circle by radious parameter,and adjust the radious using slider parameter.

* develop the stadium hight using slider and code block parameter.

* create the surface using surface by curve parameter.

RESULT:

Create the parameter stadium using dynamo.List the parameters .
