Creating a Floor plan, Footing detail and Isometric view using AutoCad

Q1

AIM : to draw the c s of load bearing wall over spread footing using auto cadd software.

PROCEDURE: By rectangular polar coordinates



  in the command type QNEW

click on imperial tempelate, dvnced setup ,decimal

in the command type UNITS

decimal precision=0.00, angle= decimal angle

in the command type ds

snap spacing x& y =0.5

grid spacing x& y= 0.5

in the command type LINE

specify first point 2,2

take 2nd point @.25<90

       3rd point@.20<0

      4th point@.40<90

   5th point@.5<0

     6th point@.40<90

7thpoint@1.15<180

 8thpoint@.30<0

        @.15<90

        @.30<0

         @.15<90

         @.30<0

          ...............

         .............

         ...........

for column two lines



in the  command type OFFSET

offset distance  .60

select object    line of .30 ( middle of column)

command  offset

 distance  .5

select object  = (horizontal line of .30)

























Q2.

AIM: to draw the isolated footing using auto cadd software

prcedure

in the command type QNEW

click on imperial tempelate, dvnced setup ,decimal

in the command type UNITS

decimal precision=0.00, angle= decimal angle

in the command type ds

snap spacing x& y =0.5

grid spacing x& y= 0.5

take line command

specify first point 1,1 and enter

2nd point @.15<90

3rd point@.38<0

4thpont@.25<90

5th point@1.60<90

..............

..............

command type LINE

enter first point by curser at corner of footing

specify 2nd point @0.30,0.25  ENTER

take TRIM from ribbon

trim vertical lines

command OFFSET

for lines of column

first distance .04

select lines and enter

for strip of column

command lines make first lines at .20

and then offet of that strip lines.

...............

...............









Q3

AIM; TO draw line diagram of two bedroom building

PROCEDURE

prcedure

in the command type QNEW

click on imperial tempelate, dvnced setup ,decimal

in the command type UNITS

decimal precision=0.00, angle= decimal angle

in the command type ds

snap spacing x& y =0.5

grid spacing x& y= 0.5

take command  rectangular

specify first point 2,2 and enter

specify the other point @8.80,3.60

take command line

through curser at a distance 3.60 from left

specify other point @0.90<90

take command line,

through curser at a distance of 3.60 from left

specify other point @1.80<270

 used command

trim and offset for step.









Q4



AIM; TO draw c.s of load bearing wall with foundation by the computer softerware of autocadd



PROCEDURE

prcedure : rectangular polar coordinates



in the command type QNEW

click on imperial tempelate, advnced setup ,decimal

in the command type UNITS

decimal precision=0.00, angle= decimal angle

in the command type ds

snap spacing x& y =0.5

grid spacing x& y= 0.5

command type line

specify first point 2,2

specify 2nd point @.90<0

         3rd point @.45<90

.................................

.........................

.........................

................................











Q5

AIM: to draw the isometric view of step.













q6

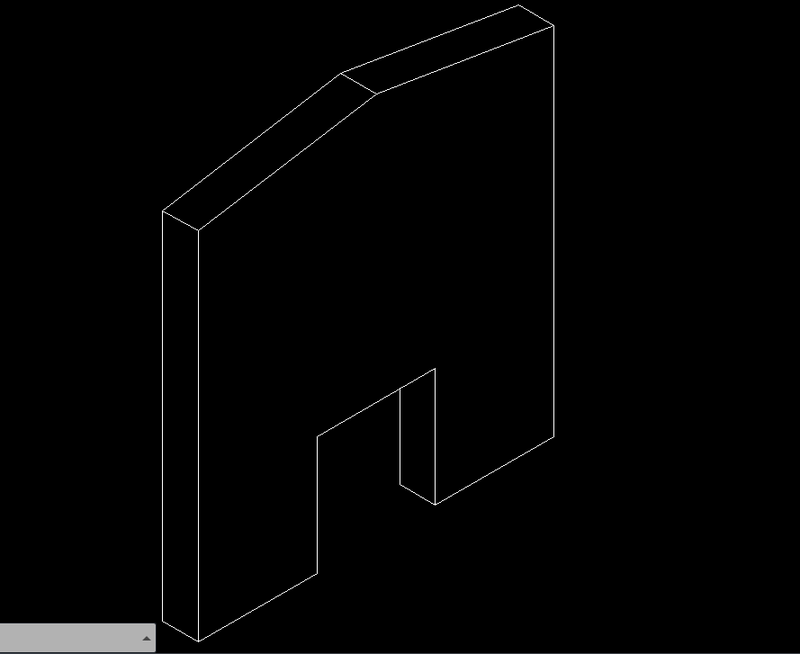

 AIM :To draw the isometric view of gable wall

 open auto cadd software

in the command type QNEW

click imperial tempelate, advanced setup,decimal

in the command type unit

decimal precion, decimal angle

in the command ds

click on isometric snap
