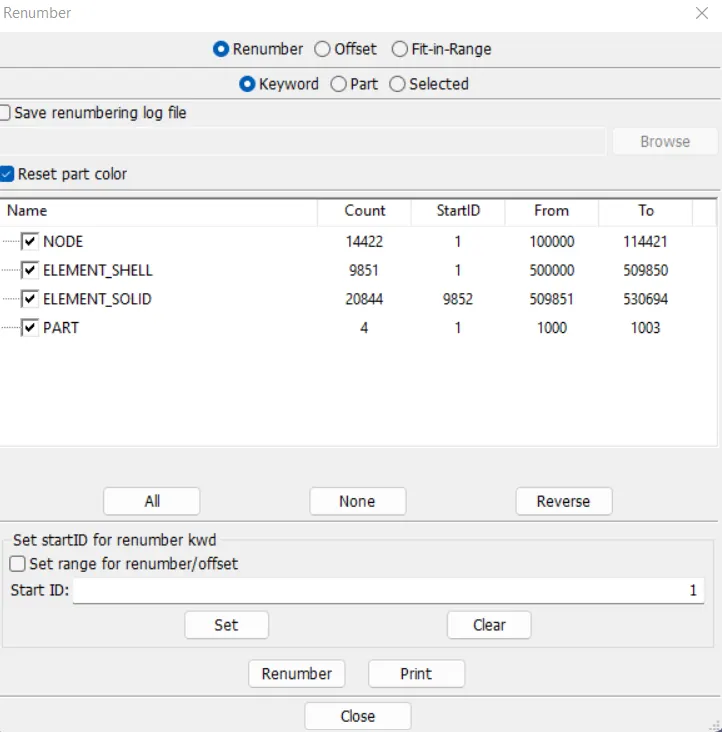

Aim- To perform and simulate the non-linear case of Birdstrike in Aero-engine using explicit analysis in LS-Dyna. Objective- The FE model consists of 4 parts that need to be separated and save part-wise. The suitable material is created and saved in a subfolder. The node number, element number, and part number are assigned…
Tribhuvankumar Pandit
updated on 09 Aug 2022
Aim-
Objective-

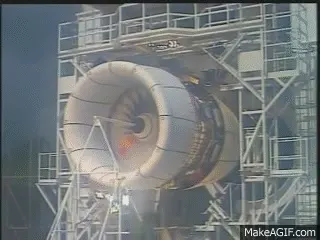

Theory-
Procedure-

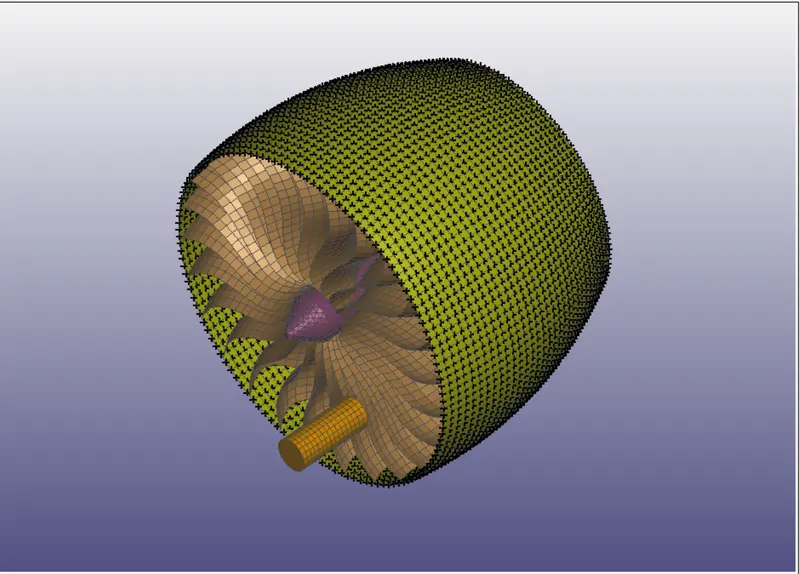

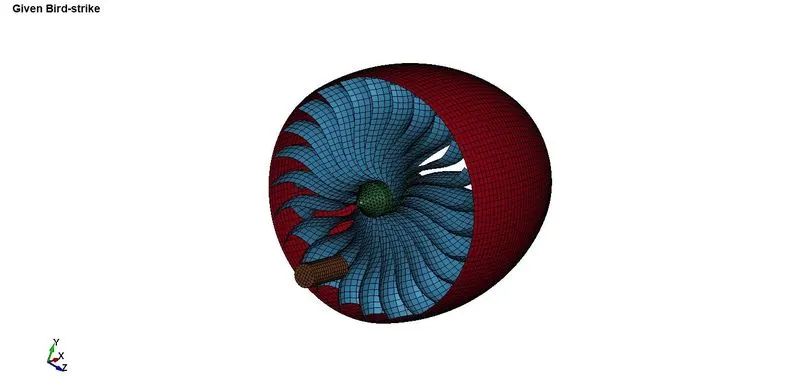

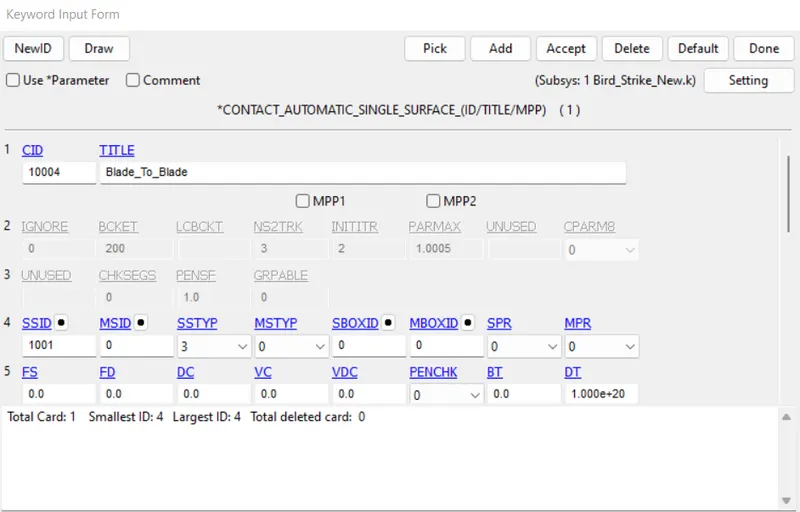

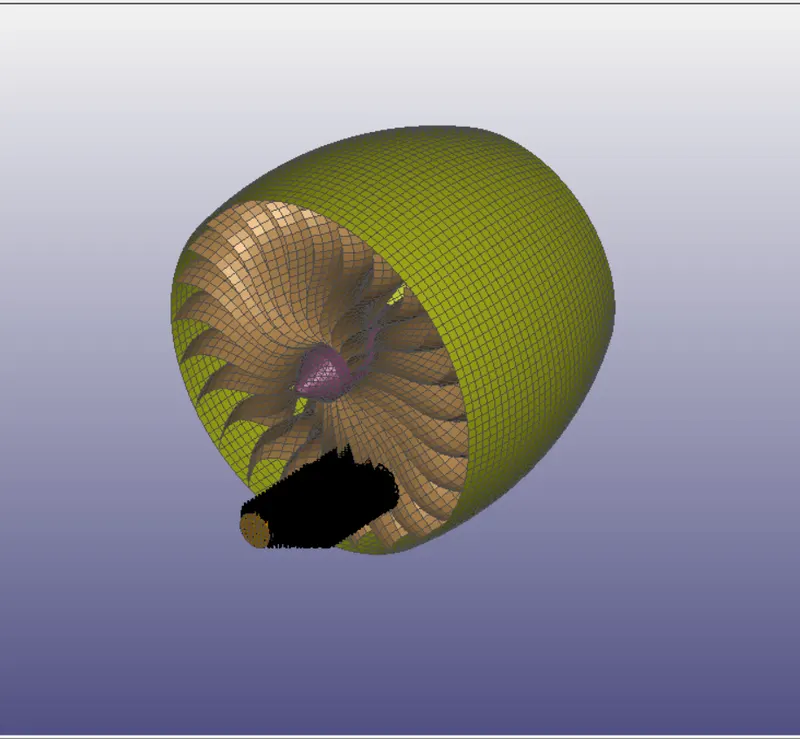

Case setup

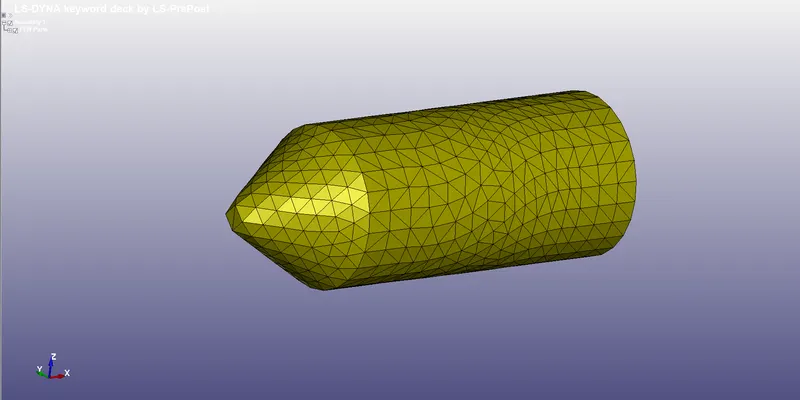

Bird

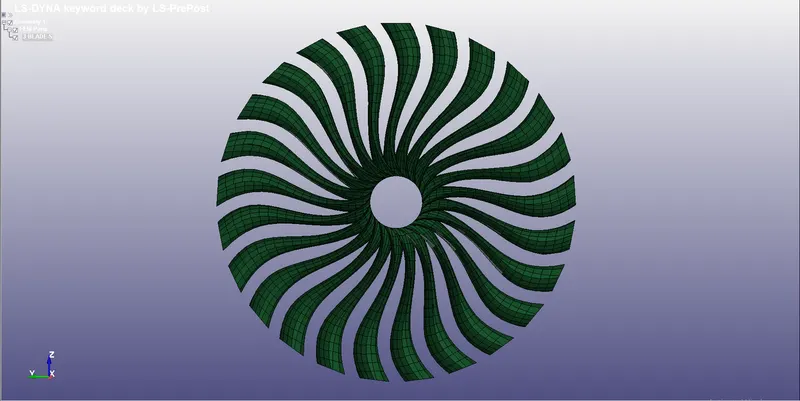

Blades
Casing

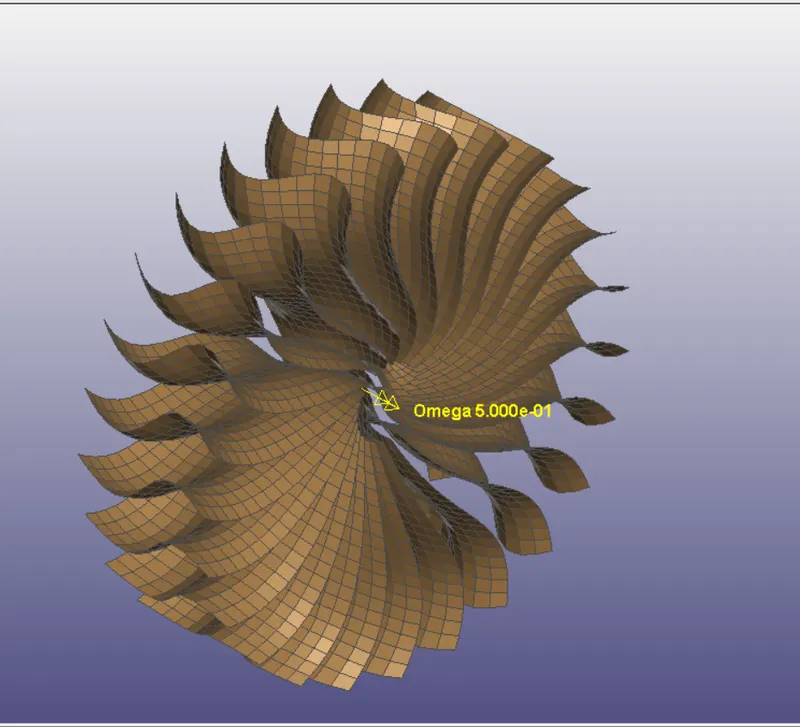

Hub
Note-For this FE model the unit system followed here will be Kg, mm, ms.

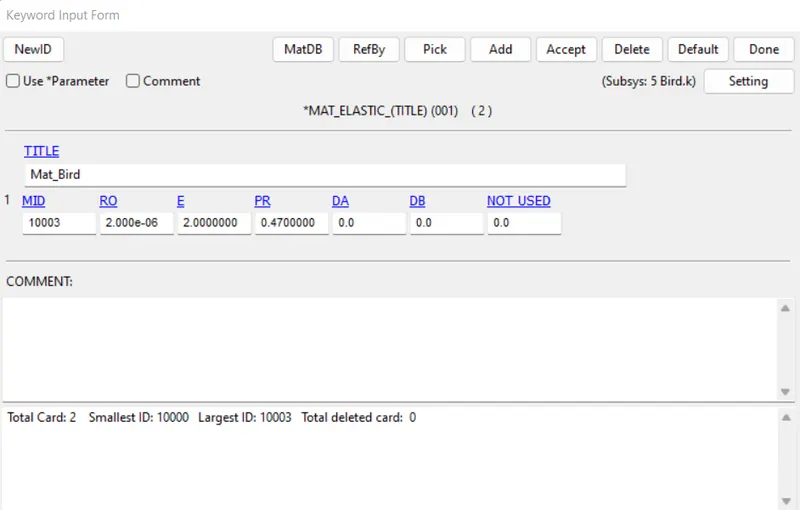

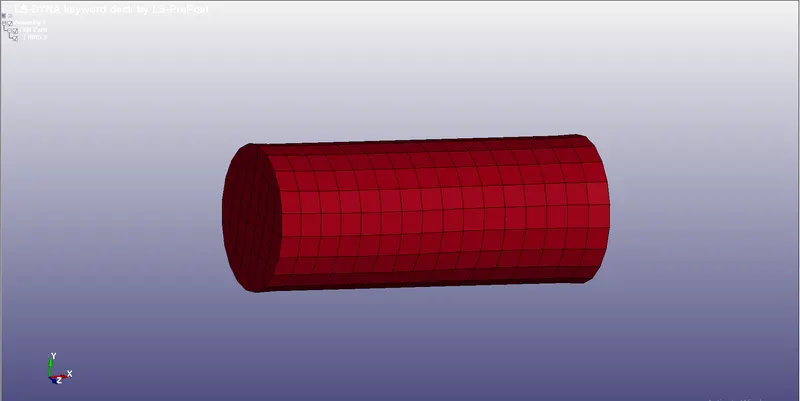

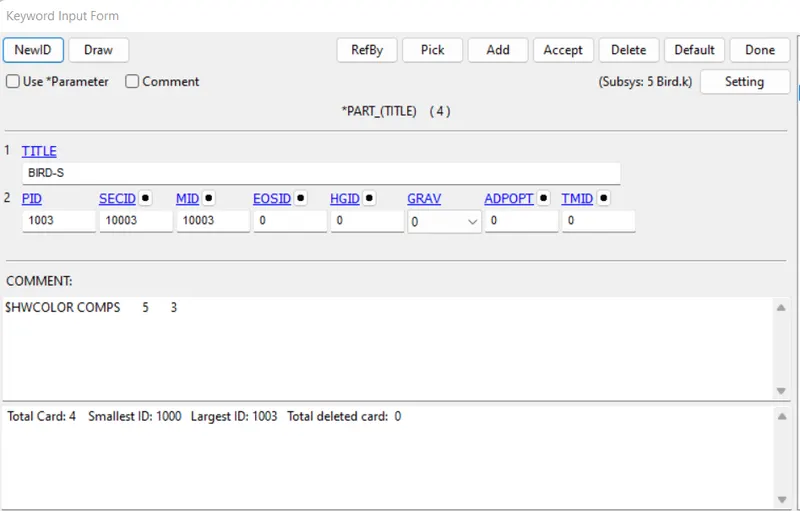

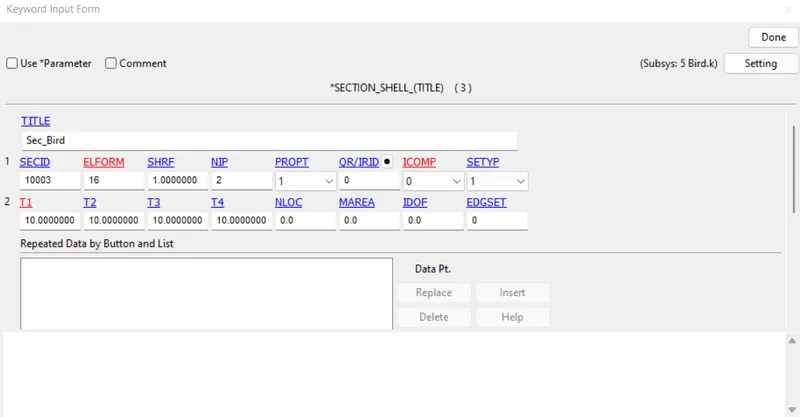

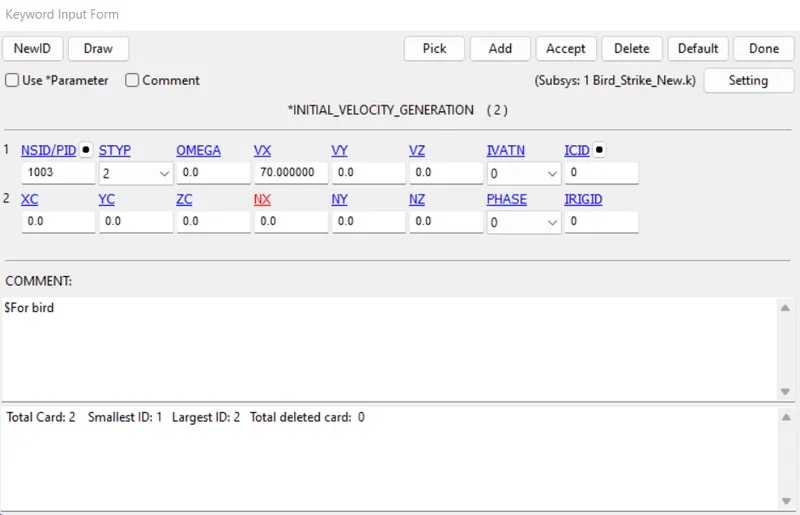

1. Bird Model-

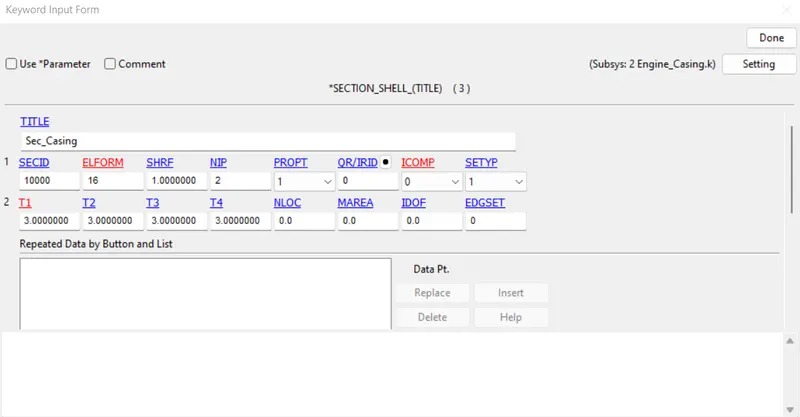

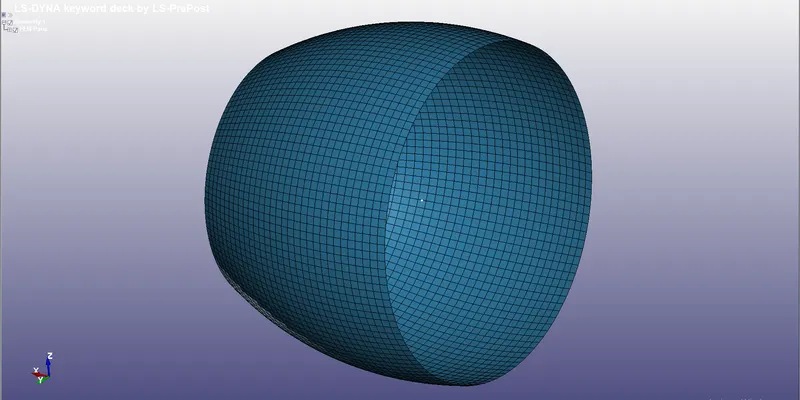

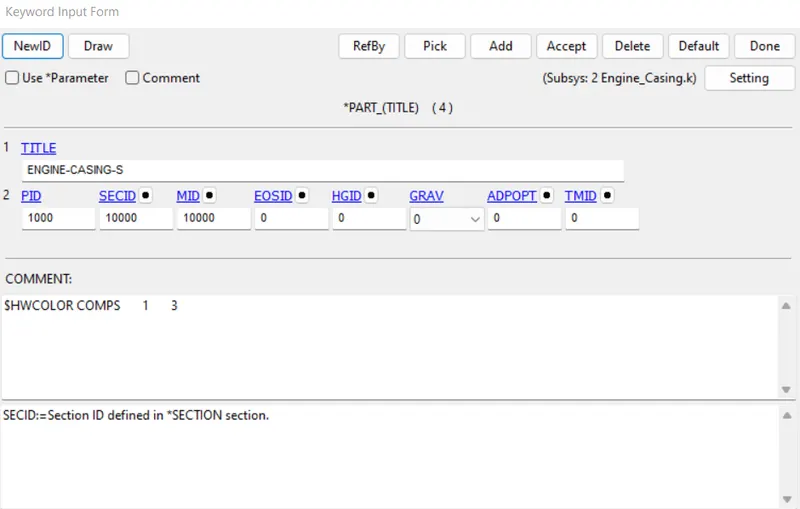

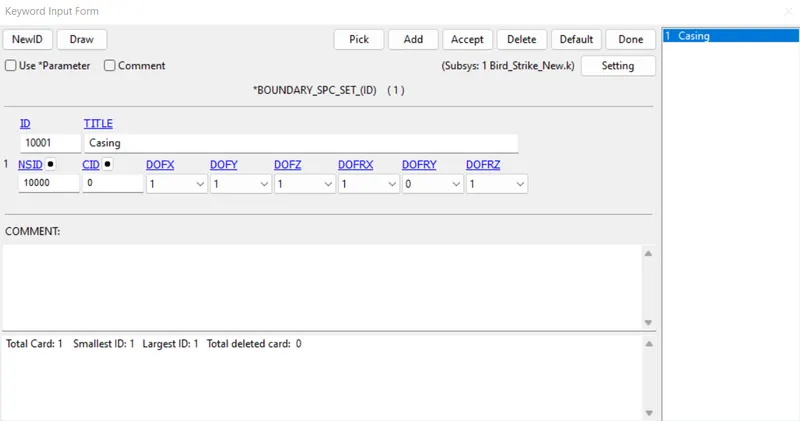

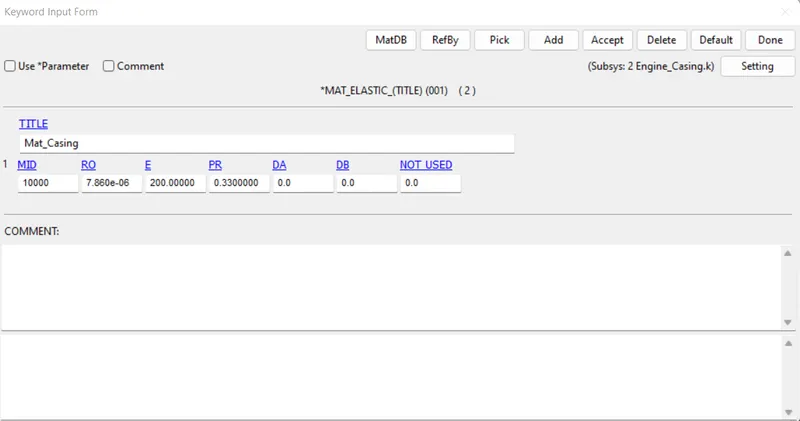

2. Casing Model-

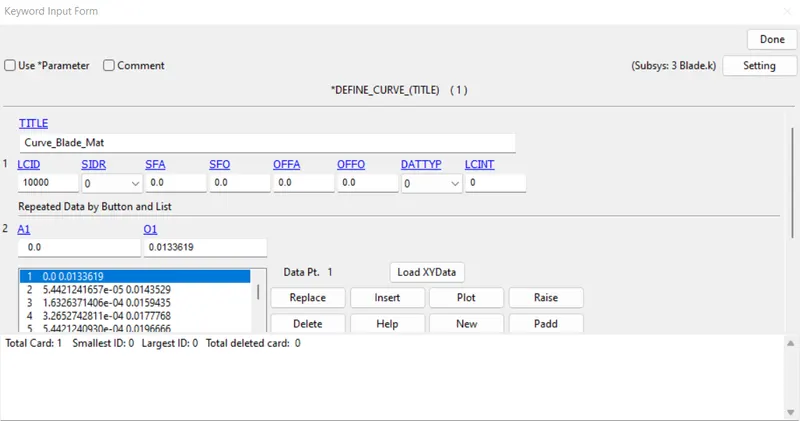

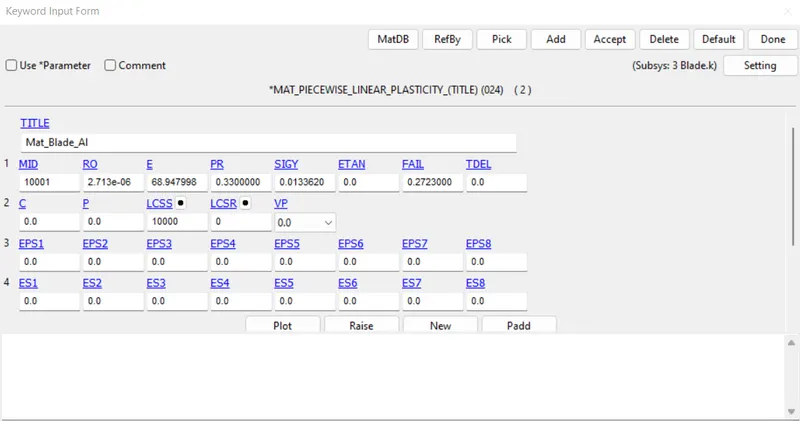

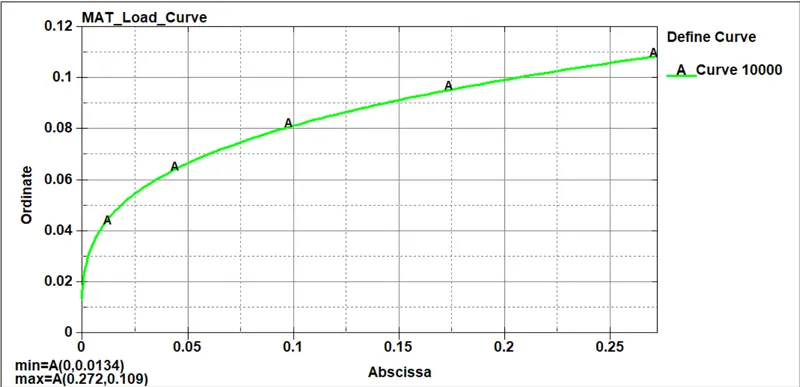

3. Blades Model-

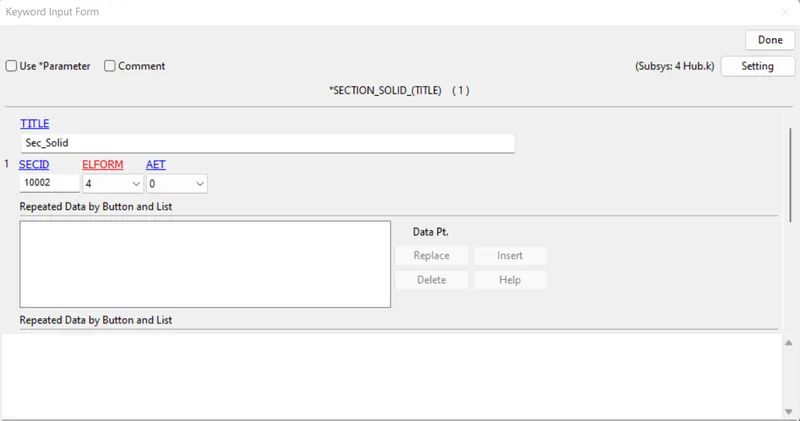

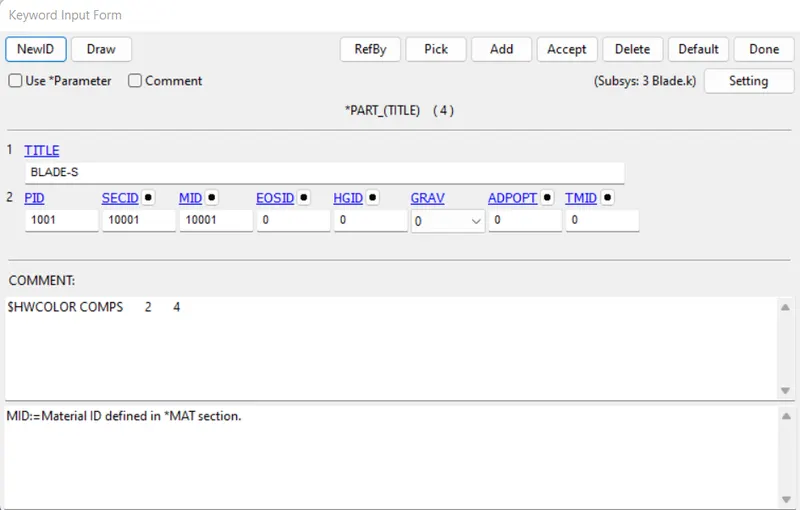

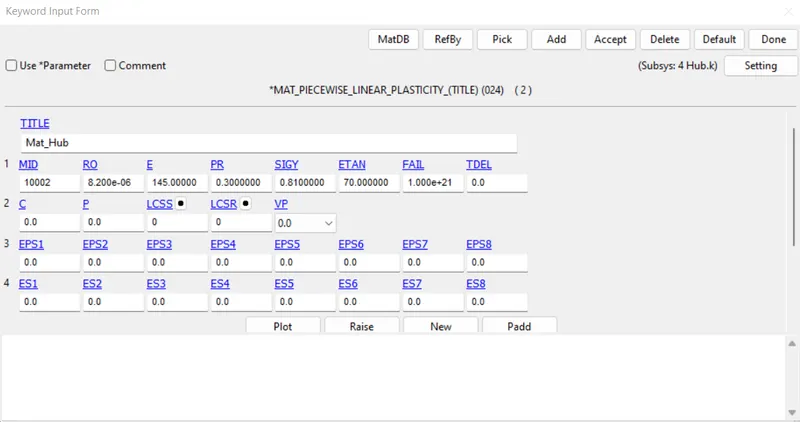

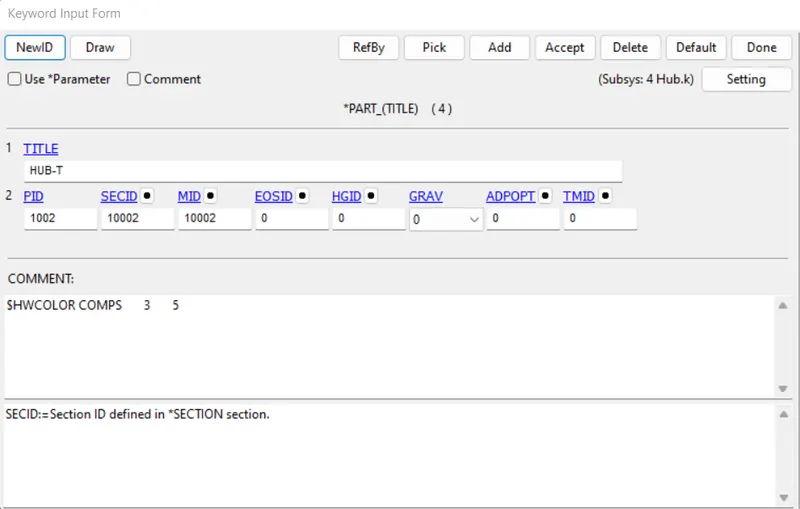

4. Hub Model-

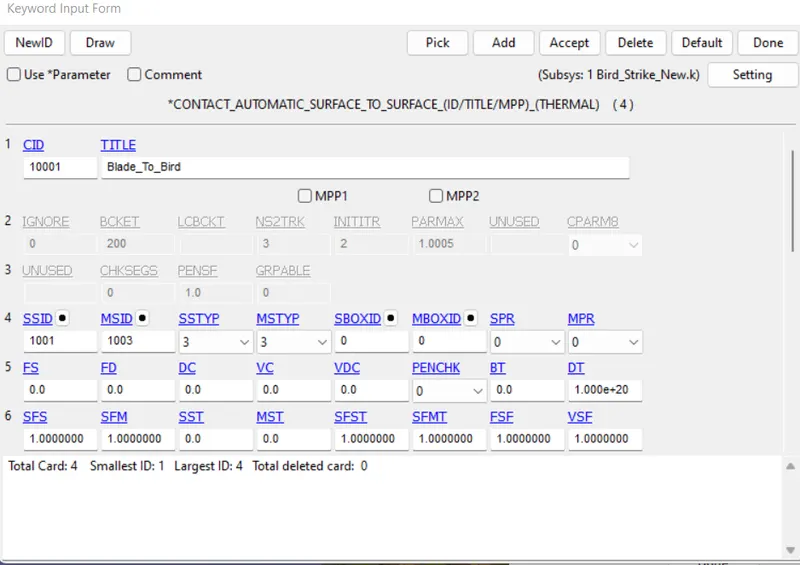

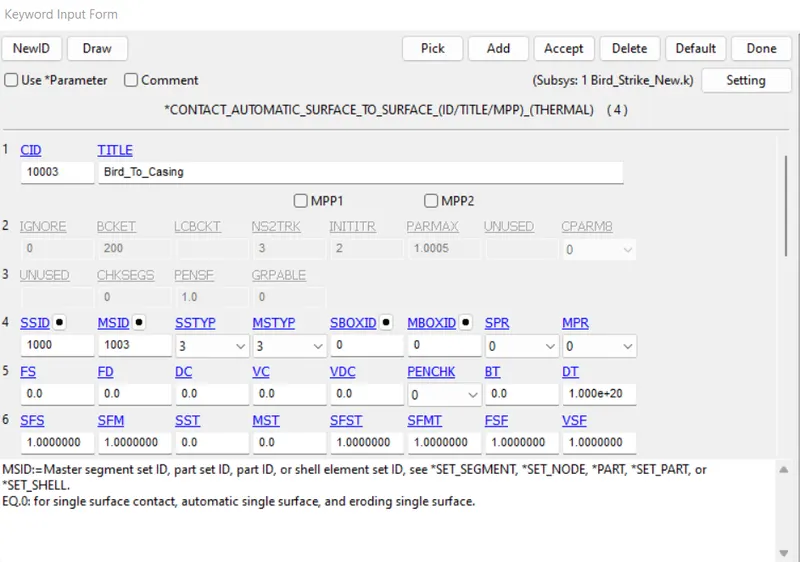

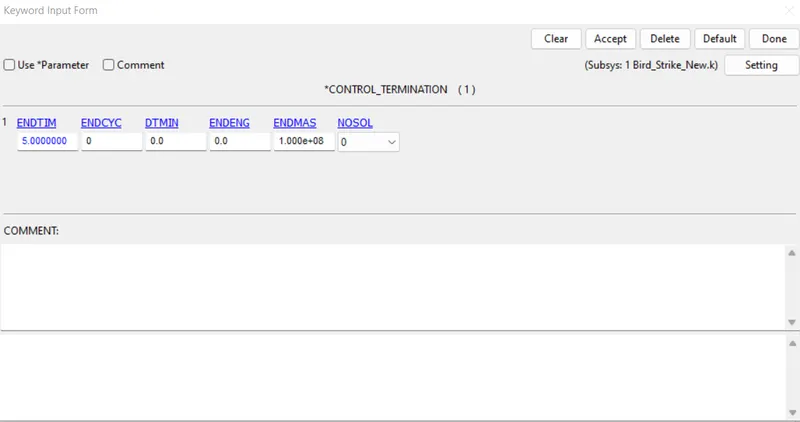

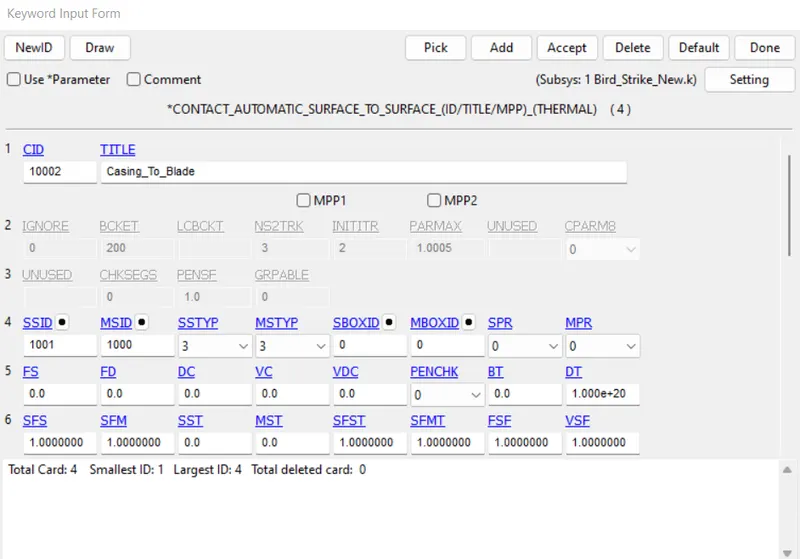

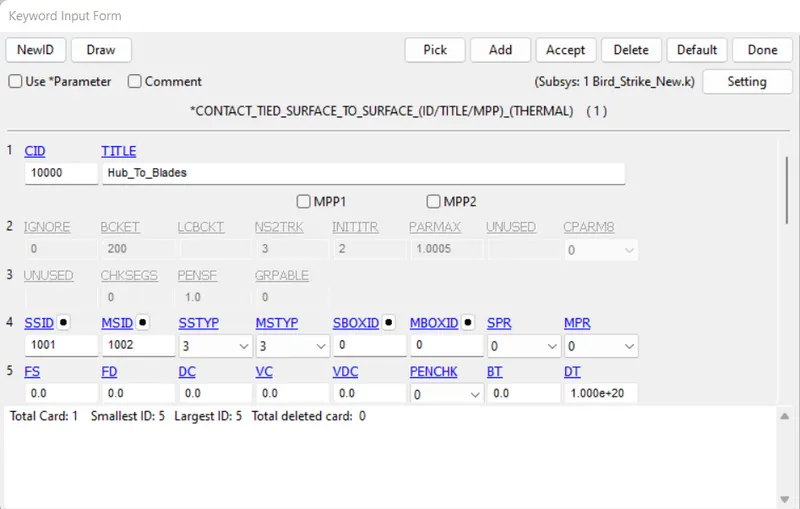

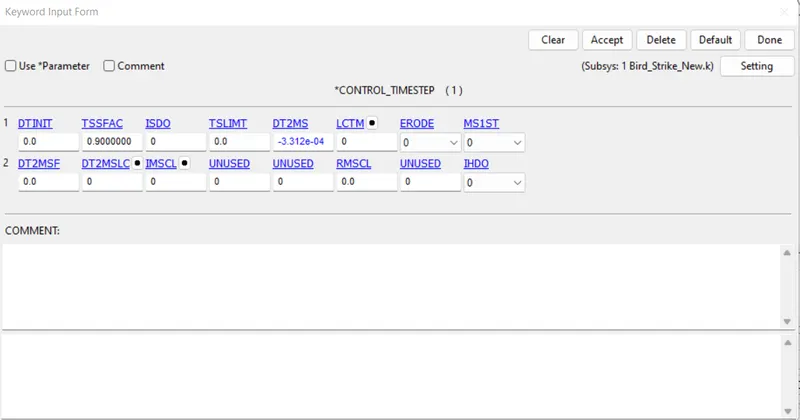

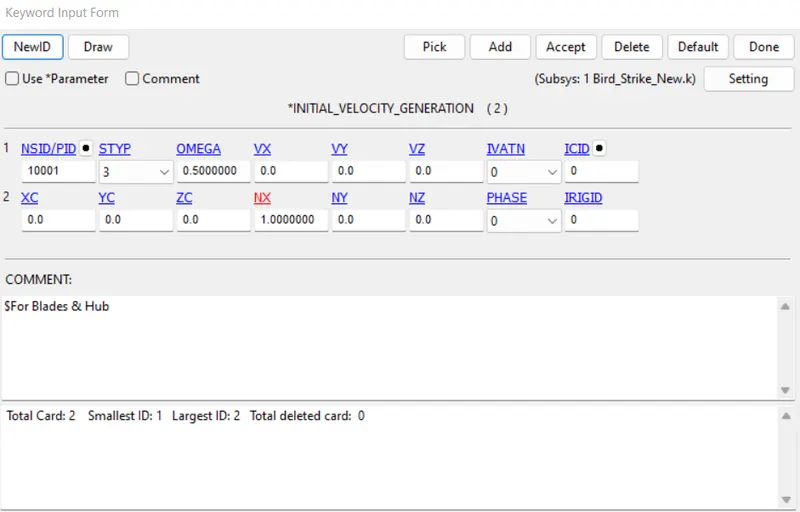

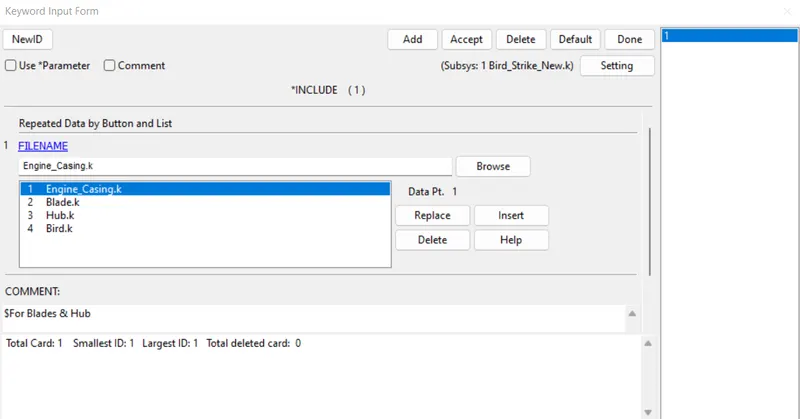

we have to define control termination card, For that go to Model and part> Keyword manager> All> Control> Termination, Provide the End time is 5 ms.

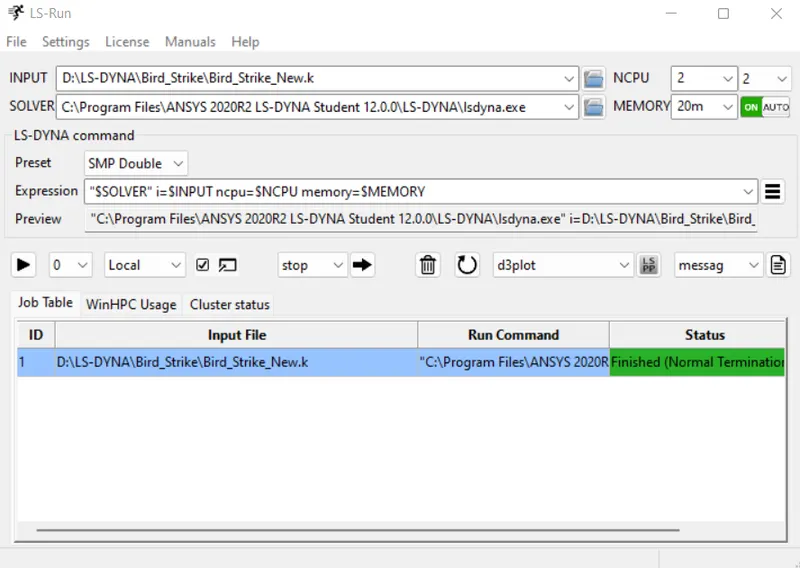

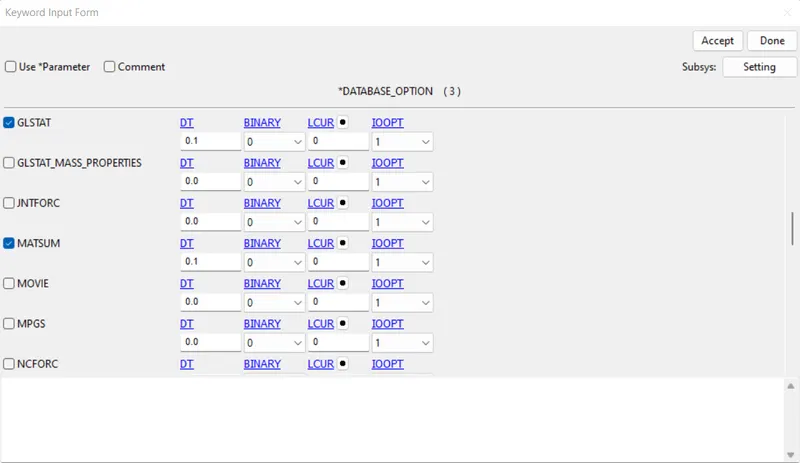

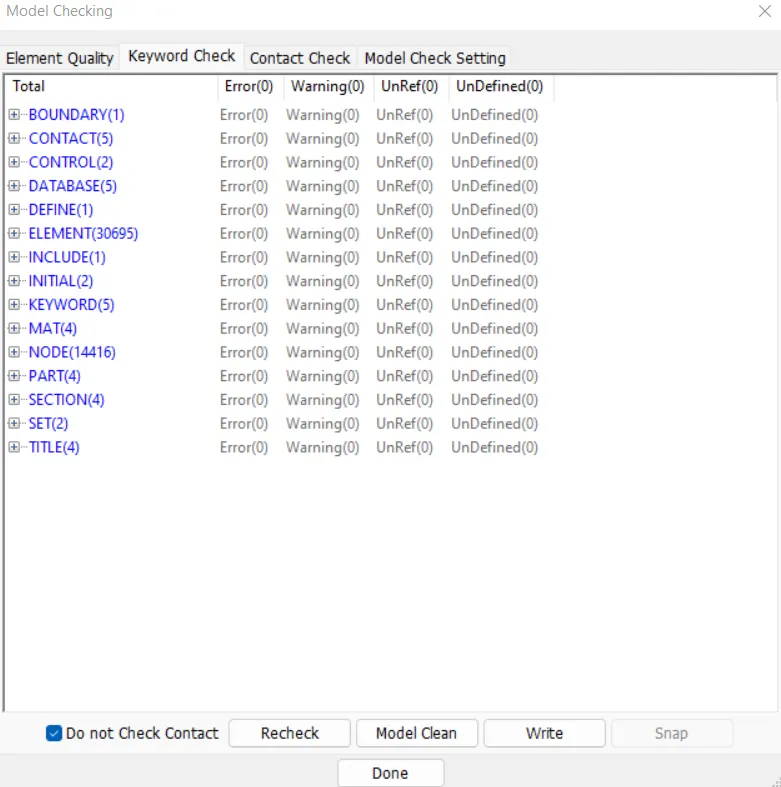

The output request in ASCII format, The following keyword are activated

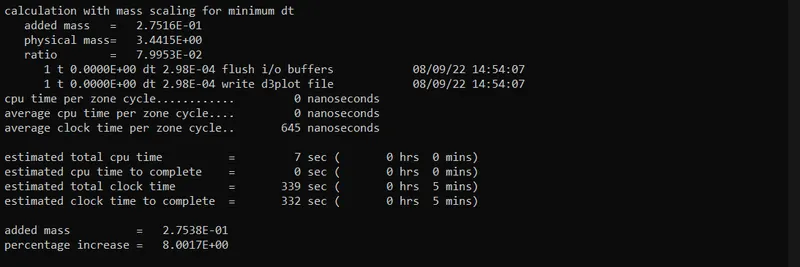

Results & Plots-

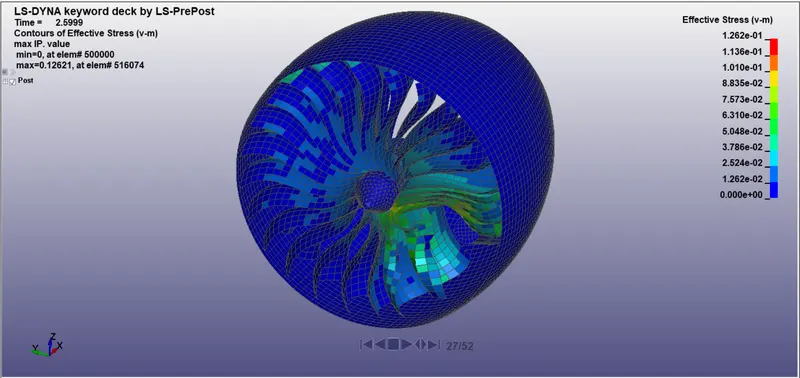

Effective Stress (V-M)-

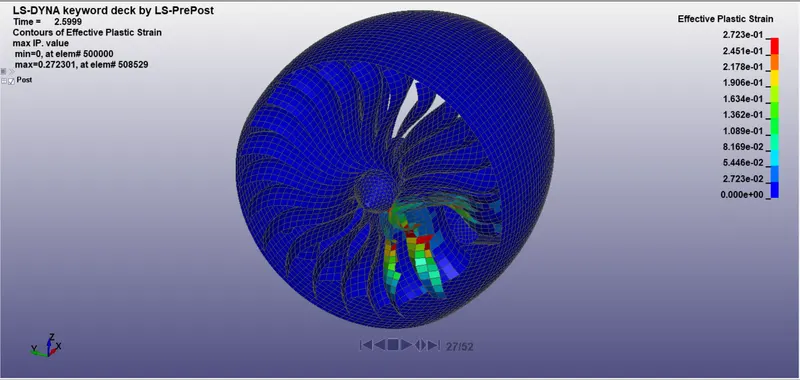

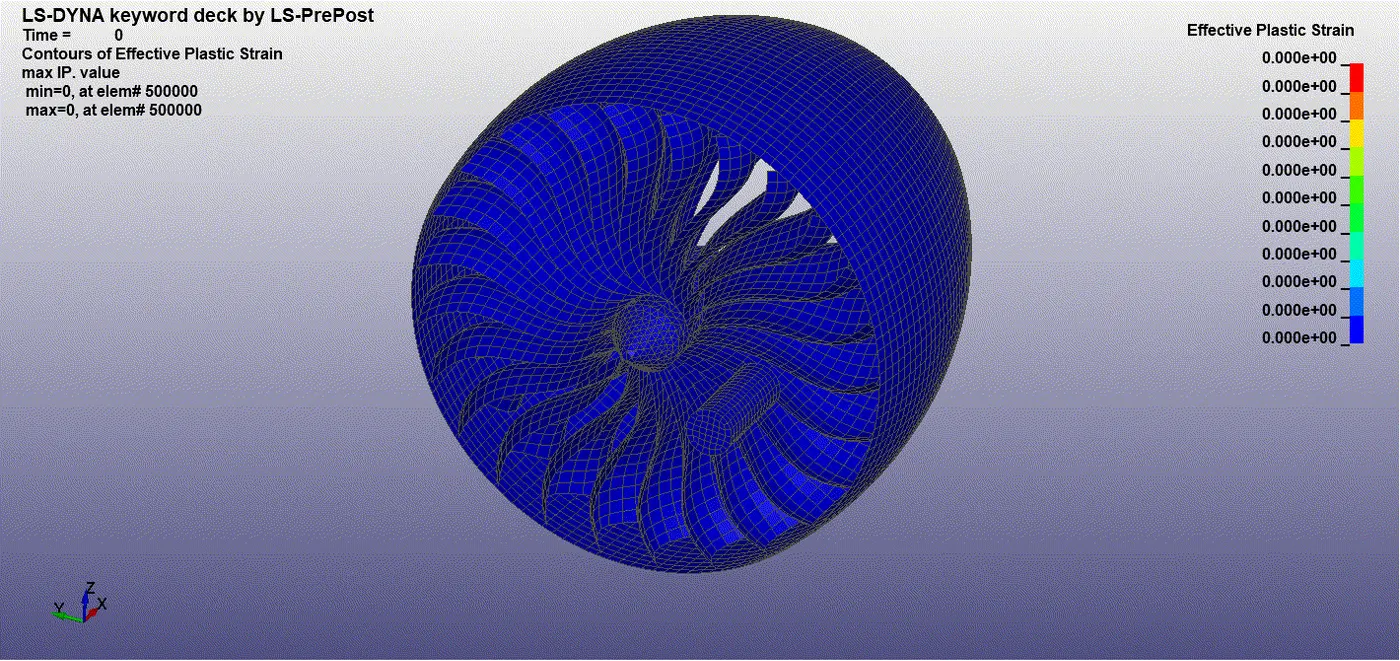

Effective plastic strain-

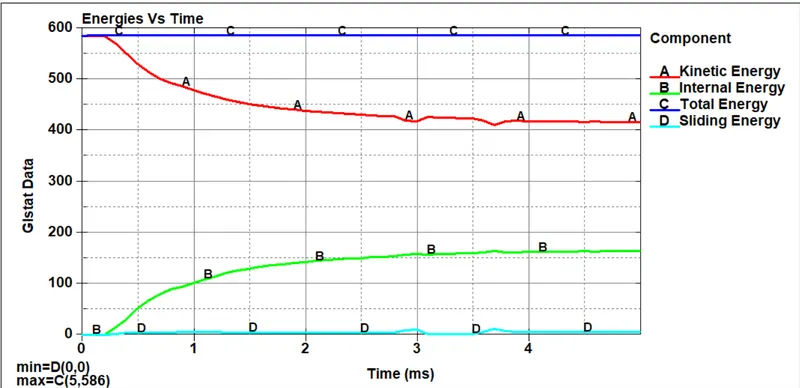

Plots-
Conclusion-
Animations-
Effective Stress (V-M)-
Effective plastic strain-
