Advanced Sheet Metal Design Using NX Cad Challenge_6_Bracket

Title of the Project :- Create a Complex sheet metal Bracket using Simens Nx cad

Objective :-

• Get knowledge of how to read the 2D drawing which dimensions to be considered use different views to get an idea about the final product, also the application of sheet metal features available in NX-CAD.

Introduction :-

• In this project, we designed a complex shaped bracket that is a sheet metal part using NX-CAD.
• I have explained all the tools and features which are used in this sheet metal part modeling such as tab, flanges, bead, bend, break corner, hole, etc.

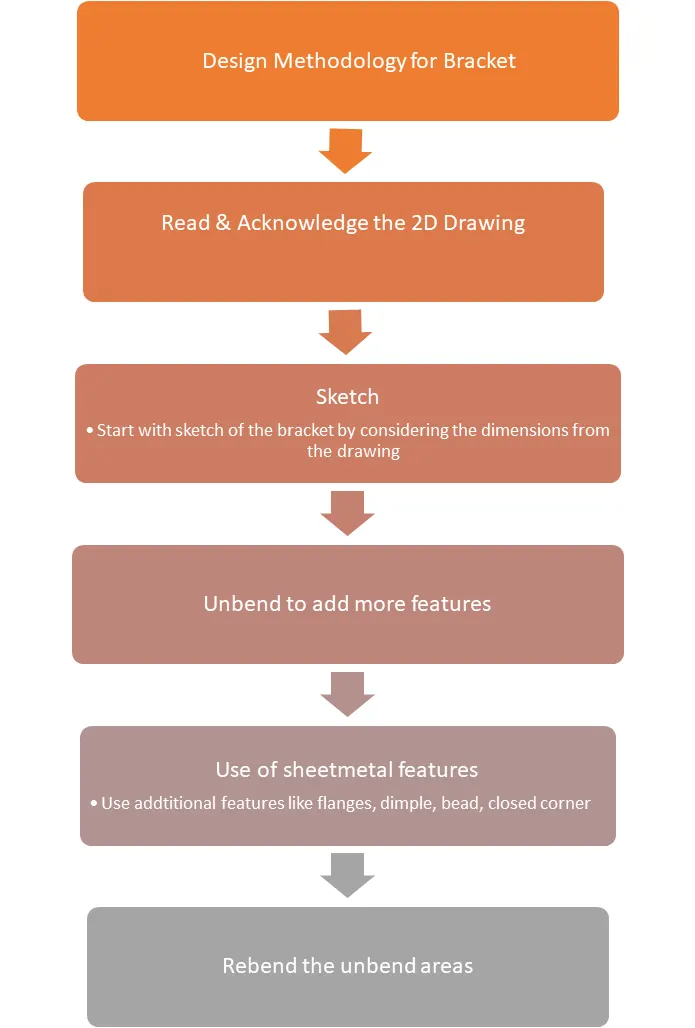

Design Methodology :-

Features used to create the Bracket :-

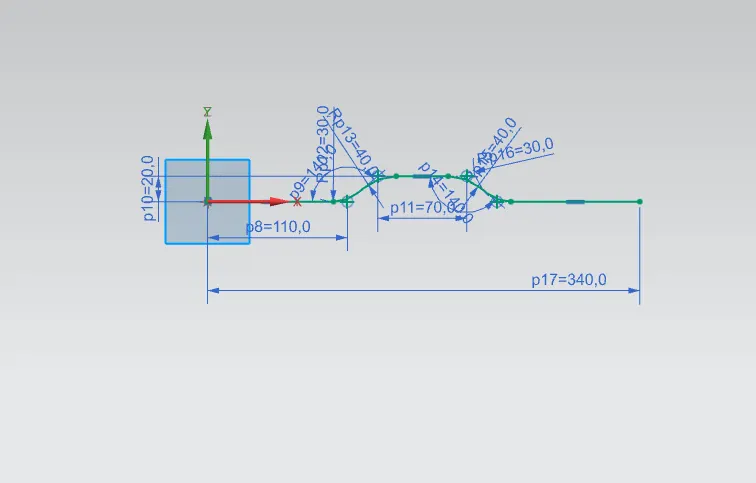

• Sketch:- This the basic or common feature use in any type of modeling but it plays a vital role as it is the foundation of our part model. NX-CAD provides several sketch entities and tools for creating sketches such as line, arc, rectangle, spline, circle, ellipse, polygon, etc. In the case of our bracket, I have used sketch entities like rectangle, line, arc.

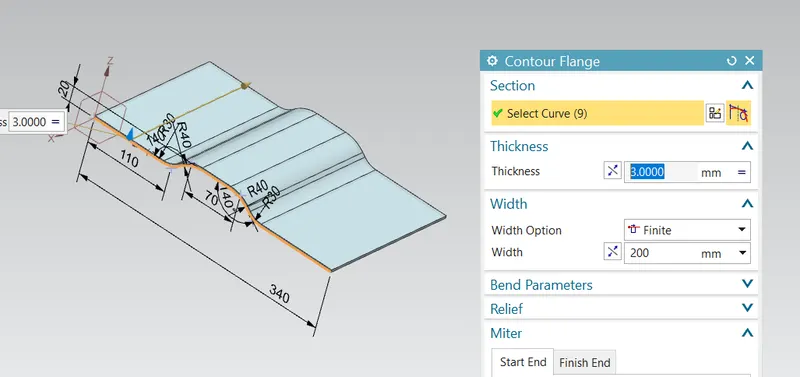

• Contour Flange: This is used to create a base feature by extruding the sketch along a vector or it adds material along the edge or chain of edges of the sketch by using this feature many complex shapes can be easily created by just creating the sketch of the edge and extruding it.

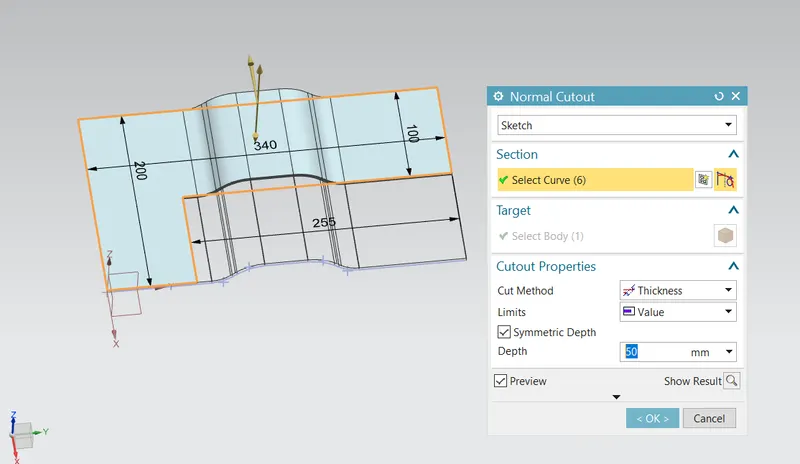

• Normal Cut-Out: This feature cuts or removes material from an existing solid body by projecting the sketch along with the model and then cuts perpendicular to the faces which intersect the projecting sketch.

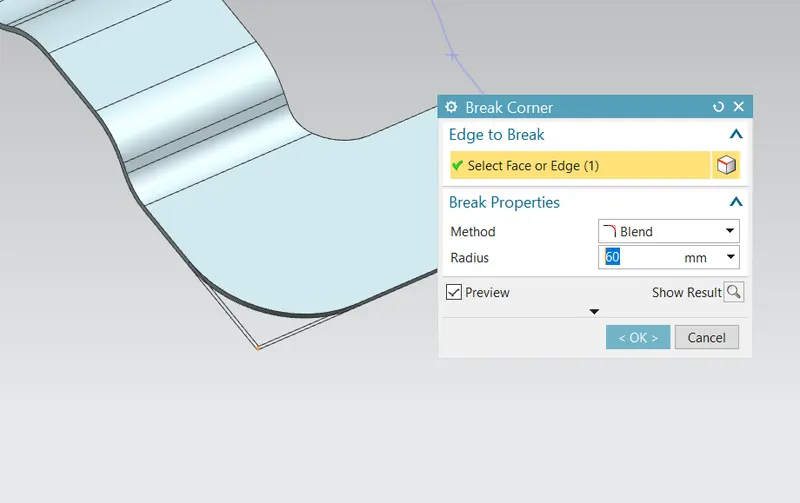

• Break Corner: It rounds or breaks the sharp corner of the tab created thereby providing a smooth round profile to the corners, it is been provided to give aesthetic look to our part but furthermore its main function is to provide safe and easy handling.

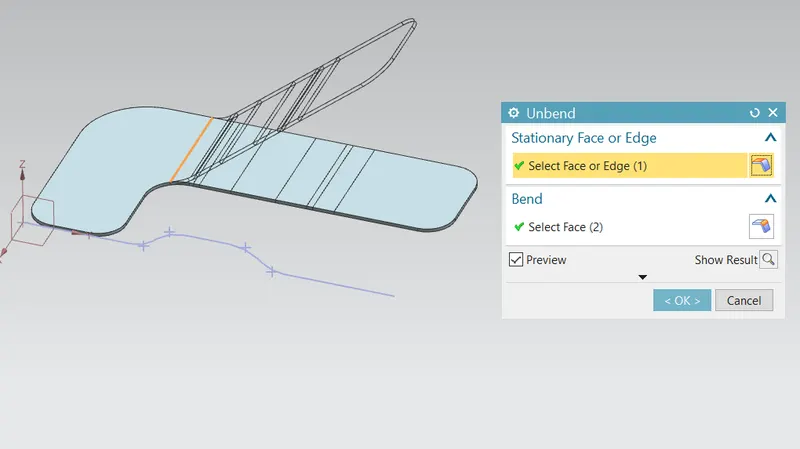

• Unbend: It is used to create a flat sheet of our sheet metal model, it does by unbending the bend and material adjacent to the bend.

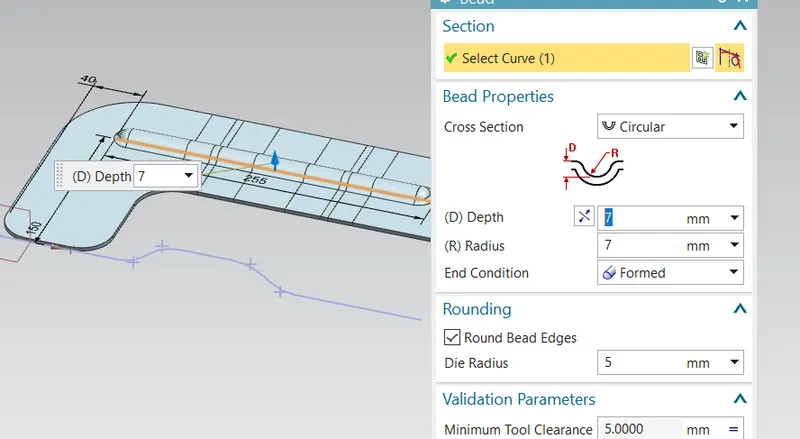

• Bead: It lifts material along a contour of the sketch thereby acting like a stamping tool.

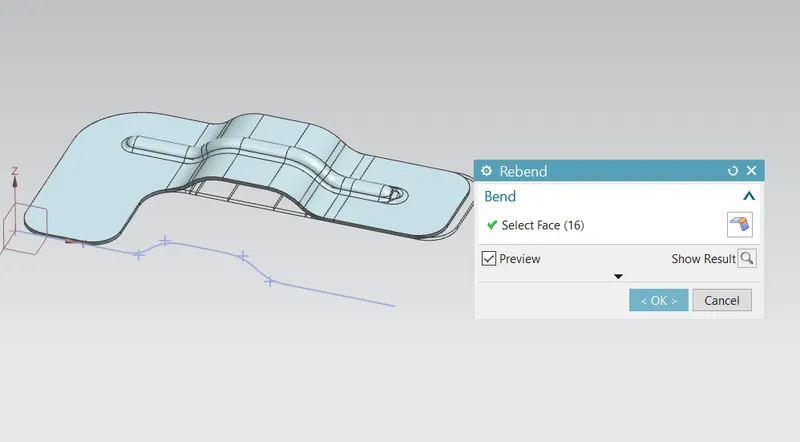

• Rebend: It again restores the bends given to the model previously and any other features added to the model after unbending.

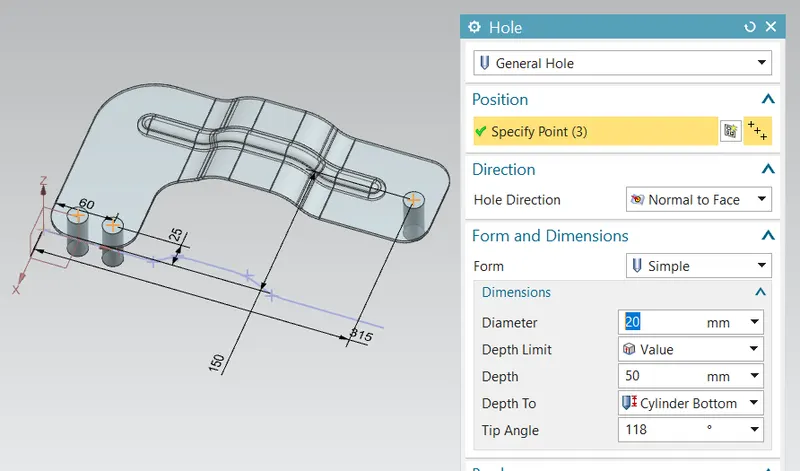

• Hole: It is used to create single or multiple holes by just providing the position of points at which the holes are to be generated of the required size. We can also create special holes such as counterbore or countersunk.

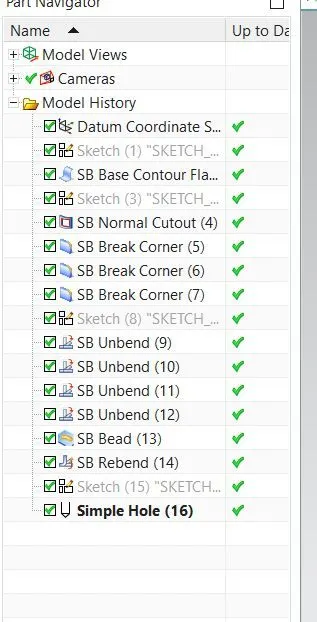

Tree Structure :-

Different Views Of Bracket :-

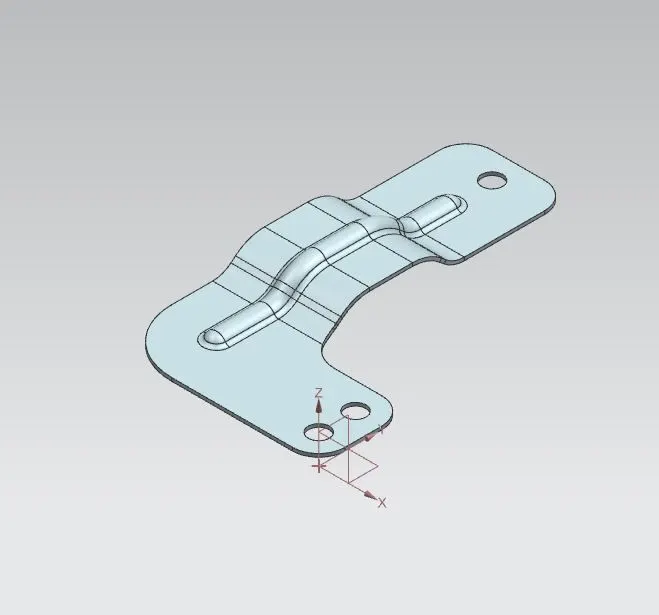

Isometric-

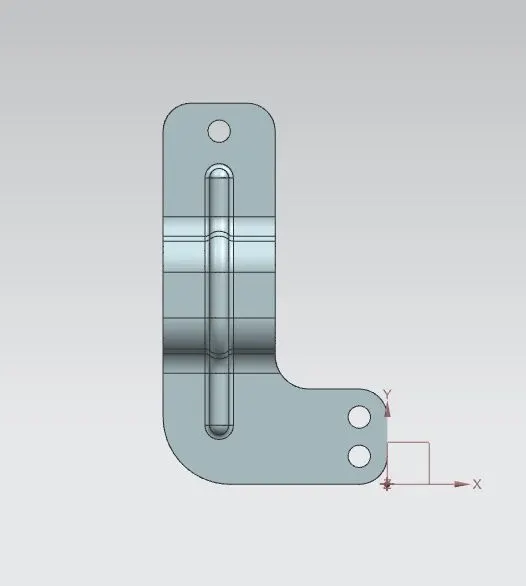

Top View :-

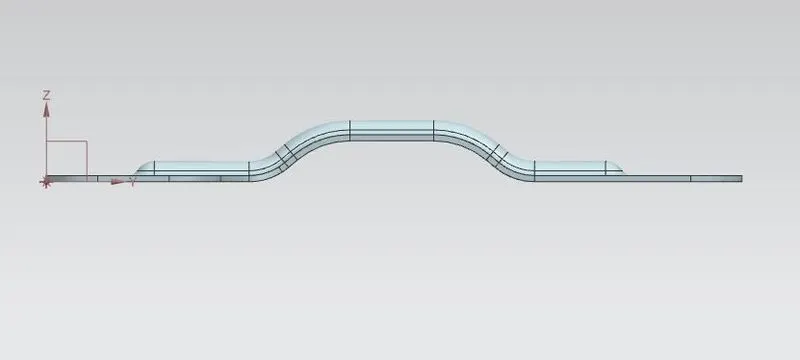

Right Side View :-

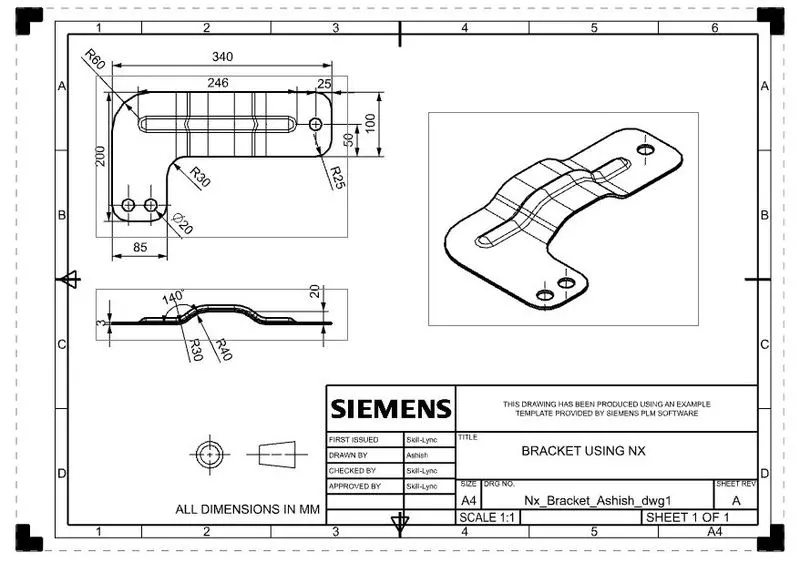

Sheet :-

Conclusion :-

Hence the Complex Shaped Bracket sucessfully created and also learn the Design Methodology used in the industry to create a sheet metal model and the features tool used in Simens Nx.
