Guided industry project
Analysis of failure behavior of a plate using law - 1, law - 2, law - 27, and law - 36 material models and Johnson-cook failure card in Radioss.
In this project, you will understand modeling of Material LAW-1- Elastic, LAW-2, LAW36 - Elastoplastic, and LAW-27-Brittle along with Johnson-Cook failure in Radioss. You will also understand XFEM formulation to understand the effect of cracking in the model.
- Duration
- 1 month
- Fee
- ₹30,000
- For
- B.E Mech/Auto/Production
What will you do in this project?
In this project, you will work on a plate with different materials and failure cards. You will do the following in this project,
- Failure of the plate is investigated with and without the XFEM formulation and the material is modeled with MAT-2.

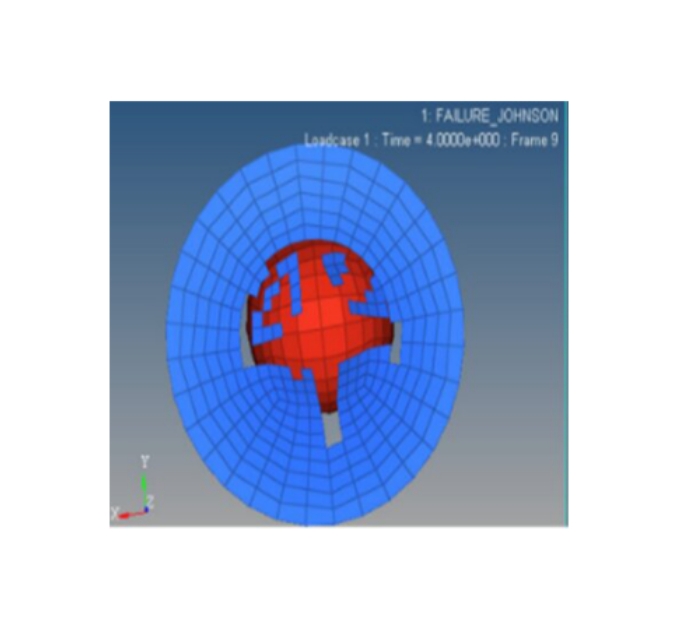

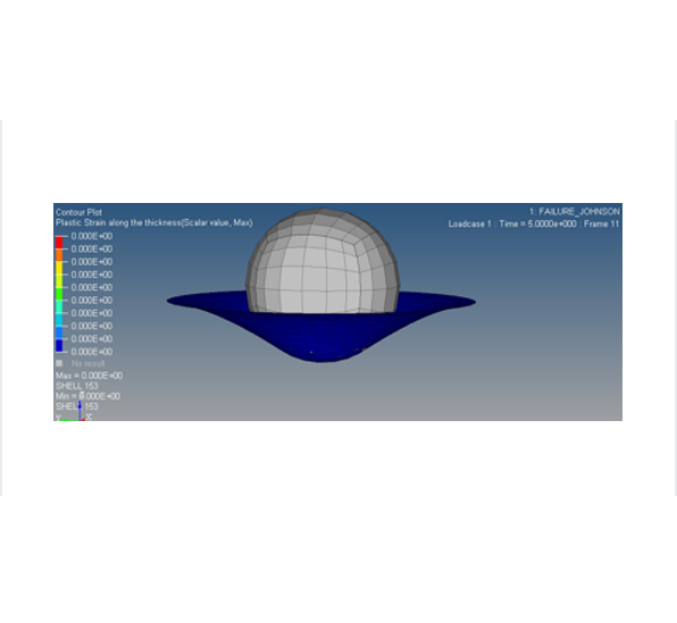

- Failure of the plate is investigated with the Elastic-Plastic Strain and the Johnson-Cook failures.
- For the same plate, the material is modeled with MAT-36 with a Plastic-Strain and Stress and the failure is studied.

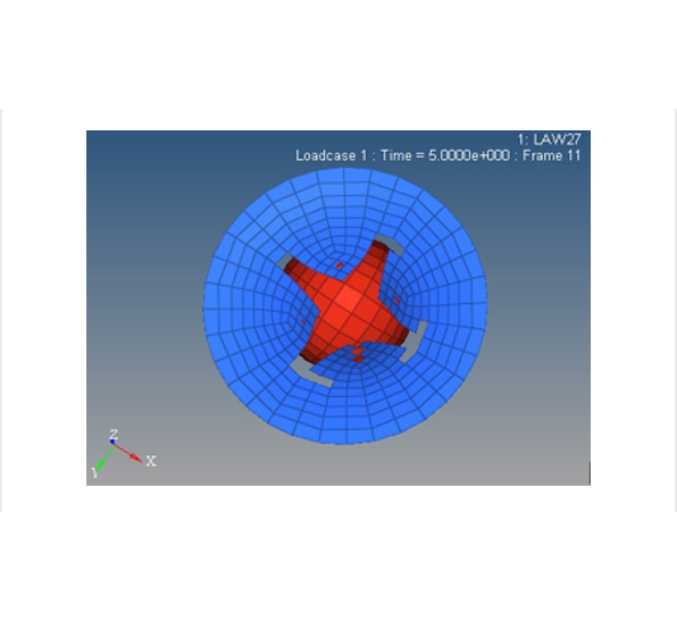

- Then the plate is modeled with a Brittle Material card to understand the failure.
Benefits of this Project
In this project, you will understand modeling of Material LAW-1- Elastic, LAW-2, LAW36 - Elastoplastic, and LAW-27-Brittle along with Johnson-Cook failure in Radioss. You will also understand XFEM formulation to understand the effect of cracking in the model.The project is an advanced level project
- This project is great for undergraduate students (3rd and 4th year), M.Tech or MS students
- If you are a working professional, this project will be helpful to learn Material Modeling with failures in Radioss Solver.
Pre-requisites
- Must be comfortable with HyperMesh and Radioss Solver
- Need a basic background in the Strength of Materials and FEA.
Work with Multiple Tools
You will learn how to use
- HyperMesh
- HyperView
- HyperGraph
