Turbomachinery refers to a class of machines that transfer energy between a rotor and a fluid. These machines are primarily used for the conversion of energy between mechanical work and fluid flow, typically involving the compression, expansion, or transfer of fluids such as gases or liquids. Turbomachinery plays a crucial role in various industries, including power generation, aviation, oil and gas, chemical processing, and transportation. Turbomachinery can be broadly categorized into two main types:
 Turbines: Turbines extract energy from a fluid and convert it into useful work
 Turbines are commonly found in power generation applications, where they extract energy from hot gases produced by the combustion of fossil fuels or other heat sources.
 This energy is then converted into mechanical work, typically used to drive generators and produce electricity. Turbines are also utilized in aviation engines, where they extract energy from combustion gases to propel aircraft.
 Compressors: Compressors do the opposite by adding energy to the fluid and raising its pressure
 Compressors, on the other hand, are used to increase the pressure and density of a fluid, such as air or gas.
 They find application in processes like gas transportation, refrigeration, air conditioning, and industrial processes where pressurized fluid flow is required.
 Compressors can be classified based on their operating principle, such as centrifugal, axial, or reciprocating compressors, each suited for specific applications.
 Both turbines and compressors consist of a rotor and a stationary component known as a stator, which is designed to transfer energy to or from the fluid. efficiently

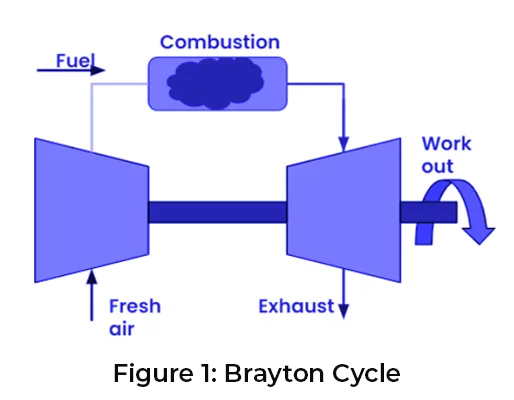

Perhaps the best way to describe the cycle of dependency between turbines and compressors would be to use the Brayton cycle.
CFD for Turbomachinery
Computational Fluid Dynamics (CFD) plays a crucial role in the design, analysis, and optimization of turbomachinery. CFD is a numerical simulation technique used to solve the governing equations of fluid flow and heat transfer. In the context of turbomachinery, CFD allows engineers to study and predict the behavior of fluids and their interaction with rotor and stator components.
Here are some specific roles that CFD plays in turbomachinery:

Performance Prediction:
 CFD simulations help in predicting the performance characteristics of turbomachinery components such as turbines and compressors
 By simulating the fluid flow and thermodynamics within these machines, engineers can estimate critical parameters like pressure, temperature, velocity, and efficiency
 This information aids in understanding the behavior of the turbomachinery and optimizing its design

Flow Visualization:
 CFD enables engineers to visualize and analyze the complex flow patterns within turbomachinery
 By examining variables like velocity vectors, pressure contours, and streamline patterns, they can identify regions of flow separation, recirculation, and potential performance issues
 This insight guides the design process to improve efficiency and reduce losses

Aerodynamic
 Design Optimization: CFD facilitates the optimization of turbomachinery blade geometries
 Through parametric studies and optimization algorithms, engineers can explore various design options and evaluate their impact on performance
 CFD simulations aid in assessing the effect of changes in blade shape, angles, and other parameters, enabling the development of more efficient and reliable turbomachinery

Cavitation and TwoPhase Flow Analysis:
 In certain turbomachinery applications, such as pumps and propellers, the presence of cavitation (formation of vapor bubbles) and twophase flow can significantly affect performance and lead to damage
 CFD simulations help in studying these phenomena, identifying regions of cavitation, and predicting their impact on performance and structural integrity

OffDesign Performance Analysis:
 Turbomachinery often operates under offdesign conditions, where flow rates, pressures, and other parameters deviate from design values
 CFD allows engineers to analyze and understand the performance of turbomachinery under different operating conditions, providing insights into efficiency, stability, and potential issues like stall or surge

Noise and Vibrations Analysis:
 CFD can also aid in the analysis and prediction of noise and vibrations generated by turbomachinery
 By simulating the flowinduced noise and studying its sources, engineers can optimize the design to minimize noise levels and address potential structural vibration issues

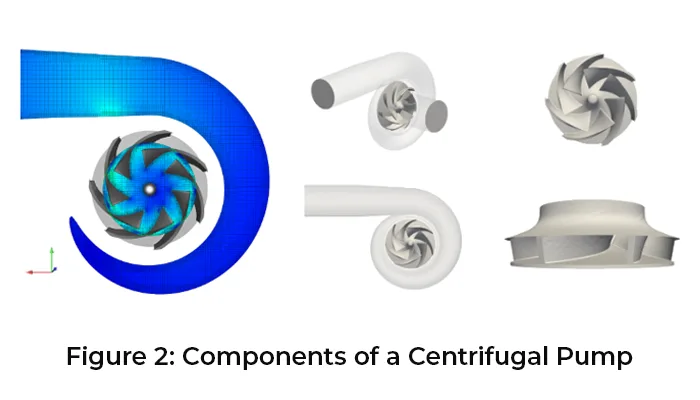

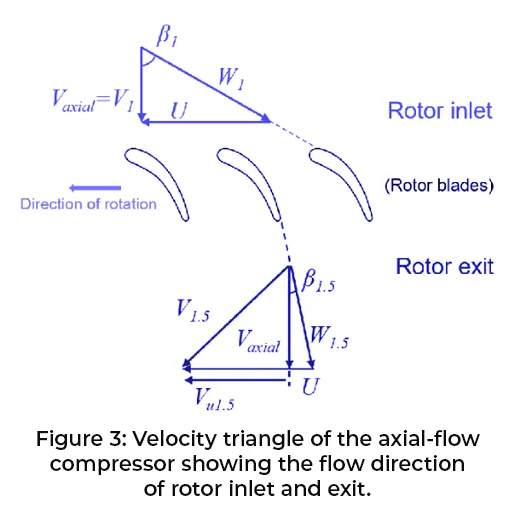

Velocity Triangle
One simplification one can make when analyzing turbomachines is to use the concept of the Velocity Triangle. The velocity triangle, also known as the velocity diagram or triangle of velocities, is a graphical representation used to analyze the flow of fluid through a turbomachine, such as a turbine or compressor. It provides a geometric representation of the velocities and angles of the fluid at different sections within the turbomachinery. It helps engineers optimize blade shapes, determine the flow angles for efficient energy transfer, and assess the performance of the turbomachinery under different operating conditions.
The velocity triangle is typically drawn at the inlet and outlet sections of a rotor or stator blade row in a turbomachine. It consists of three vectors: the absolute velocity (V), the relative velocity (W), and the blade velocity (U). These vectors are drawn to scale and are typically represented as arrows.
Here are the key components of the velocity triangle:

Absolute Velocity (V):
 The absolute velocity represents the velocity of the fluid relative to a fixed reference frame
 It is the vector sum of the fluid velocity (V) and the velocity of the reference frame
 The absolute velocity is typically shown as an arrow pointing in the direction of fluid flow

Relative Velocity (W):
 The relative velocity represents the velocity of the fluid relative to the moving blades of the turbomachinery
 It is obtained by subtracting the velocity of the blades (U) from the absolute velocity (V)
 The relative velocity is typically shown as an arrow pointing in the opposite direction of the blade velocity

Blade Velocity (U):
 The blade velocity represents the velocity of the moving blades in the reference frame of the turbomachine
 It is the vector sum of the rotational speed of the blades and the tangential velocity of the blade tip
 The blade velocity is typically shown as an arrow perpendicular to the blade surface
The velocity triangle allows engineers to analyze and understand the fluid flow characteristics within the turbomachinery. By examining the magnitudes and directions of the velocity vectors, as well as the associated angles, engineers can determine important parameters such as flow angles, blade angles, and relative velocities.
Key Outputs:
In a CFD study for turbomachinery applications, there are several key output results that engineers typically expect. These results provide valuable insights into the behavior and performance of the turbomachinery under consideration.
Some of the key output results include:

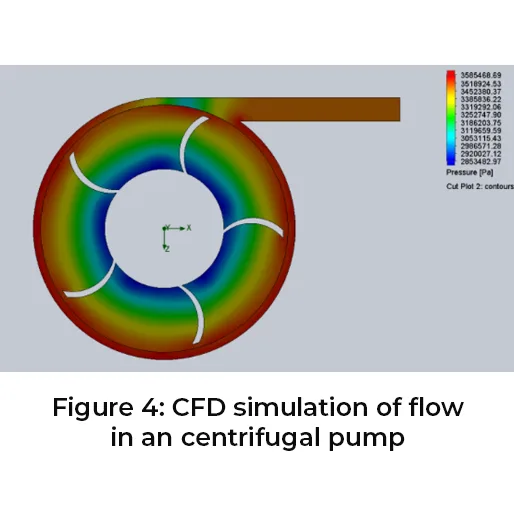

Pressure Distribution:
 CFD simulations provide information on the pressure distribution throughout the turbomachinery components
 This includes pressure contours, gradients, and variations at different sections, helping engineers identify areas of high or low pressure, flow separation, and potential performance issues

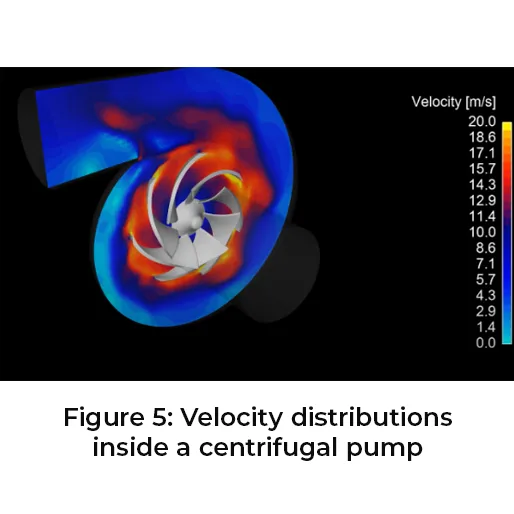

Velocity Distribution:
 CFD simulations yield velocity profiles and vectors, illustrating the distribution and magnitude of fluid velocities within the turbomachinery
 These results help engineers understand the flow patterns, identify regions of high or low velocity, and assess the efficiency of energy transfer between the fluid and the blades

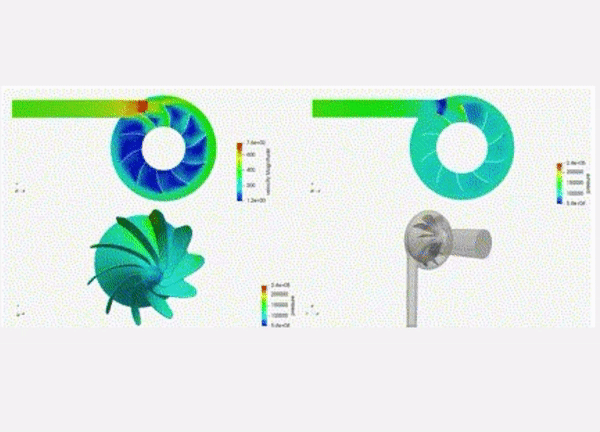

Flow Visualization:
 CFD allows for visualizing the flow behavior within the turbomachinery
 By examining flow streamlines, velocity vectors, and other visualization techniques, engineers can gain insights into the complex fluid flow patterns, identify areas of recirculation or flow separation, and assess the overall flow characteristics

Efficiency and Performance Parameters:
 CFD simulations provide information on various performance parameters of the turbomachinery, including efficiency, power output, pressure ratio, and mass flow rate
 These results help in evaluating the performance of the turbomachinery design, optimizing its efficiency, and comparing different design configurations

Blade Loading and Forces:
 CFD simulations can estimate the forces and loading on the blades of turbomachinery
 This information helps engineers assess structural integrity, evaluate blade performance, and optimize the design to minimize stresses, vibrations, and potential failures

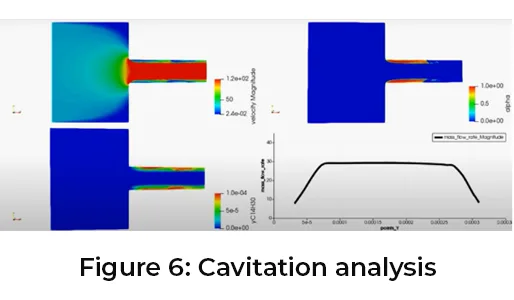

Cavitation and TwoPhase Flow Analysis:
 For turbomachinery applications involving liquids, such as pumps or propellers, CFD can predict the occurrence of cavitation and study twophase flow phenomena
 Results can include the prediction of cavitation regions, vapor fraction distributions, and the impact of cavitation on performance and durability.
Is Turbomachinery Complex?
Turbomachinery analysis in CFD (Computational Fluid Dynamics) can be complex due to several factors. Here are some reasons why turbomachinery analysis in CFD can be challenging:

ThreeDimensional Flow:
 Turbomachinery typically involves complex threedimensional flows, including the interaction between rotating and stationary components
 Modeling and analyzing such flows require the use of advanced computational techniques and specialized turbulence models to accurately capture the flow physics

Rotating Frame of Reference:
 Turbomachinery operates in a rotating frame of reference, which adds complexity to the analysisHeat Transfer Analysis:
 CFD simulations provide insights into the heat transfer characteristics within turbomachinery components
 This includes heat transfer coefficients, temperature distributions, and thermal gradients
 Such results aid in assessing cooling requirements, optimizing blade designs for temperature management, and preventing overheating or thermal damage

Losses and Efficiency Breakdown:
 CFD can provide detailed information about various losses in turbomachinery, including aerodynamic losses, boundary layer losses, and losses due to secondary flows
 These results allow engineers to analyze the sources of inefficiency, identify areas for improvement, and optimize the design to enhance overall performance
 The transformation of equations and the handling of rotating domains require careful treatment to ensure accurate predictions of flow behavior and interactions with the blades

Boundary Layer Modeling:
 The presence of boundary layers, particularly near the blade surfaces, is crucial for accurate turbomachinery analysis
 Proper modeling of the boundary layer, including transition and separation, is necessary to capture the effects of viscous flow, turbulence, and heat transfer accurately

Turbulence Modeling:
 Turbulence is an inherent feature of turbomachinery flows, and its modeling presents challenges in CFD
 Selecting appropriate turbulence models that can capture the complex flow phenomena, such as separation, secondary flows, and wakes, is crucial for accurate predictions and reliable results

Meshing Challenges:
 Generating suitable computational meshes for turbomachinery analysis can be demanding
 It requires creating highquality meshes with sufficient resolution in regions of interest, such as blade surfaces, boundary layers, and flow separations
 Meshing complexity increases with the inclusion of bladetoblade domains and the need to capture flow interactions between rotor and stator rows

Convergence and Computational Resources:
 Turbomachinery simulations often require significant computational resources due to the complex flow physics and the need for fine grids in critical regions
 Achieving convergence can be challenging, and the simulations may involve long computational times

Design Optimization:
 CFD is frequently used for design optimization in turbomachinery
 This involves exploring a large design space and optimizing multiple parameters, which can be computationally intensive and require sophisticated optimization algorithms
Despite these challenges, CFD remains an essential tool for turbomachinery analysis, offering valuable insights into flow behavior, performance characteristics, and design optimization. Advancements in computational methods, turbulence modeling, meshing techniques, and highperformance computing continue to enhance the accuracy and efficiency of turbomachinery analysis in CFD.
