Wiring harness routing & packaging Rules Week 3 Challenge

Q1. Download following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.

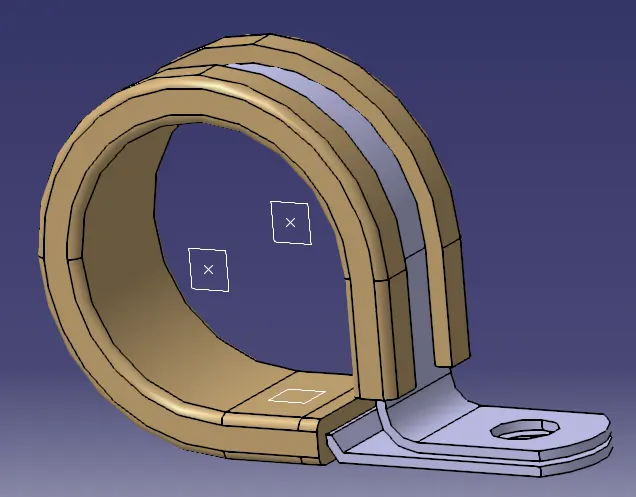

Create points on either sides of the p clamp as in the picture below.

Create planes using the points on either side of the clamp and also on the bottom of the clamp as in the below picture.

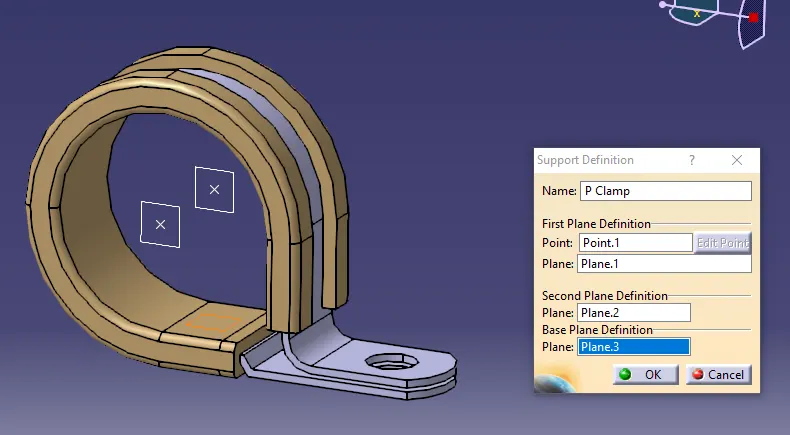

Switch to Electrical part design and define the entry and exit points as shown in the picture.

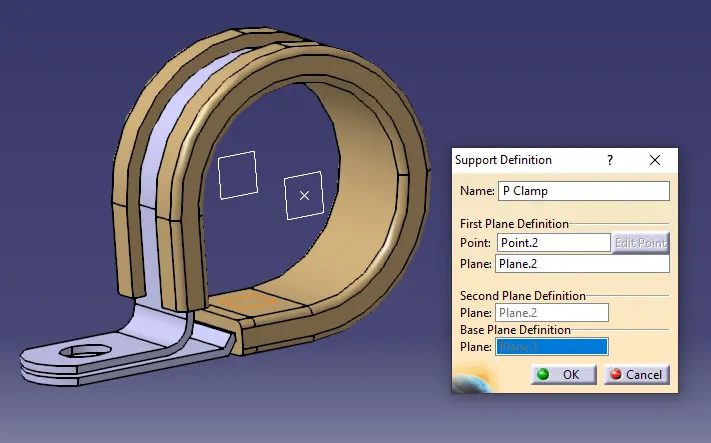

Now define the entry and exit points the other way around as both sides of the clamp can act as either entry or exit.

Q2. Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.

Tyco 1738312-1

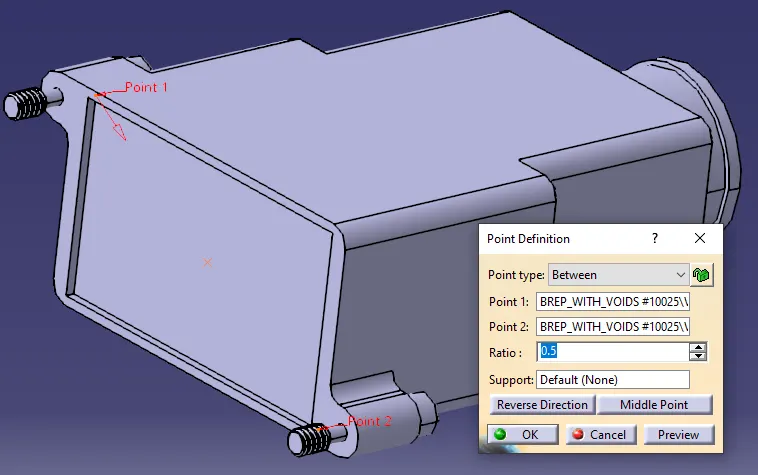

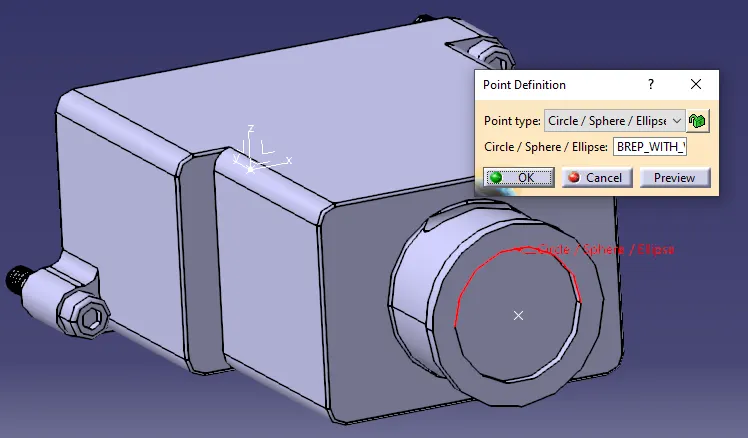

Creating point for the back shell connection point

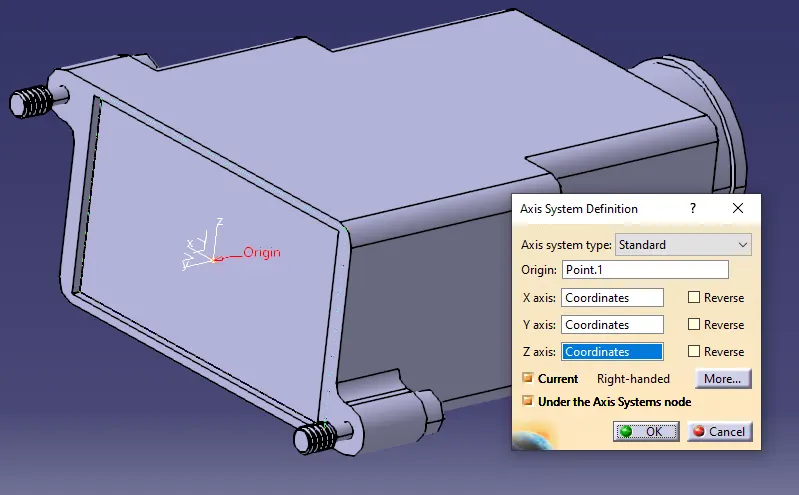

Creating axis system for the back shell connection point

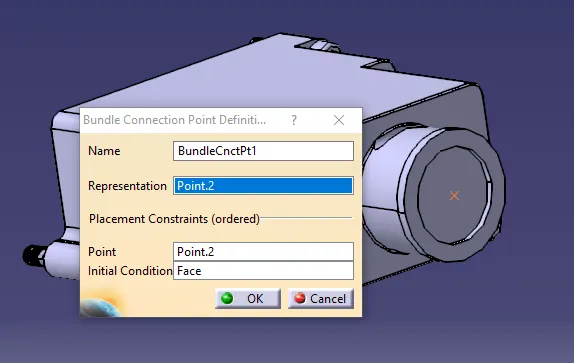

Creating bundle connection point

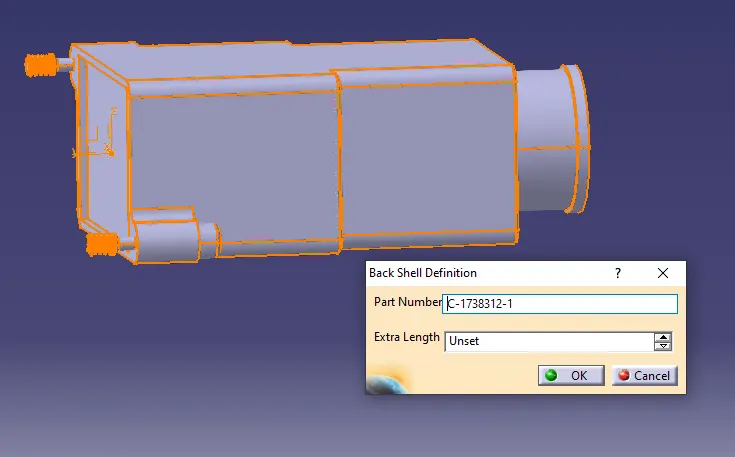

Defining the part as back shell in electrical part design workbench

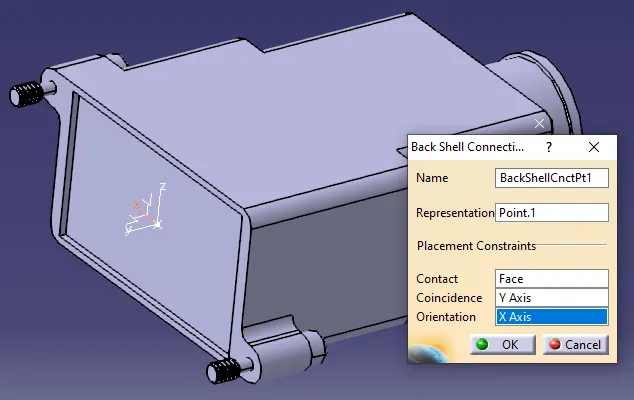

Defining the back shell connection point

Defining the bundle connection point

Q3. Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.

Name	ID (mm)	OD (mm)	Thickness (mm)
15mm COT	12	15	1.5
20mm COT	17	20	1.5
35mm COT	32	35	1.5
10mm COT	7	10	1.5
5mm COT	3	5	1

15mm COT

20mm COT

35mm COT

10mm COT

5mm COT

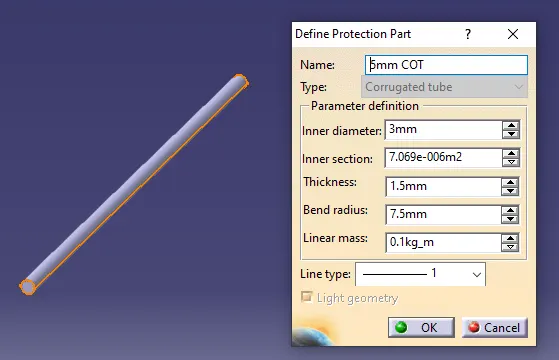

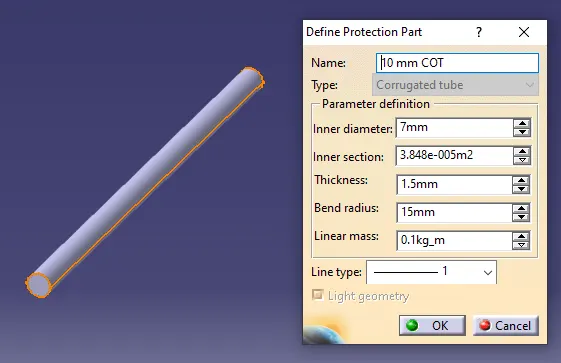

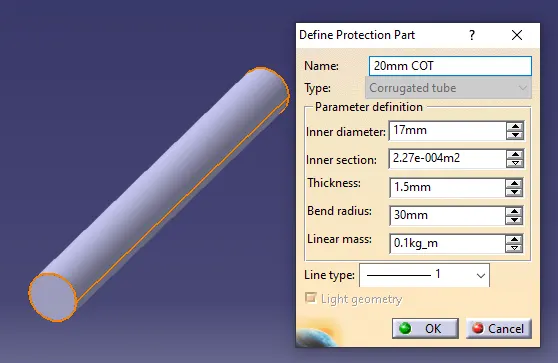

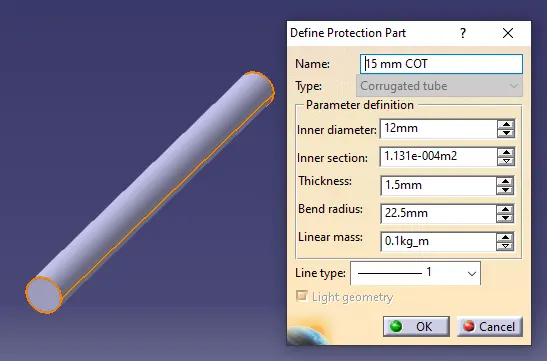

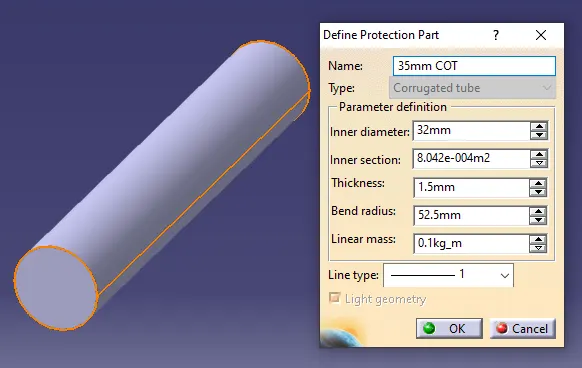

The Corrugated tubes are created using the define protectitve part command according to the given table.

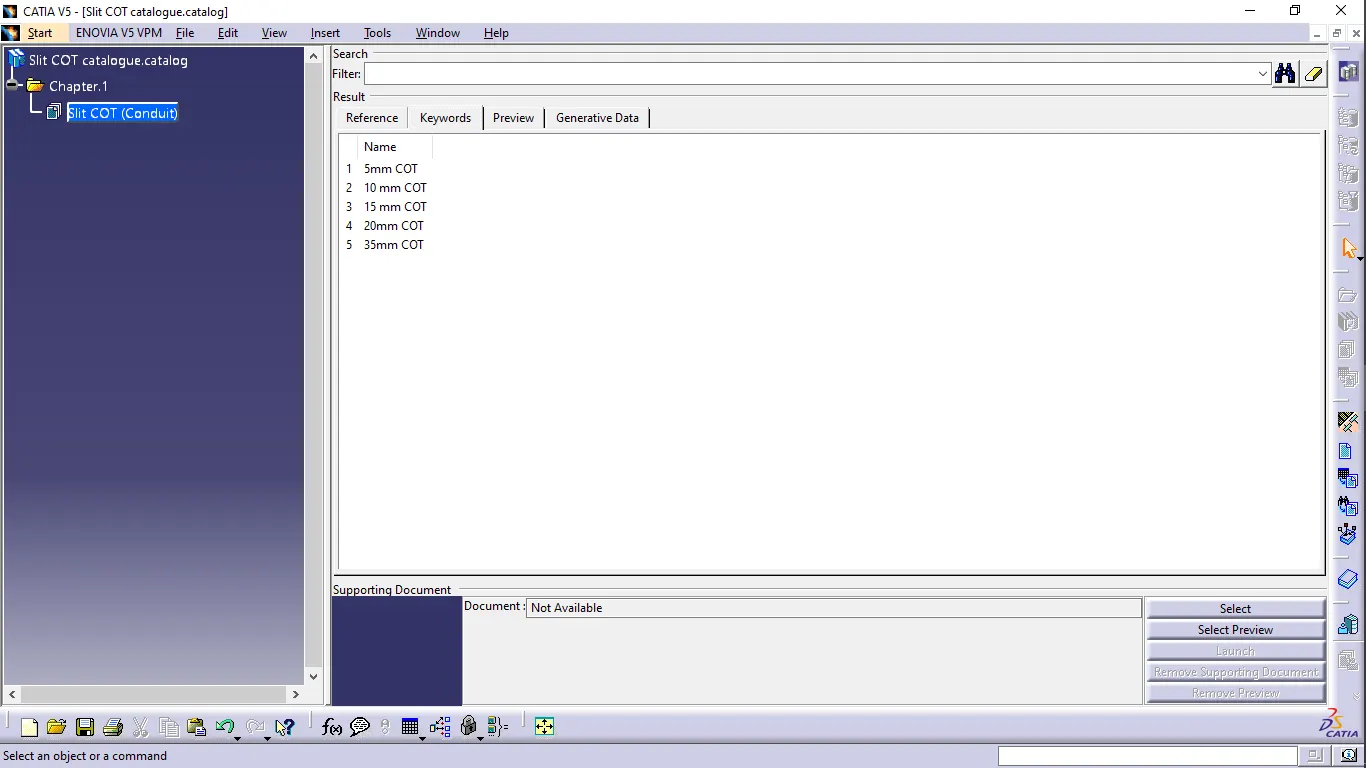

A new catalogue is created and all the created corrugated tubes are added in it under the Slit COT family.
