Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

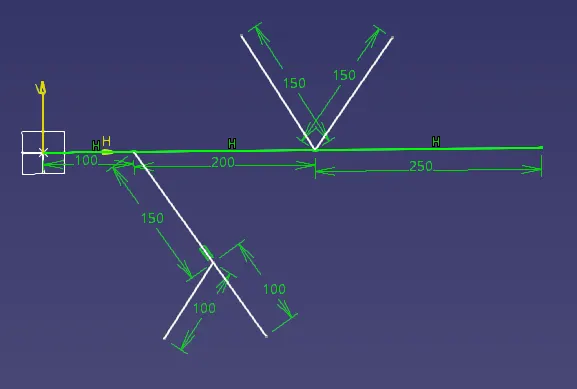

Q1. Route the following harness layout in Electrical workbench. Make assumption for harness bundle diameters. Use Following connectors as shown in layout diagram.

Add protective covering on all branches connected to DT06-2S & DT06-4S connectors. Keep end extremity at 30mm (from connectors end)

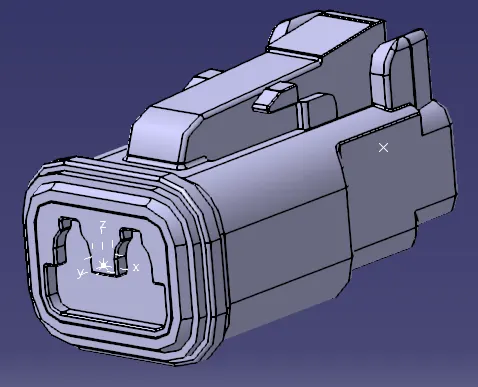

DT06-2S

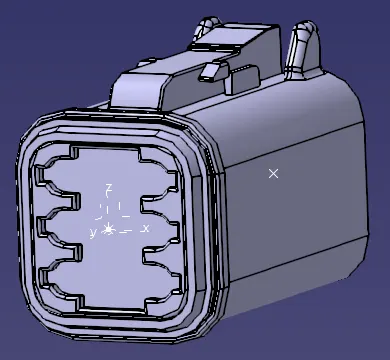

DT06-4S

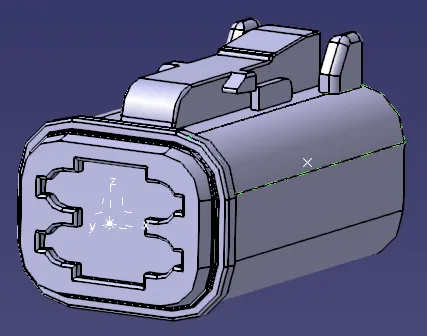

DT06-6S

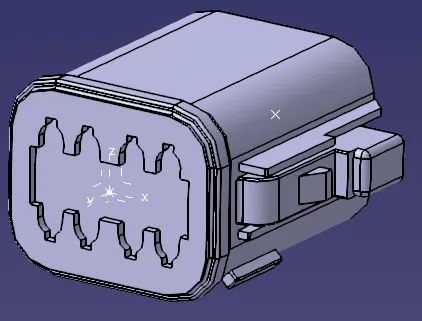

DT06-08SA

Creating the Bundle Path:

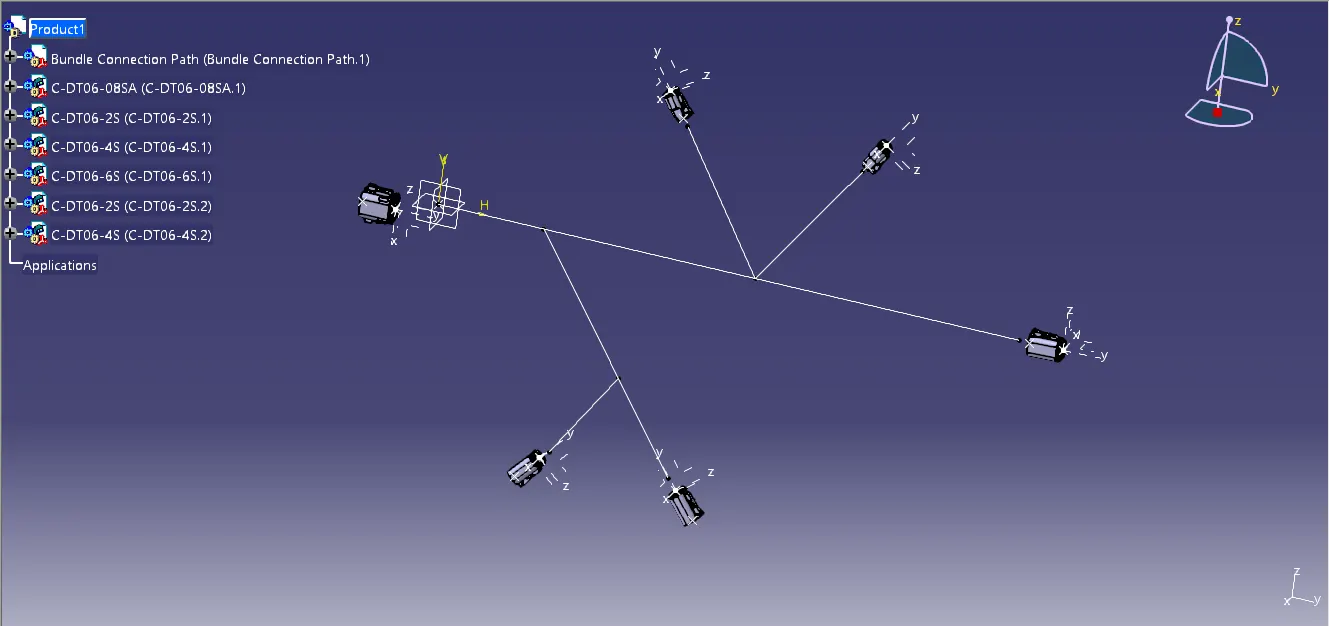

Aligning the connectors according to the provided path diagram:

Connecting the connectors to the path:

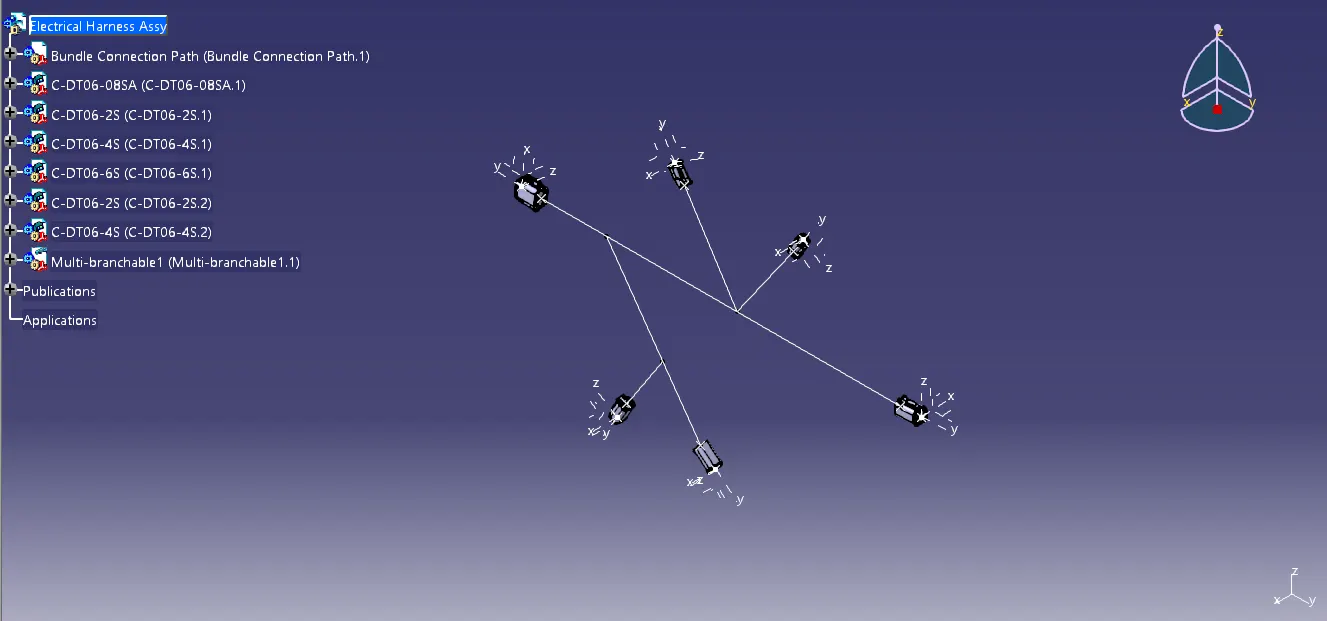

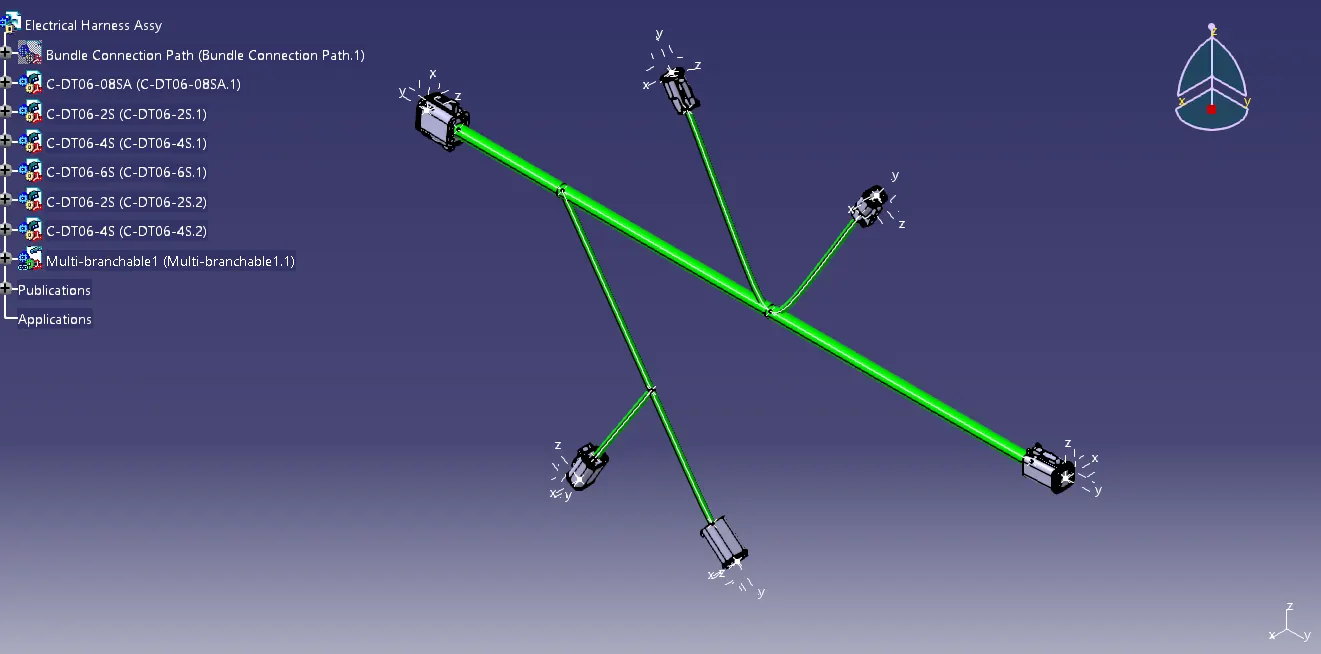

Connectors connected to each other according to the given path diagram:

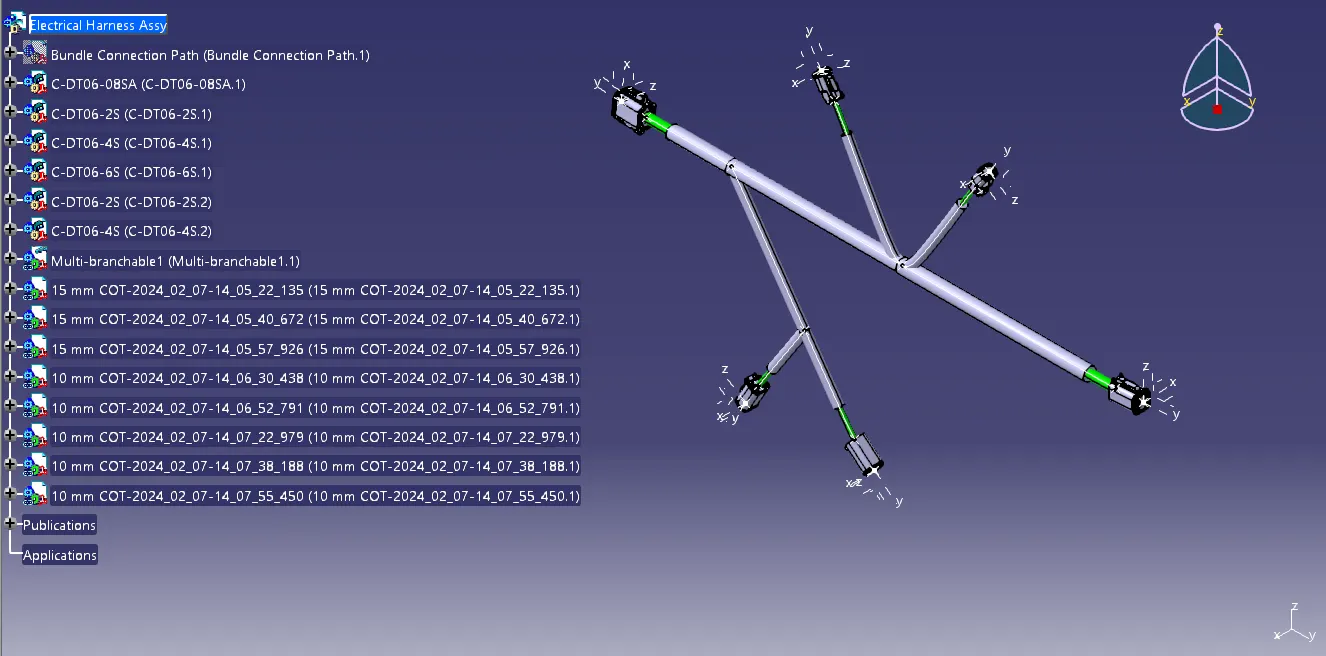

Bundle Connections with Protective coverings:
