Wiring harness routing & packaging Rules Week 3 Challenge

The P Clams

First the P clamp is defined as the support element in electrical part design using the planes that were created in mechanical part design workbench to define the entry,exit base planes.

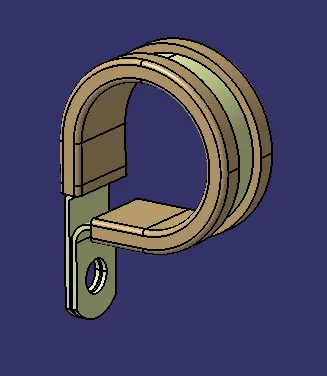

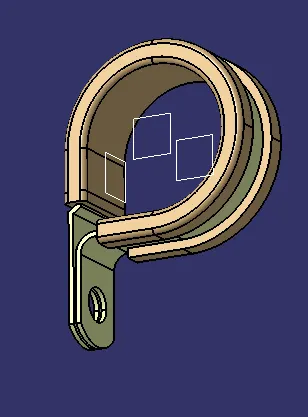

P Clamp

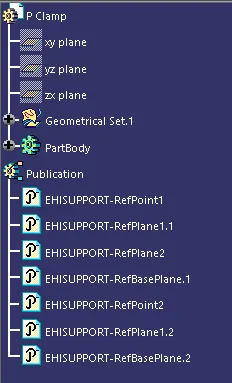

Defined planes

Publications

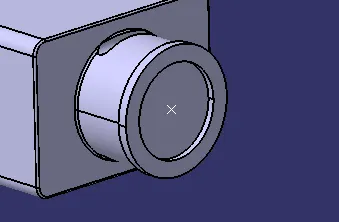

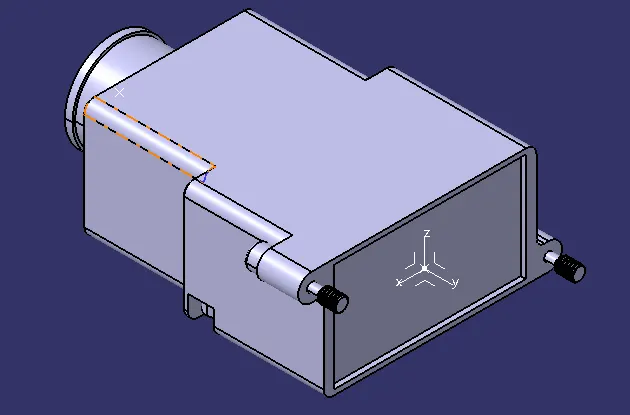

Tyco 1738312-1(Back shell)

First the bundle entry point and back shell contact ponit created in mechanichal part design workbench and then defined in electrical pert design wokbench.

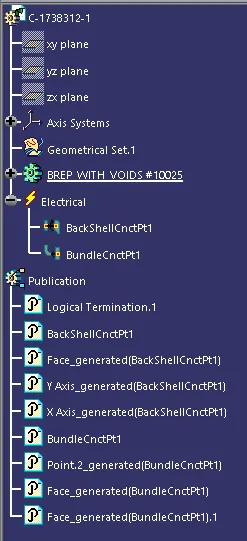

Backshell Contact point

Bundle Entry point

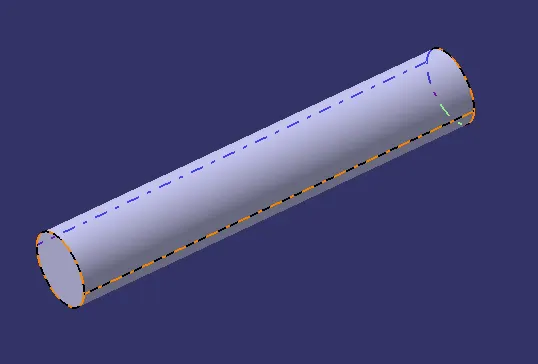

Cot tubes

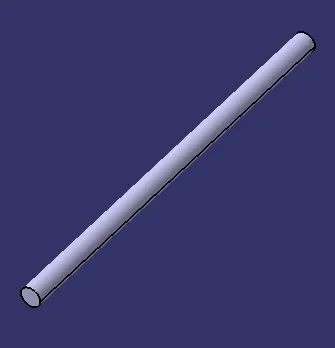

5mm COT

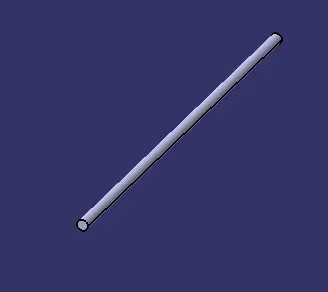

10mm COT

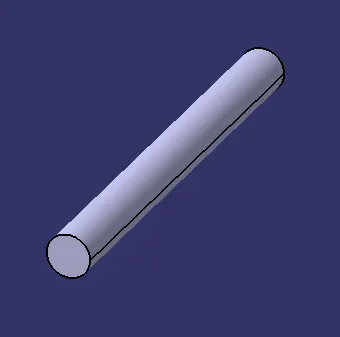

15mm COT

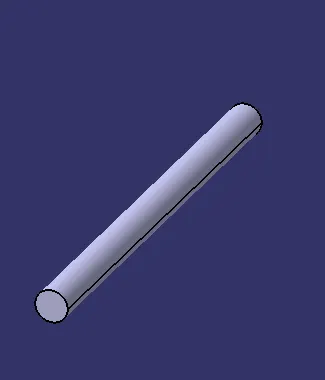

20mm COT

35mm COT

Name	ID(mm)	OD(mm)	Thikness(mm)
5mm COT	3	5	1
10mm COT	7	10	1.5
15mm COT	12	15	1.5
20mm COT	17	20	1.5
35mm COT	32	35	1.5
