Wiring harness routing & packaging Rules Week 3 Challenge
Q1. Download following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties:

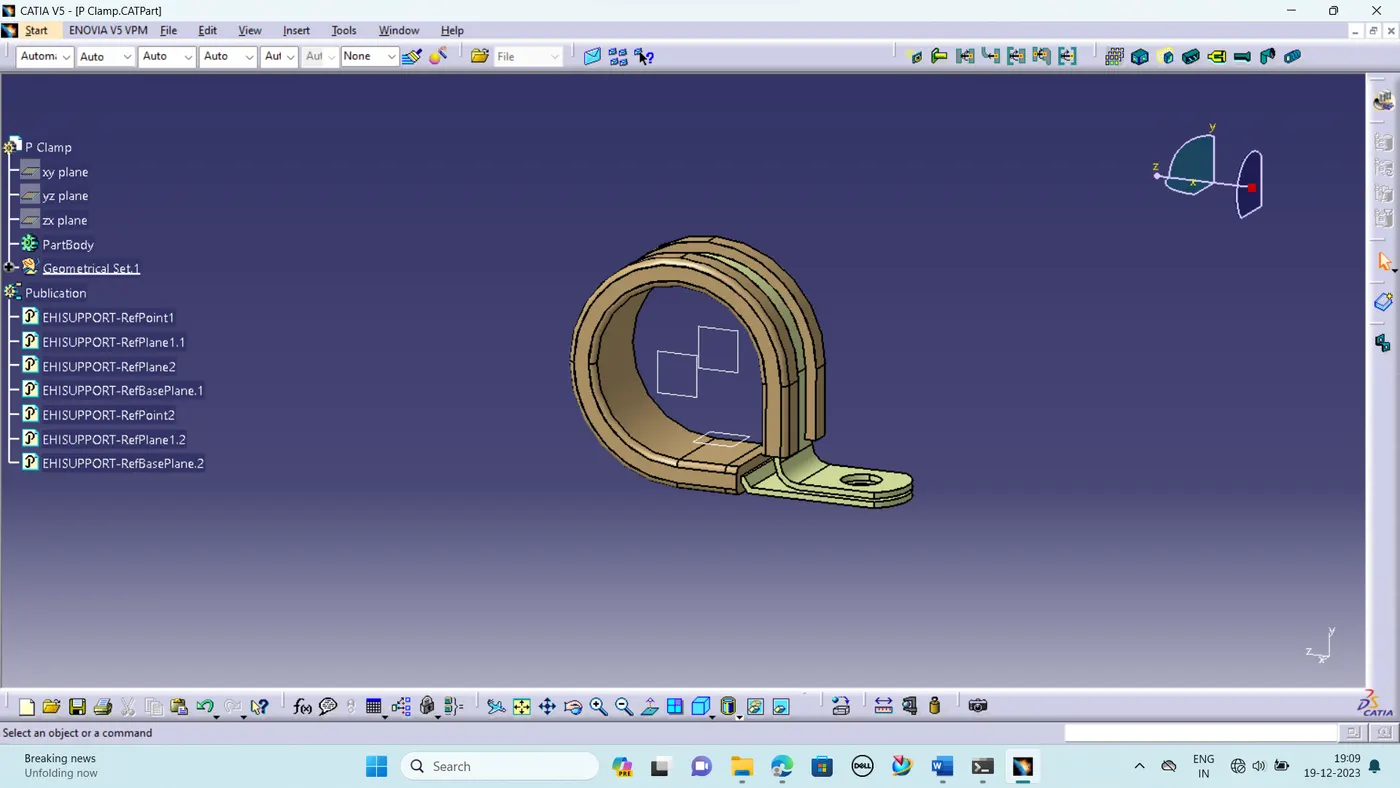

CLIP DEFINITION:
- Get the clip 3D part
- Define the geometry parameter
- Define part as support
- Define entry point and plane
- Define base and exit plane
Q2. Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.
BACK SHELL:
- It is plastic moulded part used at wire entry side of connectors,used for protection.
- It is optional

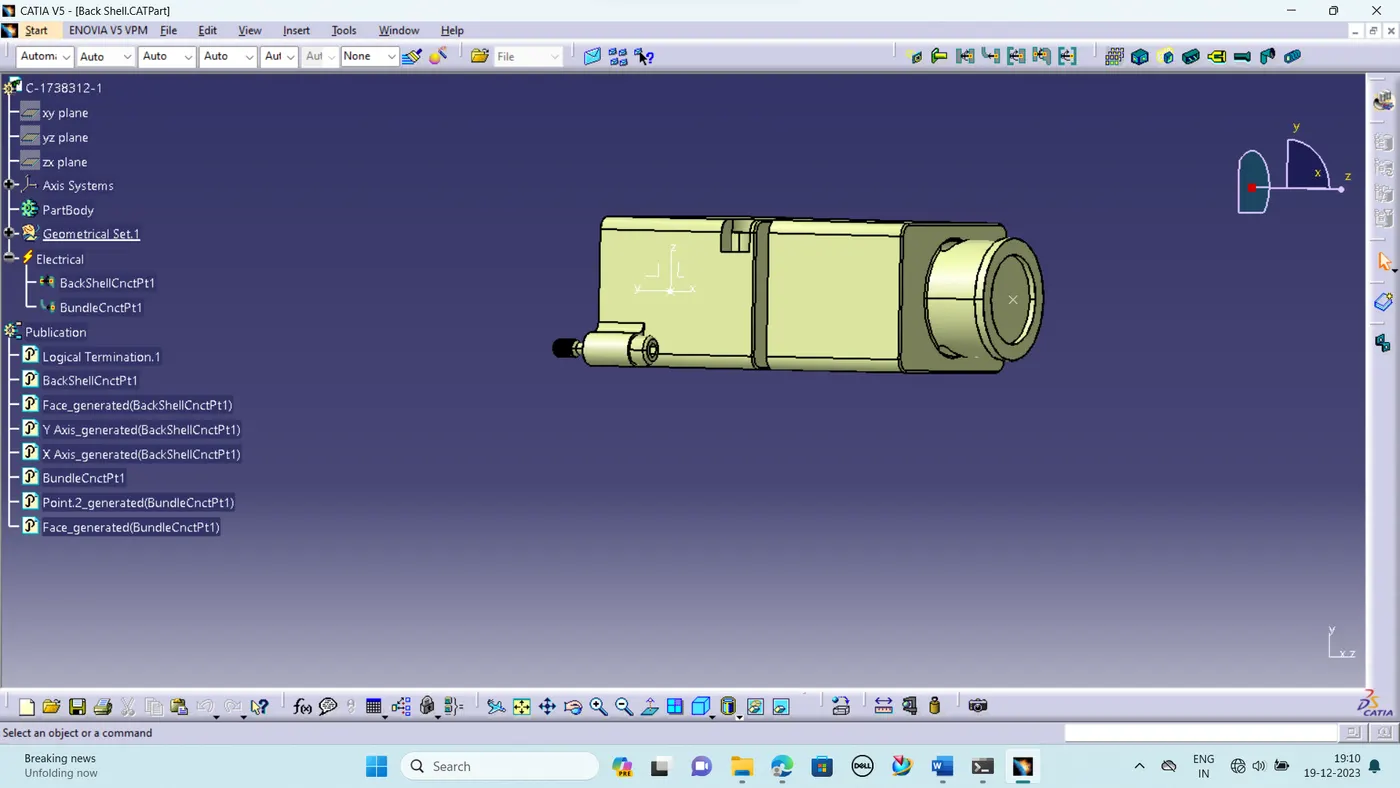

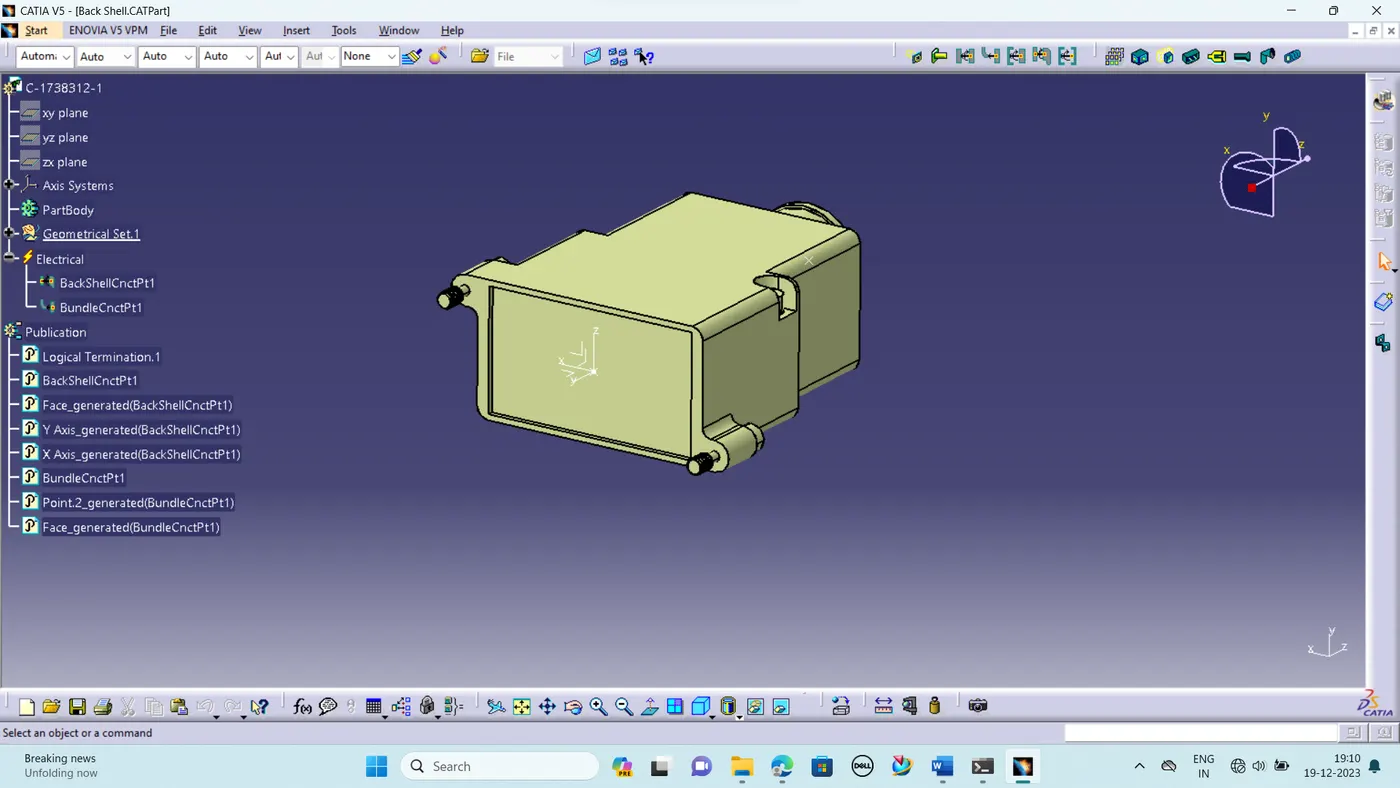

BACK SHELL DEFINITION:
- Get back shell 3D
- Define geometry parameter
- Define part as back shell
- Back shell connetion point
- Define bundle connection point

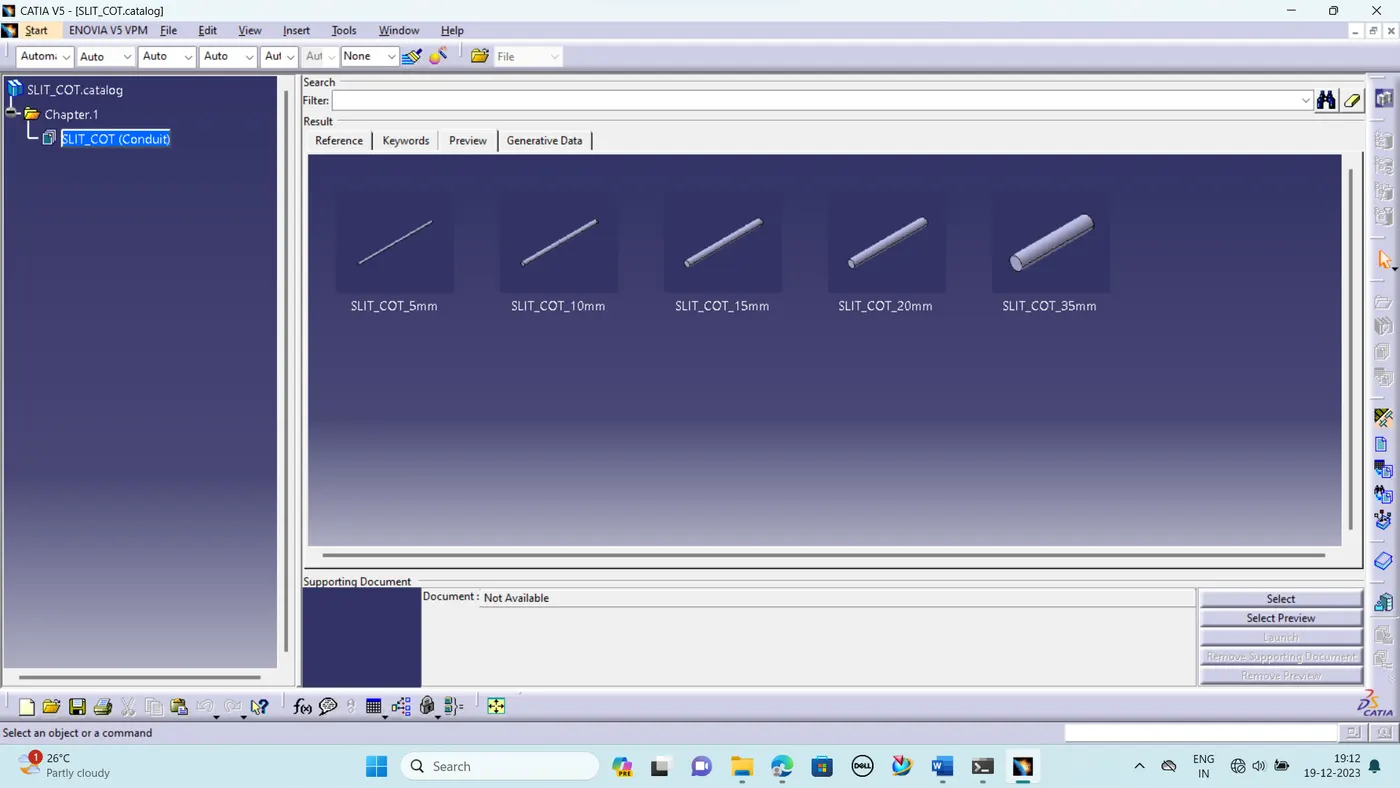

Q3. Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.
|
Name |
ID (mm) |
OD (mm) |
Thickness (mm) |
|

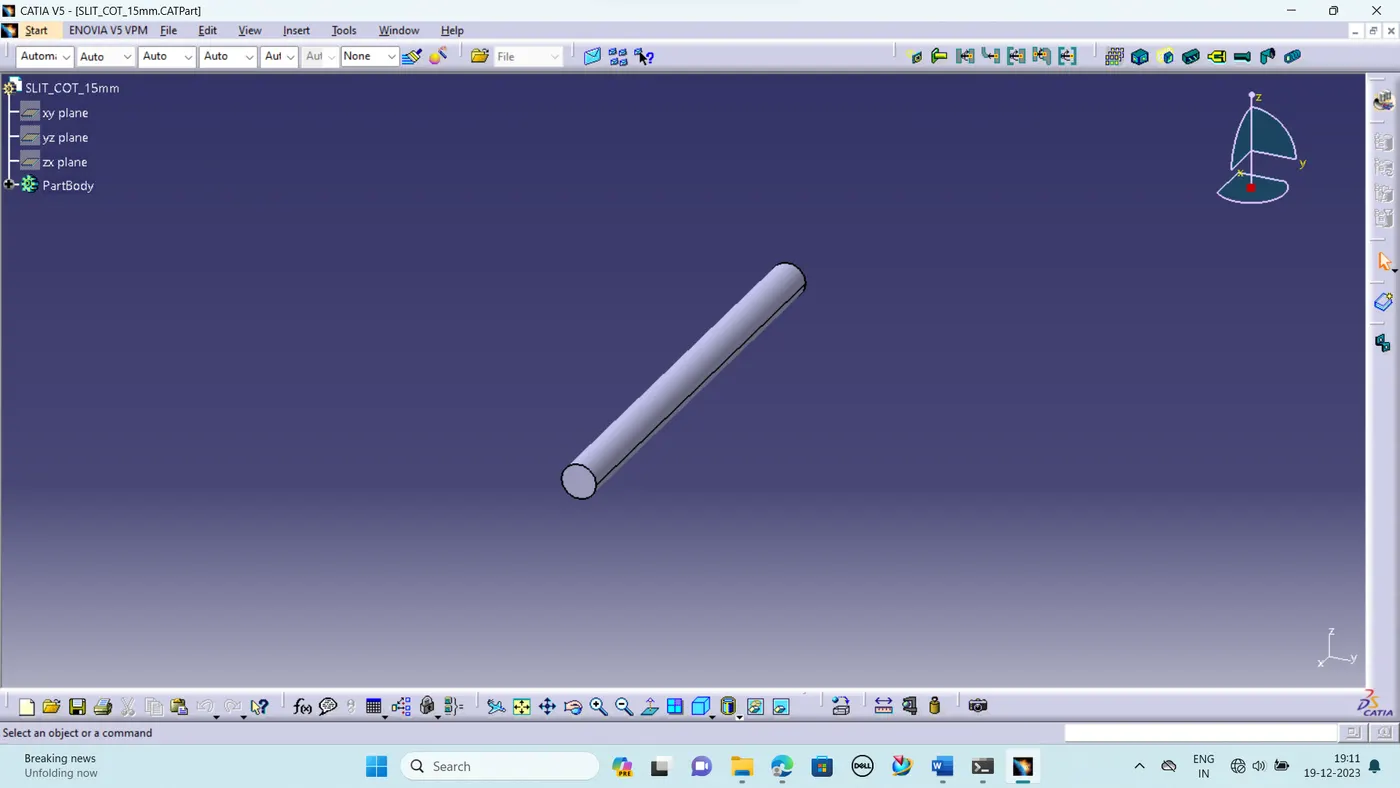

15mm COT |
12 |
15 |
1.5 |
|

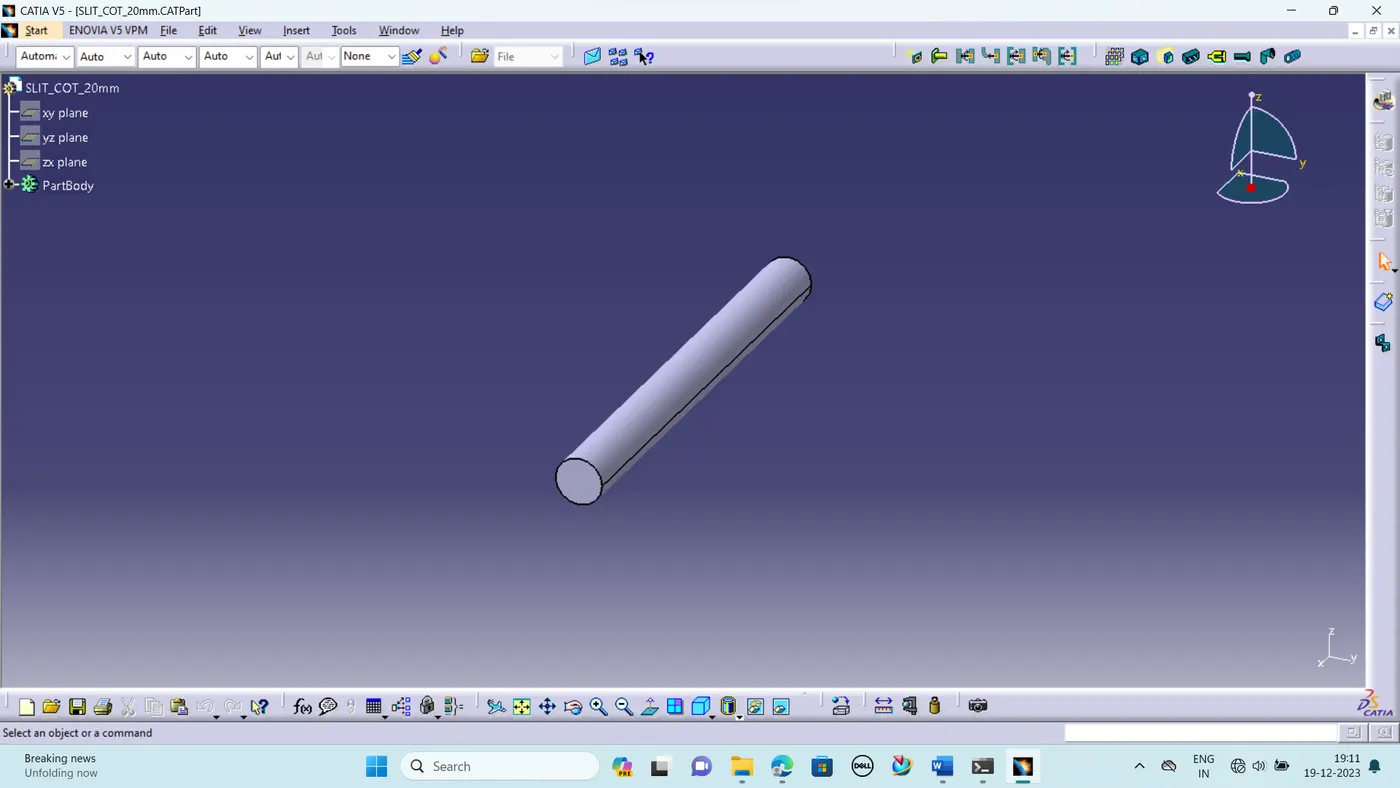

20mm COT |
17 |
20 |
1.5 |
|

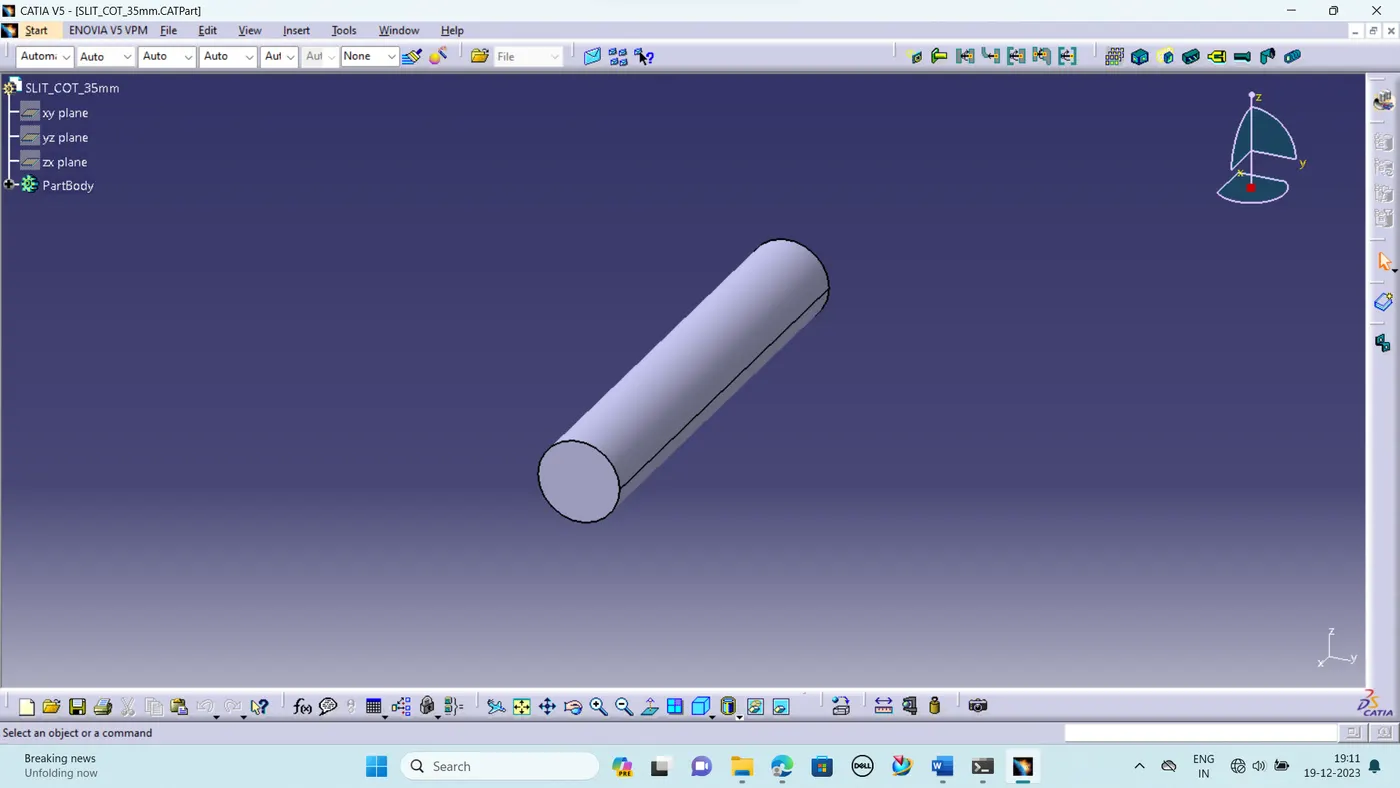

35mm COT |
32 |
35 |
1.5 |
|

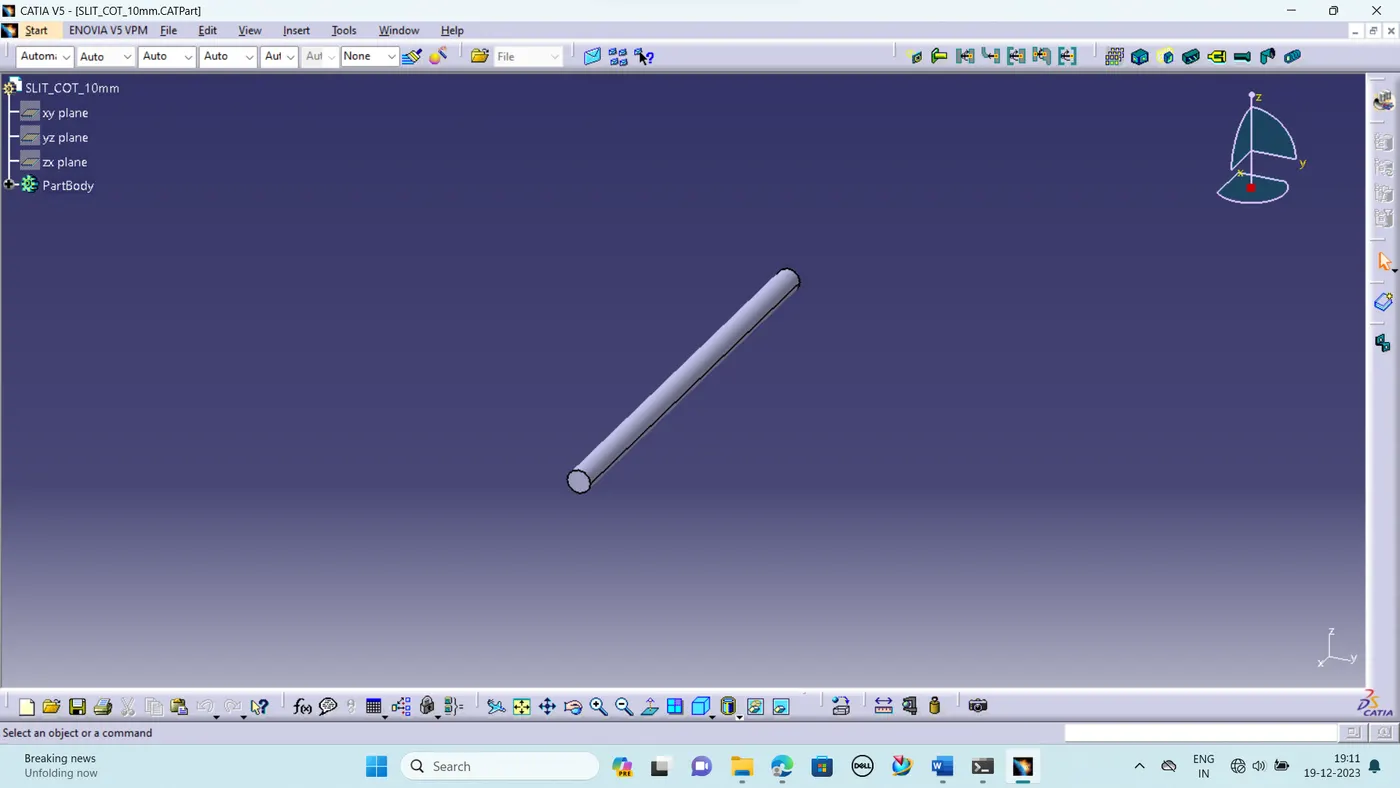

10mm COT |
7 |
10 |
1.5 |
|

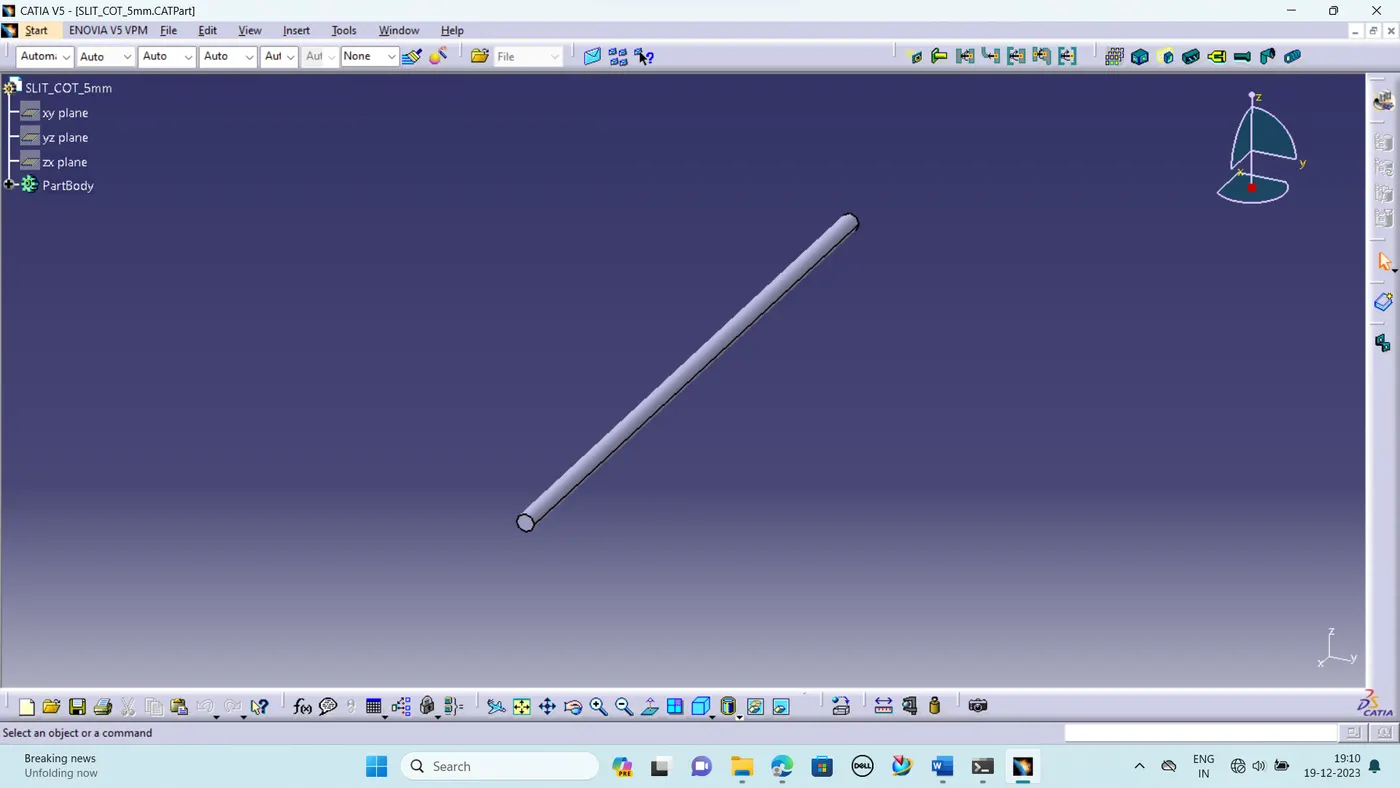

5mm COT |
3 |
5 |
1 |
PROTECTIVE COVERING DEFINITION:
- Create covering 3D part
- Create catalogue for covering
- Add new part in catalogue
- Apply covering on harness bundles from catalogue
