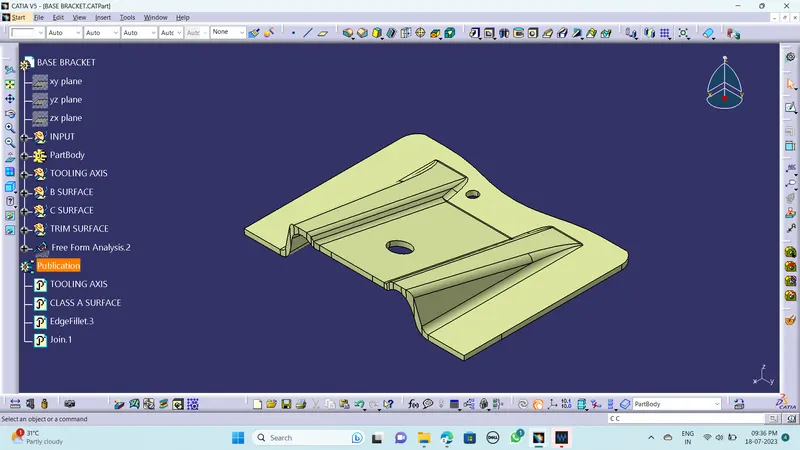

Week 9 - Challenge 1 - Base Bracket Design

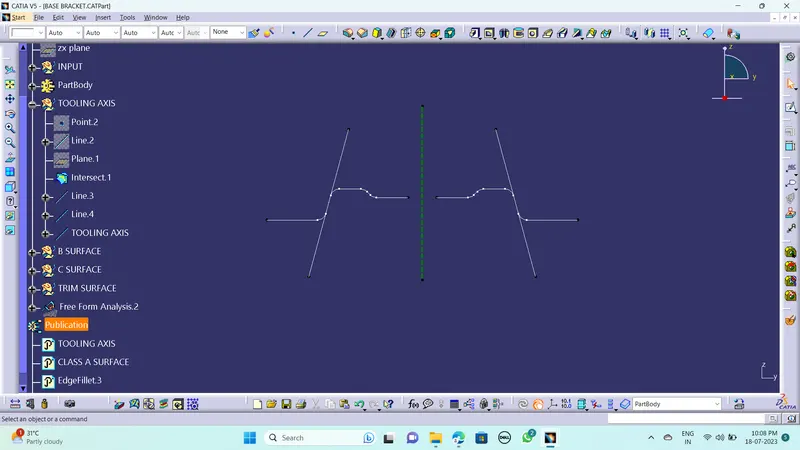

Tooling axis:

• Observe and study the class A surface to create the tooling axis.
• Z axis is the best suitable tooling axis for this component.
• Using intersect create the two construction lines.
• Create the main tooling axis by bisecting the construction lines.

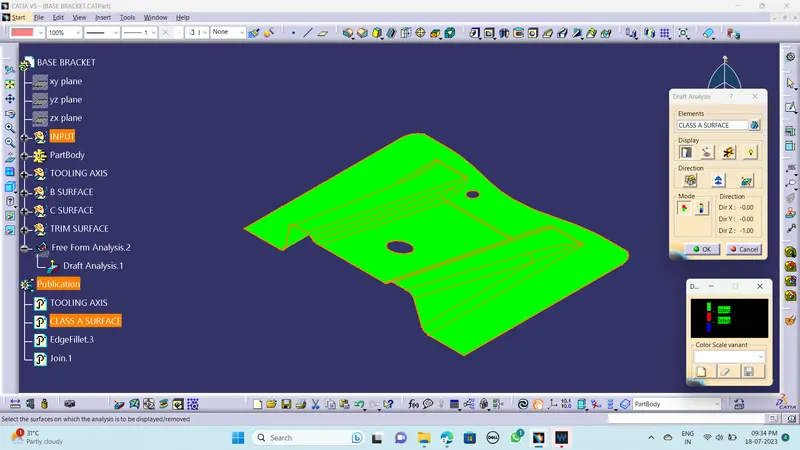

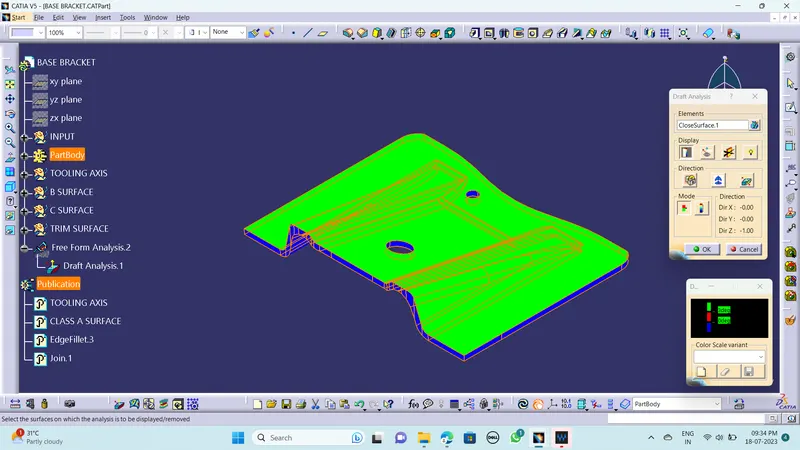

Draft analysis:

• Draft angle is considered as 3 degree.
• Select the compass and set it on the tooling axis in upward direction.
• Select the surface the whole part turned into green.
• Green means within 3 degree and blue represent below 0 degree.
• If blue surface visible during selecting the surface just click flipping the direction.
