Week 9 - Challenge 3 - Bumper

Tooling axis:

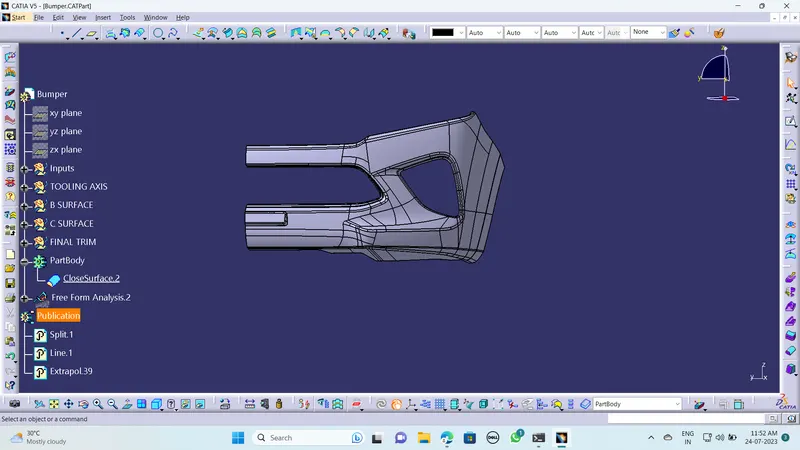

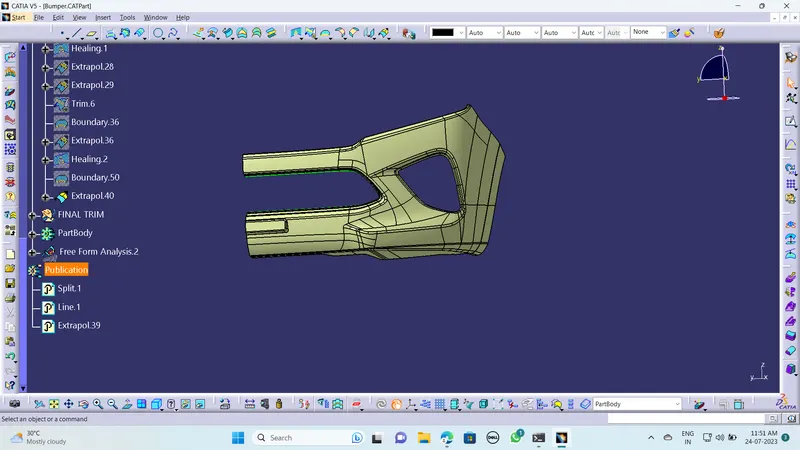

• Observe and study the class A surface to create the tooling axis.

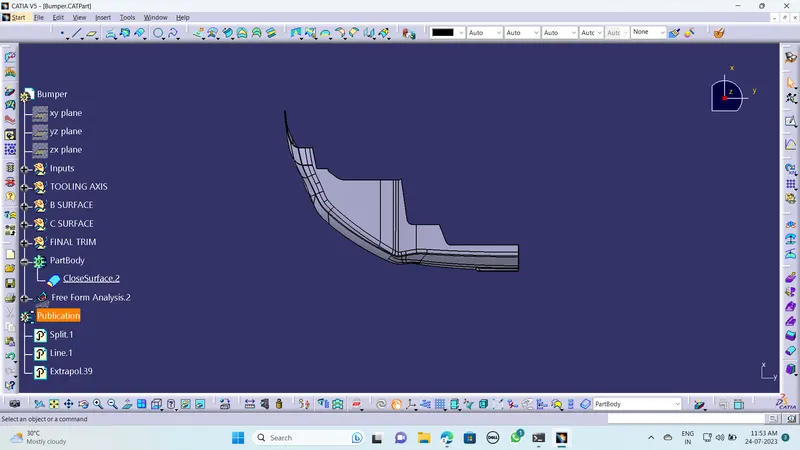

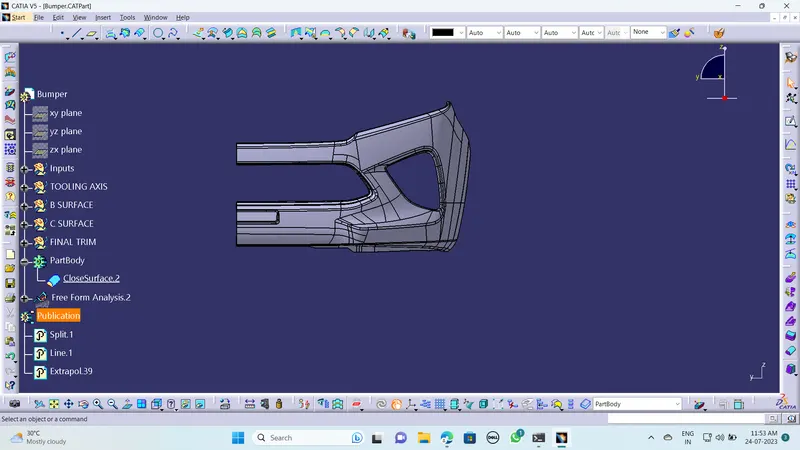

• X axis is the best suitable tooling axis for this component.

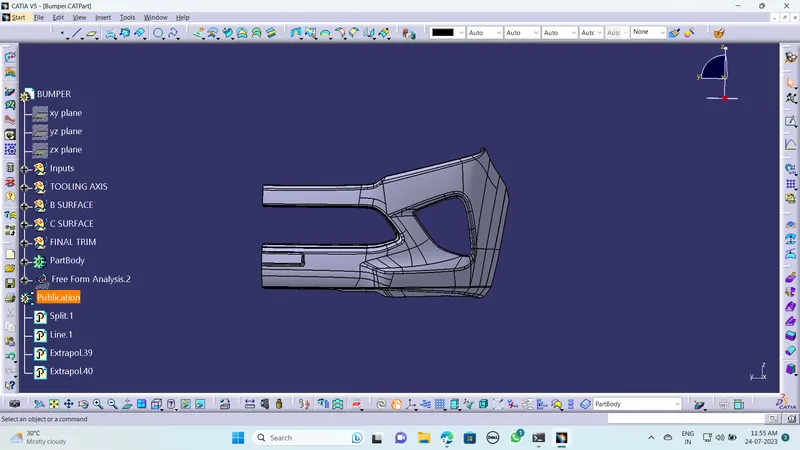

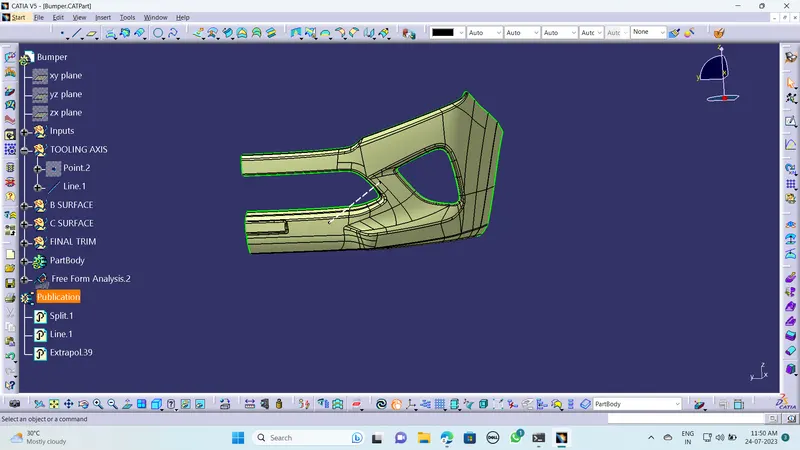

• Create point and line to make tooling axis.

Draft analysis:

• Draft angle is considered as 2.5 degree.

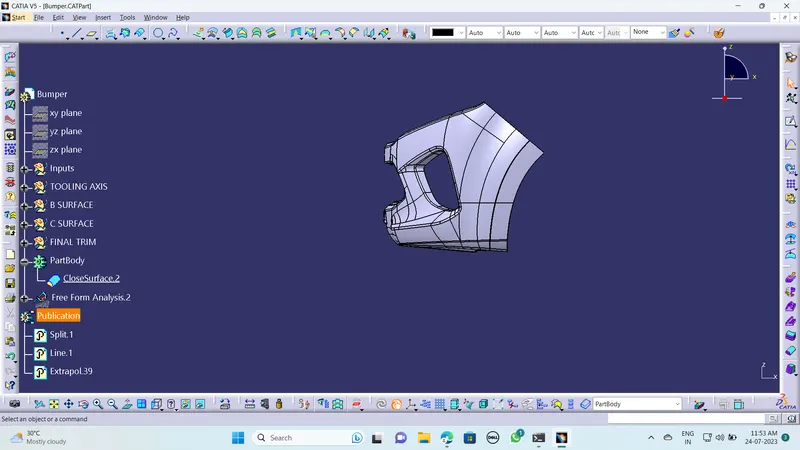

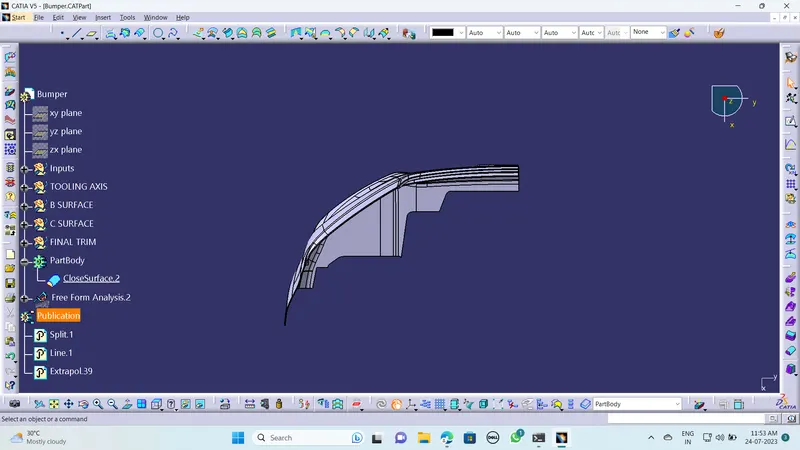

• Select the compass and set it on the tooling axis in upward direction.

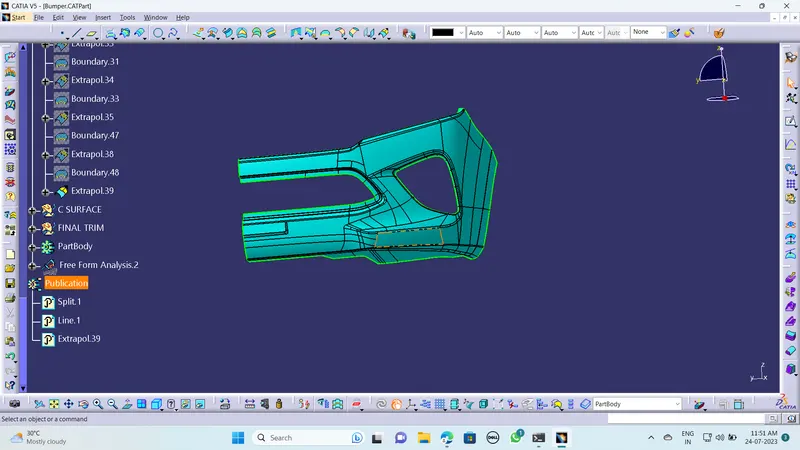

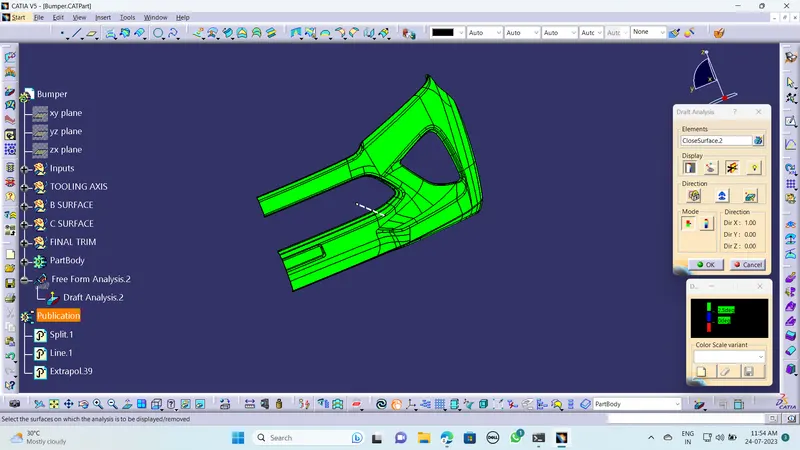

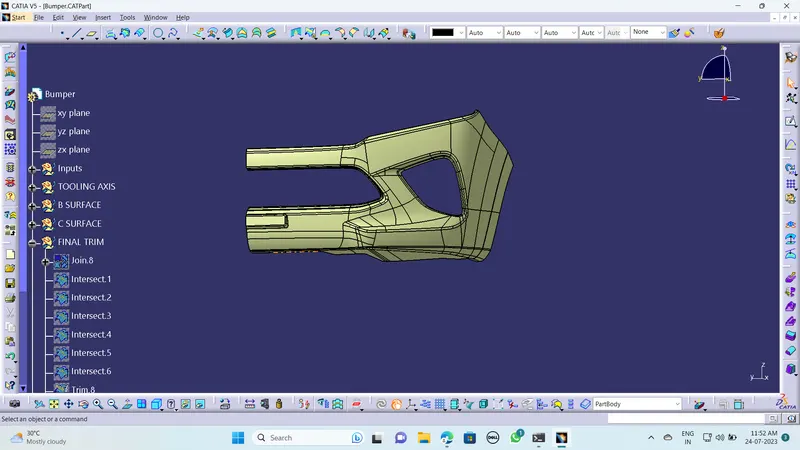

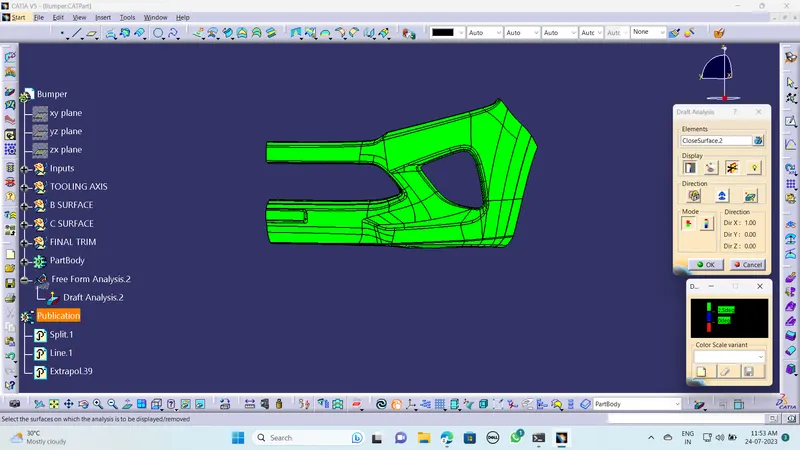

• Select the surface the whole part turned into green.
• Green means within 2.5 degree and blue represent below 0 degree.
• If blue surface visible during selecting the surface just click flipping the direction.
