Wiring harness routing & packaging Rules Week 3 Challenge

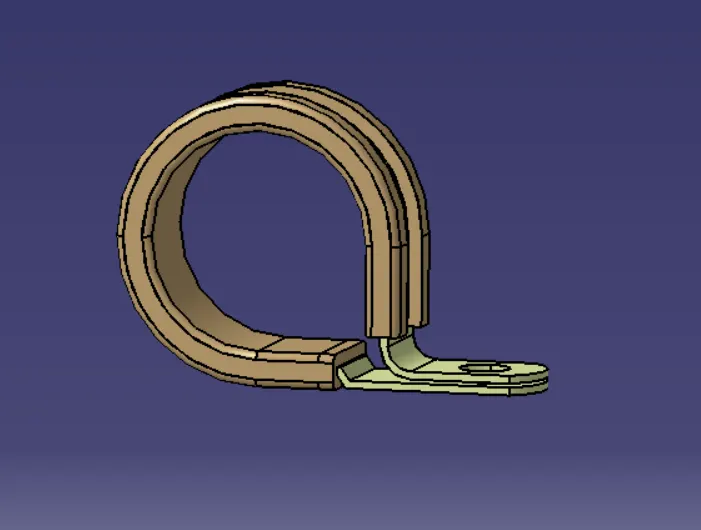

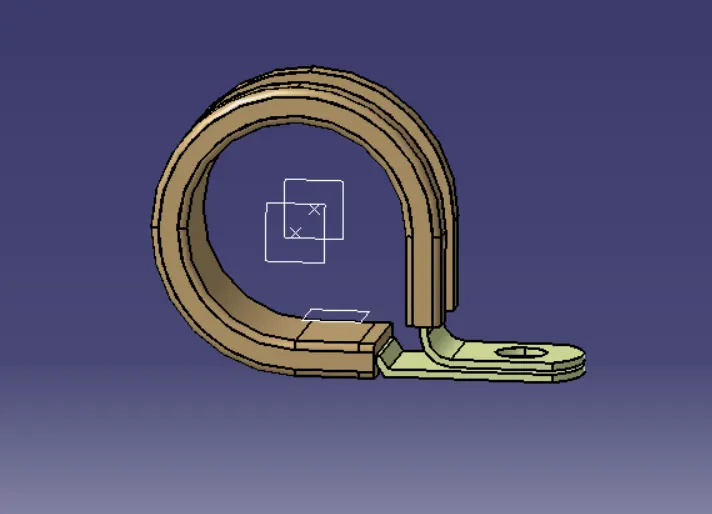

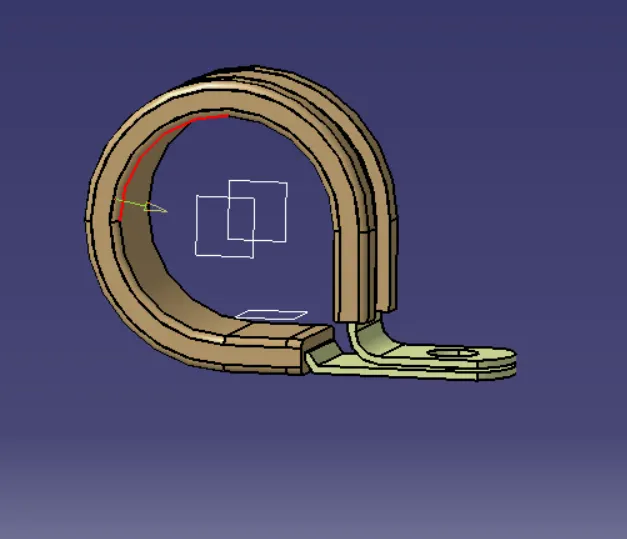

Q1. Download the following CAD data & define it as Electrical support using the Electrical Part Design Workbench. Define all the necessary properties.

PROCESS:

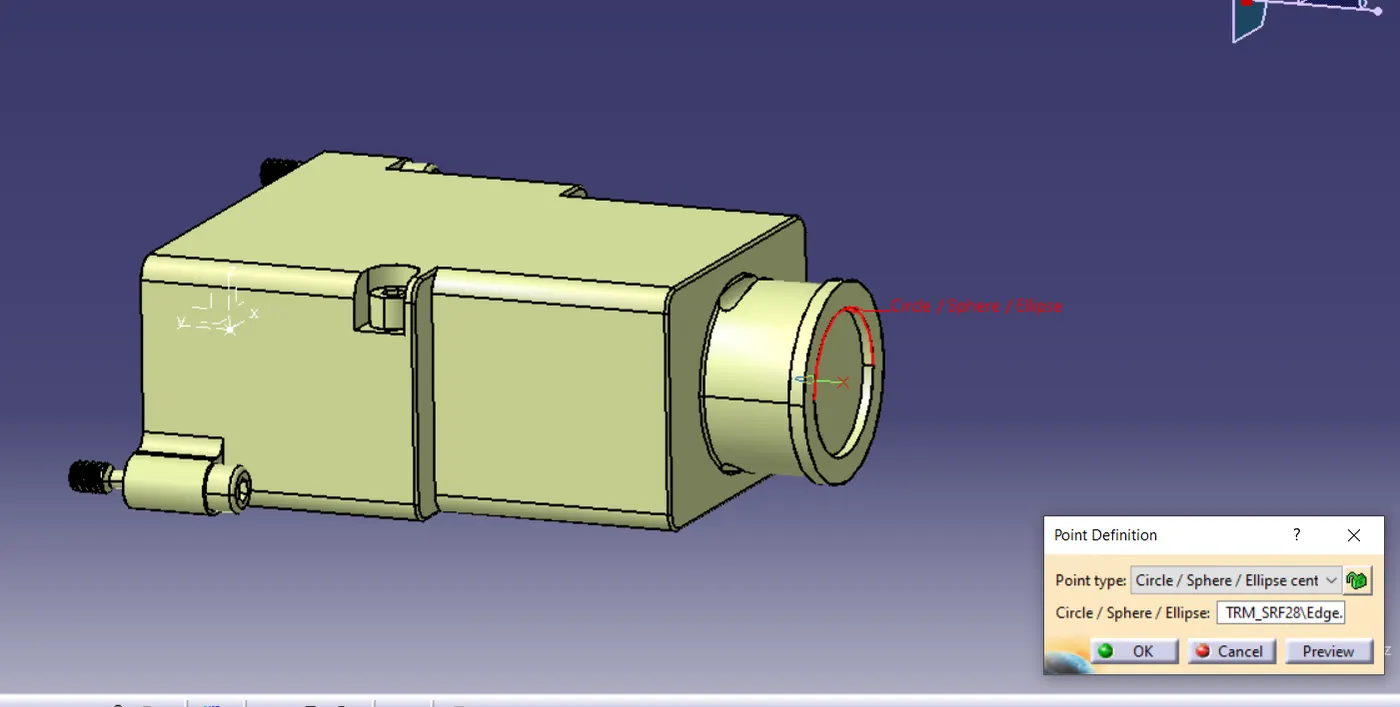

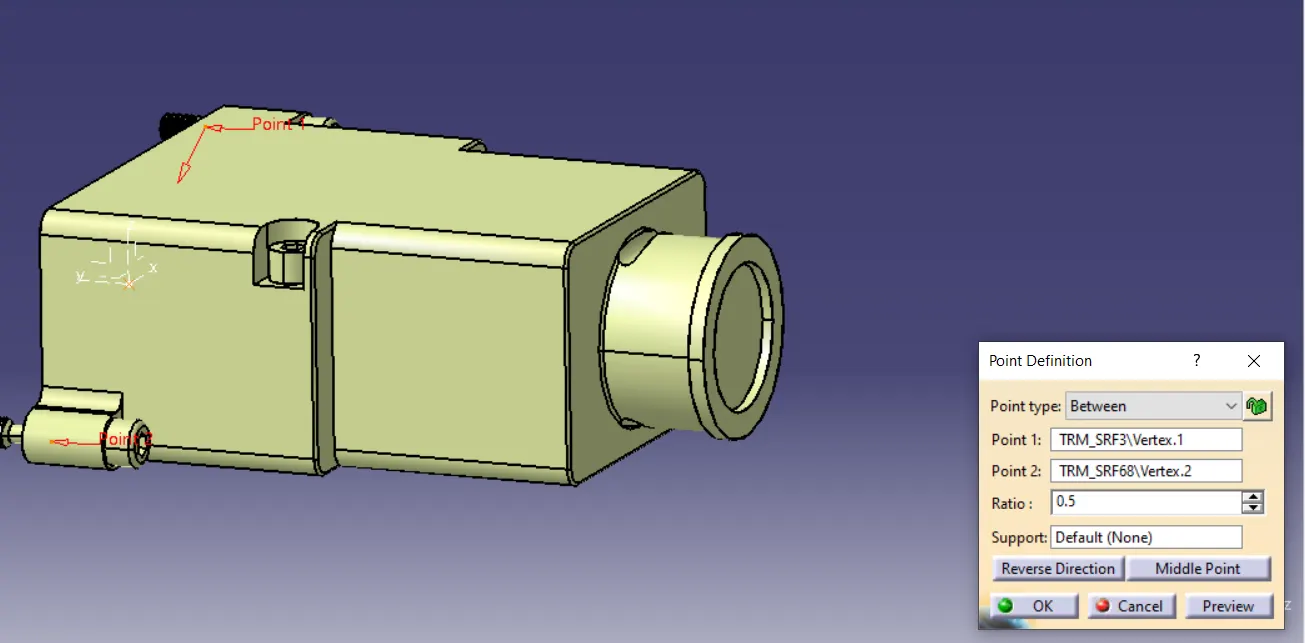

1)creation of two points one is the entry point and another one is the exit point
2)create a plane for entry and exit points and a plane for a base at the bottom
3)switch the part design into the electrical part design and click on support deiftion

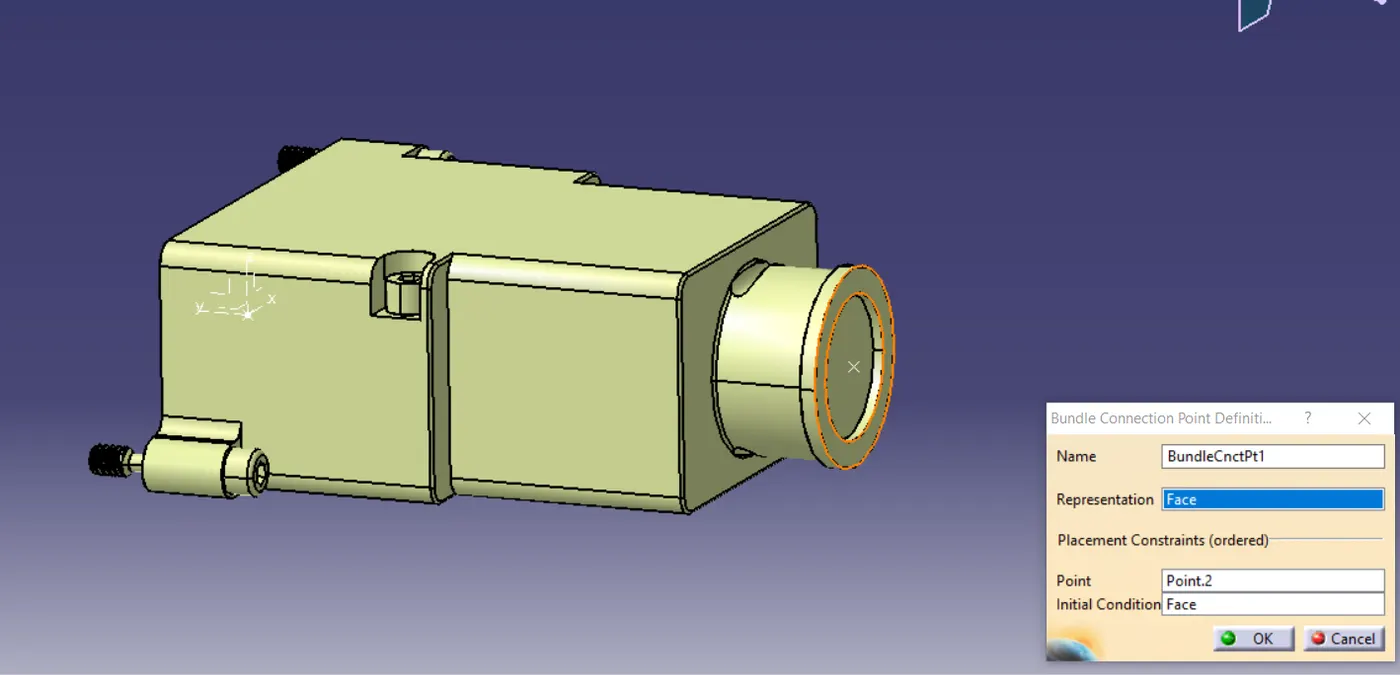

4)select the part and click on entry and exit point and planes & select a second time for exit point and plane and the secondary plane is selected automatically

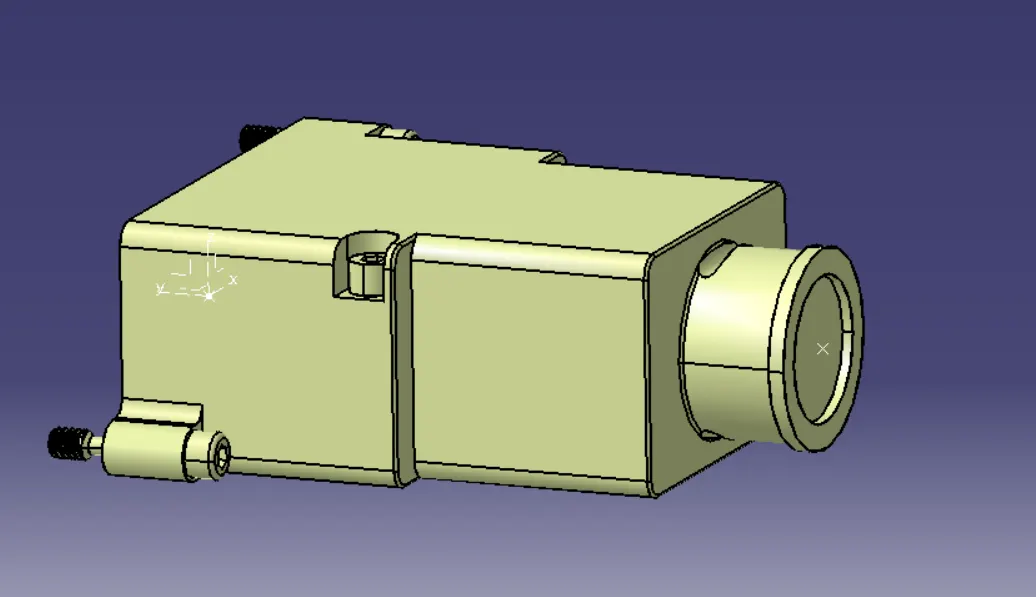

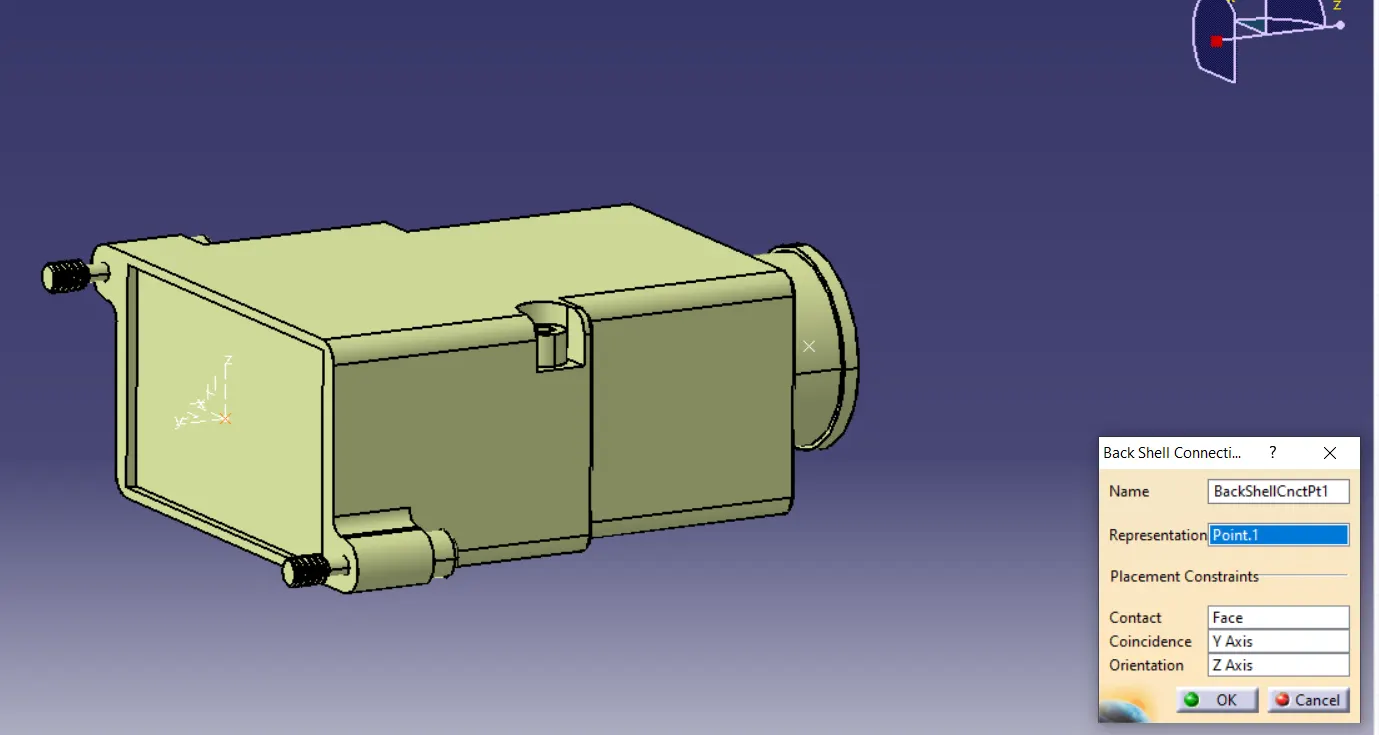

Q2. Download the following Back shell CAD data & define it as an Electrical back shell using the Electrical Part Design Workbench. Define all the necessary properties.

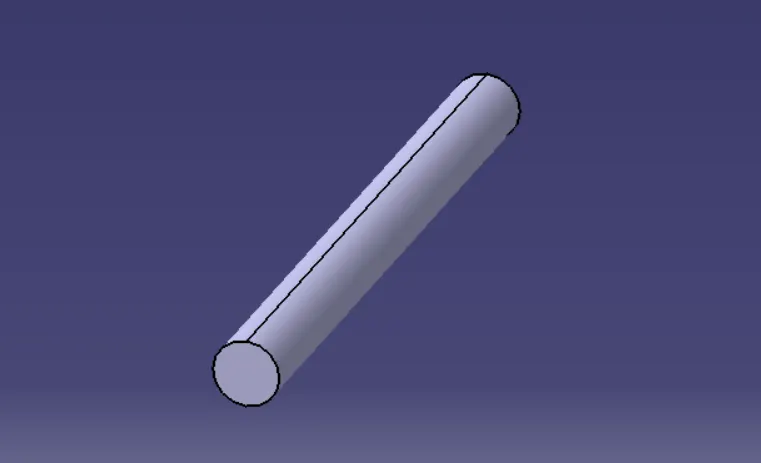

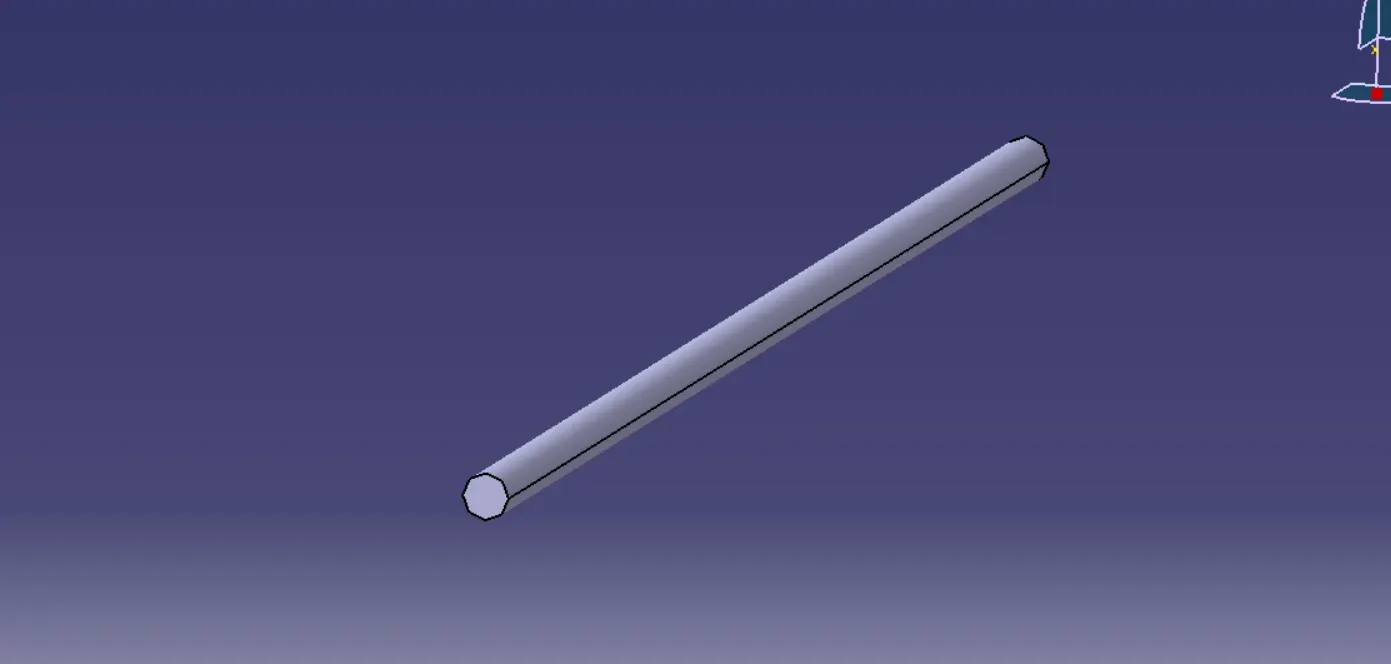

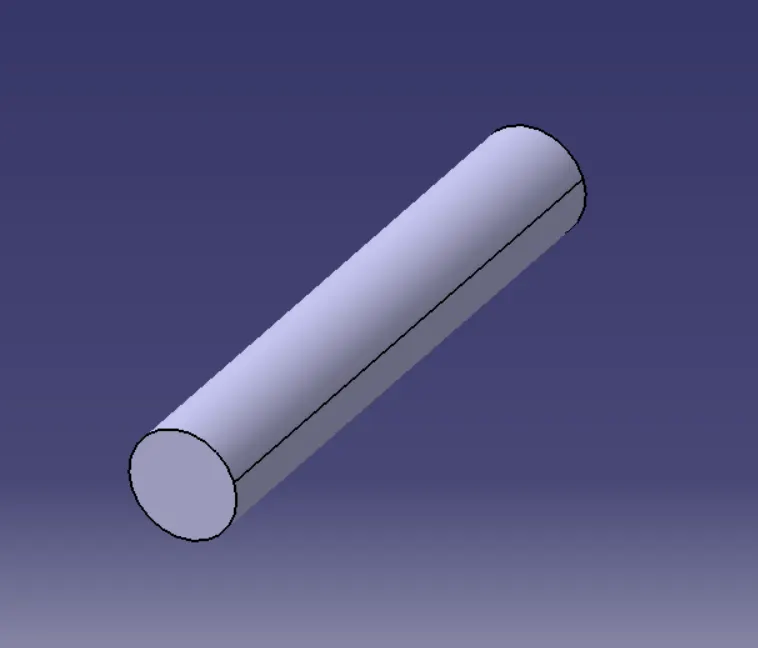

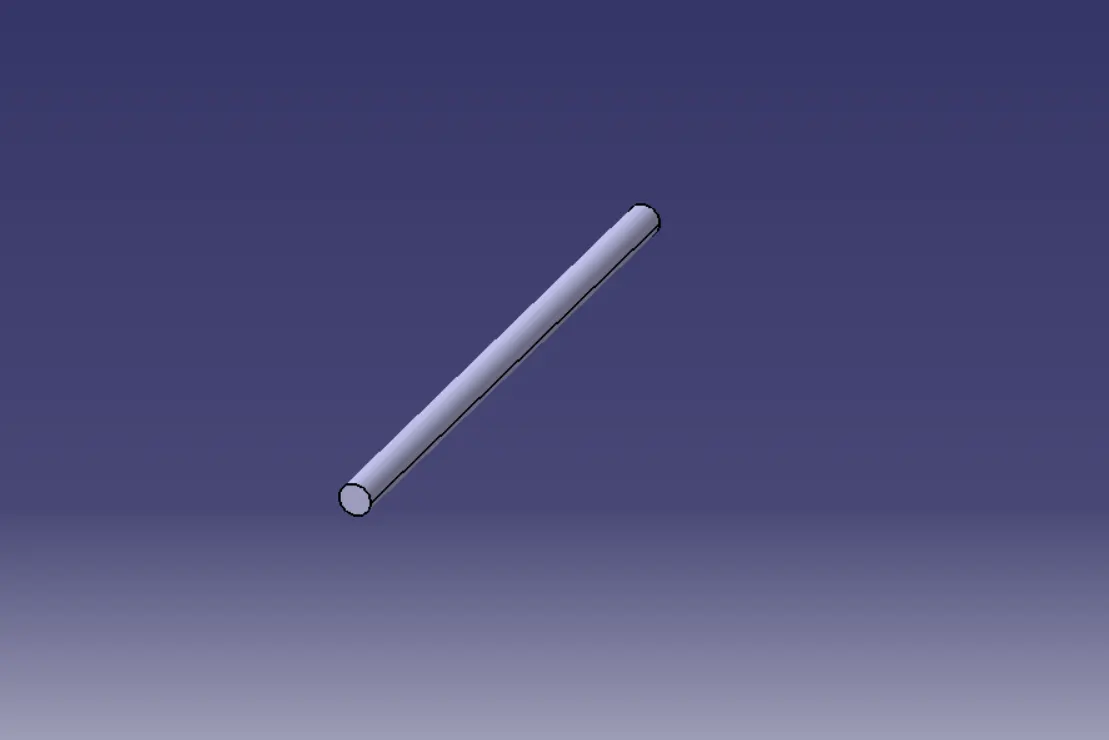

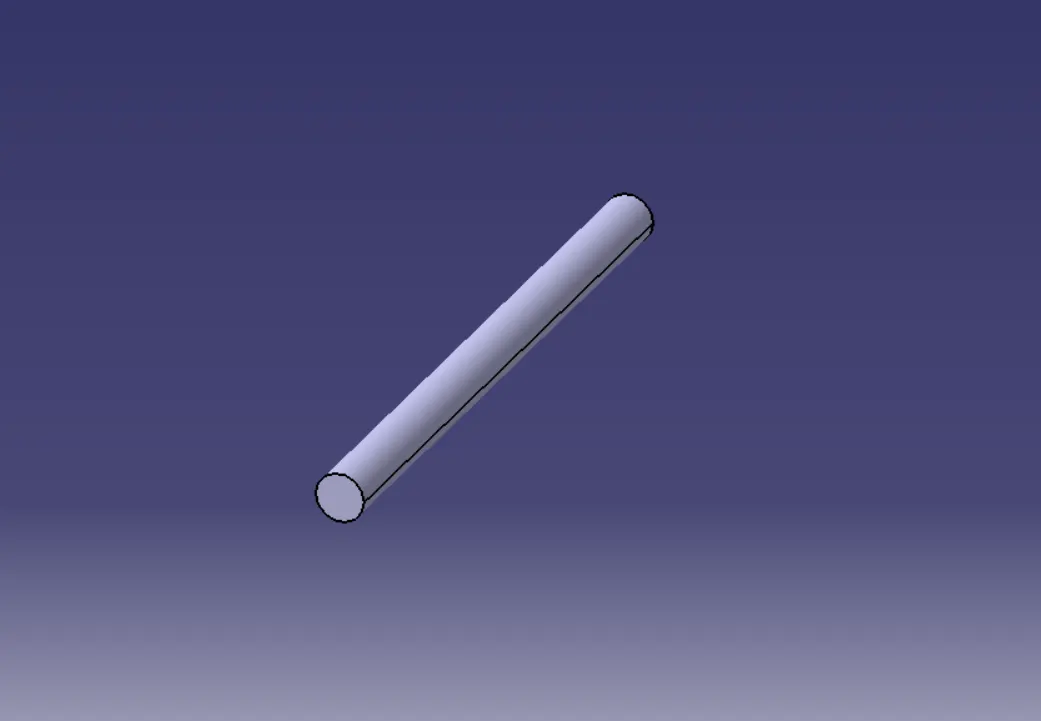

Q3. Create the Following Corrugated tubes & Add them to Catalogue under the “Slit COT” family.
|
Name |
ID (mm) |
OD (mm) |
Thickness (mm) |
|
15mm COT |
12 |
15 |
1.5 |
|
20mm COT |
17 |
20 |
1.5 |
|
35mm COT |
32 |
35 |
1.5 |
|
10mm COT |
7 |
10 |
1.5 |
|
5mm COT |
3 |
5 |
1 |
PROCESS:
1)create a new part and switch to an electrical part design
2)click on the define protection part and click on part body
3)provide the given parameters and inputs to the popup and click ok
4)A RIB file will be added to the part body once the COT tube is ready and the file with the name of the diameter




CATALOG CREATION:

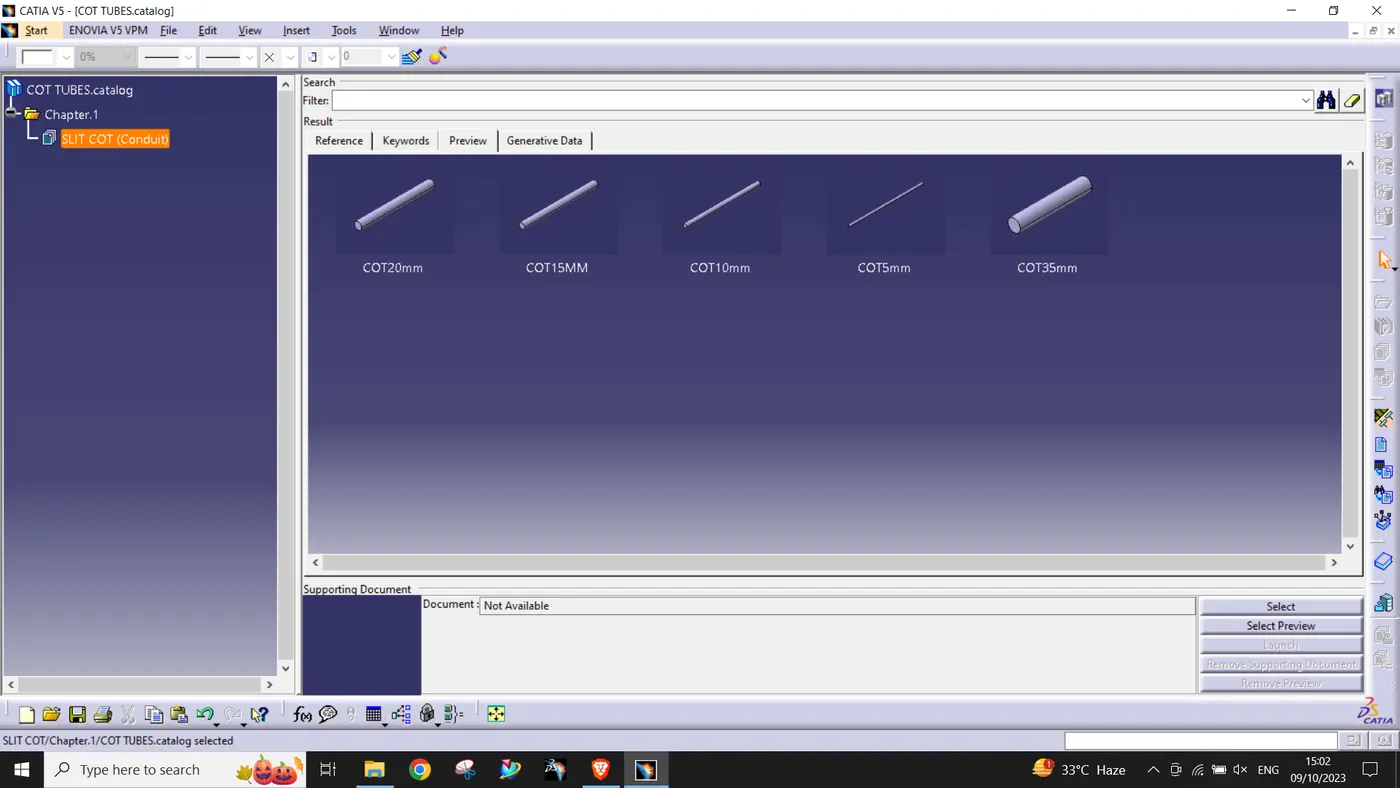

SELECT NEW PART - CATALOGDOCUMENT-ADD FAMILY- GIVE NAME - SELECT YPE - SELECT CONDUIT- SAVE.
SAVE THE CORRUGATED TUBE TO CATALOG - STORE DEVICE COMMAND - SELEC CATALOG AND SAVE.
CONCLUSION:
THE GIVEN P CLAMP AND BACK SHELL ARE ELECTRICALLY DEFINED AND THE CORRUGATED TUBES CREATED AND ADDED TO THE CATALOG AND SAVED WITH THE GIVEN PARAMETERS
