Wiring harness routing & packaging Rules Week 3 Challenge
Q1. Download following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.
P Clamp

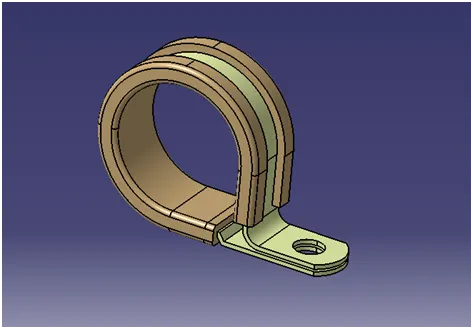

Giving part P clamp

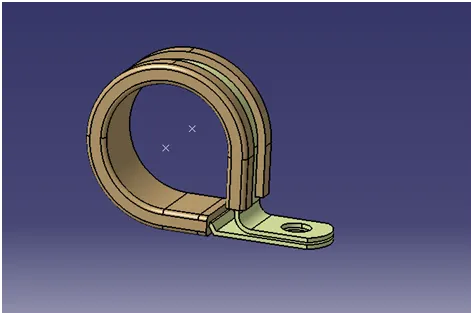

Create a entry & exit points

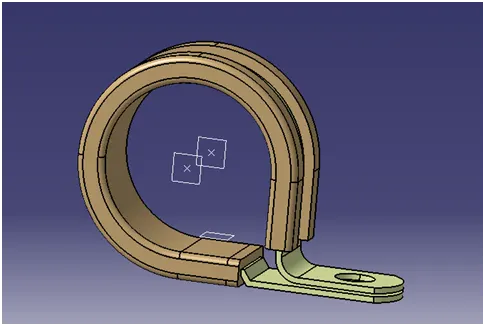

Create planes on entry, exit & base

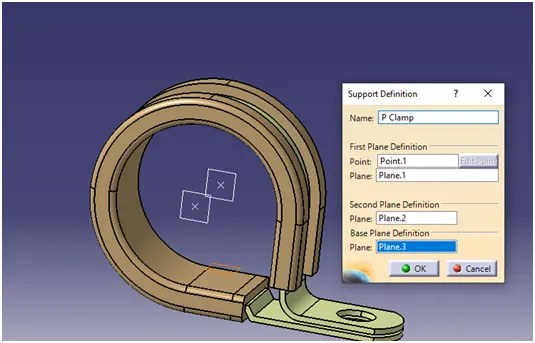

Define the part as electrical support

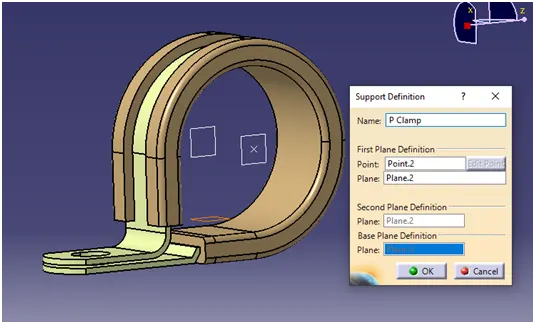

Support defination on entry
Support defination of exit
Q2. Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.

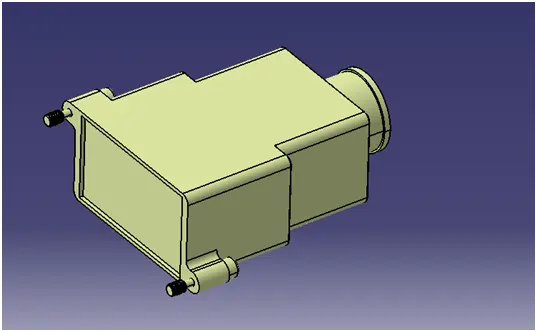

Part :Tyco 1738312-1

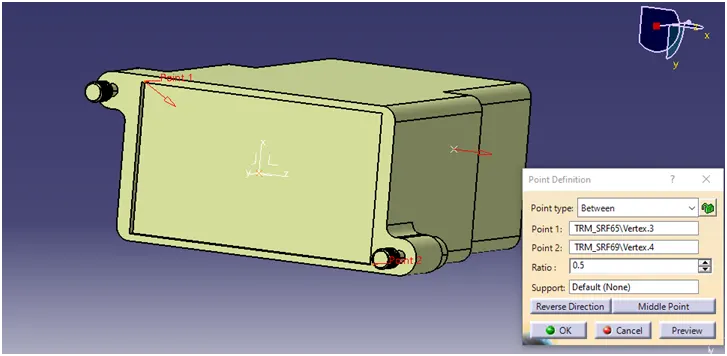

Create an point & axis on the center of the matting surface

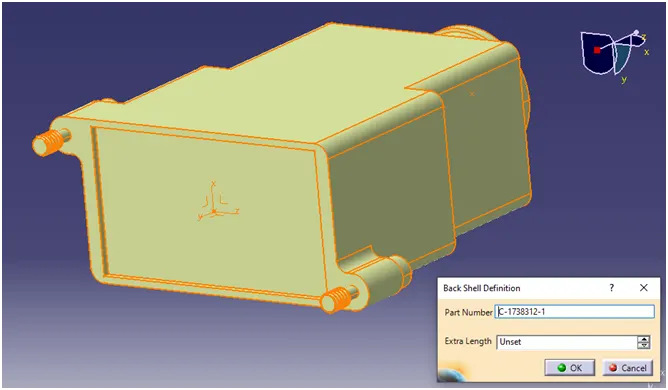

Backshell defination

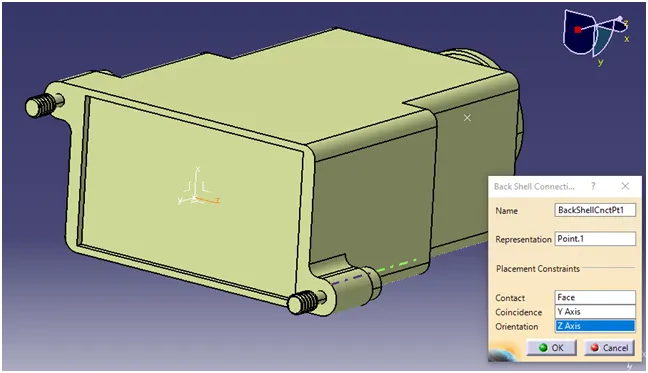

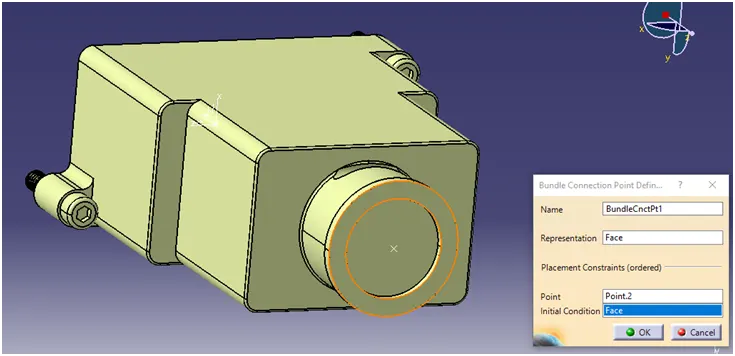

Back shell conection point defination

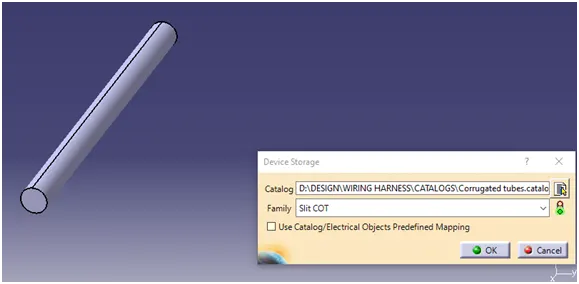

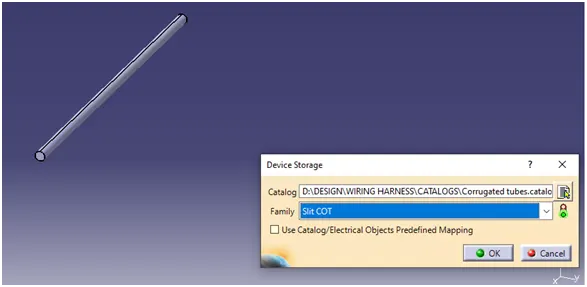

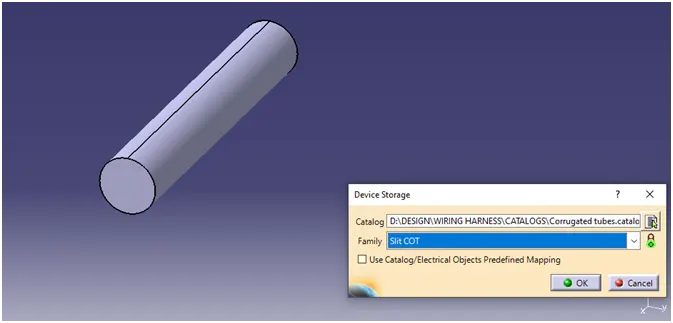

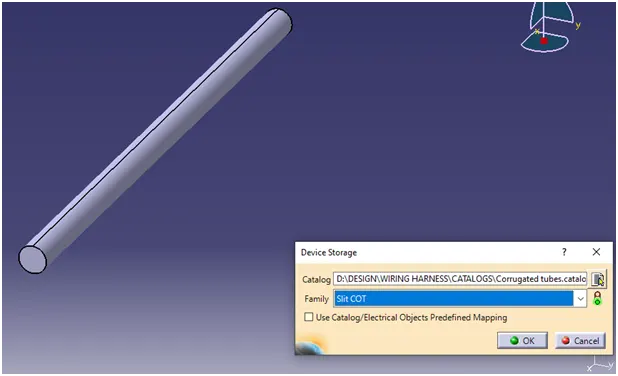

Q3. Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.
|
Name |
ID (mm) |
OD (mm) |
Thickness (mm) |
|
15mm COT |
12 |
15 |
1.5 |
|
20mm COT |
17 |
20 |
1.5 |
|
35mm COT |
32 |
35 |
1.5 |
|
10mm COT |
7 |
10 |
1.5 |
|
5mm COT |
3 |
5 |
1 |

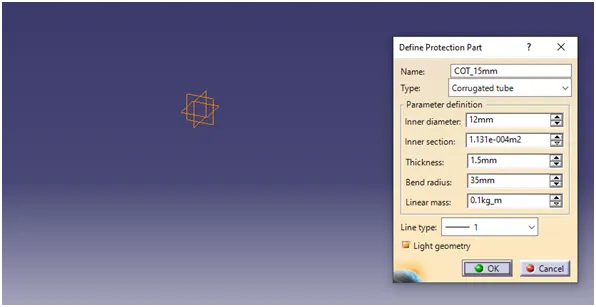

15mm COT

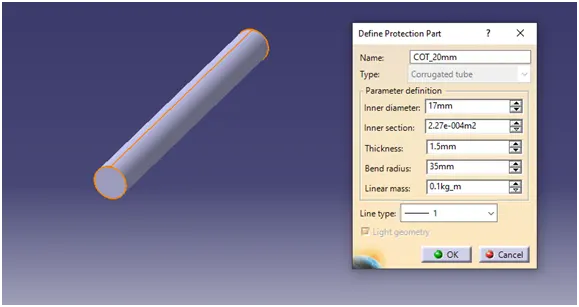

20mm COT

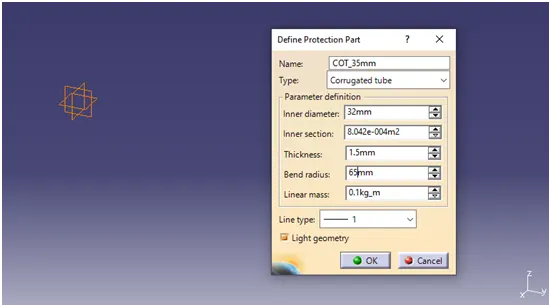

35mm COT

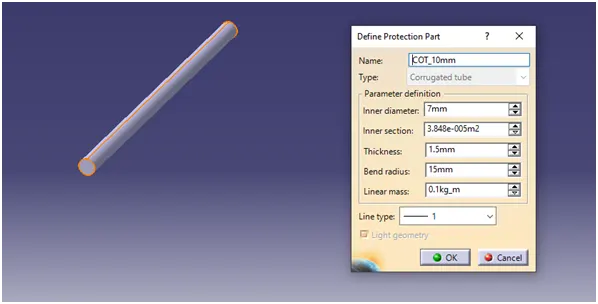

10mm COT

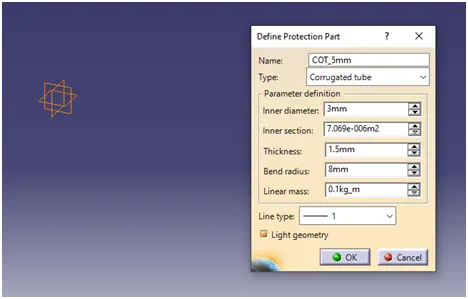

5mm COT
