Fender Design - Wheel Arch Challenge
Wheel Arch Challenge
Aim: To calculate the wheel arch gap at required points and check whether the car passes the European standard.
The wheel arch is the semicircular part positioned above the wheel of a vehicle.
Japanese requirement for wheel arch

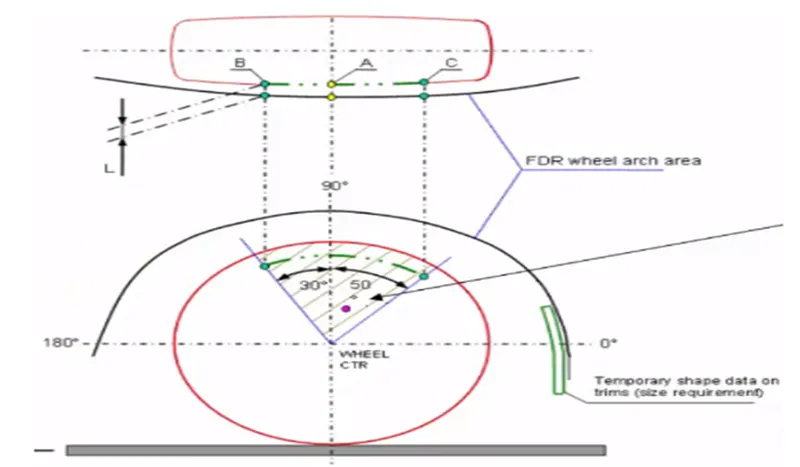

The clearance L of the tyre, hub, cap & fender in three different positions must be greater than 5 mm.
The guard requirement value ‘a’ must be more than 5 mm at 30° forward and 50° rearward from the central vertical axis of wheel.
US Regulation Requirement

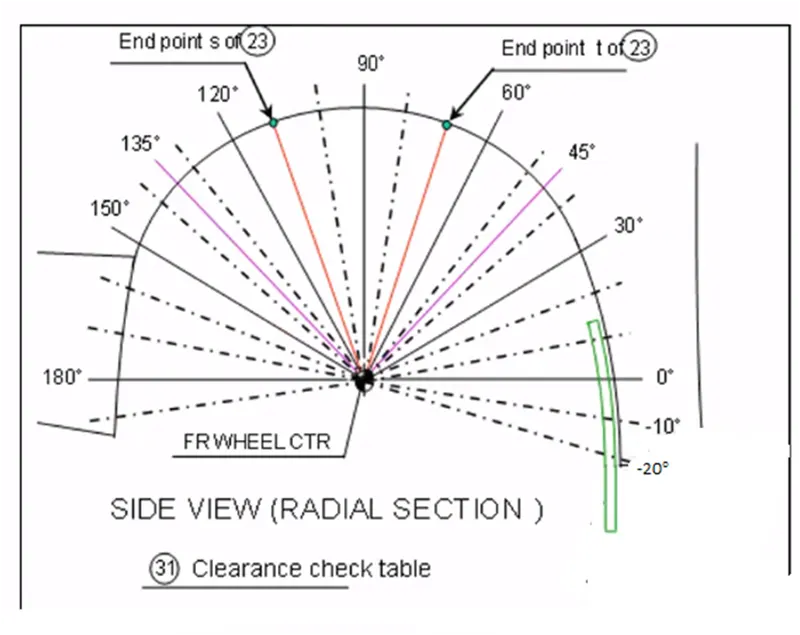

Clearance check should be carried out all positions from -100° to 100°
All the values should be greater than 5mm to satisfy the regulations.
The value of ‘a’ shall be more than 5mm at a line 30° forward and 50° rearward from the central vertical axis of axis of wheel.
European Standard for Wheel Arch

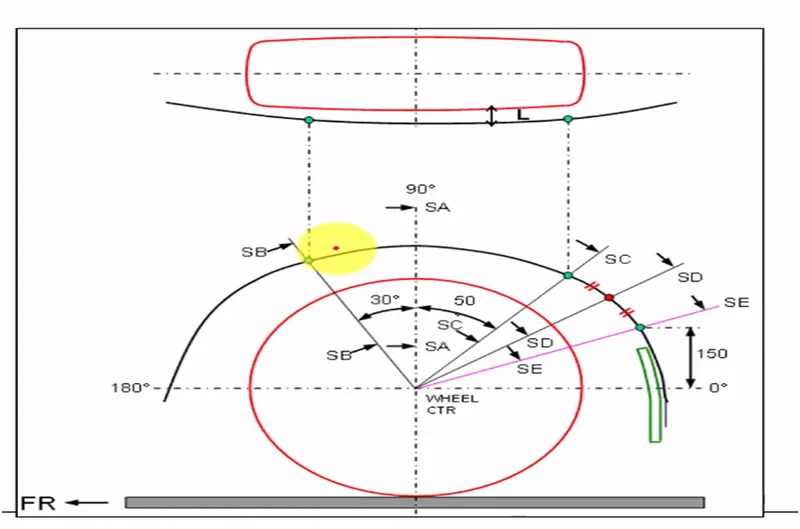

European standard states that the car passes the test when it satisfies the required dimensions Clearance L value should be greater than 10 mm at SA-SA SB-SB SC-SC SE-SE at all five sections.
Wheel Guard requirement, the value ‘a’ shall be more than 5mm at a line 30° forward and 50° rearward from the central vertical axis of the wheel.
The below snaps shows the various position measured in NX for the given Part

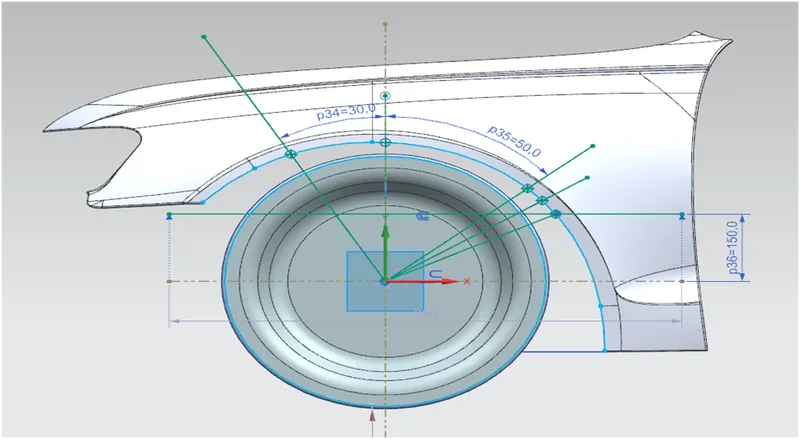

Lines created at 30°, 50° 150 mm from x axis.

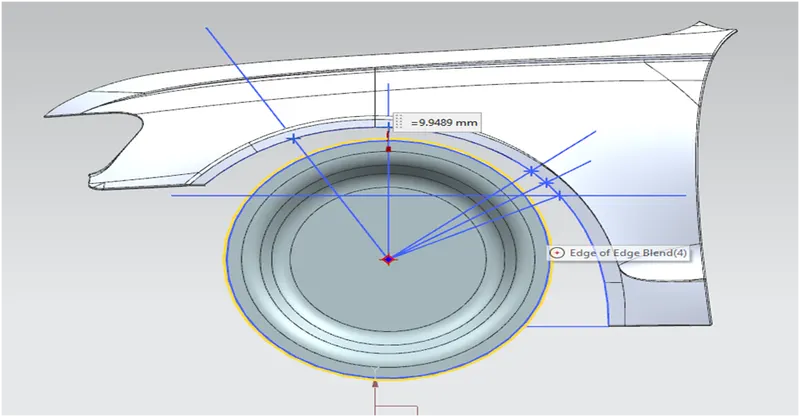

The distance of L at section SA-SA is 9.9489 mm
The distance of L at section SB-SB is 10.00 mm

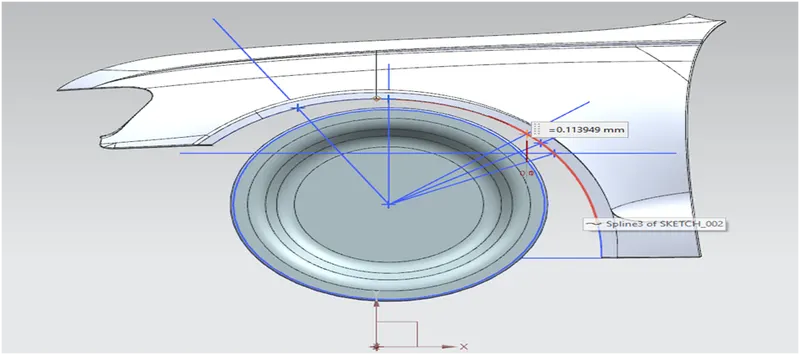

The distance of L at section SC-SC is 0.1139 mm

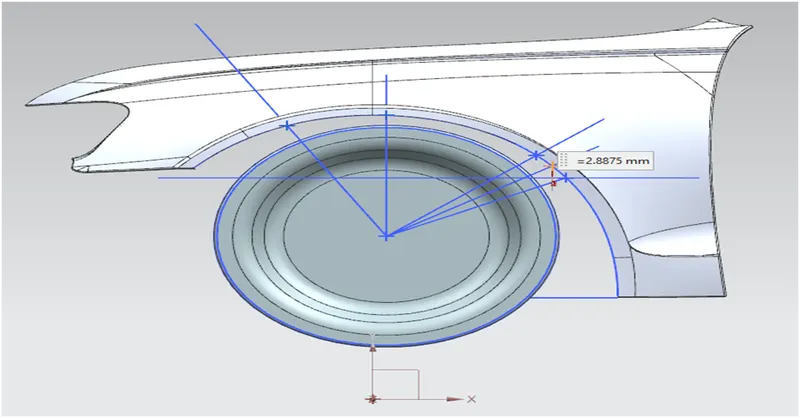

The distance of L at section SD-SD is -2.8875 mm

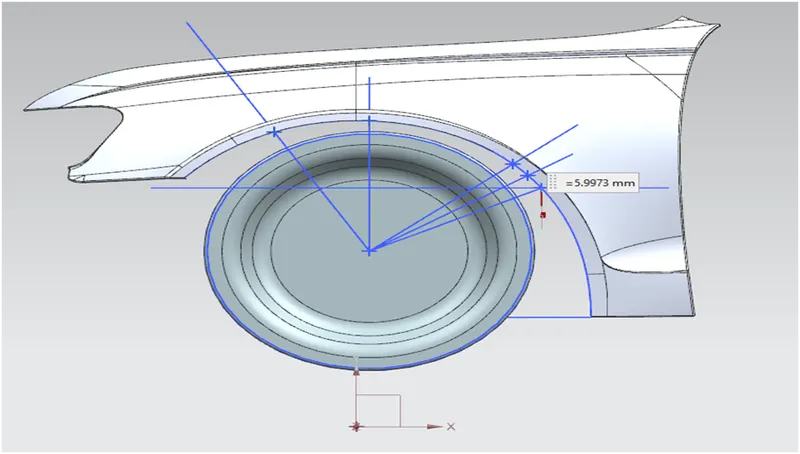

The distance of L at section SE-SE is -5.9973 mm

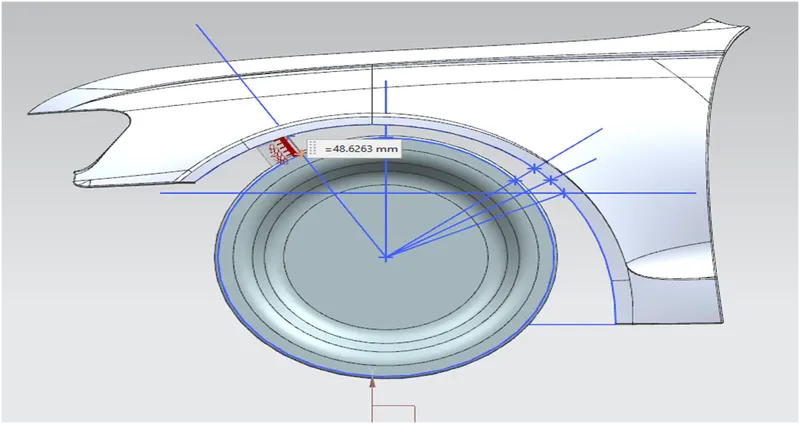

Wheel guard distance (a) at 30° line is 48.6263 mm

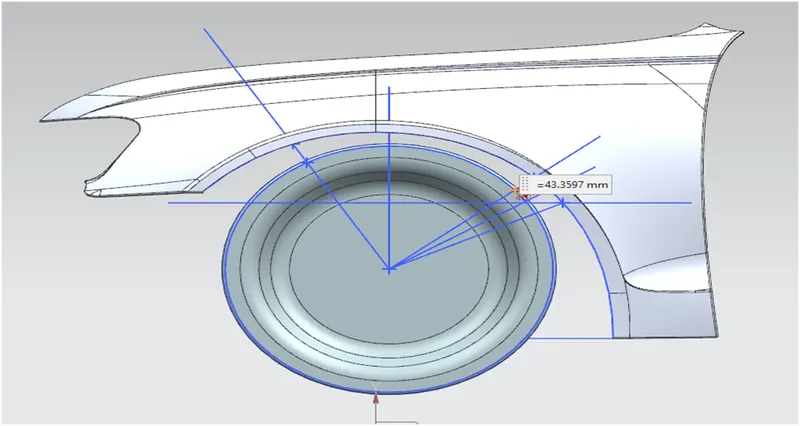

Wheel guard distance (a) at 50° line is 43.3597 mm
Chart indicating the L-distance.
|
LOCATION |
STANDARD L-DIST |
MEASURED VALUE |
TEST |
|
SA-SA |
10 mm |
9.9489 mm |
Fail |
|
SB-SB |
10 mm |
10.00 mm |
Pass |
|
SC-SC |
10 mm |
0.1139 mm |
Fail |
|
SD-SD |
10 mm |
-2.8875 mm |
Fail |
|
SE-SE |
10 mm |
-5.9973 mm |
Fail |
Conclusion: From the above chart shows that the car fender wheel arch does not satisfies the European standards.
