Wiring harness routing & packaging Rules Week 3 Challenge

1)

s1 : downloaded the step file .

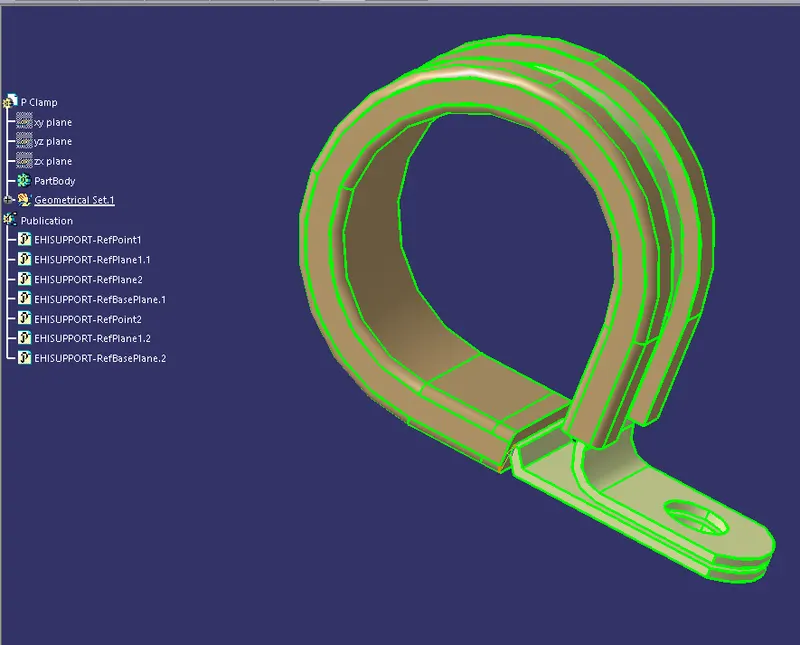

s2 : in the part workbench , created two points and planes for entry and exit of cables/bundles , and one 2mm offset plane at the base of the clamp , where a cable or bundle of cables is gonna sit.

s3 : finally using the command , 'define support parts' , converted it to an electrical component and saves it in catalogue.

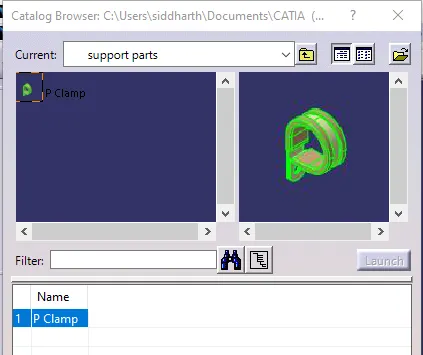

catalogue :

2)

s1 : downloaded the step file .

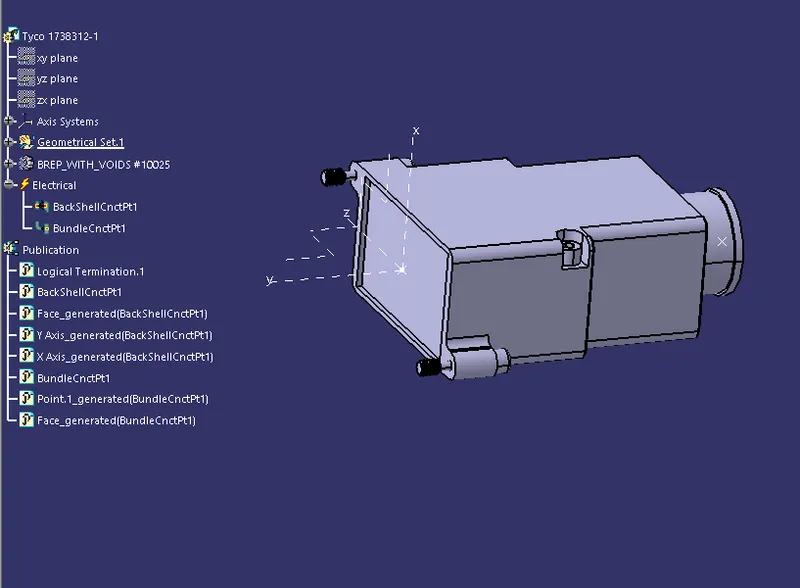

s2 : in the part workbench , defined a point for bundle entry , and defined an axis system for connector connection.

s3 : defined the component using the 'define back shell command'.

s4 : finally using the command 'define back shell connection point' and 'define bundle connection point' converted it to an electrical component and saves it in catalogue.

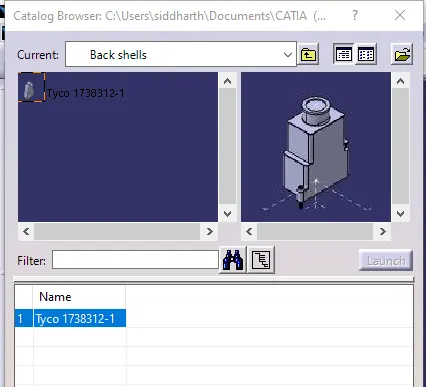

catalogue :

3)

in the electrical part design work bench , using the 'define protection part' , created the corrugated tubes as per the given data of inner diameter and thickness.

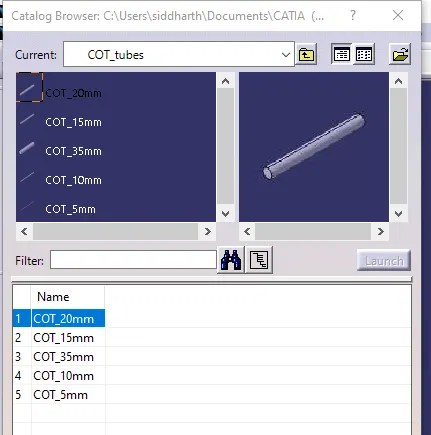

created a catalogue for the tubes and saved all the tubes in the catalogue.

catalogue :

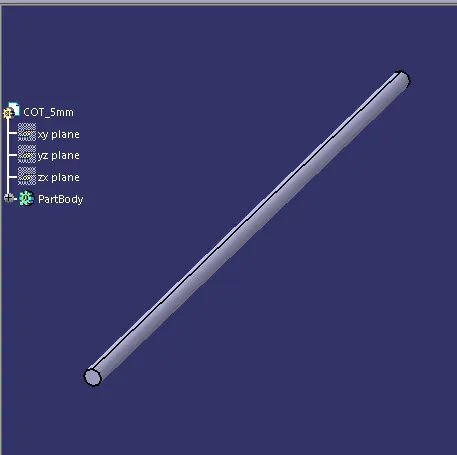

cot 5mm :

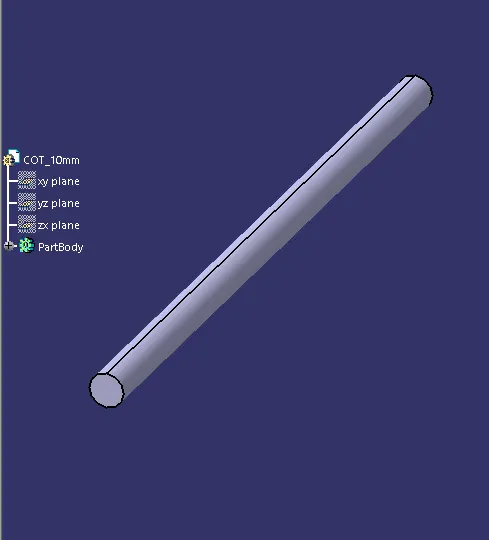

cot 10mm :

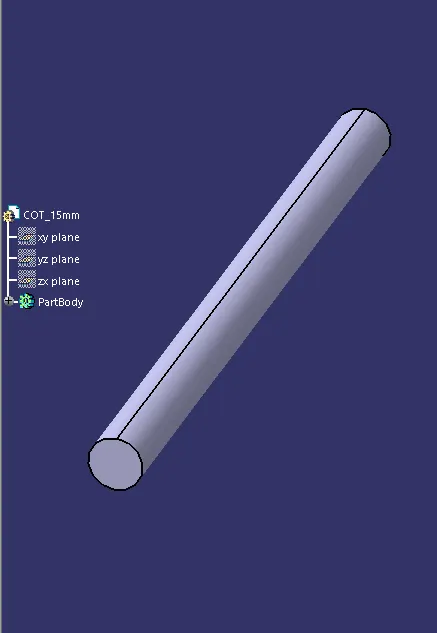

cot 15mm :

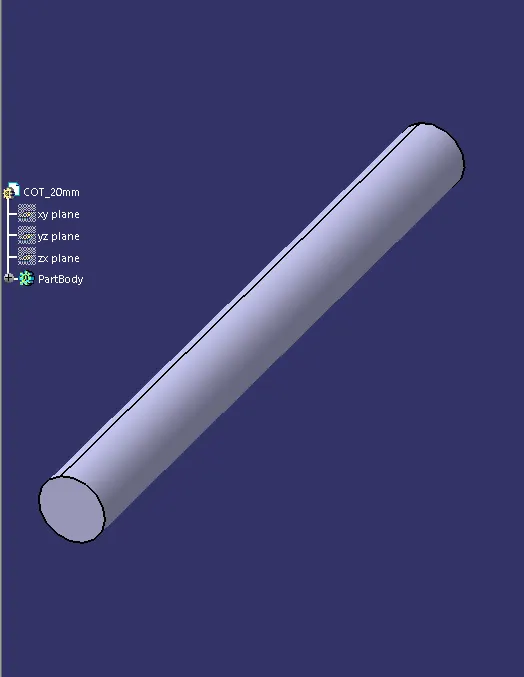

cot 20mm :

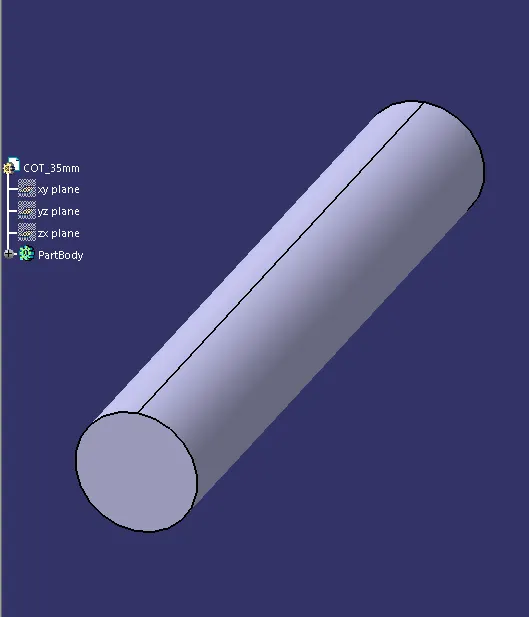

cot 35mm :
