Wiring harness routing & packaging Rules Week 3 Challenge

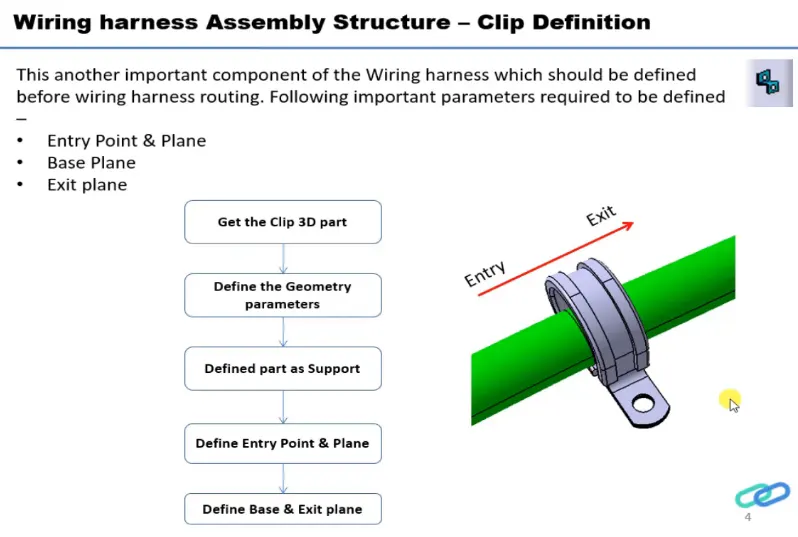

Q1. Download following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.
Note: if you face any issue with point definition, point selection, Right-click on the point definition window and use the reset option.
Ans:
steps:

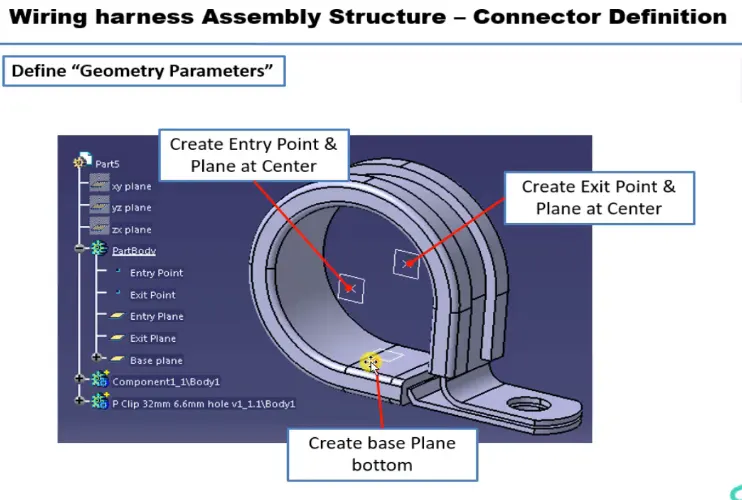

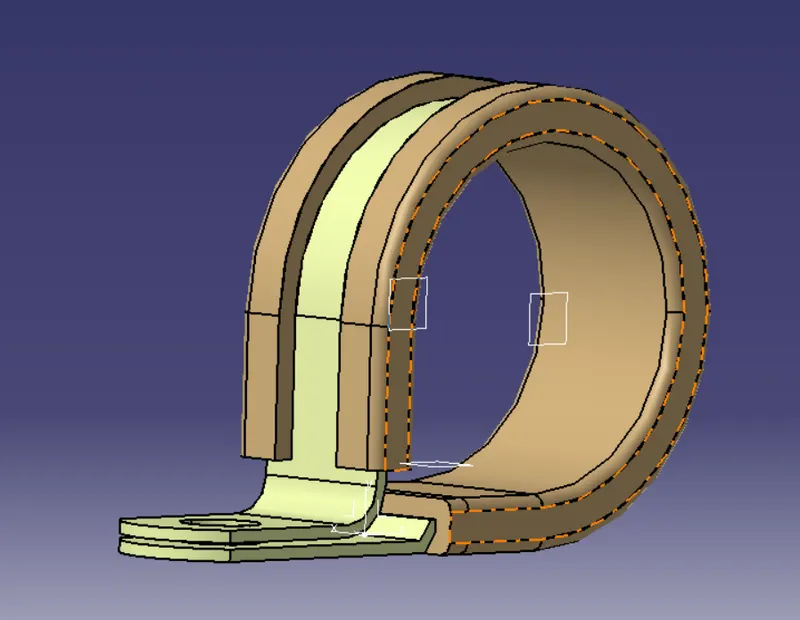

- Create two points one as entry and another as exit point and create a plane on the
- create a point and plane at the base.
- Switch to Electric part desgn
- Click on support definition -> select part -> select entry point -> select entry plane, exit and base plane.
- repeat the same step by clicking support definition and selecting the plane from opposite direction

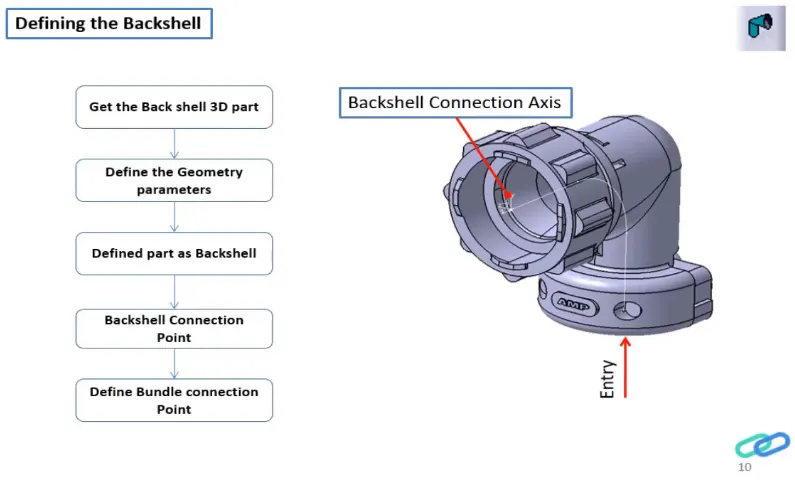

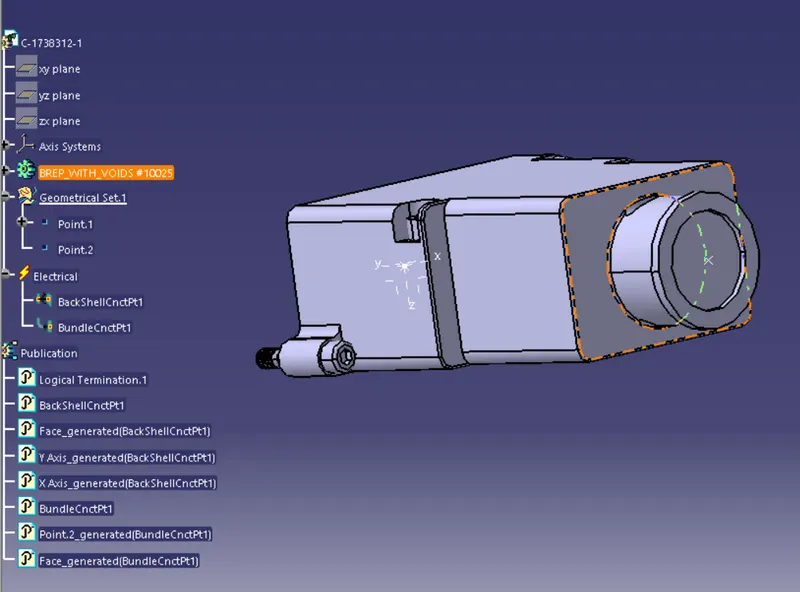

Q2. Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.
- create Back shell on connector mating face (entry)
- create axis system for back shell entry.
- create bundle connection point.
- switch to Electrical part design.
- select define back shell
- Then select define Back shell connection point -> representation- point, contact- face, coincedence - y axis.
- Lastly define bundle connection point-> representation- normal to bundle, point (face)- entry point, initial condition- face
Q3. Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.
|
Name |
ID (mm) |
OD (mm) |
Thickness (mm) |
|
15mm COT |
12 |
15 |
1.5 |
|
20mm COT |
17 |
20 |
1.5 |
|
35mm COT |
32 |
35 |
1.5 |
|
10mm COT |
7 |
10 |
1.5 |
|
5mm COT |
3 |
5 |
1 |
STEPS:
- Switch to Electrical part design
- Select Define protection Part
- Click on part (on file name in specification tree)
- Provide given parameters and bend radius should be '1.5 x Outer Dia'.

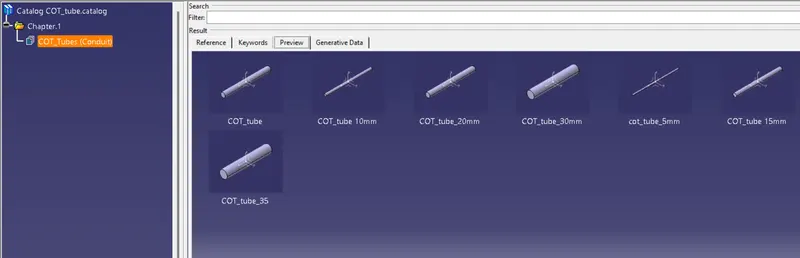

CREATING CATALOGUE:
- new part -> catalogue document -> add family -. rename -> type -> select Conduit -> save.
- Open part to add catalogue -> store device command -> select catalogue -> family -> Slit_cot_tube -> ok
