Wiring harness routing & packaging Rules Week 3 Challenge

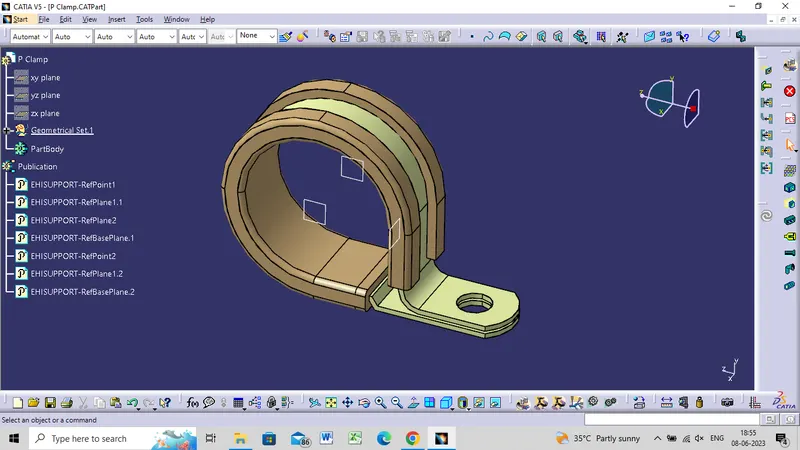

P Clamp

• P Clamps lock Cables and Hoses in Place and help Ensure that machinery,Vehicles and equipment keep running.
• They Bracket wires, Cables or hoses together mechanically and are fastened securely to an anchor point usually with a Screw or a Bolt.

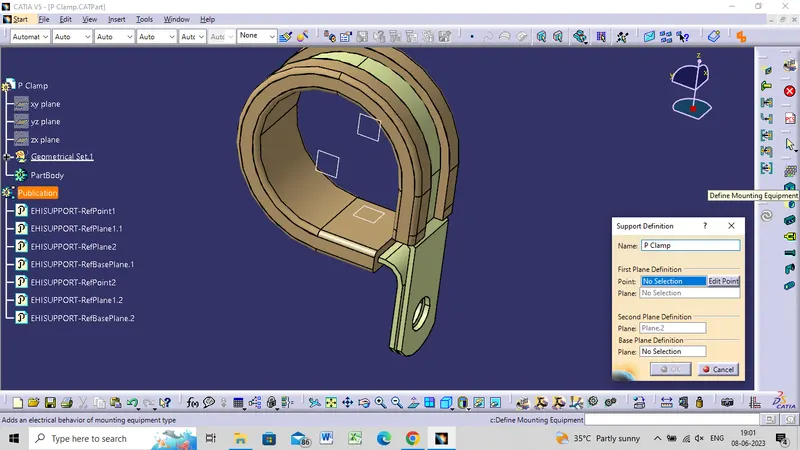

P clamp is an important component of wiring haress which should be defined before wiring harness routing. To define clamps as an electrical part following parameters are requied :-

• Entry point and plane
• Base plane
• Exit plane

After providing all neccesary points and planes at proper places we need to define mechanical part as an electric part , for defining we need the first to click on define support part.

Back Shell

It is a Rear Portion Of connector , Usually enveloping the Connector Housing, Designed to Provide additional Support and Protection for the Connector and its cable coming out of the back of the Connector.

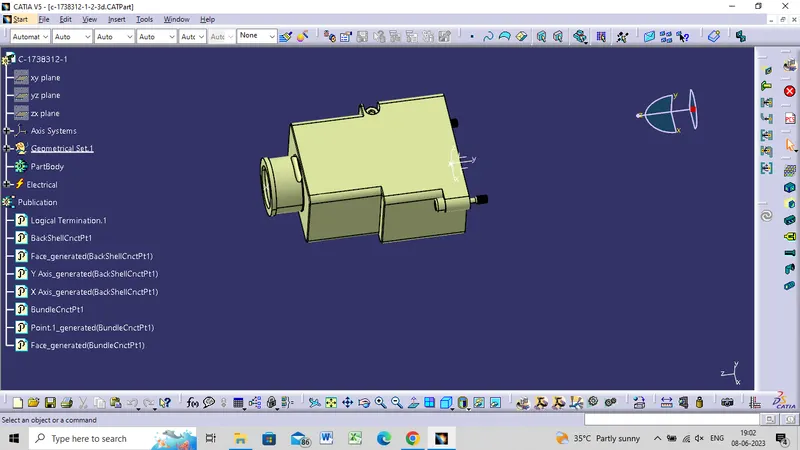

Defining Backshell Electrically

• First of all we have to download the igs or step file of Tyco 1738312-1 Backshell.

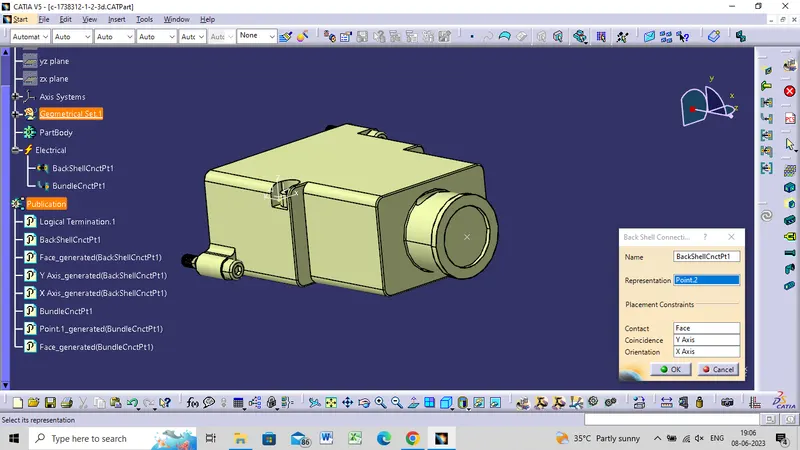

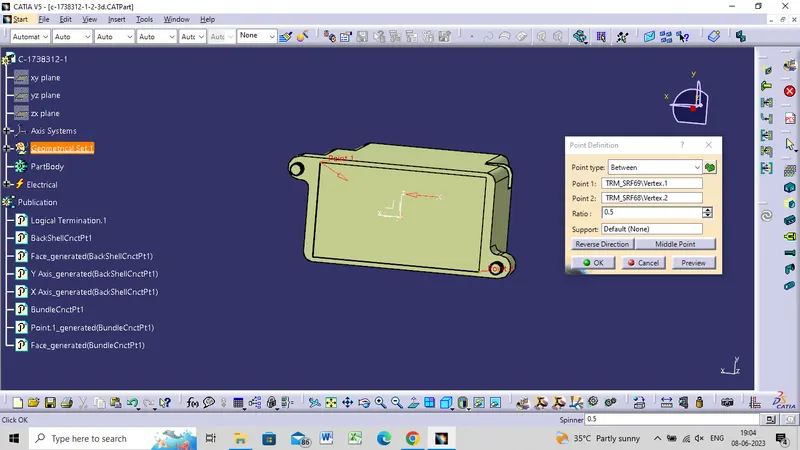

• After that, Extract it and Create two Points Point 1 is mating Connection Point & point 2 is Bundle Connection Point.

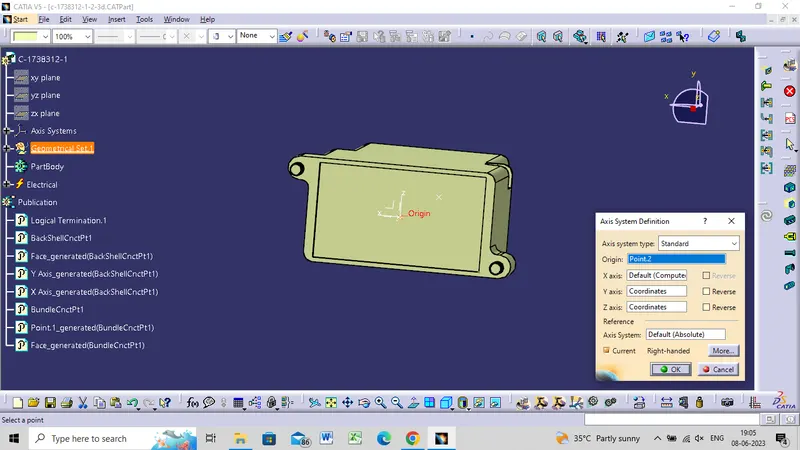

• After that Create One Axis System & go to Electrical Part Design and Define the Electrical Properties.

BACK SHELL CONNECTION POINT

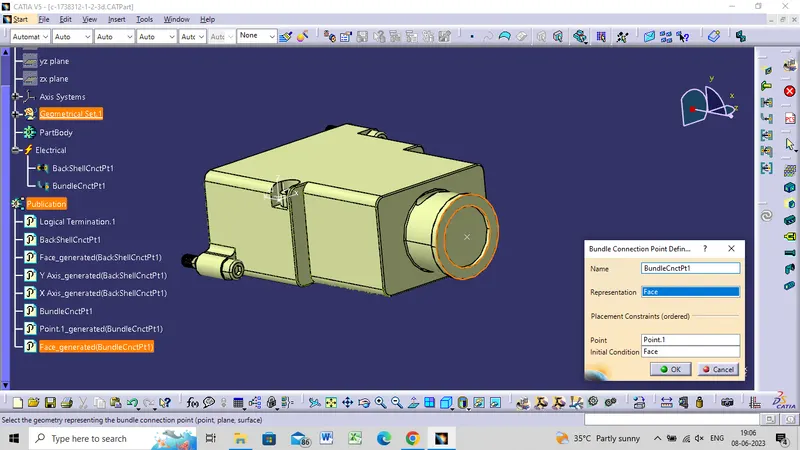

BUNDLE CONNECTION POINT

Corrugated Tubes

• A Corrugated Tube is a Pipe with a helical groove obtained from a Plain tube by Cold forming.
• The number of starts of the helix can be changed as well as the angle to optimize the heat transfer and performance.

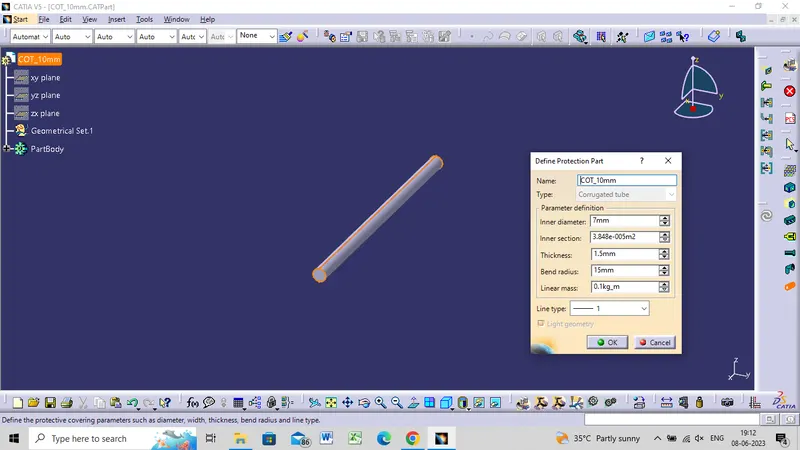

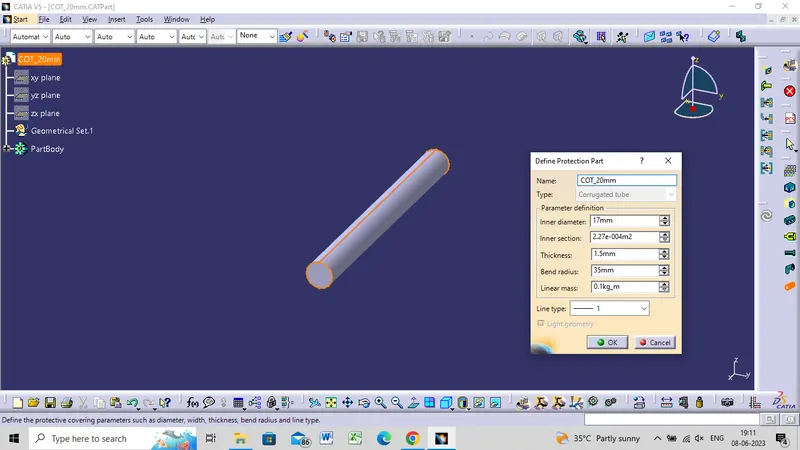

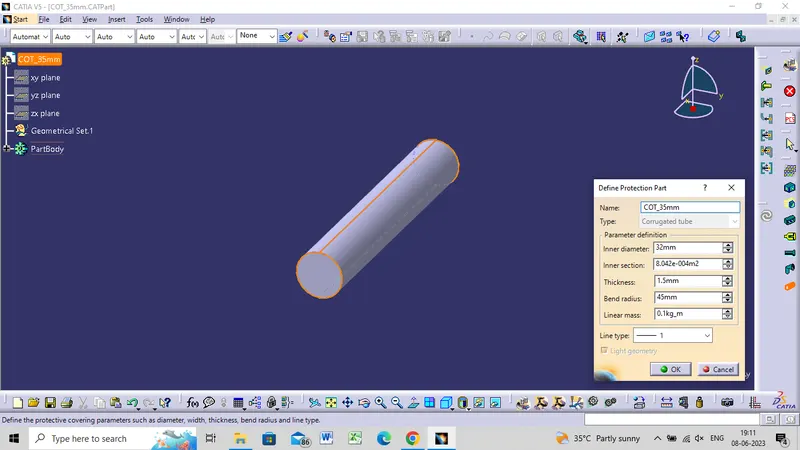

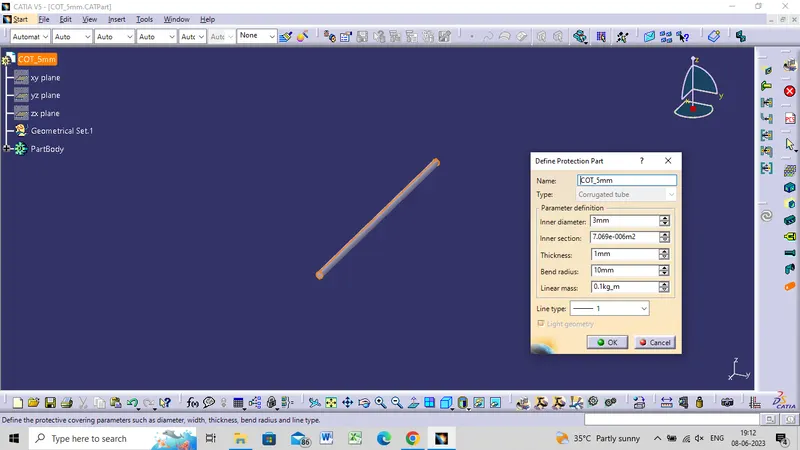

Design Procedure for Corrugated Tubes

• Firstly we have to go to file New Part
• And Select Part Body and give the inner Diameter , Thickness & Bend Radius as given in the Chart.

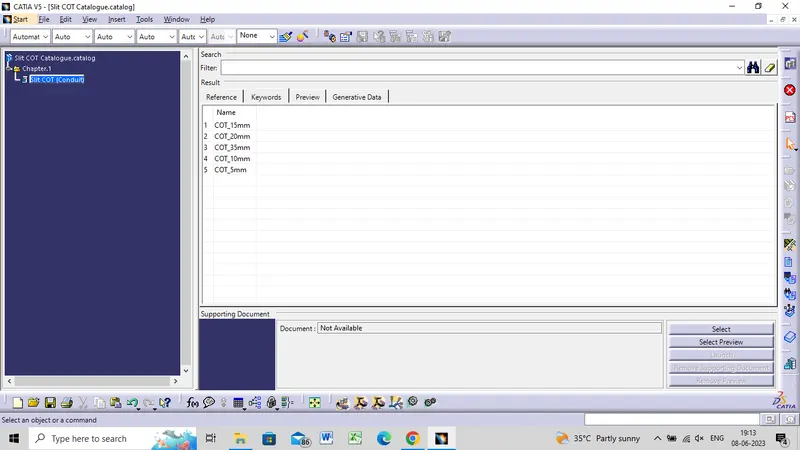

• After that we have to add them in Catalouge.
