SECTION MODULUS CALCULATION AND OPTIMIZATION OF HOOD
SECTION MODULUS
- Section modulus is defined as the ratio of moment of inertia os a section about its centroidal axis and to the distance of extreme layer from neutral axis.
-

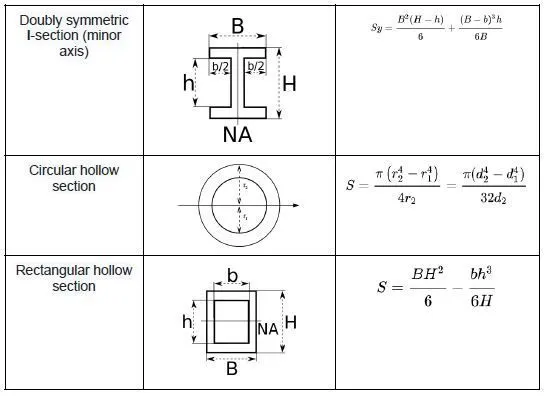

Equation for section modulus is
S= I/Y
Where,
S= Section modulus
I=Moment of inertia
Y= Distance from neutral axis to extreme layer
CASE 1

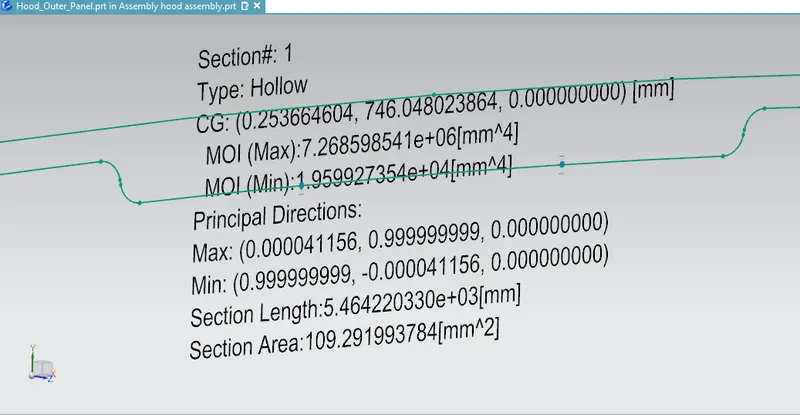

MOI(Max):7.268598541e+06[mm^4]
MOI(Min): 1.959927354e+04[mm^4]
y= 439mm
S=I/Y
S=1.959927354e+04/439
S=0.243754915
CASE 2
I Changed the emboss value and increses the strength
MOI(Max):7.308598541e+06[mm^4]
MOI(Min): 2.009927354e+04[mm^4]
S=I/Y
S=2.009927354e+04/439
S=0.249973383
