FENDER WHEEL ARCH CHALLANGE

WHEEL ARCH

• It is a semicircular profile above wheels designed for enclosing tire within the fender.
• The wheel arch is designed considering all possible motions the tire undergoes while the vehicle is in motion.
• The wheel arch also ensures stopping any debris that could possibly fly outside the wheel well and hit pedestrians.

JAPAN STANDARDS

• According to the japan standards the distance between the wheel and the fender should be the minimum 5mm distance.

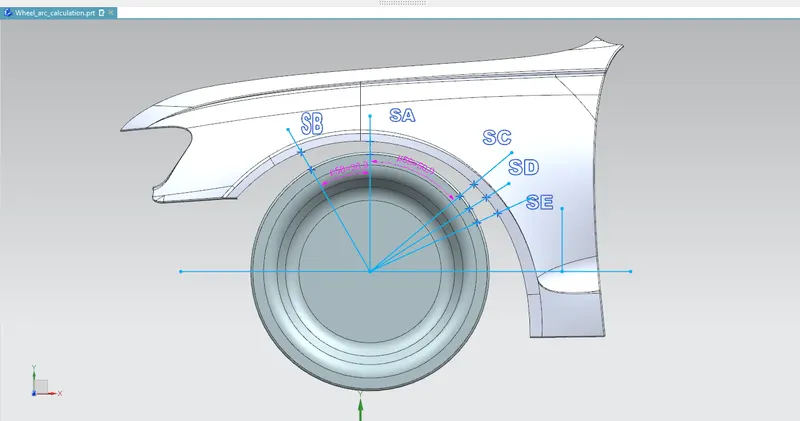

• In the above image, the distance between the wheel and the arch should be 5mm all around the arch at some sections it fails.

European Standards For Wheel Arch

• The European regulation requires a determined clearance or a minimum distance of 10mm.
• To be maintained between the Fender and the respective tyre at particular point.

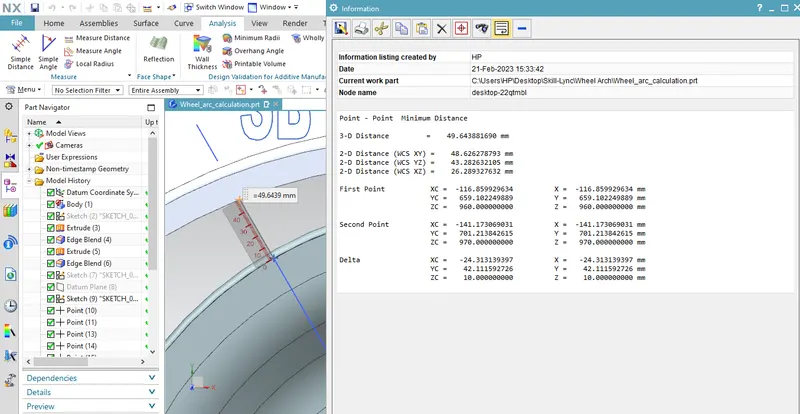

CLEARANCE VALUE:

The value of "L"at SB=10mm.

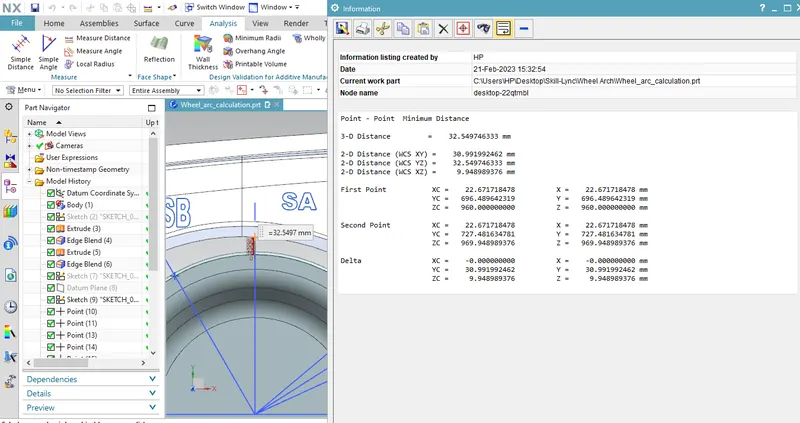

SA DISTANCE

The value of"L"at SA=9.9489mm

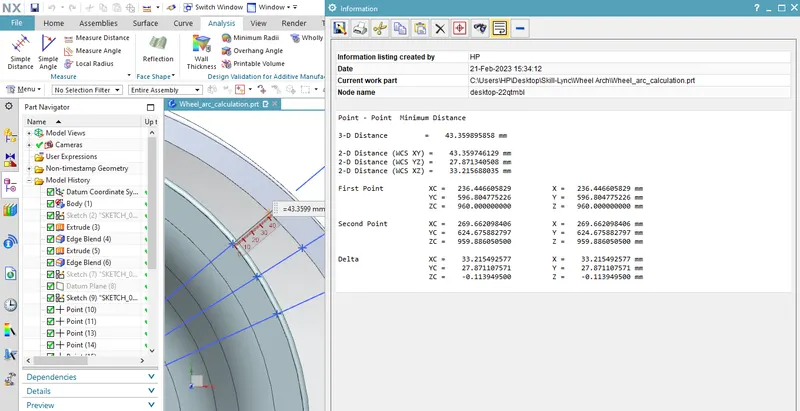

SC DISTANCE

The value of "L"at SC=-0.11394mm

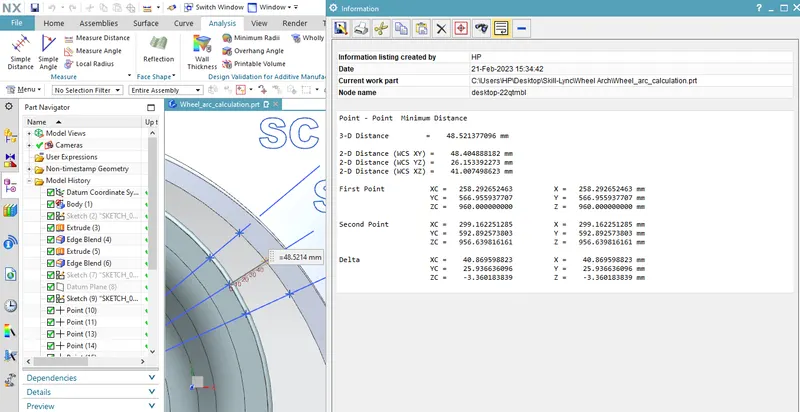

SD DISTANCE

The value of "L"at SD=-3.3601mm

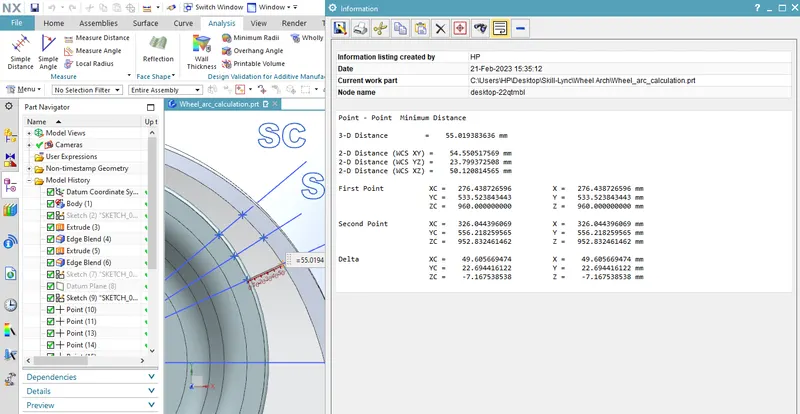

SE DISTANCE

The value of "L"at SE=-7.1675mm

SECTION	CLEARANCE VALUE 'L'	RESULT (L≥10=PASS,L<10=FAIL)
SB	10mm	PASS
SA	9.9489mm	FAIL
SC	-0.11394mm	FAIL
SD	-3.3601mm	FAIL
SE	-7.1675mm	FAIL

CONCLUSION:

we can say or conclude that the given fender dosen't pass the eurppean standards.The stayling team is required to modify the stayling surface of the fender such that the clearance "L"at sections must be greater or equal to 10mm by increasing the curvature at those sections towards outside.
