Wiring harness routing & packaging Rules Week 3 Challenge

Q1:

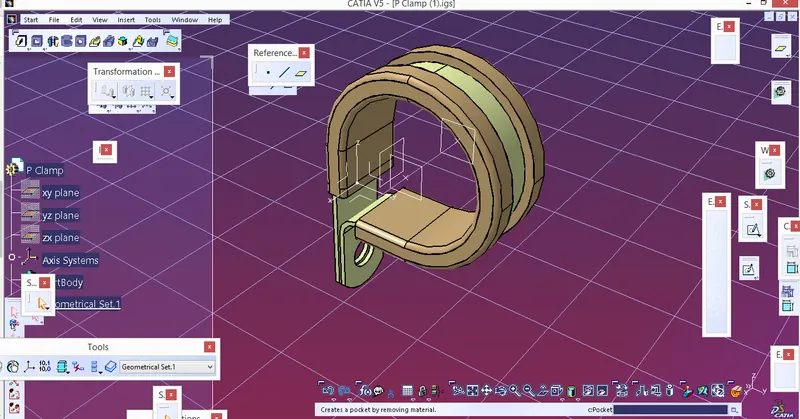

1) Define Geometrical parameters for the given P Clamp.

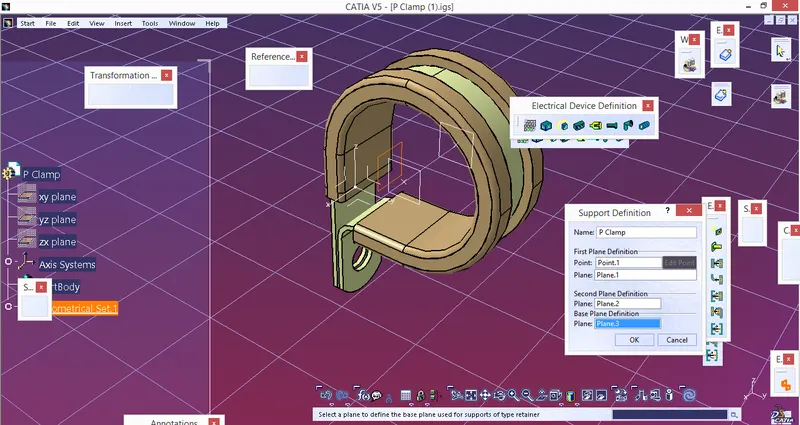

2) Switch to Electrical Part design workbench. Define the Clamp as Mounting using Support Part option.

3) Clamp mounting is then defined from both the ends.

4) Save the Cad file.

Q2:

1) Downlöad Cadfile from the Link.

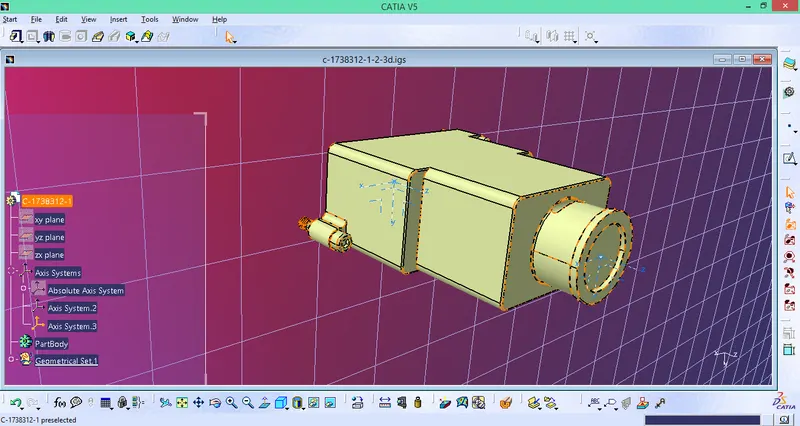

2) Define Geometrical parameters.

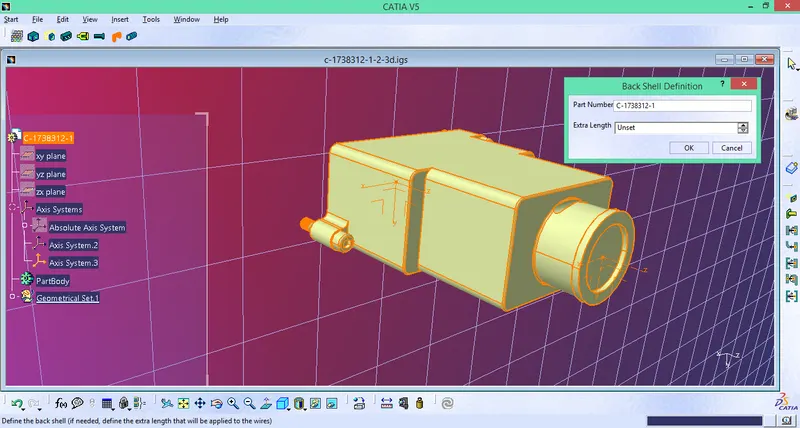

3) Define Cad Part as Backshell

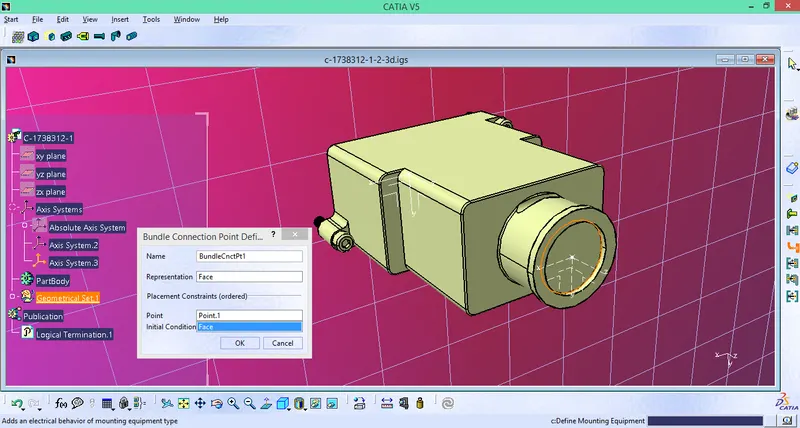

4) Define Bundle Connection Point

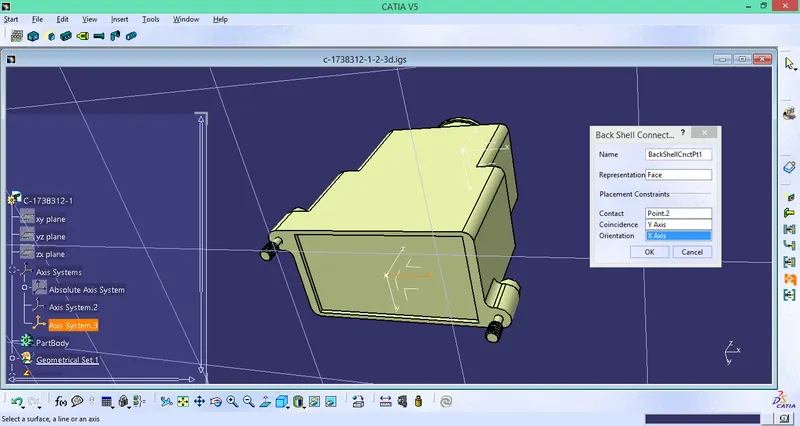

5) Define Backshell Connection point

6) Save the Cad File

Q3:

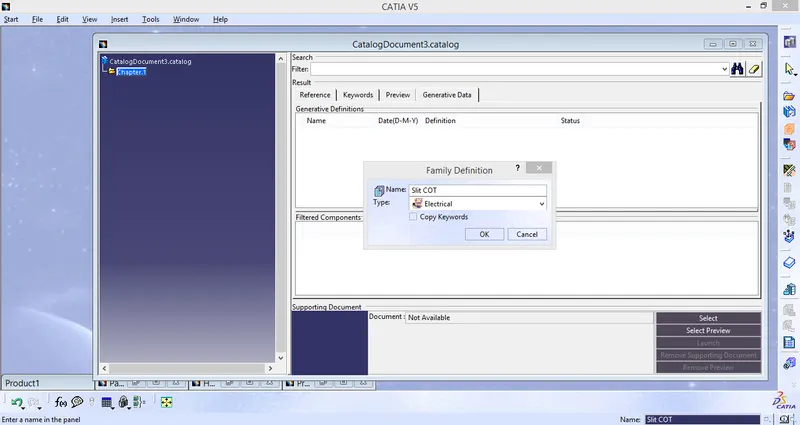

1) Create new catalogue:

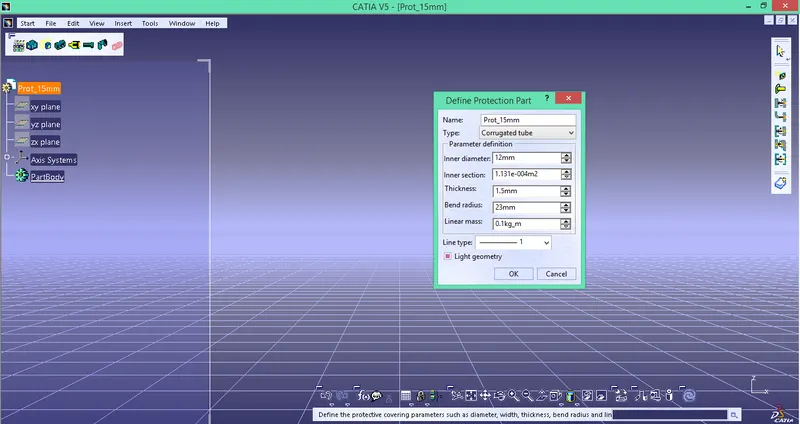

2) Define Protector using Protection Part command.

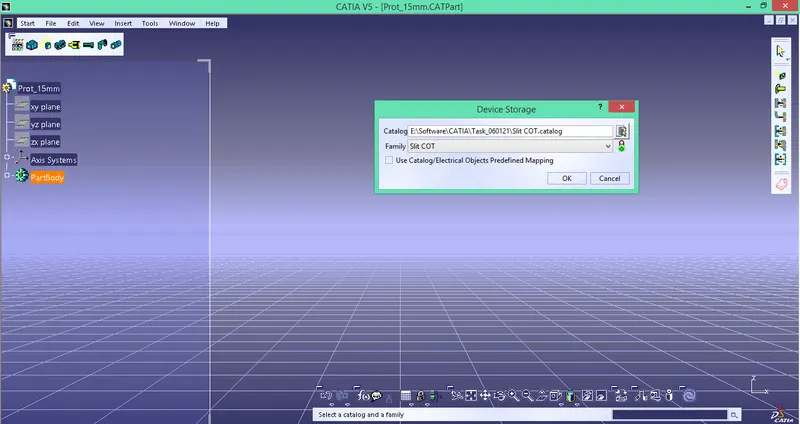

3) Add the Cad Part to catalogue using Device Storage Command

4) Repeat the procedure for different given dimensions
