Wiring harness routing & packaging Rules Week 3 Challenge

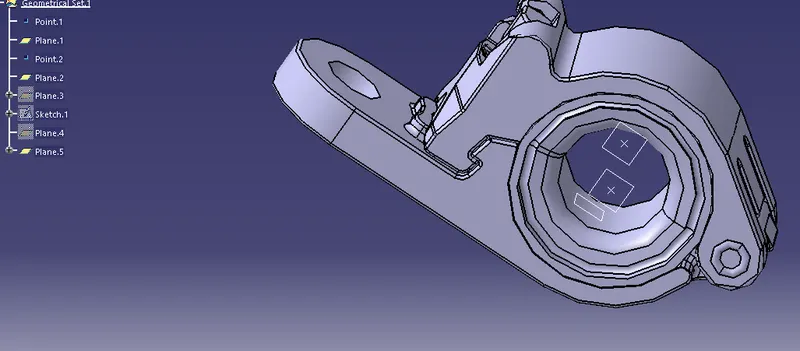

1. p clamp is geometrical parameters are added

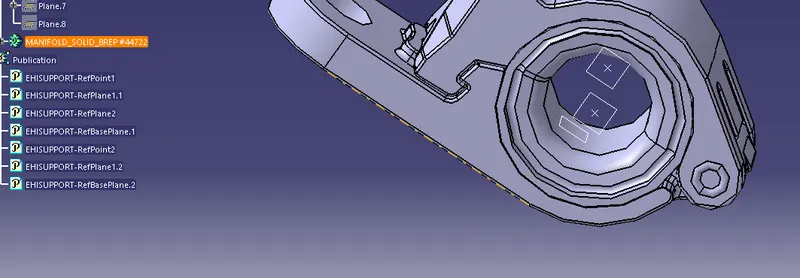

p Clamp is define as support in electrical part design by using entry exist base plane

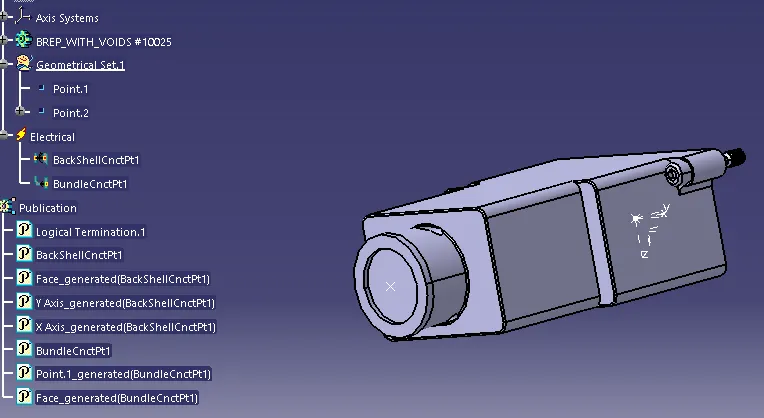

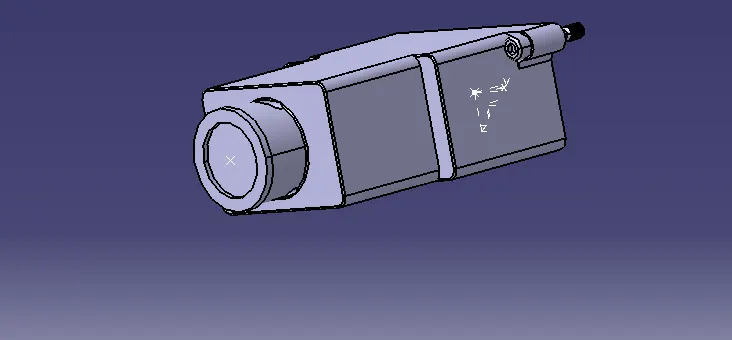

2. Backshell add geometric paraeter in partdesign on back shell 3D model

define backshell and give back shell conecting point & bendle connection point

3. protection cover for bunddle with given dimention and add that on catlog

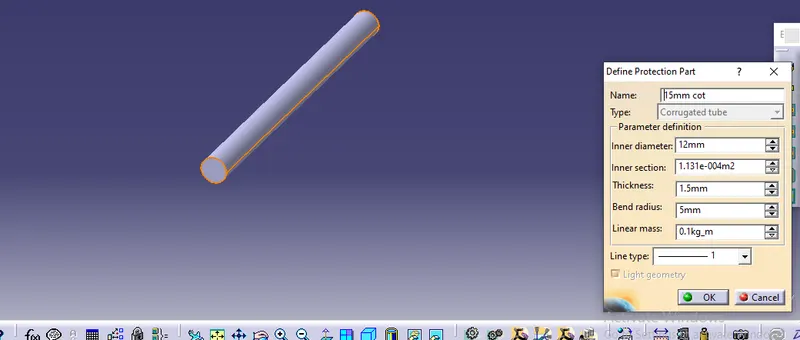

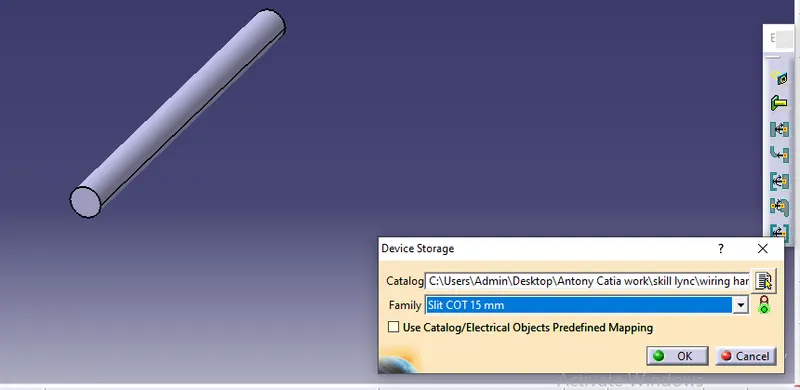

15 mm cot tube & catlog

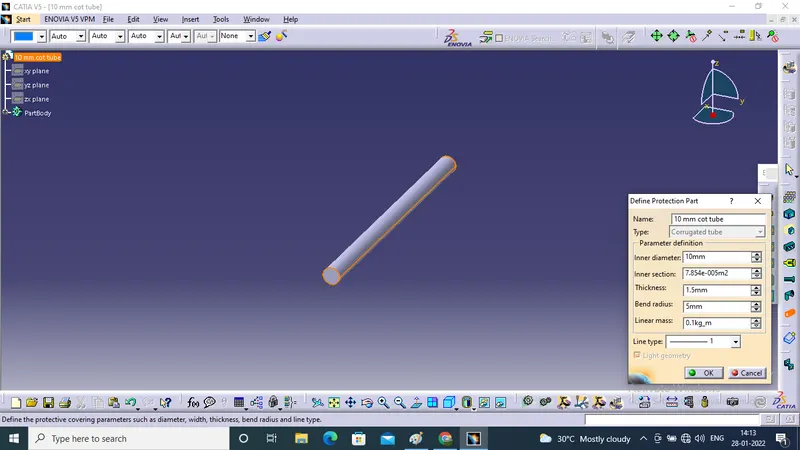

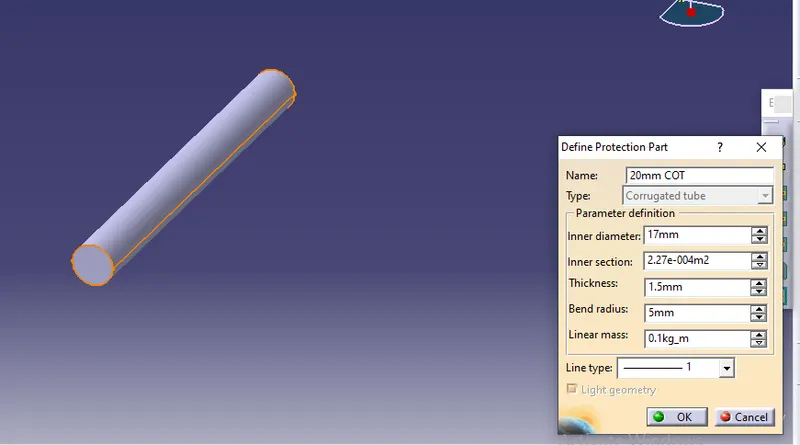

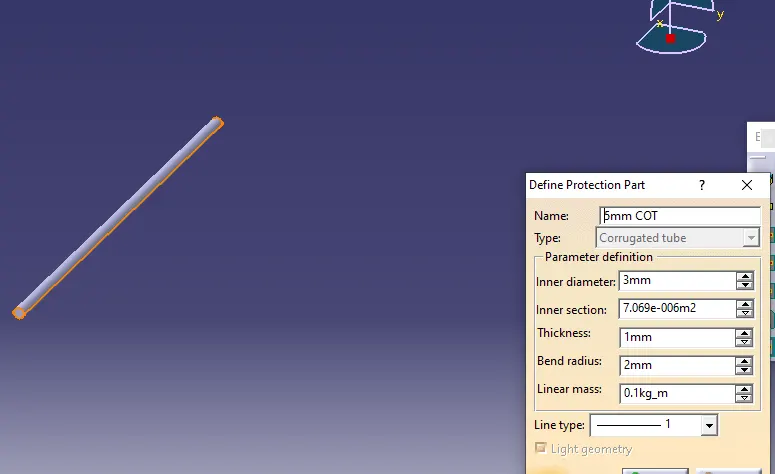

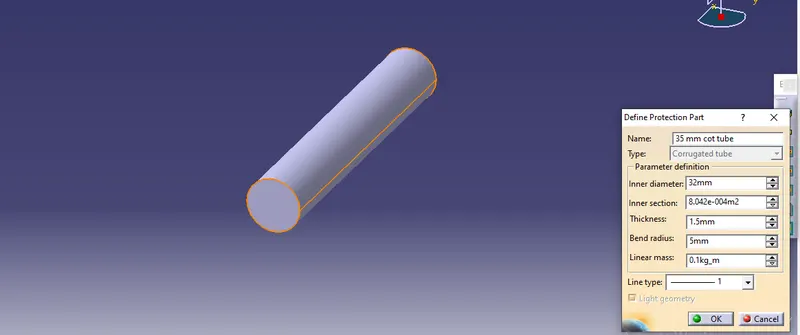

likewise remaing pictures are updated for cot with given dimention
