Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

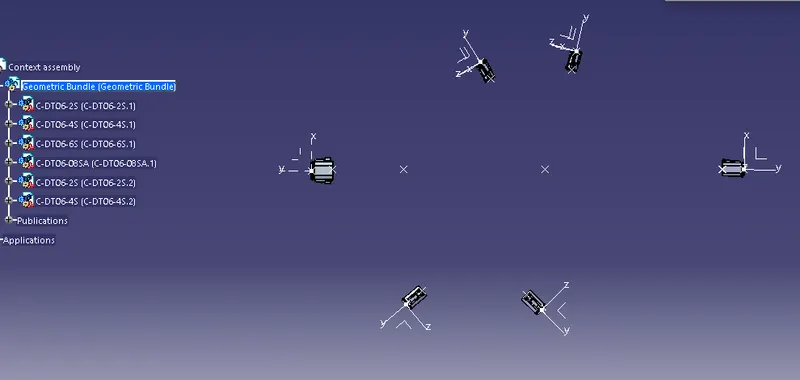

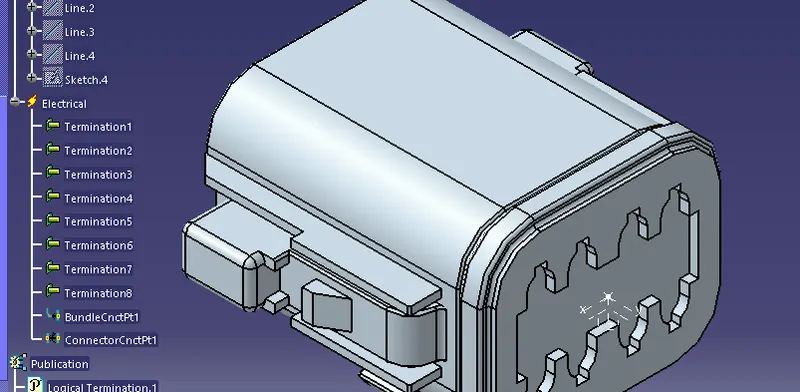

Download the connectors which are ask to route and define that into electrically

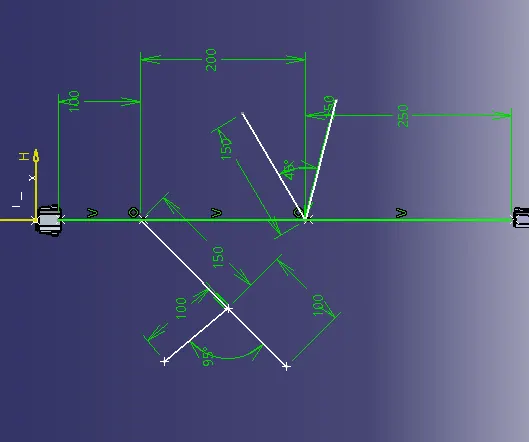

place the connector with respective loction as on the given dimention

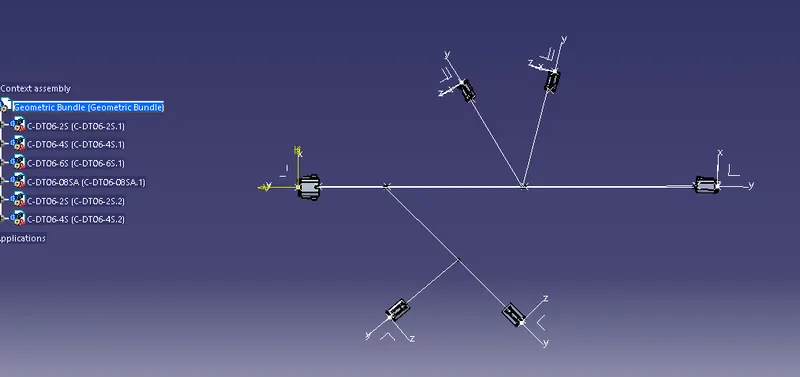

product is to change to context and also geometric bundle product file is added and connectors electrcally define in harness assembly workbench

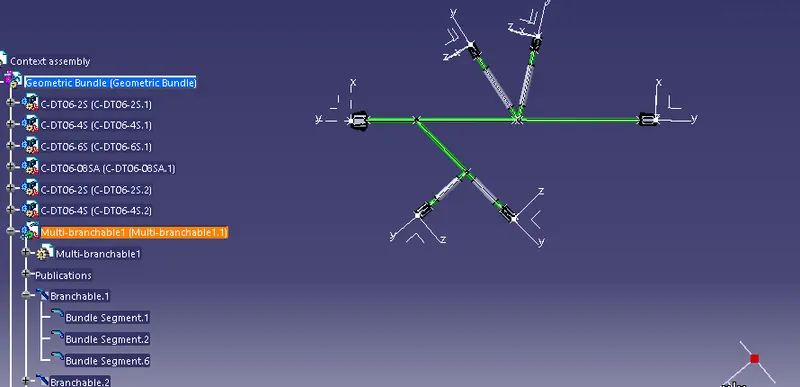

Add multi branch create the main branch by selecting the connectors then add branch point then connect the sub branch to remaing connector cot tube added as per the proposed connecor
