Wiring harness design in CATIA V5 - 3D modeling Week 2 Challlenge

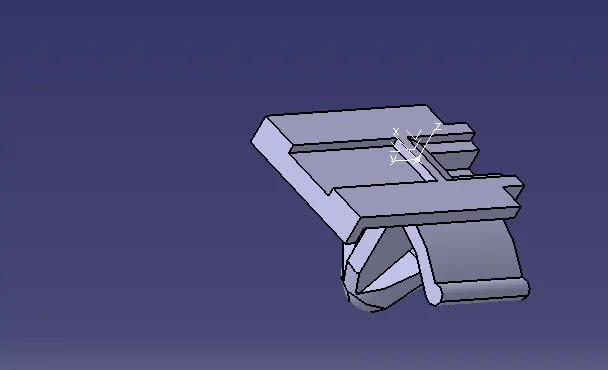

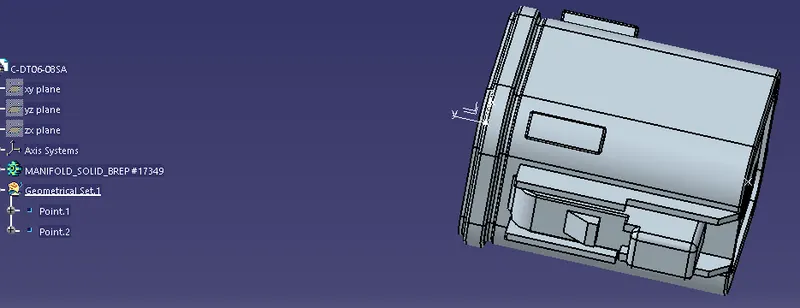

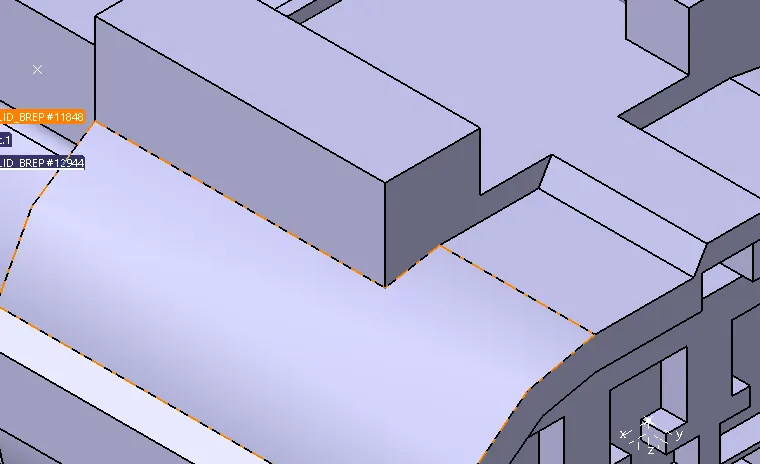

dowload the 3D file from te.com & add axis system and points for connectors and clip

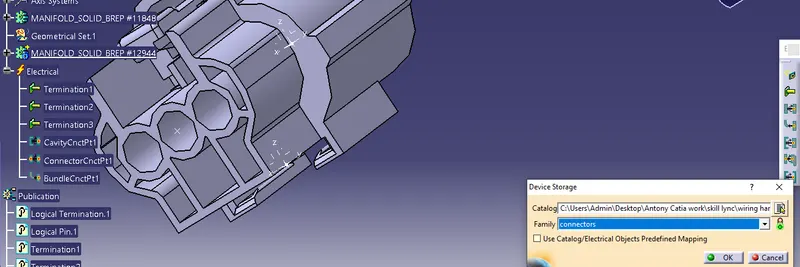

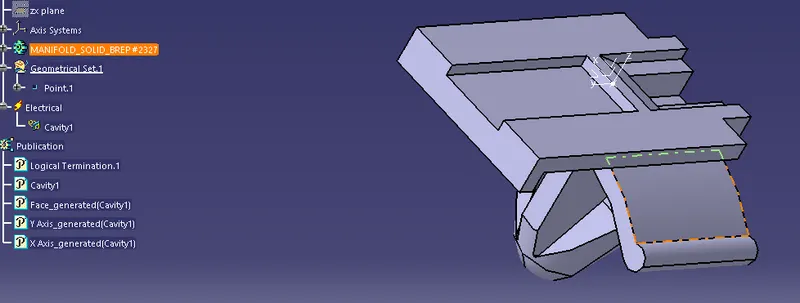

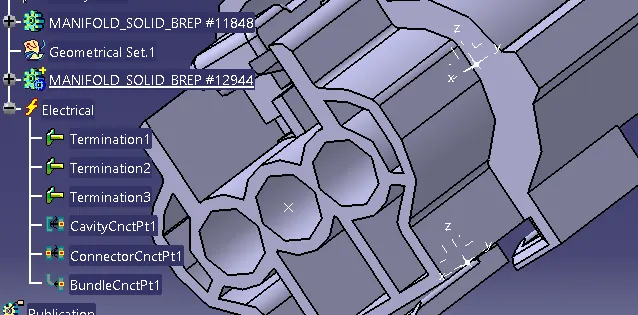

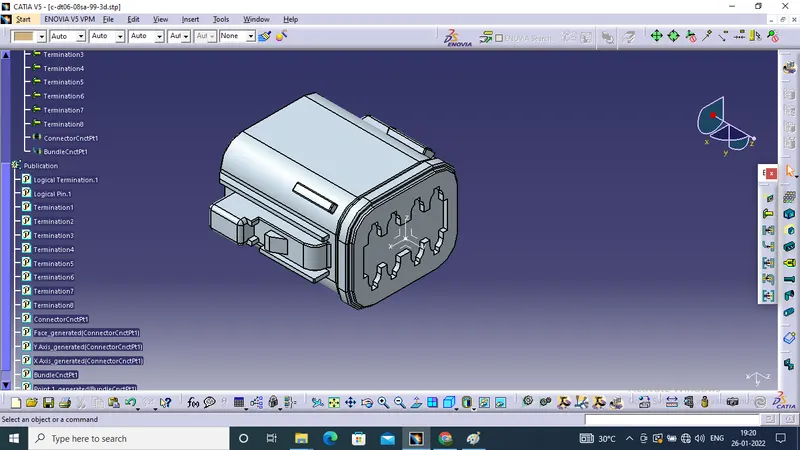

2. convert this mechanical part into electrical part by using Electrical Part Design work bench bundle connection point, coonector connection point & Cavity connection points are defined

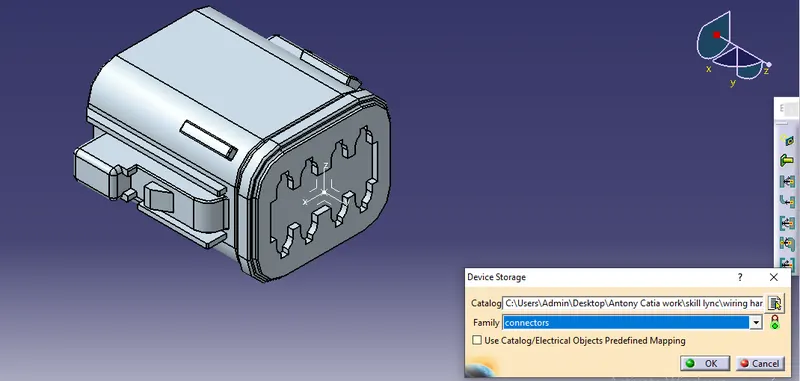

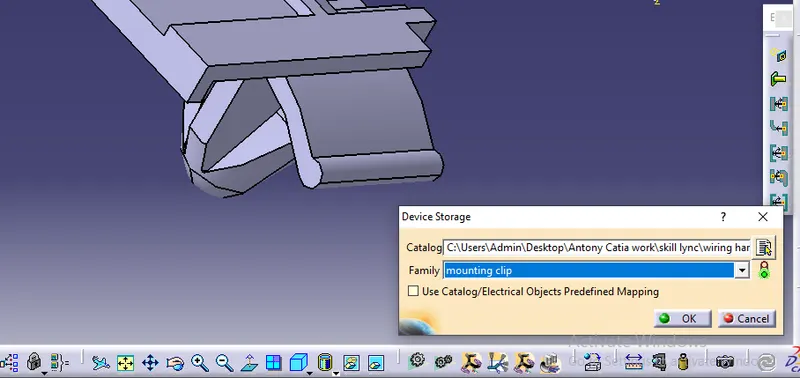

3. all this electrically defined connectors & clamp are stored in catalogue
