Wiring harness routing & packaging Rules Week 3 Challenge

Q1. Download following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.

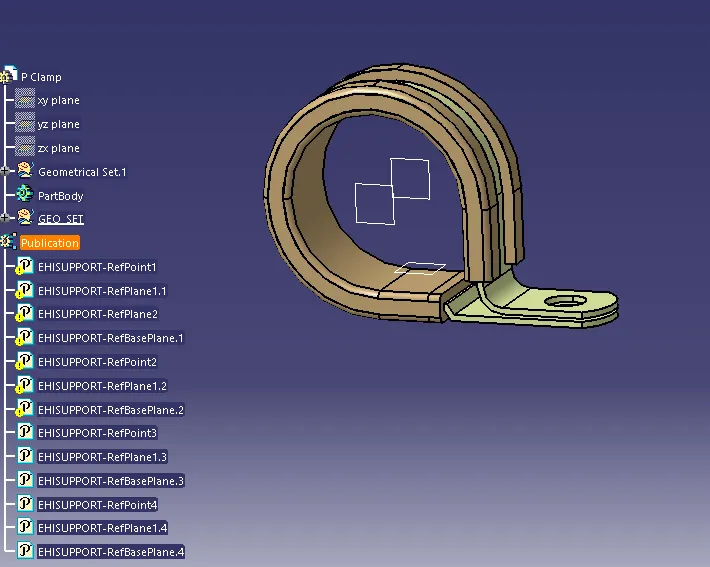

For P Clamp, Following properties are defined-

Entry Point and entry Plane

Exit Point and Exit plane

Base plane

Q2. Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.

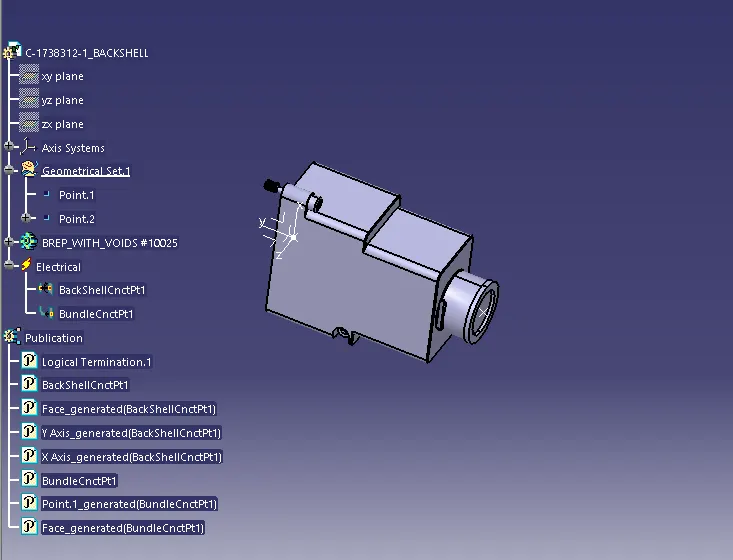

For the give Backshell following el. properties are defined-

It is defined as a backshell.

Electrical Properties-

1. Backshell COnnection Point- to the poit as origine taken on mating surface with connector.

At same point, axis system is defined.

2. Bundle Connection Point is on other end, where bundle get connected.

Q3. Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.

Name	ID (mm)	OD (mm)	Thickness (mm)
15mm COT	12	15	1.5
20mm COT	17	20	1.5
35mm COT	32	35	1.5
10mm COT	7	10	1.5
5mm COT	3	5	1

ANS-For provided input, corrugated tubes are created and added in a catalogue namedd Slit COT family.

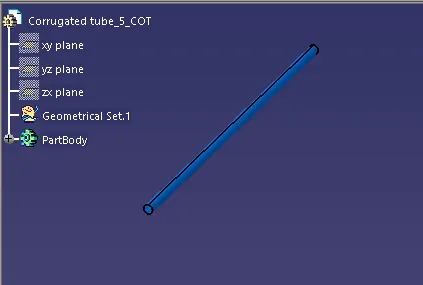

(a tube ID 3 mm, OD 5mm and Thickness 1 mm is shared here as exmaple)
