Wiring harness routing & packaging Rules Week 3 Challenge
WIRING HARNESS ROUTING AND PACKAGING RULES
1. Define Electrical Support using Electrical Part Design

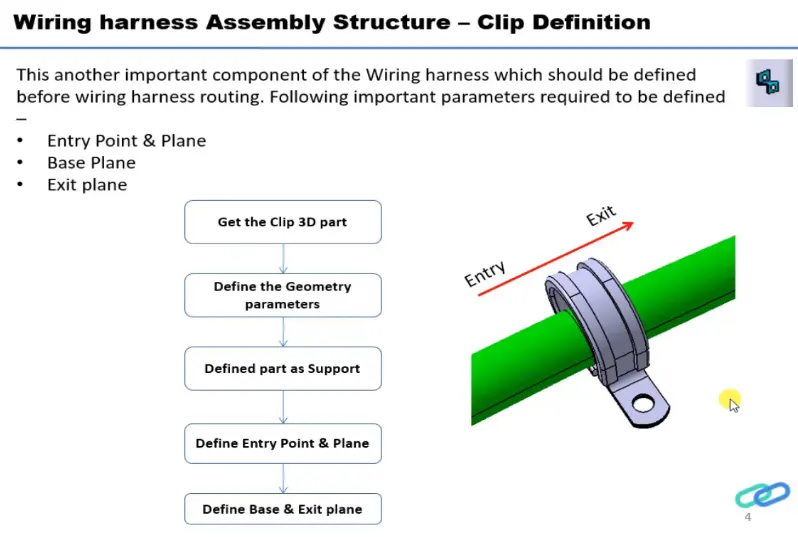

P-CLAMP
WORKING PROCESS:

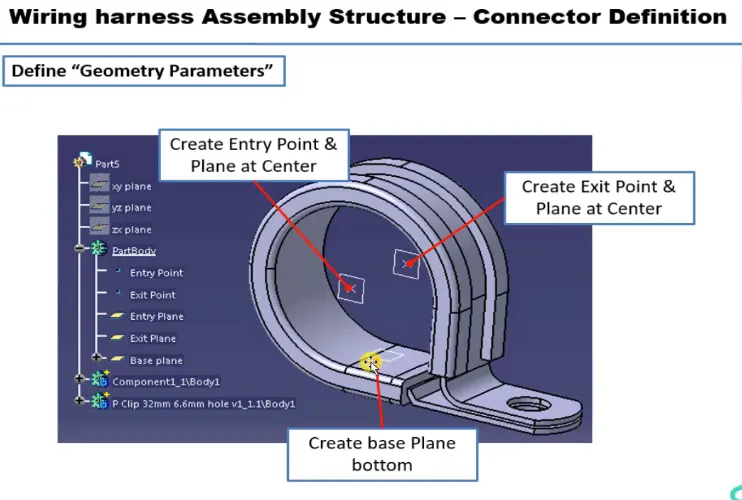

- Create two points one as entry and another as exit point.
- Create planes at two points and another at base.
- Switch to Electric part design.

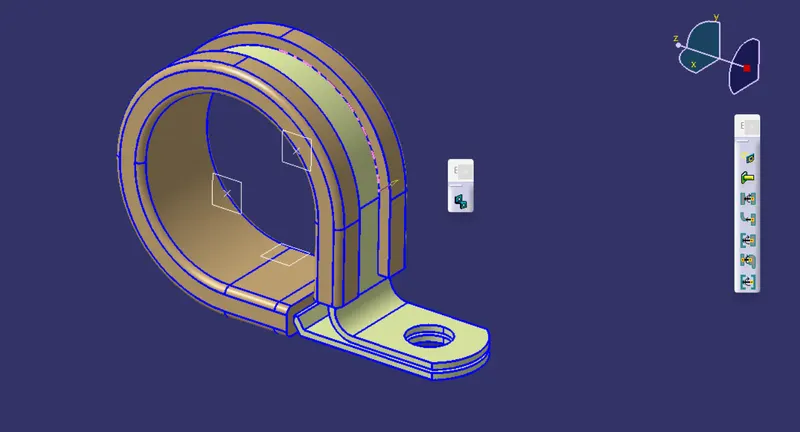

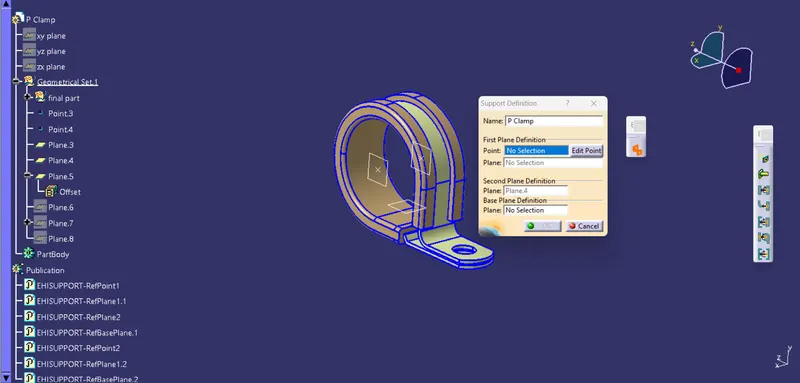

- Click on support defination - select part - select entry point - select entry plane, exit and base plane.
- Again Click on support defination - select part - select exit point - select exit plane and base plane as secondary plane is automatically taken.

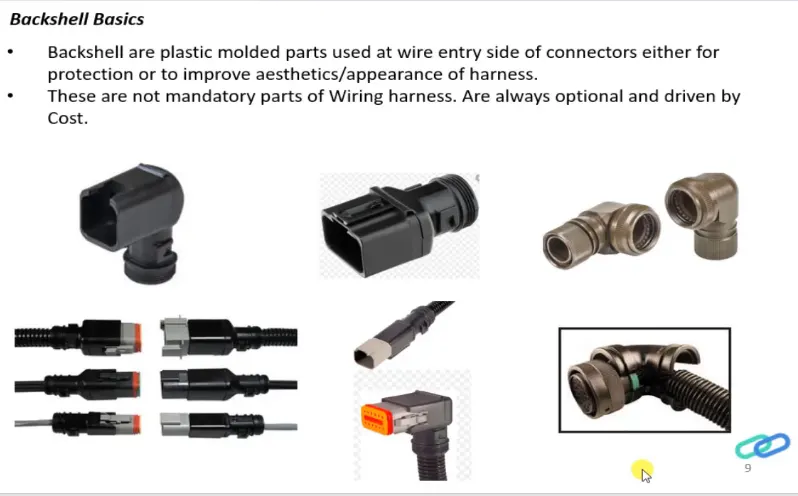

2.Electrical back shell using Electrical Part design Workbench
WORKING PROCESS:

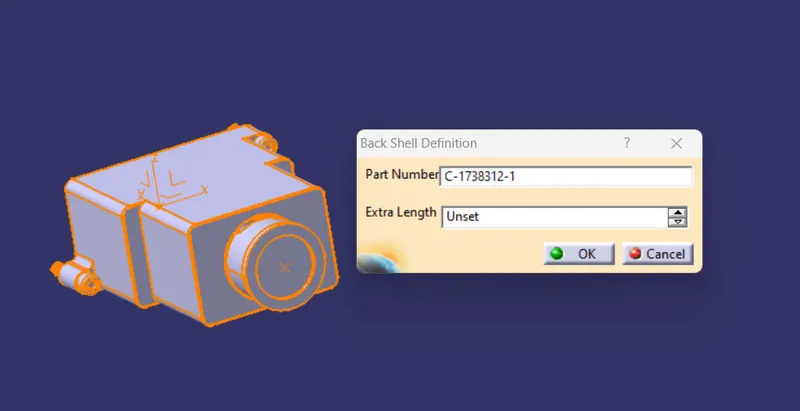

- Create backshell definition to click the module it will defined.

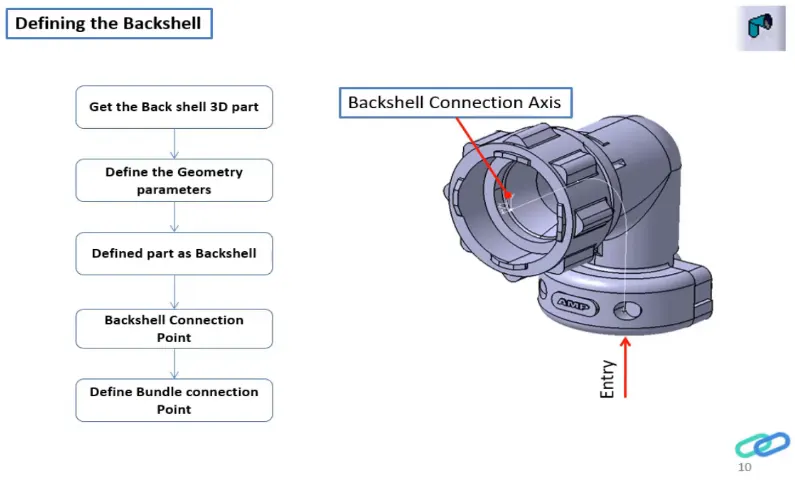

- Create Back shell entry point.
- Create axis system for back shell entry.
- Create bundle connection point.
- Switch to Electrical part design.
- Define part electricaly as back shell.

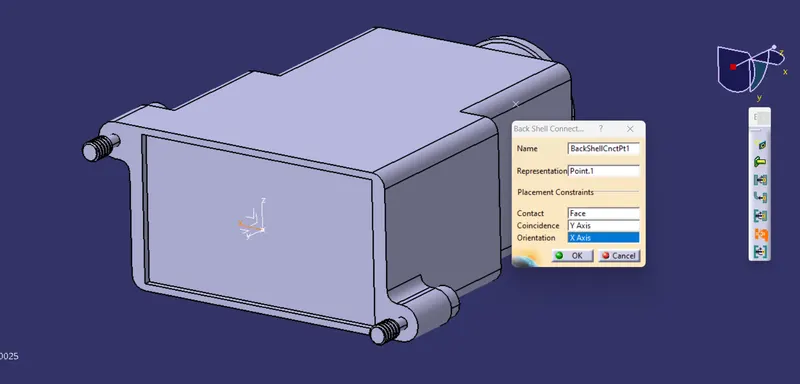

- Then define Back shell connection point.

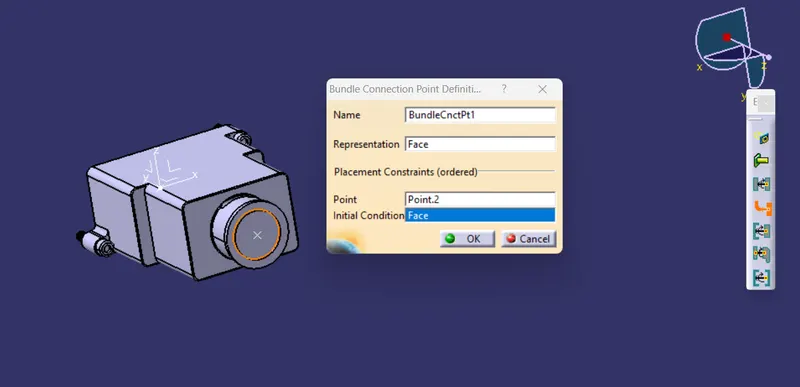

- Define the bundle connection point.
Q3. Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.
|
Name |
ID (mm) |
OD (mm) |
Thickness (mm) |
|

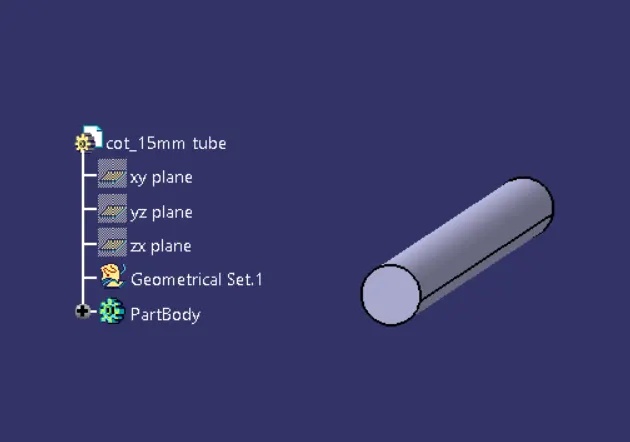

15mm COT |
12 |
15 |
1.5 |
|
20mm COT |
17 |
20 |
1.5 |
|
35mm COT |
32 |
35 |
1.5 |
|
10mm COT |
7 |
10 |
1.5 |
|

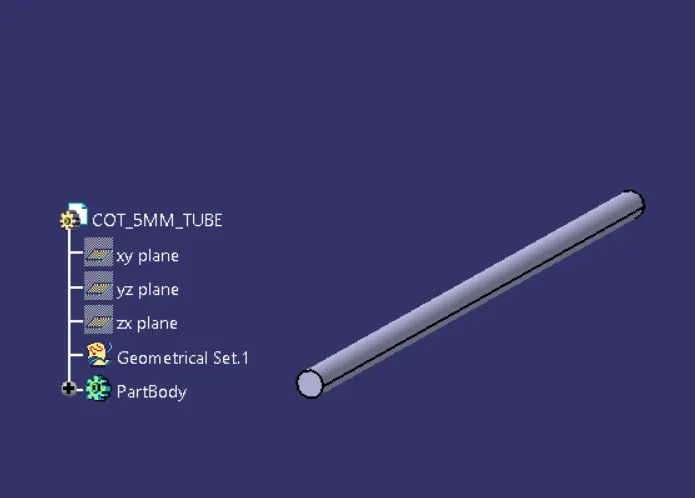

5mm COT |
3 |
5 |
1 |

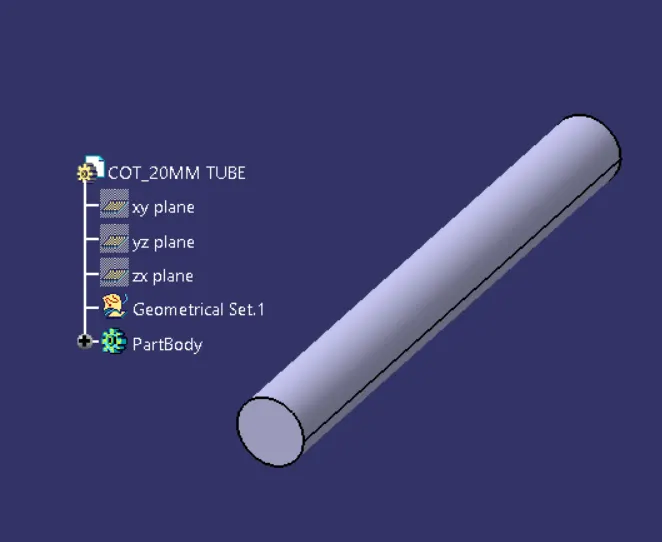

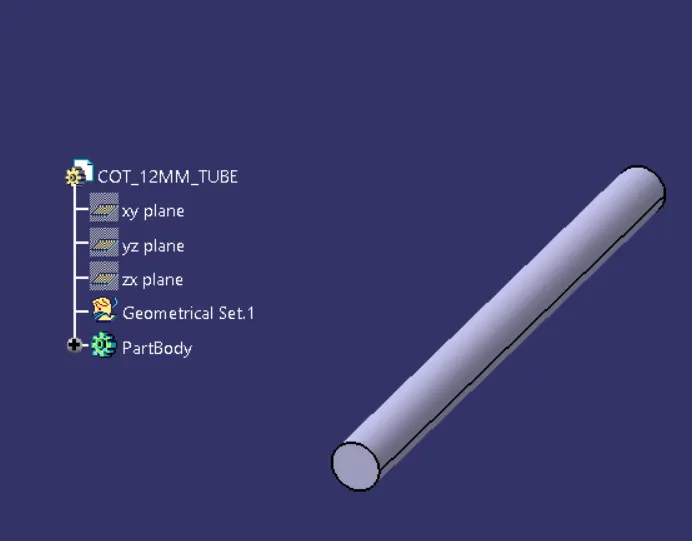

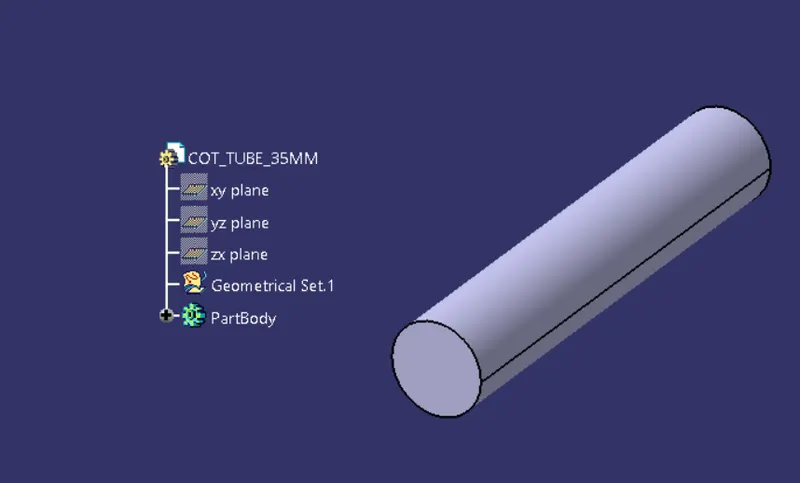

WORKING PROCESS:
- Switch to Electrical part design
- Select Define protection Part
- Click on part (on file name in specification tree)

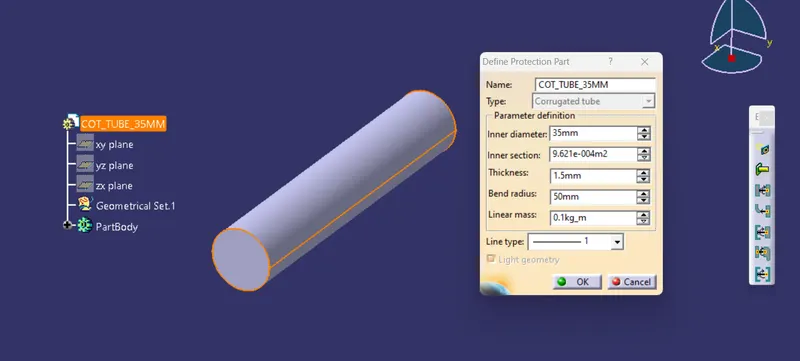

- Provide given parameters and bend radius as '1.5 x Outer Dia'.
CATALOGUE CREATION
- New part - catalogue document - add family - give name - type - select Conduit - save.

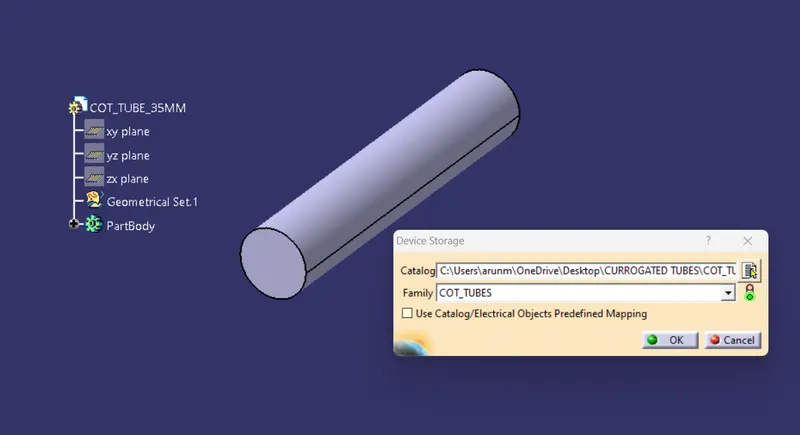

- Open part to add catalogue - store device command - select catalogue - family - Slit_cot_tube - ok.
