Wiring harness routing & packaging Rules Week 3 Challenge
P Clamp

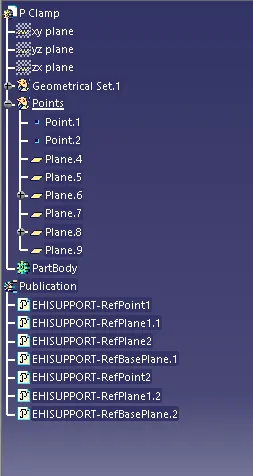

Steps for defining the P Clamp is mentioned below,

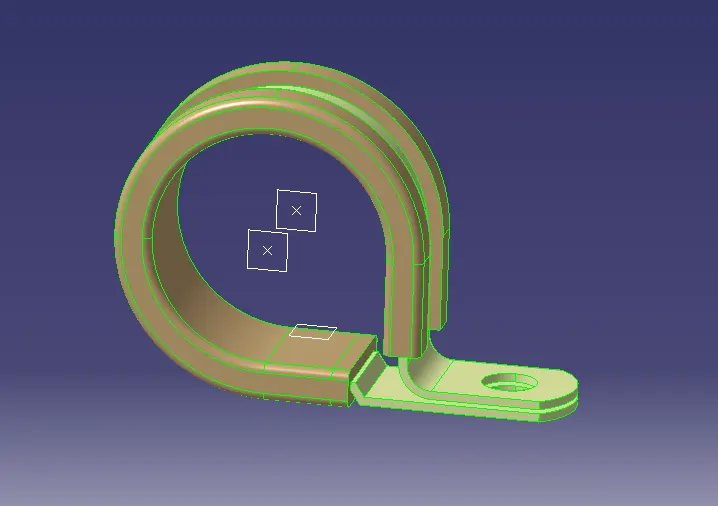

The defined P clamp is mentioned below,

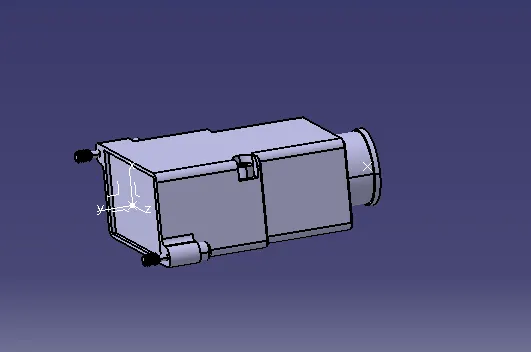

BACK SHELL

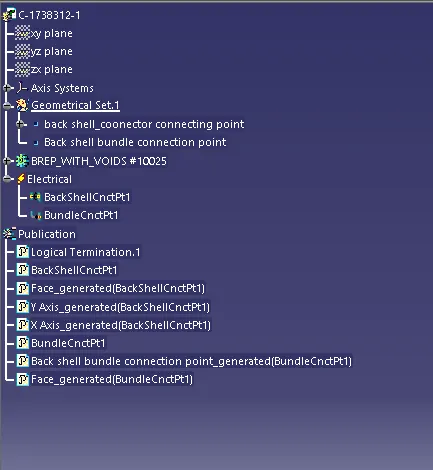

The given back shell (Tyco 1738312-1) is defined electricaly by following the steps,
COT TUBE

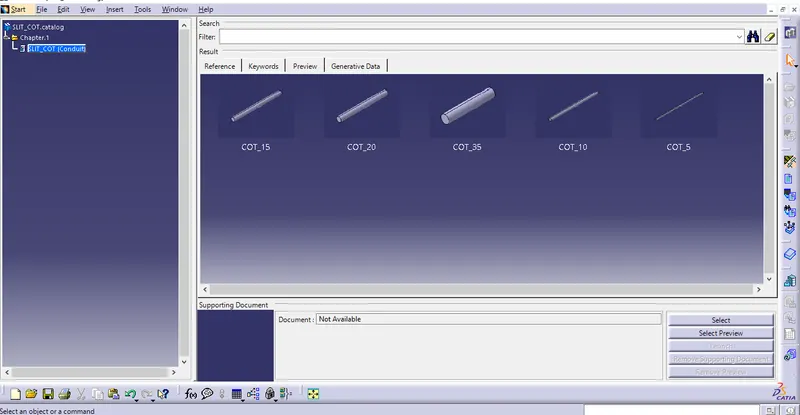

- From the given data we created the cot tubes, the given data is mentioned below.
|
Name |
ID (mm) |
OD (mm) |
Thickness (mm) |
|
15mm COT |
12 |
15 |
1.5 |
|
20mm COT |
17 |
20 |
1.5 |
|
35mm COT |
32 |
35 |
1.5 |
|
10mm COT |
7 |
10 |
1.5 |
|
5mm COT |
3 |
5 |
1 |

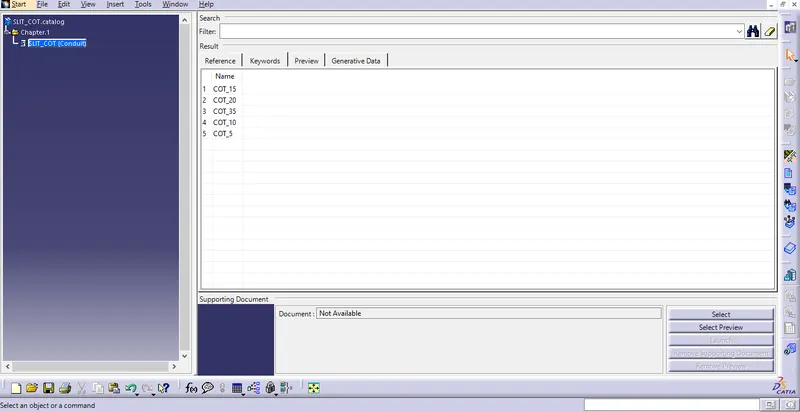

- Cot tube are protective covering. It is developed by following steps
