Week 8 - Challenge 3 - Coin Holder Design

AIM - Create the Coin Holder Plastic component through the given Class-A surface

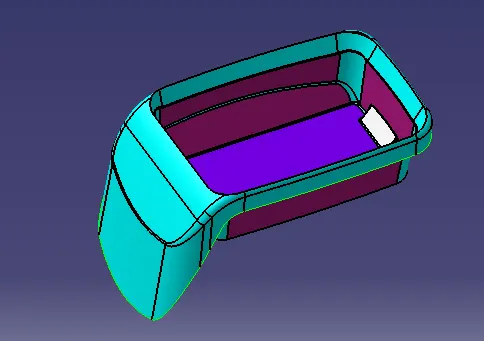

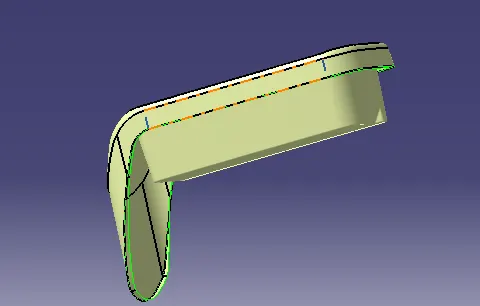

CLASS A SURFACE

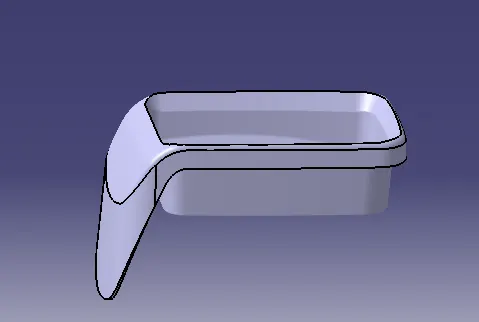

STEP 1 - Check the connectivity/continuity of the surface using the boundary tool or the close surface tool.

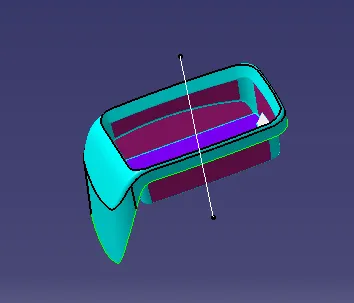

STEP 2 - TOOLING AXIS

• Check the best tooling direction by visualy considering the cost factor in mind

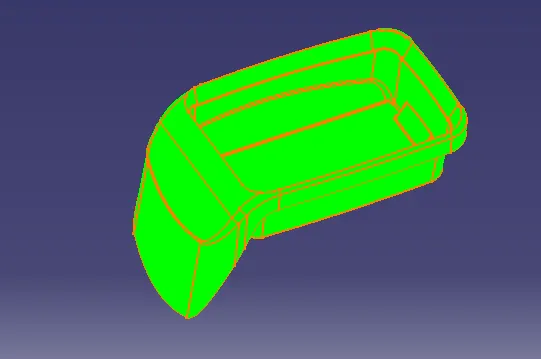

STEP 3 - DRAFT ANALYSIS OF CLASS A

• DRAFT ANGLE IS 3

STEP 4 -CLASS B SURFACE

• Extracting the surfaces from class A ,then Untrim and Extrapolate.
• Thickness of the component to be 2.5 mm

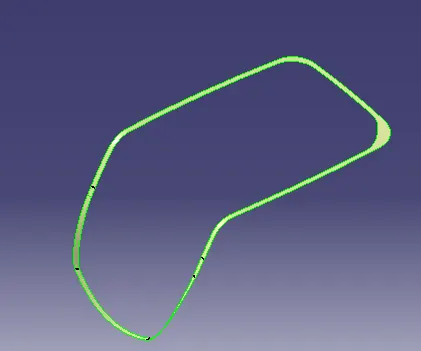

STEP 5 - CLASS C SURFACE

• Using the tooling axis and class A surface in sweep tool we got the c surface

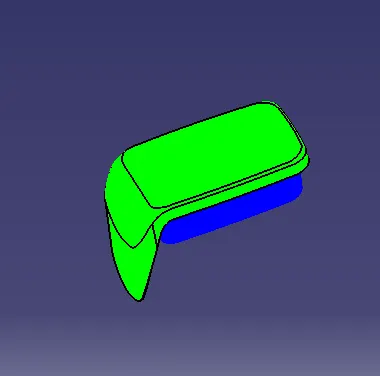

STEP 6 - CLASS A +CLASS C

• Join the class A and class C

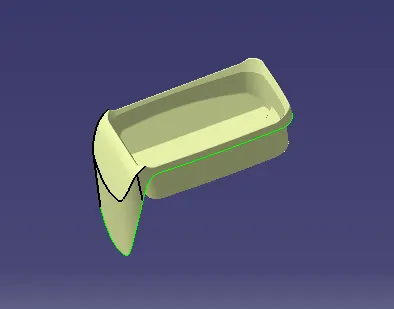

STEP 7 - COIN HOLDER

• Trim the joined part with class B surface we get the coil holder surface

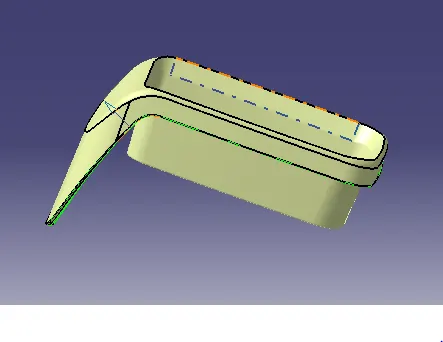

STEP 8 - CLOSED PART OF COIN HOLDER

• Using the Close surface tool in part workbench we got the solid part of coin holder.

STEP 9 - DRAFT ANALYSIS OF PART

• Draft angle is 3 is used here

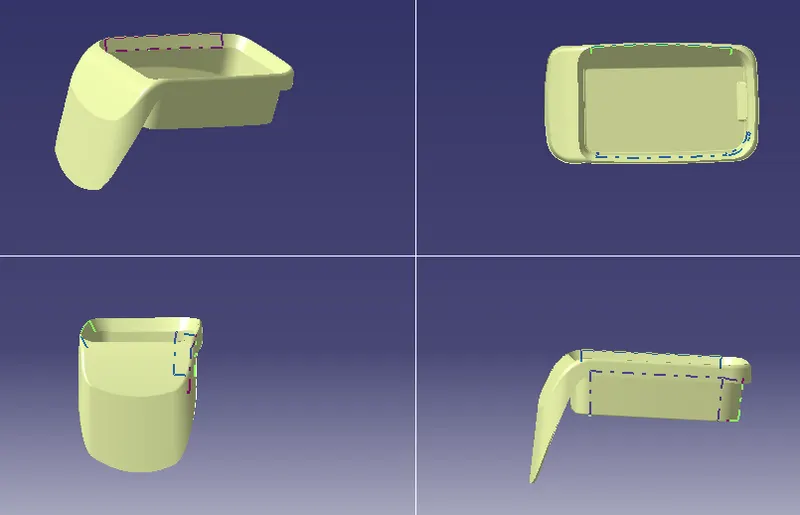

Screenshots of various orientations (Isometric, Front, Side, and Top View)
