Wiring harness routing & packaging Rules Week 3 Challenge

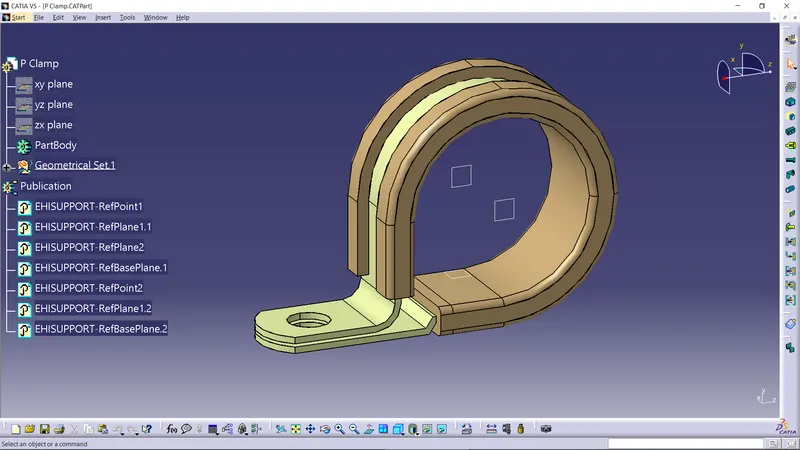

P Clamp: It is used to mount the houses, Wire bundles, pipes and more

1. Define the geometry parameters like entry point and exit point and add 3 planes at entry exit and at the base.
2. In Electrical Design Part define it as support.
3. Define entry and exit point from both the sides by selecting reference plane and base plane and add it clamp catalog.

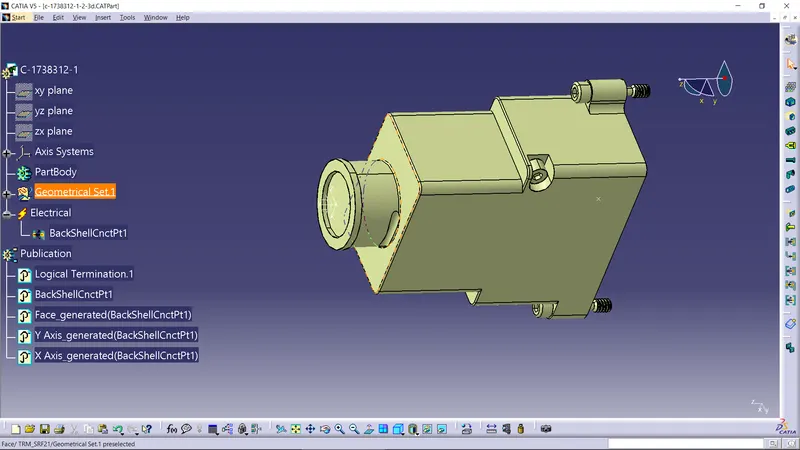

Tyco 1738312-1 Backsell: It is used for protection of wire entry point or for asthetics.

1. Define geometry parametrs like point and axis system for backsell connecting point.
2. Define part as a backshell and define backshell coneection point using axis system.
3. add it to backshell catalog.

Corrugated Tubes: They are used as a protection for wire bundles, and for asthetics.

1. Create covering 3D part in Electrical part design followed by creating catalog as Slit COT and add all the Corrugated tubes created to Slit COT catalog.
2. Define protection part and select the part body and give dimensions inner diameter as 12mm and thickness as 1.5mm and bend radius as 22.5mm. The COT will be created as we define the dimensions.
3. Do the same for inner diameters: 17, 32, 7 ahving thicness as 1.5mm and 3(thickness: 1mm)
