Wiring harness design in CATIA V5 - 3D modeling Week 2 Challlenge

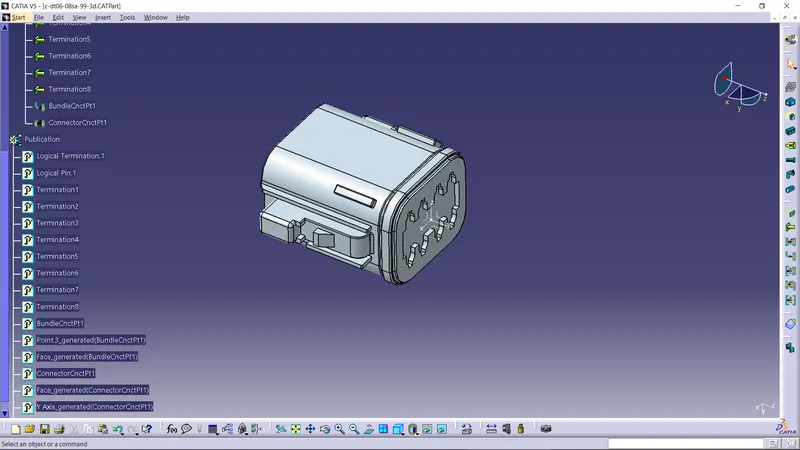

1- Deutsch DT06-08SA :

Steps: a) Mechanical Part Design for the connector, Storage the device using 8 terminals, adding Geometrical parameters like Bundle Point and Connector Connection Point.

b) Defining the Connector and defining connector point and bundle point for electrical Design

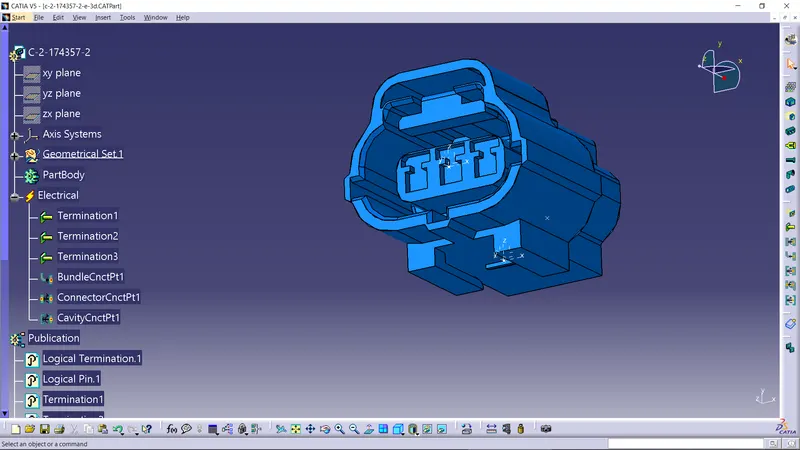

2) Tyco 174357-2:

a) Mechanical Part Design for the connector, Storage the device using 3 terminals, adding Geometrical parameters like Bundle Point and Connector Connection Point.

b) Defining the Connector and defining connector point and bundle point and Connector cavity point for mounting of clip for wire harness assembly.

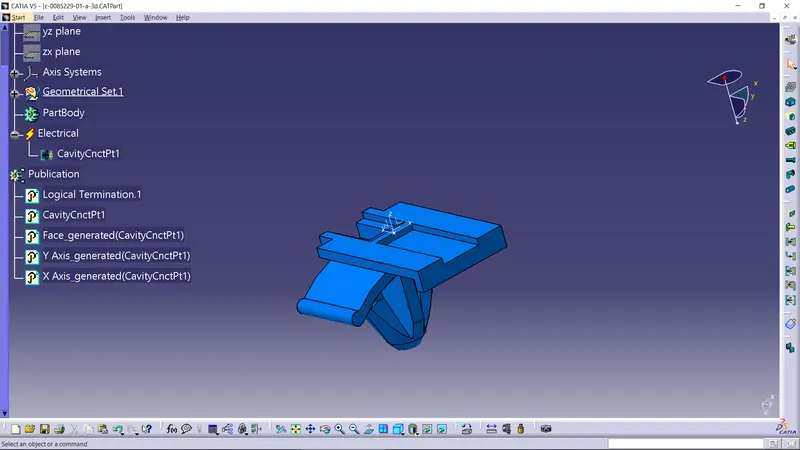

3) Tyco 85229-1 :

a) Mechanical Part Design for the Storage the device, adding Geometrical parameters like Connection cavity Point.

b) Defining the Clip and defining connector cavity point for mounting of clip for wire harness assembly.

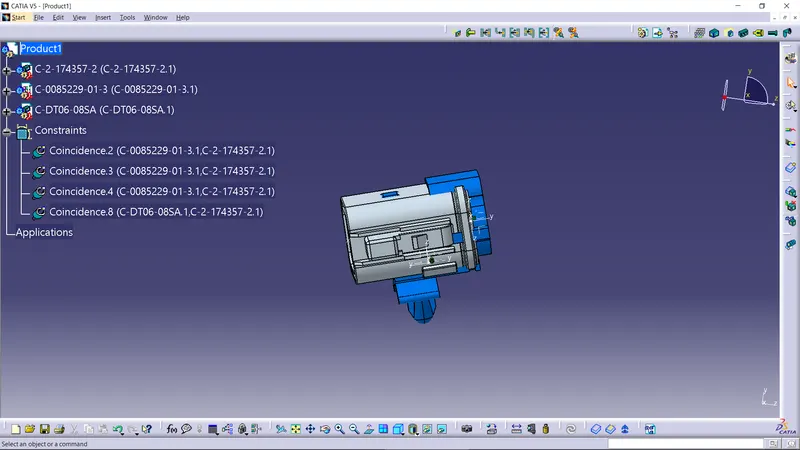

4) Product:

Assembling the Deutsch DT06-08SA connector, Tyco 174357-2 connector and Tyco 85229-1 Clip by using Electrical Assembly Design.
