Wiring harness routing & packaging Rules Week 3 Challenge

Wiring harness routing & packaging Rules Week 3 Challenge

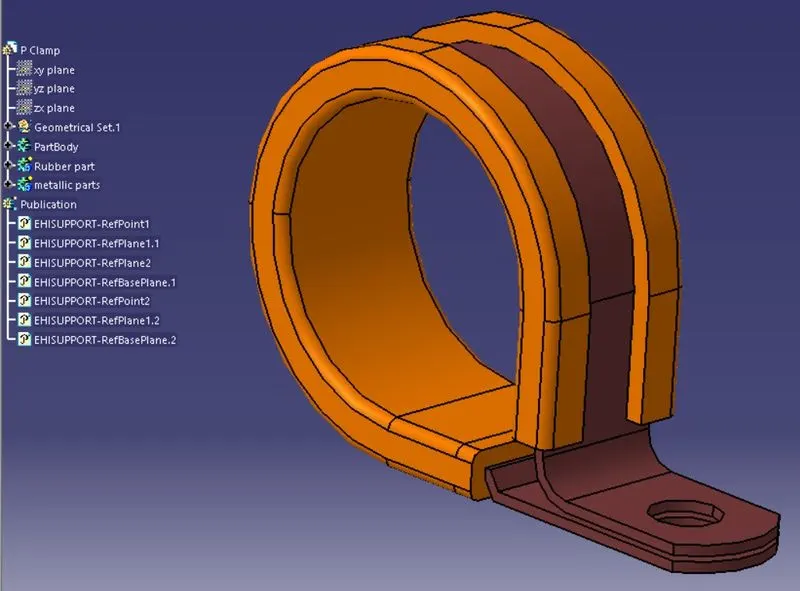

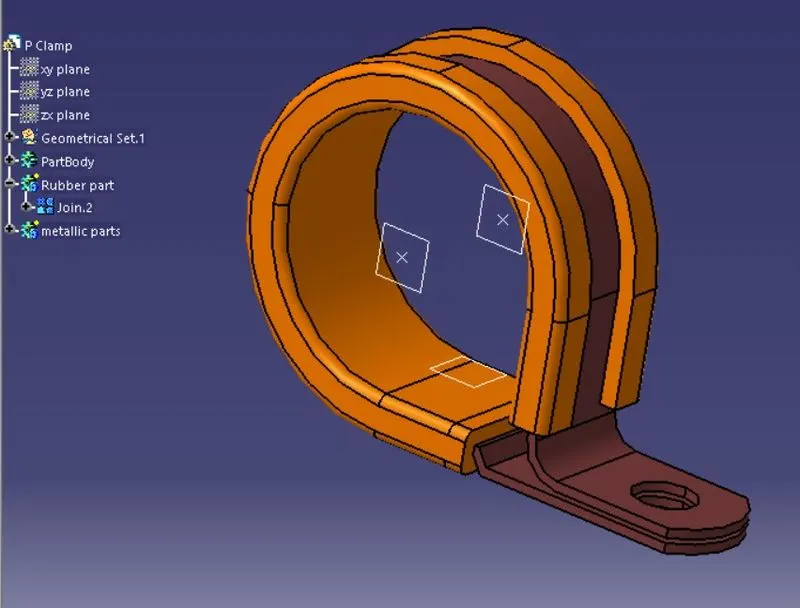

Q1. Download following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.

Ans. P-clamp can be made available as per customer enquiry in stainless steel as well as carbon steel material with customized Diameter & mounting hole. Rubber cushion on surface of band prevents damage to pipe or cable which is being holded by clamp.

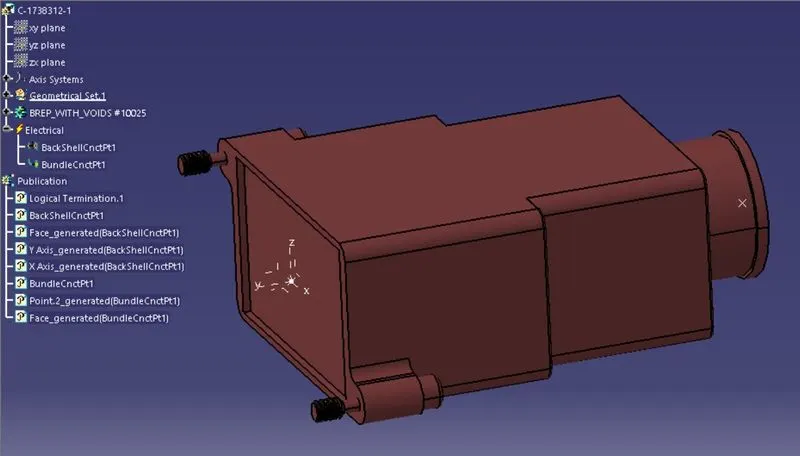

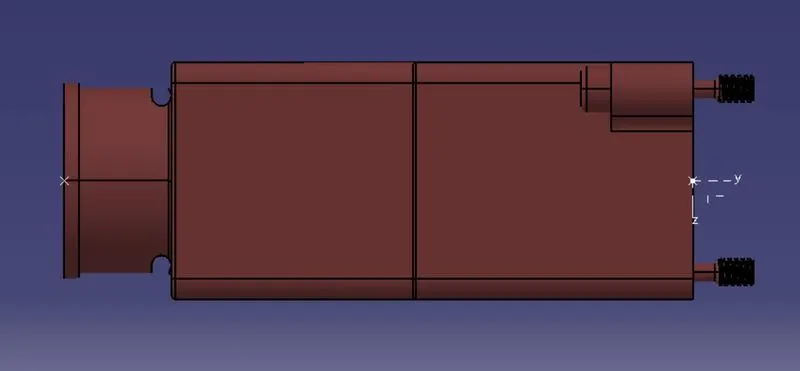

Q2. Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.

Ans. A backshell is a mechanical device threaded into the rear of an electrical connector. The more popular backshells are strain relief, cable clamps and adaptors. The SUNBANK brand offers a wide range of standard and customized backshells for the aviation and defense markets.

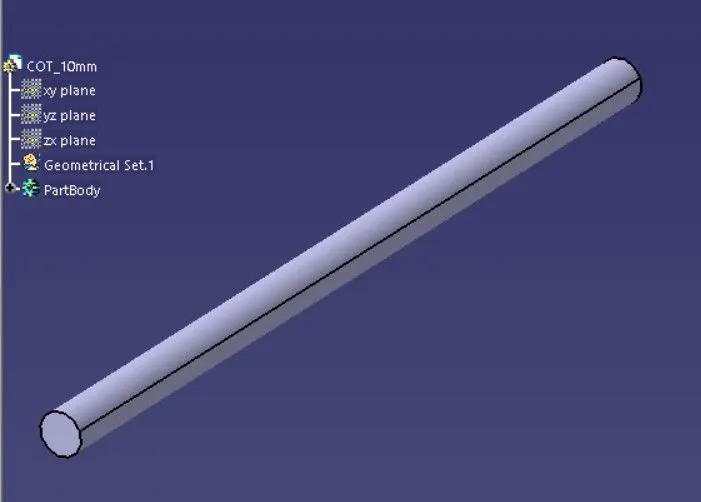

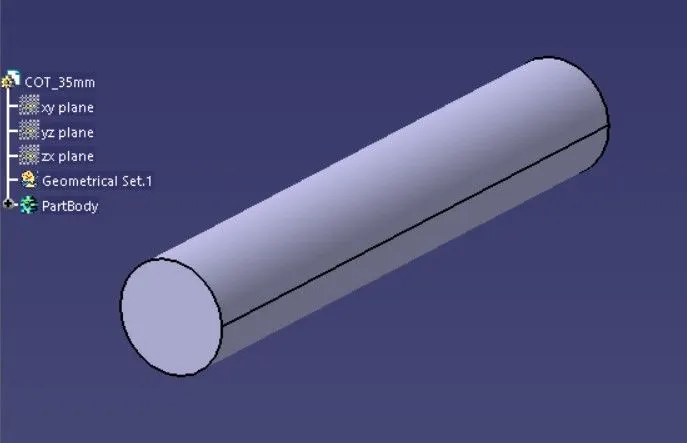

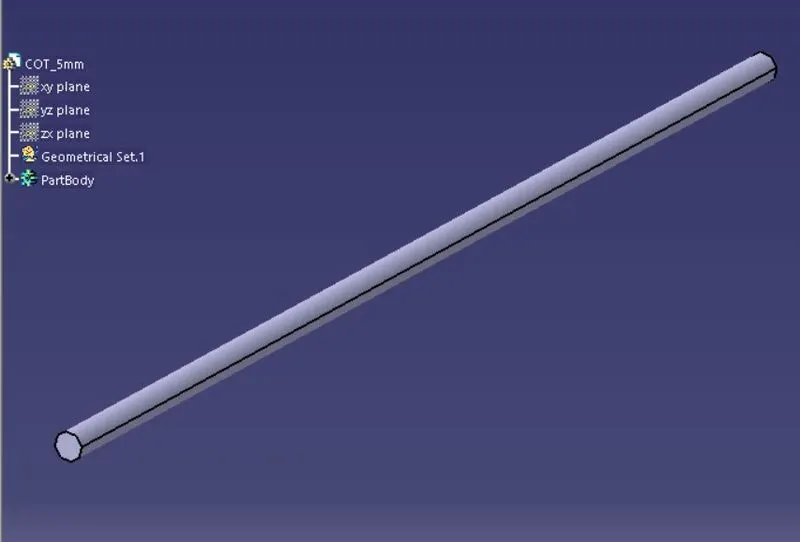

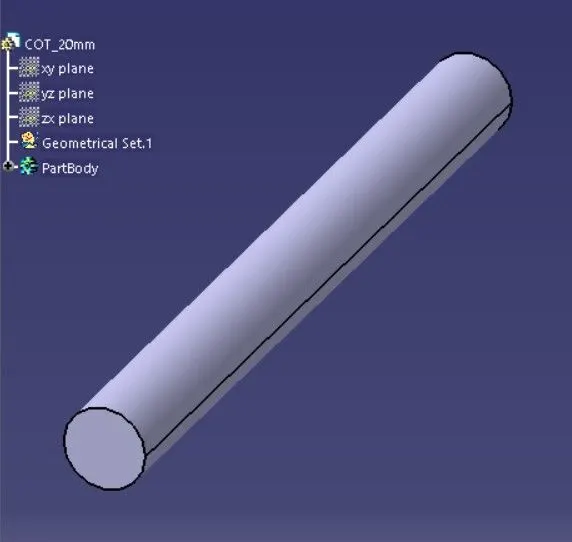

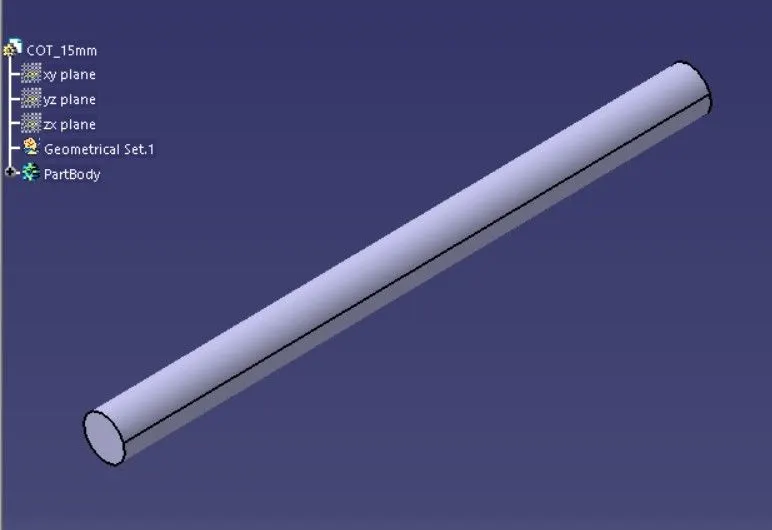

Q3. Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.

Ans. Corrugated Tube is bellows shape and flexible, using for protect the wire harness. It is using for cars, construction machines, farm machines, consumer electronics, house, etc. We also develop functional products, improve the global supply, increase size and color of product.

End of report..........
