Wiring harness routing & packaging Rules Week 3 Challenge

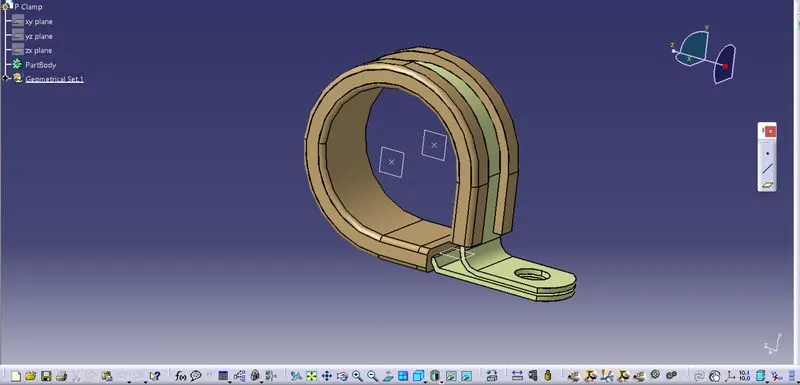

Q1. Download the following cad data & define it as Electrical support using the Electrical Part Design Workbench. Define all the necessary properties.
Answer-
process:

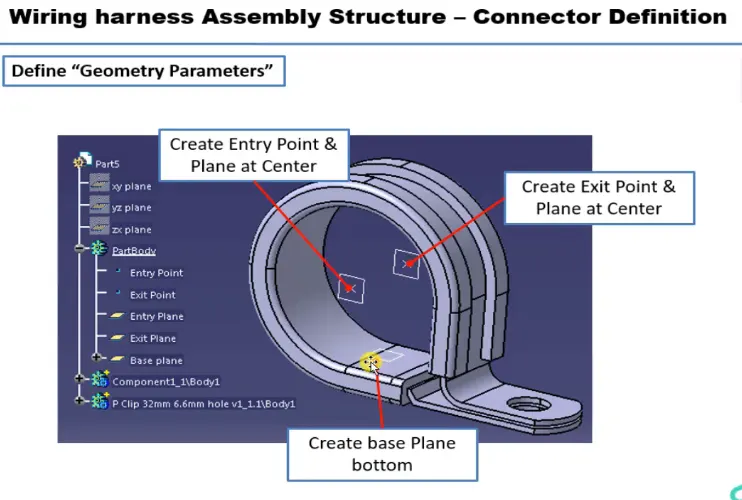

- Create two points one as an entry and another as an exit point.

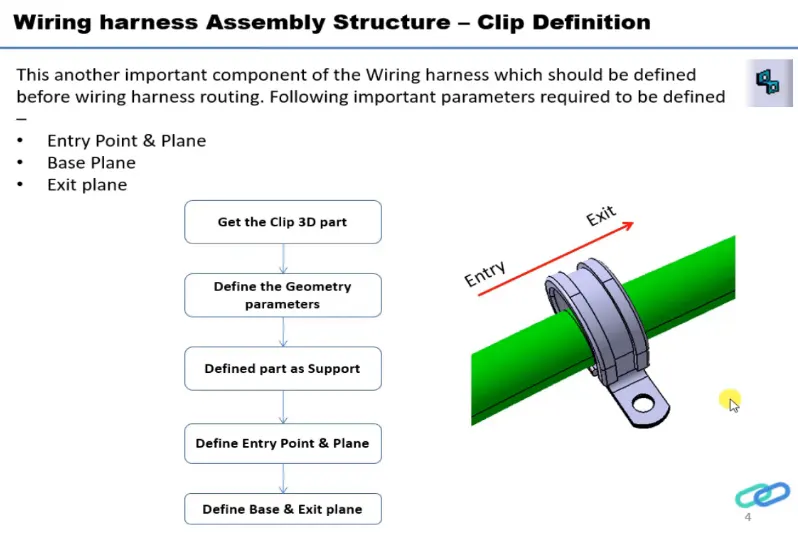

- create planes at two points and another at the base.
- Switch to Electric part design

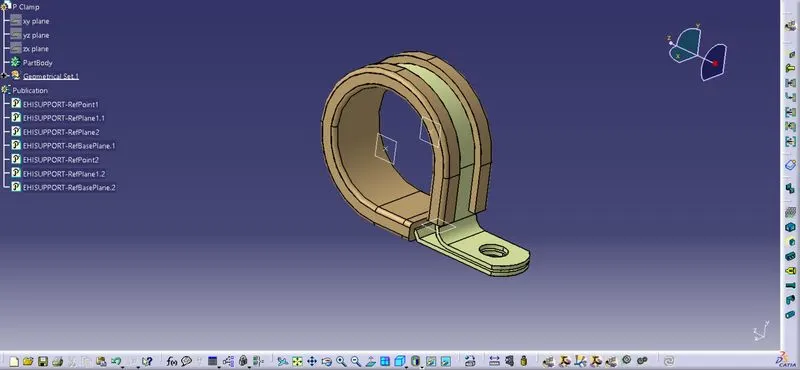

- Click on support definition - select part - select entry point - select entry plane, exit, and base plane.
- Again Click on support definition - select part - select exit point - select exit plane and base plane as the second plane is automatically taken.

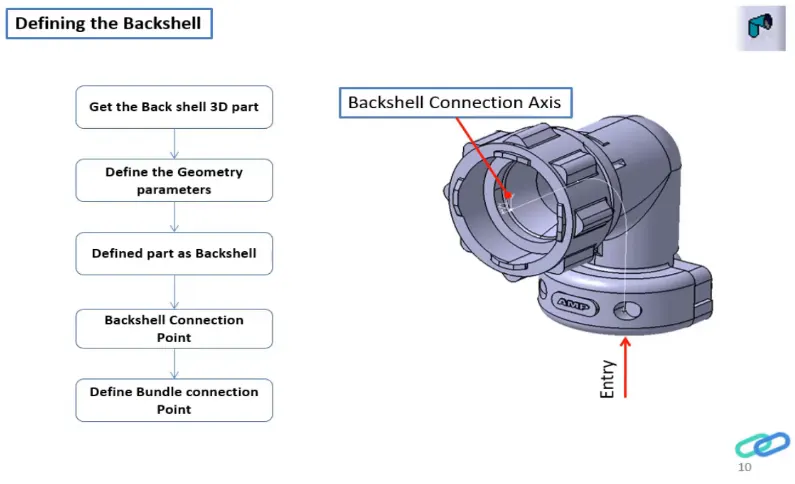

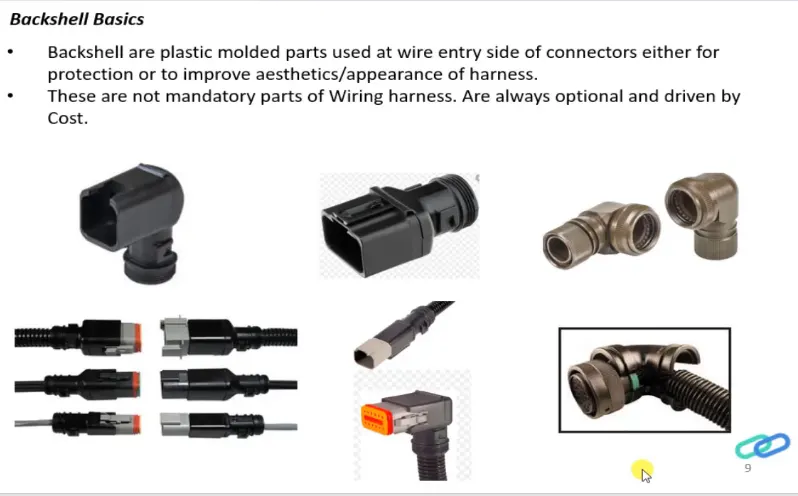

Q2. Download the following Back shell cad data & define it as an Electrical back shell using the Electrical Part Design Workbench. Define all the necessary properties.
Tyco 1738312-1 https://www.te.com/usa-en/product-1738312-1.html
Answer-
Process:

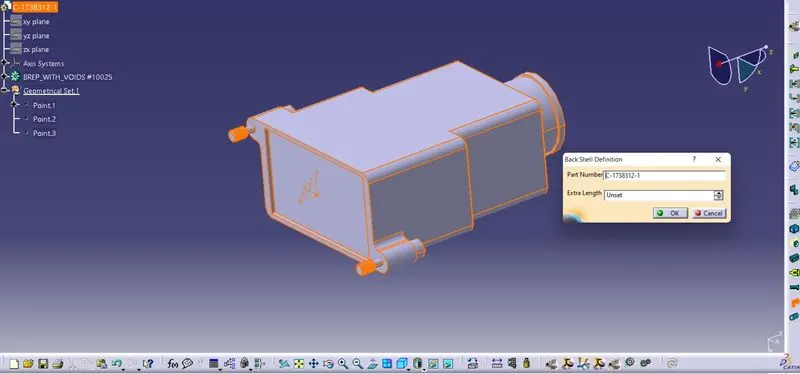

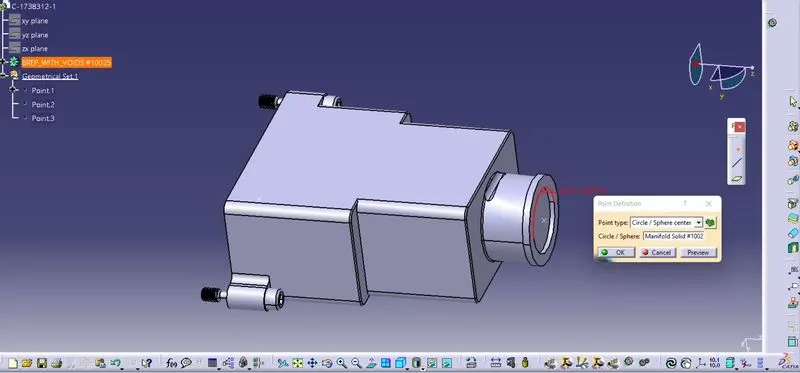

- create a Backshell entry point.

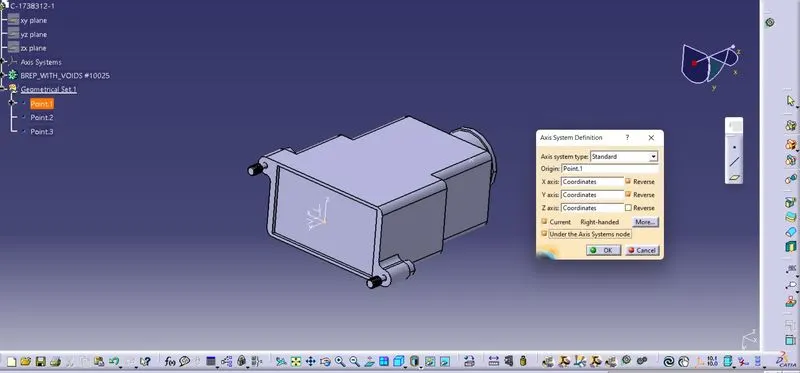

- create an axis system for back shell entry.
- create bundle connection point.
- switch to Electrical part design.
- Define the part electrically as a back shell.

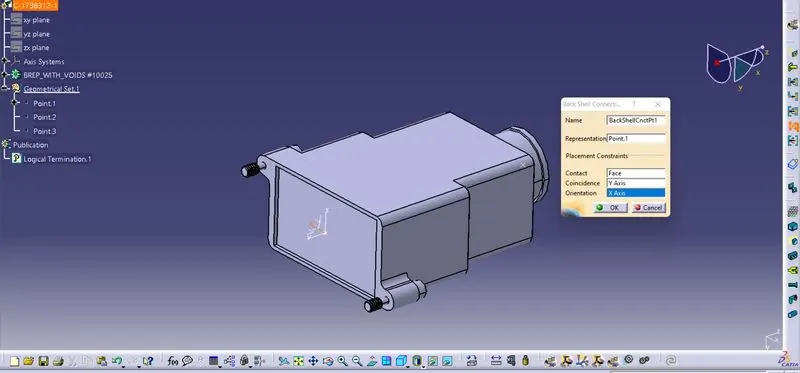

- Then define the Backshell connection point.

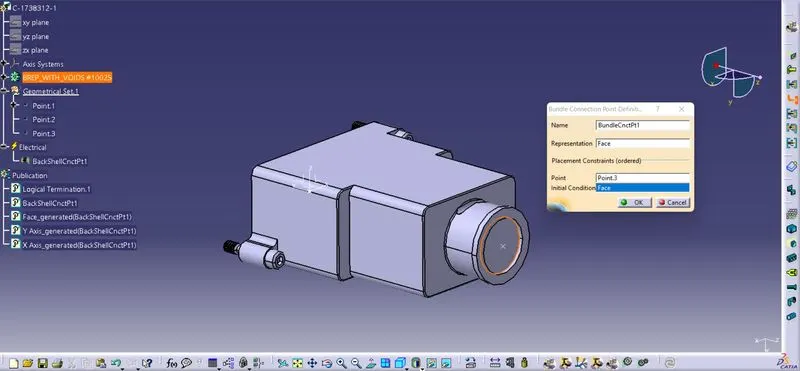

- Define bundle connection point.
Q3. Create the Following Corrugated tubes & Add them to Catalogue under “Slit COT” family.
|
Name |
ID (mm) |
OD (mm) |
Thickness (mm) |
|
15mm COT |
12 |
15 |
1.5 |
|
20mm COT |
17 |
20 |
1.5 |
|
35mm COT |
32 |
35 |
1.5 |
|
10mm COT |
7 |
10 |
1.5 |
|
5mm COT |
3 |
5 |
1 |
Process:
- Switch to Electrical part design
- Select Define protection Part
- Click on part (on the file name in the specification tree)
- Provide given parameters and bend radius as '1.5 x Outer Dia'.
Catalogue Creation:

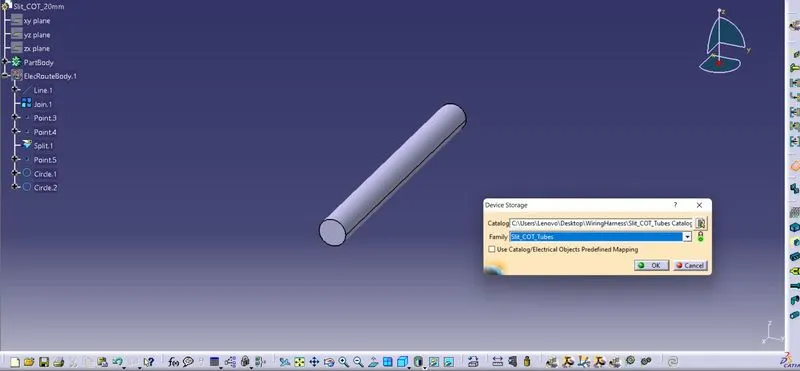

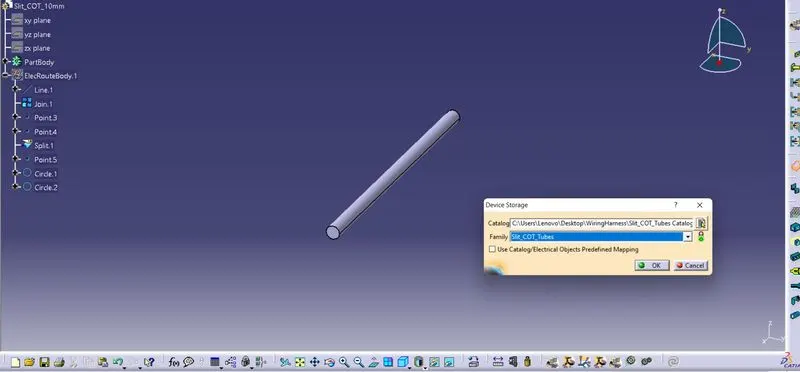

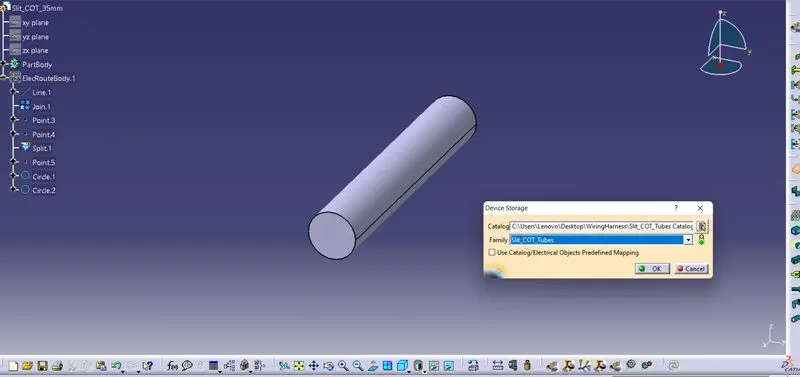

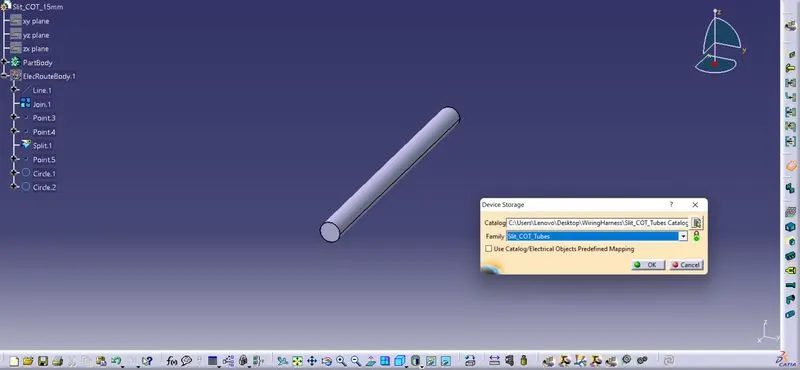

- The new part - catalogue document - add family - give name - type - select Conduit - save.

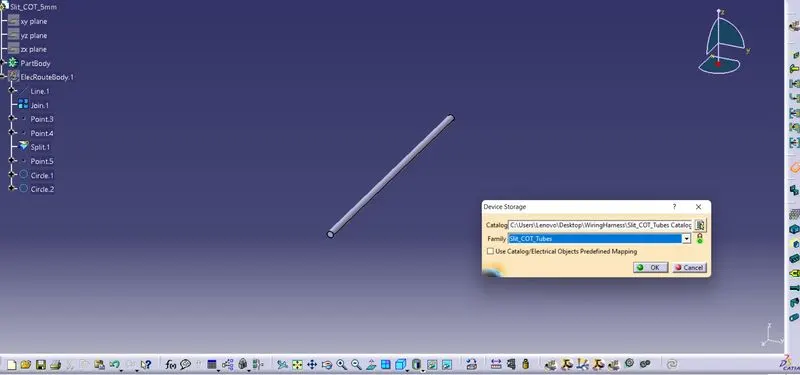

- Open part to add catalogue - store device command - select catalogue - family - Slit_cot_tube - ok
