Wiring harness routing & packaging Rules Week 3 Challenge

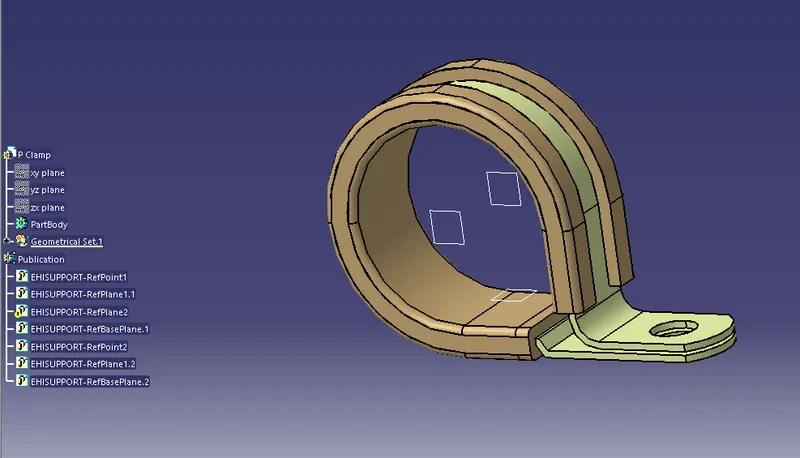

1) In this the P clamp is downloaded in to CATIA work bench, wire entry and exit points with their respective planes are created with base plane as well using part design. Using Electrical part design the the clamp is defined as a support part and necessary provisions defined for wire entry and exit part.

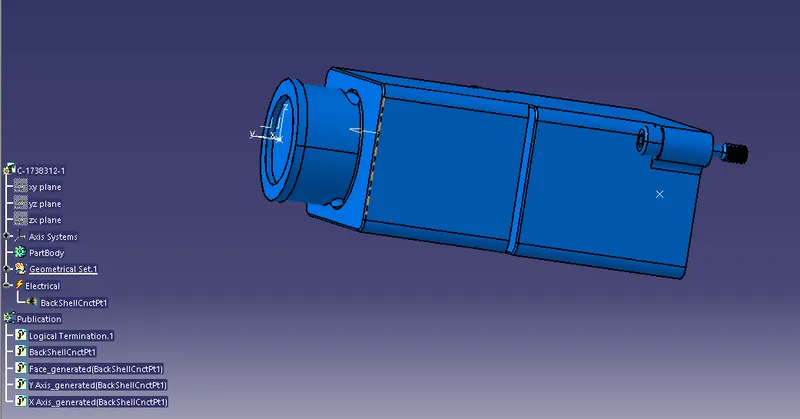

2) In this the rectangular backshell is downloaded in to CATIA work bench, wire entry point and backshell connection point and its axis are created using part design, using Electrical part design, the backshell is defined electrically and the backshell conection point is also defined.

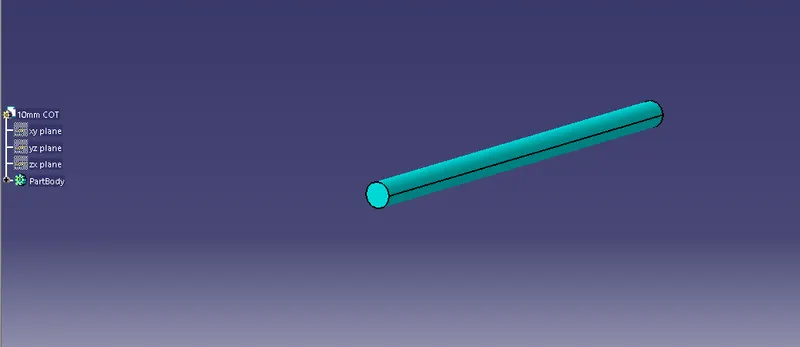

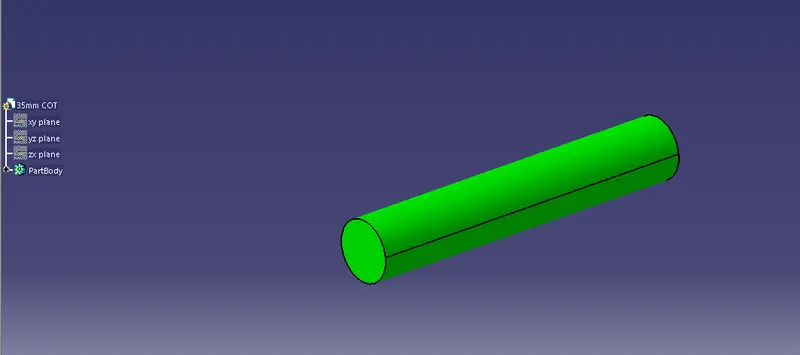

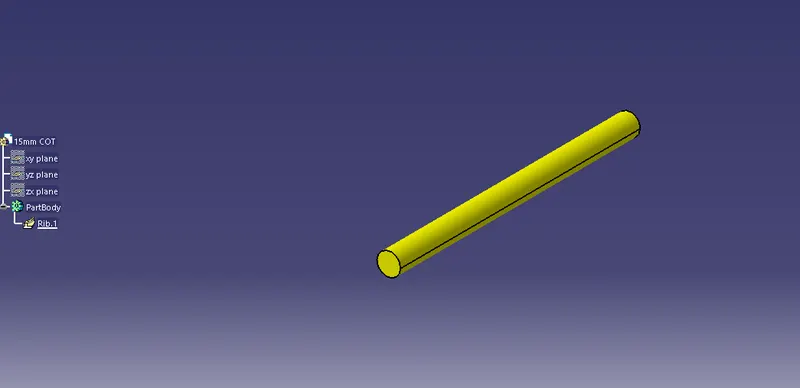

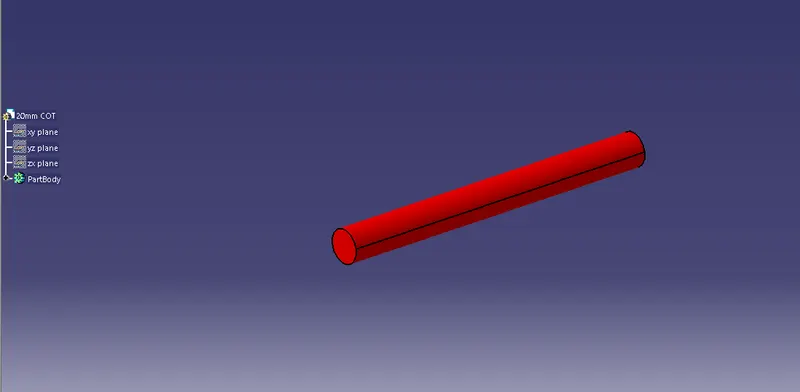

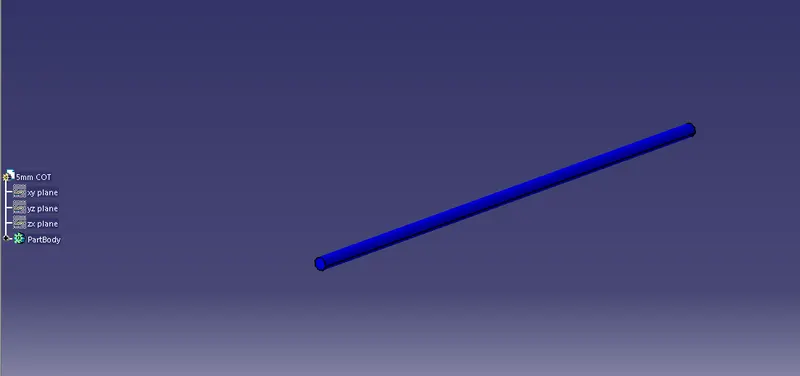

3) In this "Slit COT" catalogue is created and the above mentioned COT tubes are created using Define Protection Part under Electrical part design with all the above mentioned dimensions and saved in to the "Slit COT" catalogue.

All the necessary CAT files and images are attached
