Wiring harness design in CATIA V5 - 3D modeling Week 5 & 6 Challenge

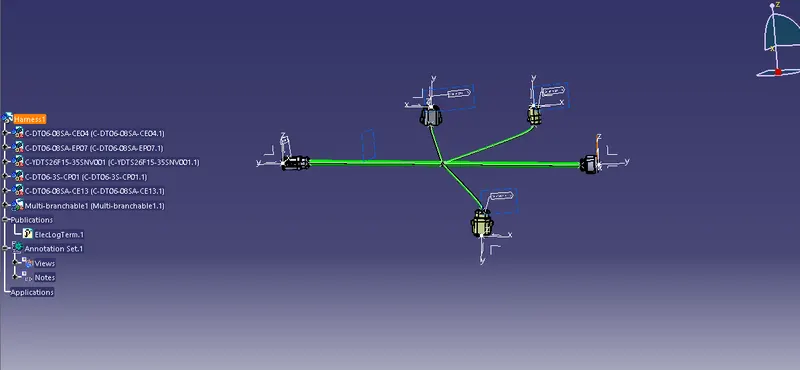

As per the image attached below Harness 1 is created. All the connectors are downloaded and all the necessary electrical parameters of all the connectors are defined and assembled as shown in the image in electrical harness assembly and 3D annotations are added.

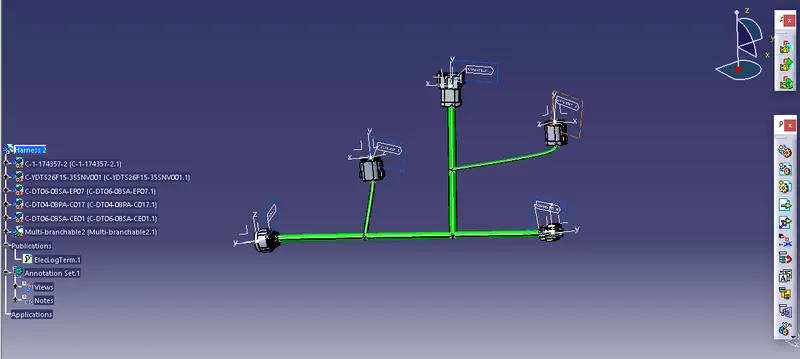

As per the image attached below Harness 2 is created. All the connectors are downloaded and all the necessary electrical parameters of all the connectors are defined and assembled as shown in the image in electrical harness assembly and 3D annotations are added

As per the image attached below Harness 1&2 are electrically connected using electrical assembly design created.

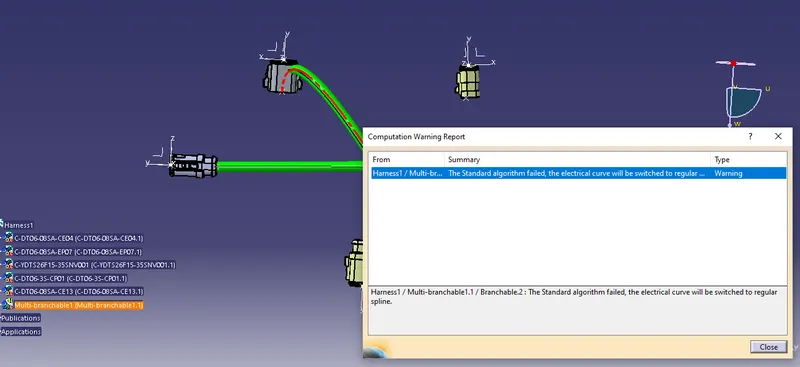

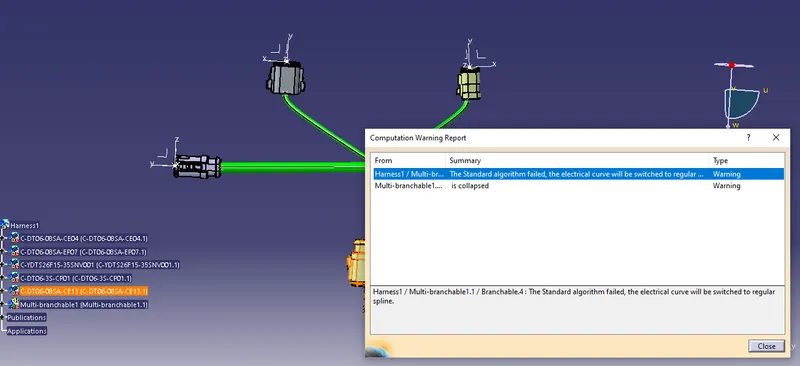

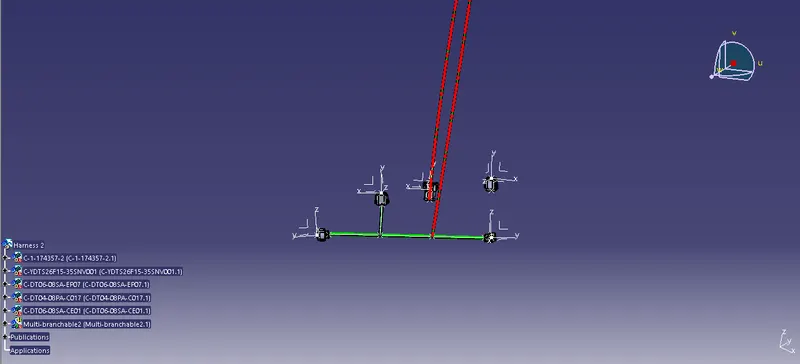

As per images attached below the harness bundle warnings are due to improper bend radius and improper bundle direction respectively can be corrected by giving proper bend radius and changing bundle direction respectively.

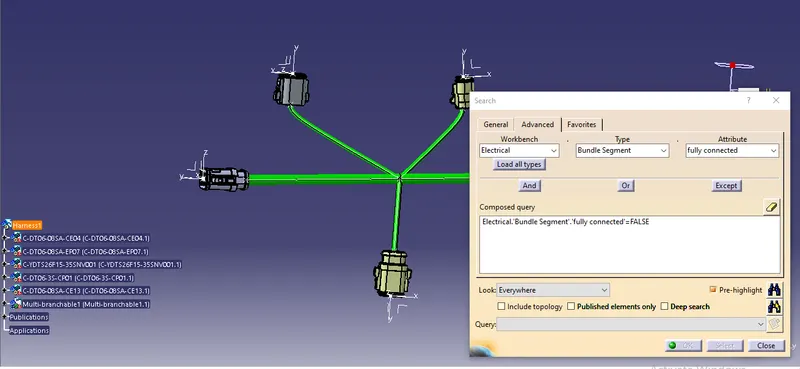

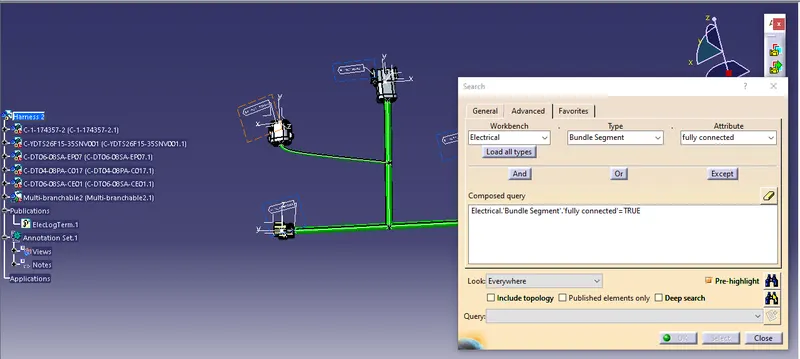

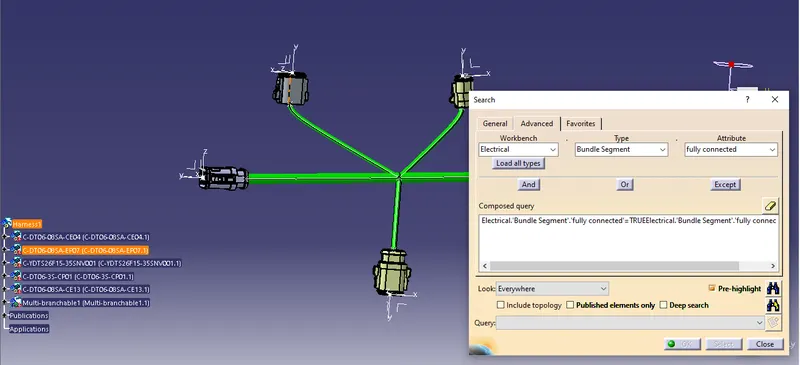

As per the image attached below the bundle continuity is checked for both Harness 1 and 2 and the results turned out to be fully connected for both true and false conditions.

All the necessary CAT part files and IGS files are attached

Note: Week 4 assignment Zip file is also attached
